Hammer/Beater Mill
28 มีนาคม 2566
ผู้ชม 191 ผู้ชม
SUMMARY
A system of milling seeds, nuts and other biomass using a rapidly rotating cross-bar. The size of the milled products is dictated by the aperture of the mesh at the base of the milling chamber.
The feed rate is passively controlled to avoid over feeding to the chamber.
FEATURES & BENEFITS
- Easy access to processed Biomass
- Passive controlled feed system
- Changeable mesh plate for different size and pellets
- Sample On/Off control
- Lock-out safety switch to protect operators
GROUND SAMPLE COLLECTING SYSTEM

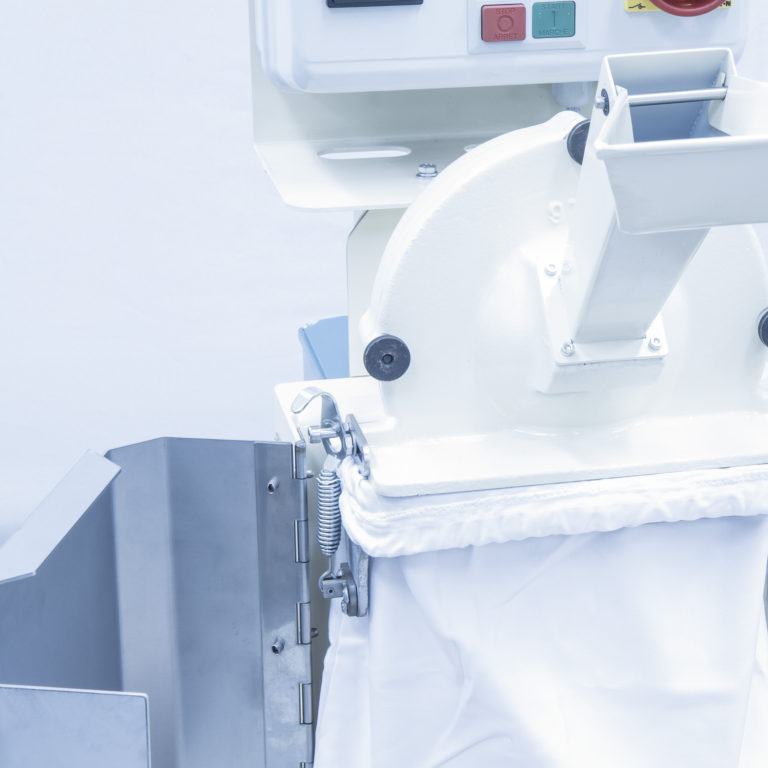

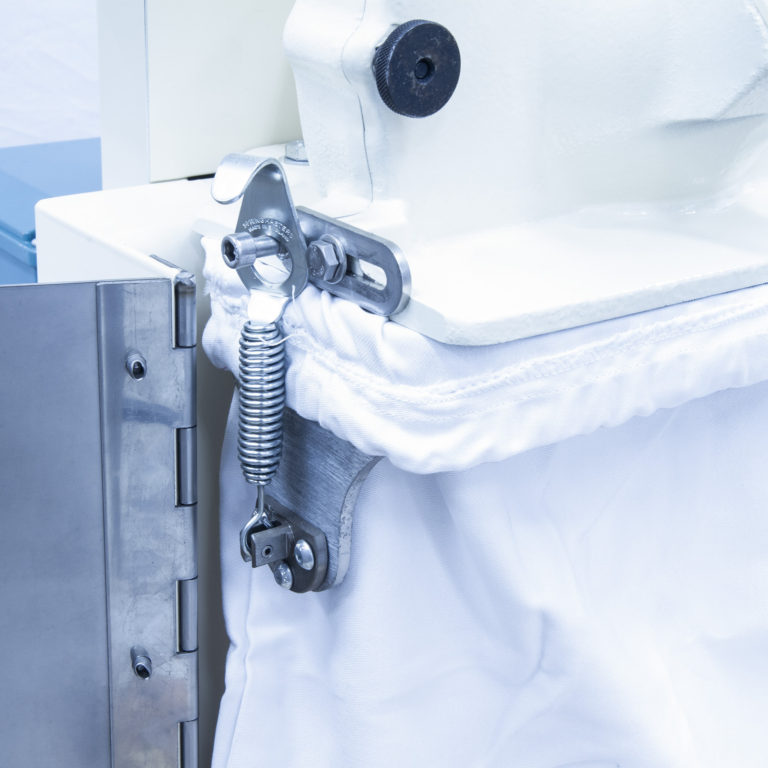

For general laboratory grinding, the mill is supplied with bag collection. This is detachable from the metal frame which is clipped with the bag to the underside of the mill, and serves the dual purpose of collector and air filter.
BEARINGS
Roller and ball bearings are enclosed in a suitable housing and lubricated with high-speed grease, are of ample size to give trouble-free running over long periods.
APPLICATIONS
- Seeds
- Nuts
- Other Biomass
TECHNICAL SPECIFICATIONS
- A self-contained mill using a reversible, high-grade steel beater cross

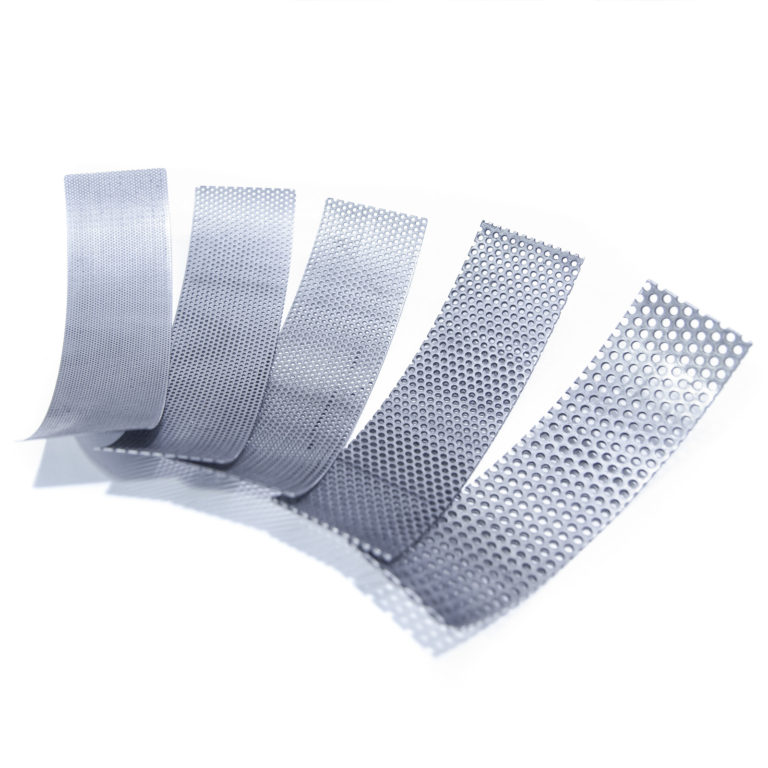

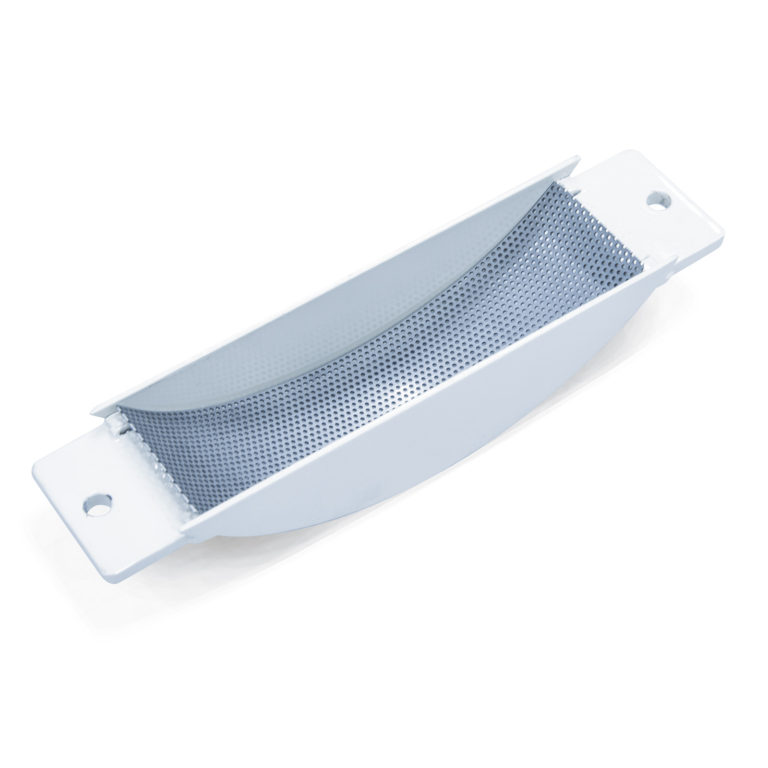

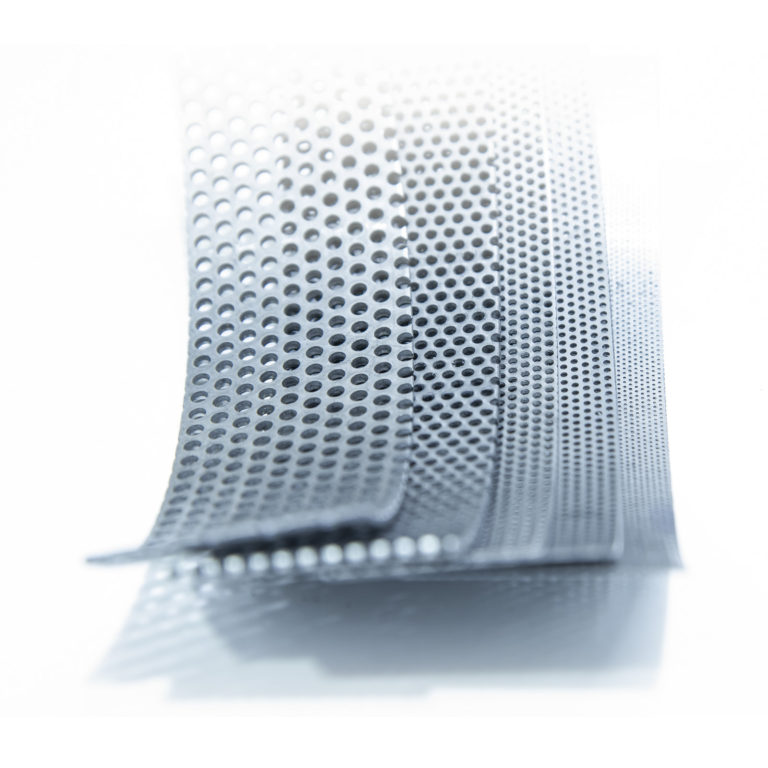

- Supplied with perforated plate screens ranging from 0.8mm to 3.0mm
- Fitted with a 1.5kW motor giving operating speeds of 8,000rpm via a toothed belth
- The unit is supplied with a detachable collection bag
- Front case is simply lowered for easy cleaning
- Safe design prevents accidental access of fingers, and the door in electronically interlocked
The arrangement has been specially designed to meet all the requirements of the UK Health and Safety at Work Act.

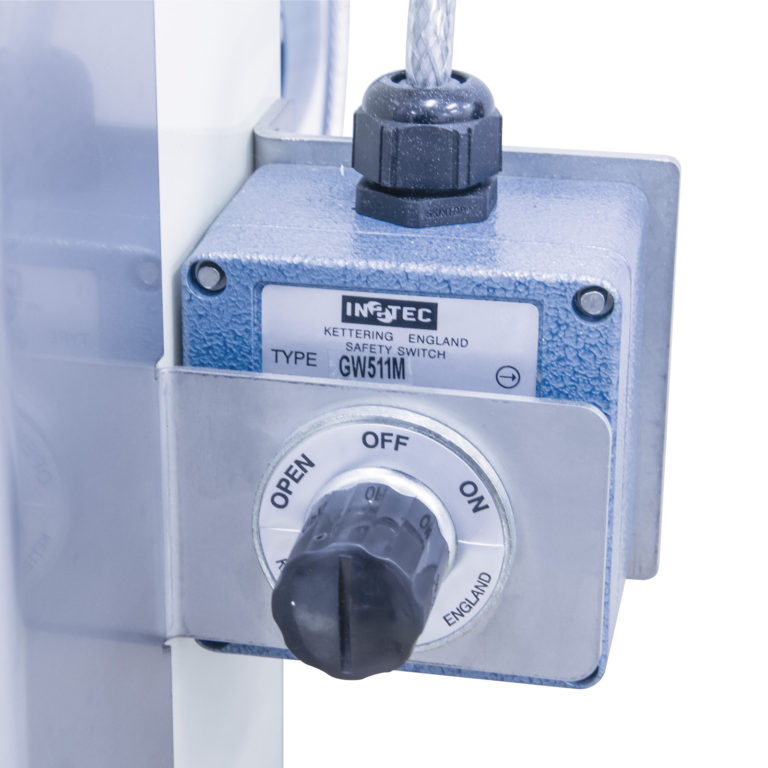

An electrically interlocked door, which must be opened in order to change the screens or to remove the collecting bag, disconnects the current. It is impossible to start the machine until this door has been closed. The inlet throat has been extended to prevent accidental injury to fingers as it is not possible to reach inside the grinding chamber.

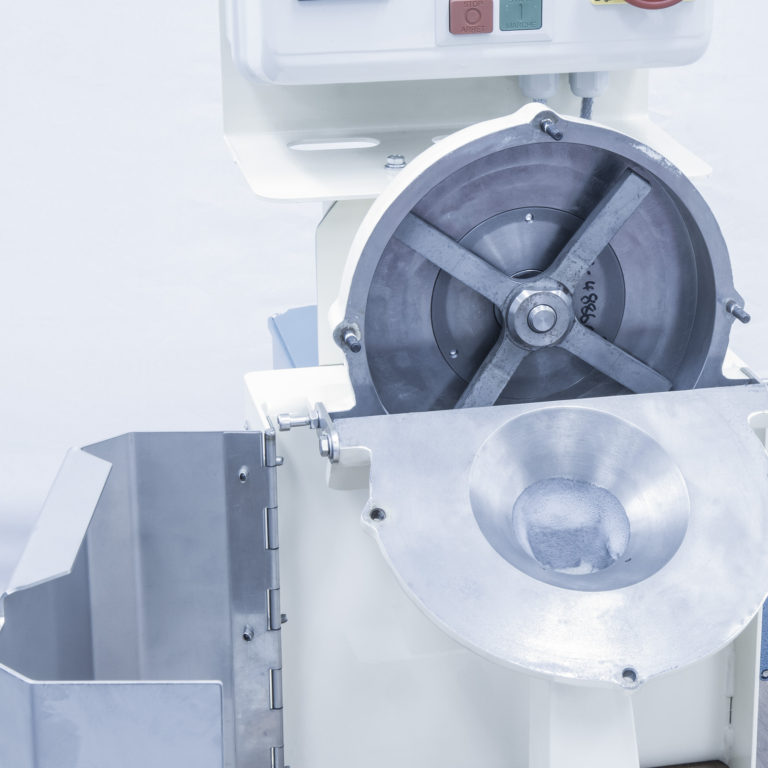

To assist with cleaning, the front casing is fitted with a specially designed hinge so that the front can be dropped without the need to lift it away from the body of the machine.
