Cheese Vat & Cheese Making Accessories

หมวดหมู่สินค้า: INDUSTRIAL FOOD TECHNOLOGY
รหัส : FT20
The Armfield Cheese Vat (FT20) is a small-scale version of the industrial processing vessel in which these operations are carried out. The unit was developed from the original design by a prominent dairy foods research institute. The vat, having a batch capacity of either 10 or 20 litres dependent upon model, creates representative batches of soft and hard cheeses for demonstration, research and analysis purposes.

28 มีนาคม 2566

ผู้ชม 180 ผู้ชม

SUMMARY

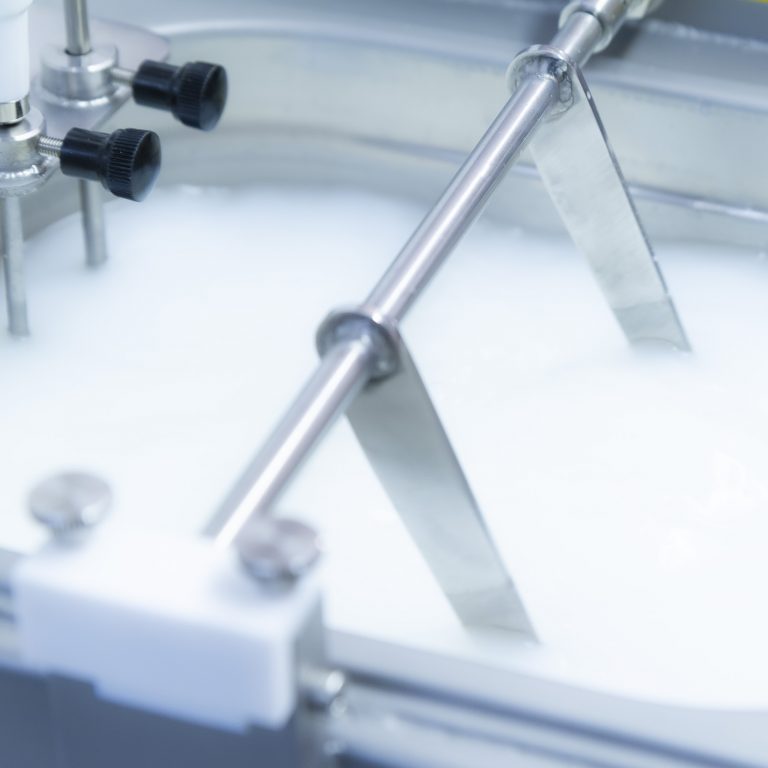

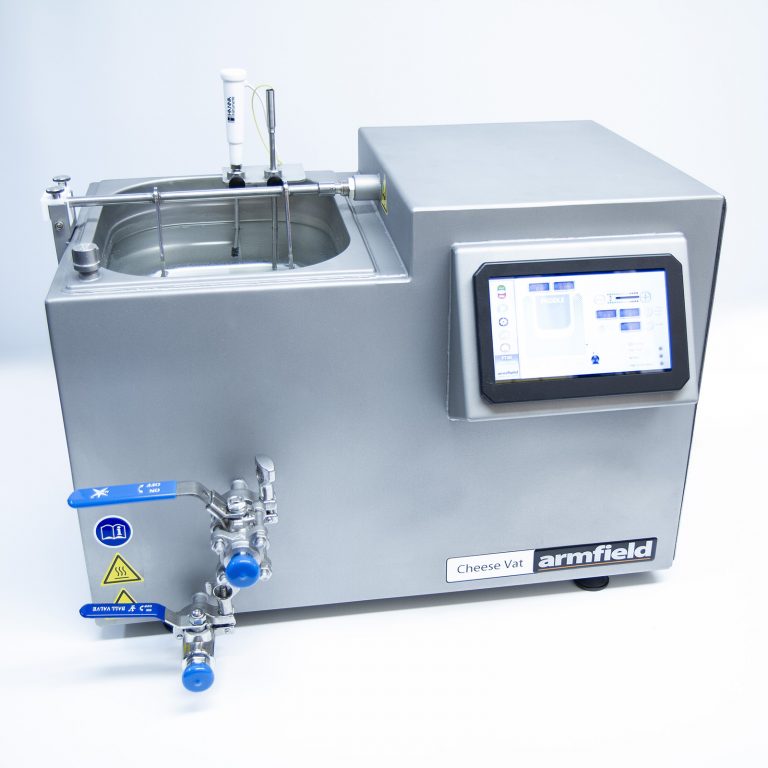

Manufactured wholly in stainless steel and bench mounted, the vat is hygienic in use. It has a removable paddle agitator of stainless steel, driven by a variable speed motor. Water is circulated around the vat jacket at a pre-selectable temperatures by an internal pump.

The control system incorporates:

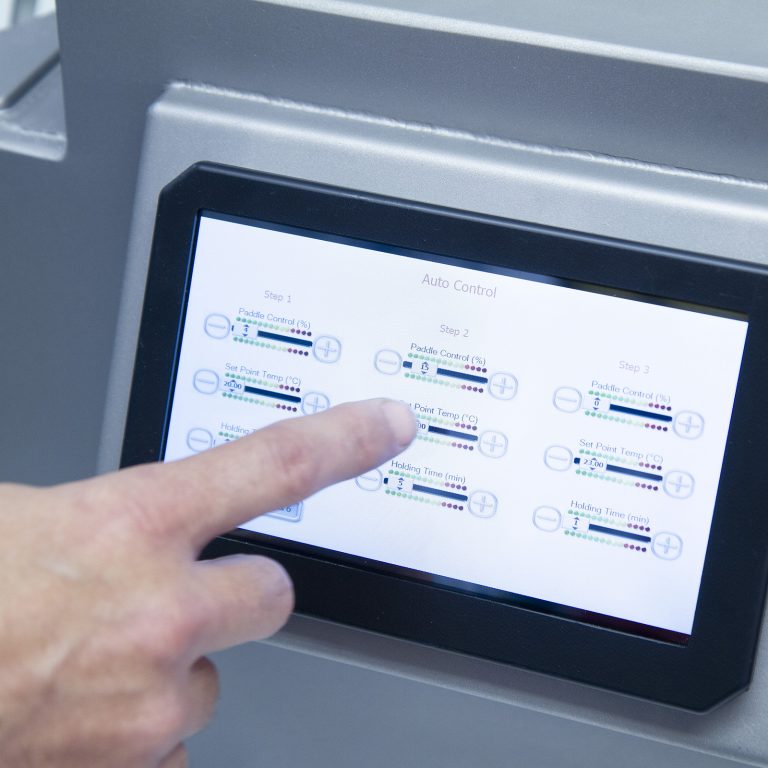

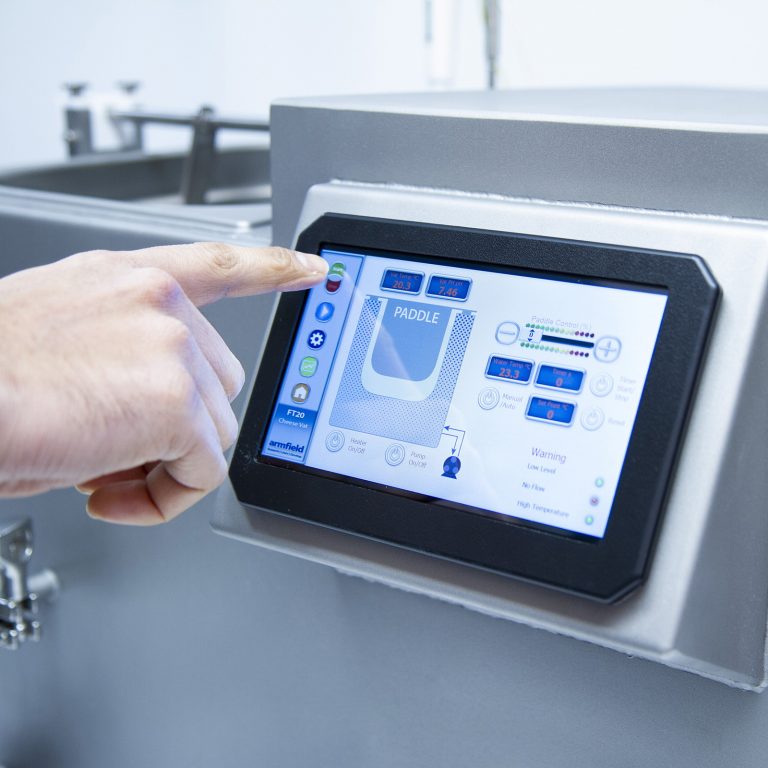

  •  HMI for control and visualisation of data
  •  digital display of pH of vat contents
  •  digital display of temperature of vat contents and water temperature
  •  agitator stop/start and variable speed control

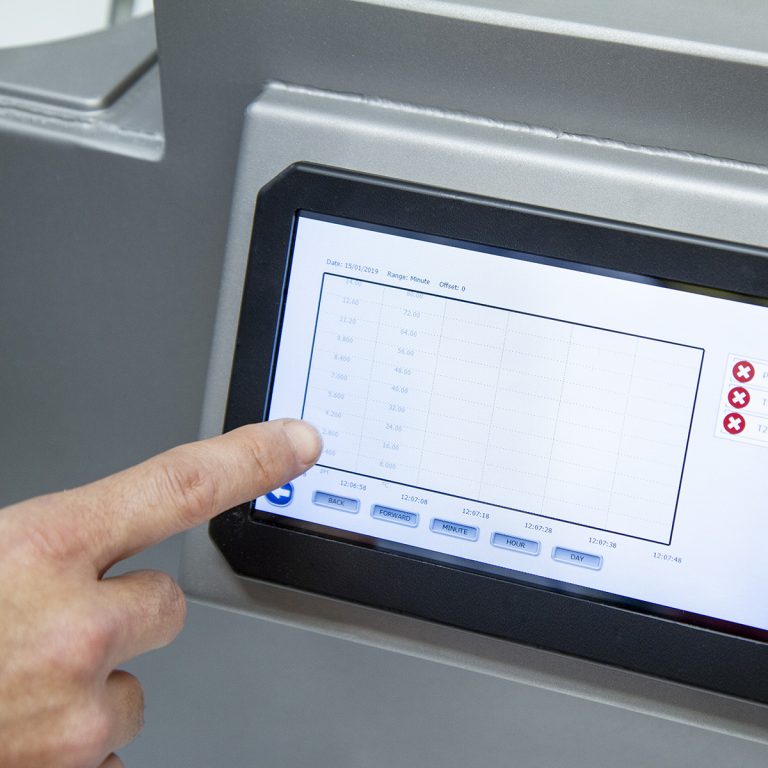

  •  integrated data logger with USB output
  •  automatic control of agitator speed, temperatures and times for up to six steps

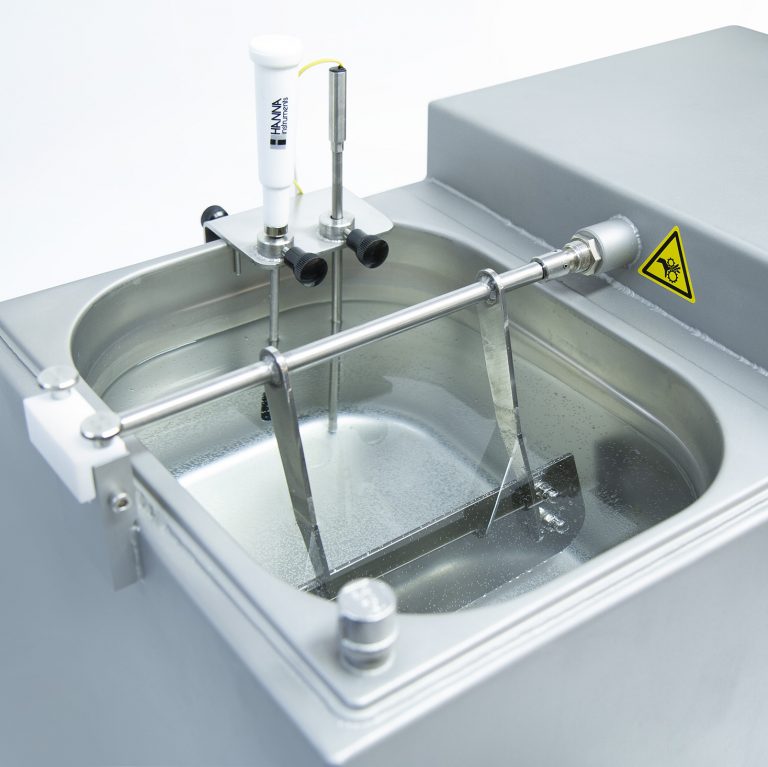

The pH and temperature probes are suspended in the vat contents from a bracket on the rim of the vat.

A specially designed perforated strainer fits into the vat outlet to facilitate efficient draining.

FEATURES & BENEFITS

  • Makes all well known types of cheese
  • Economical with raw materials
  • 1kg batch provides adequate material for sampling
  • 10 or 20 litre capacity stainless steel jacketed vat available
  •  Bench mounting with small footprint
  •  Separate console controls vat temperature and paddle speed
  • Water heater fitted in console
  • Integrated data logging facility for temperature and pH (requires PC)
  • Range of cheese making accessories
  • Simple controls
  • Ease of use

TECHNICAL SPECIFICATIONS

VAT

Working capacity: 10 or 20 litres depending on model

Agitator paddle: Stainless steel

Agitator drive motor: 12Nm torque with variable speed

Paddle: Removable assembly

Perforated strainer: Stainless steel

Hygienic outlet valve: Ball type’

CONTROL CONSOLE AS WELL AS CONTAINING THE NECESSARY ELECTRICAL CIRCUITRY, THE UNIT HOUSES

Heating water system: 0.85kW, temperature range ambient to 50°C set via the HMI

Safety: hardwired over-temperature cut out

Agitator paddle:  with variable speed drive controlled via the HMI.USB output and data logging software (64bit compatible)

Note: Requires PC for downloading of data pH/ temperature indication on the HMI

Thermocouple probe: Type K

pH probe: Food spear type, 0 -14pH. Can be calibrated via software

AGITATOR PADDLE

Variable speed drive control: Thyristor, DC

USB OUTPUT AND DATA LOGGING SOFTWARE (64BIT COMPATIBLE) NOTE: REQUIRES PC FOR DATA LOGGING (NOT SUPPLIED).

 pH/temperature indication: 3½ digit display

 Thermocouple probe: Type K

 pH probe: Food spear type, 0 -14pH
