Plate and Frame Filter Press

หมวดหมู่สินค้า: INDUSTRIAL FOOD TECHNOLOGY
รหัส : FT14
A small plate pack mounted on a stainless steel framework, enabling demonstration of filler operation. This type of filter is widely used in the food, pharmaceutical, brewing and distilling industries. The laboratory size unit is robust and versatile. A high degree of experimentation for scale-up to industrial process including several grades of filter media.

28 มีนาคม 2566

ผู้ชม 235 ผู้ชม

SUMMARY

The unit is mounted on a stainless steel, floor standing frame onto which the filter, feed pump and pipework are attached. A stainless steel drip tray is also included.

Four grades of filter media are supplied suitable for: pre-coat filter-aid, coarse clarifying,  polishing and sterilisation. The small stainless steel plate pack allows ease of handling. Making teaching demonstrations more convenient.

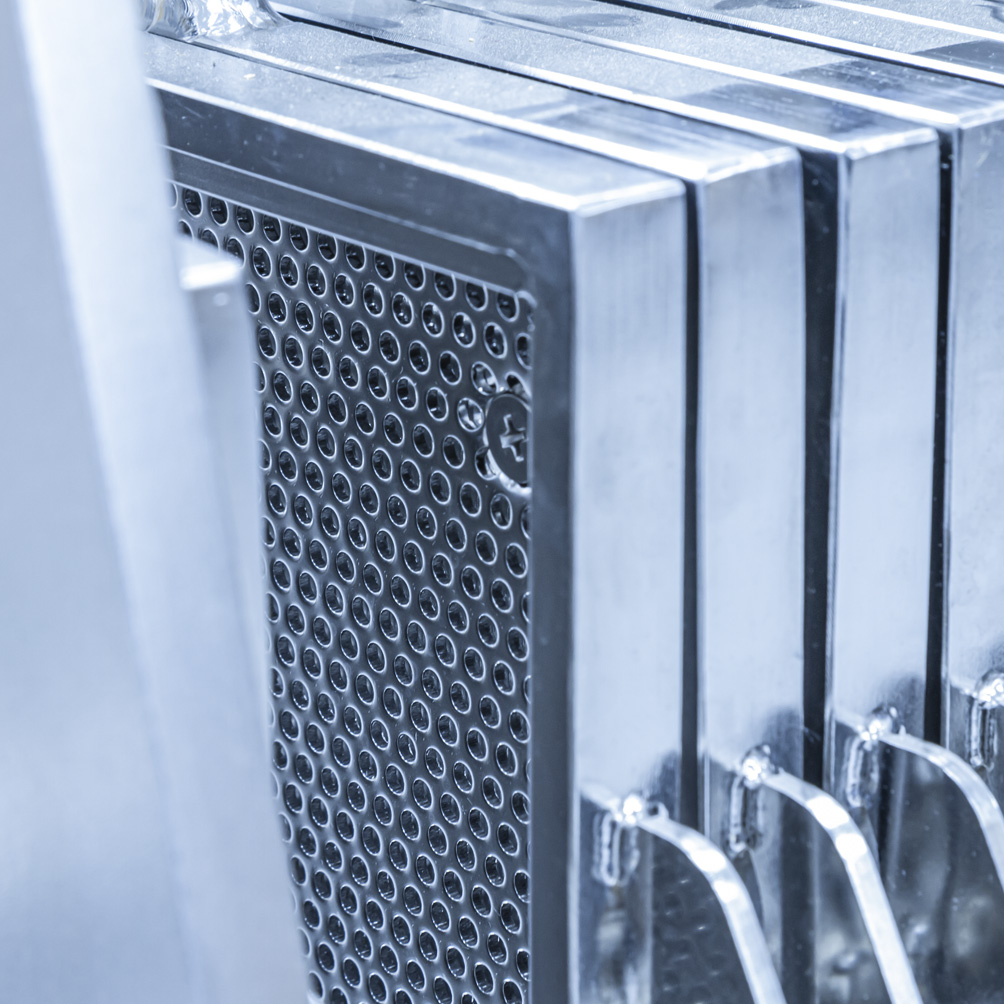

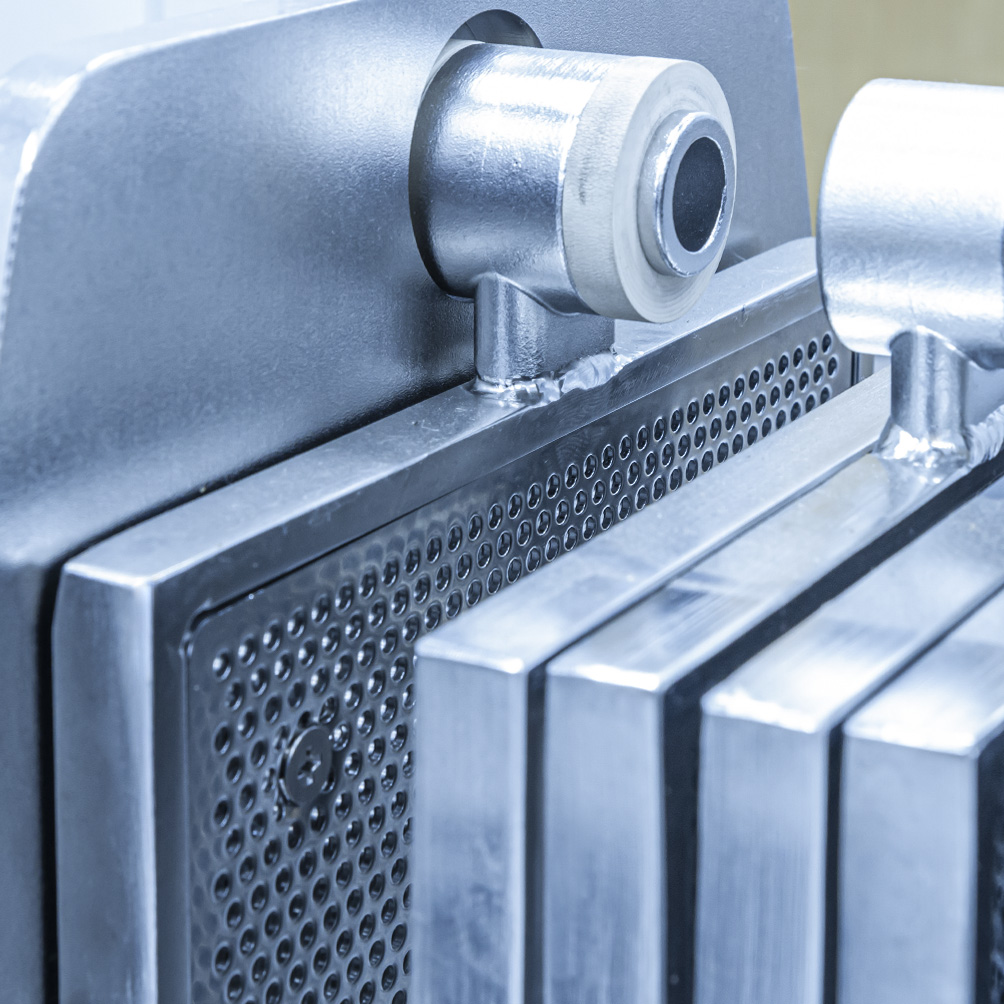

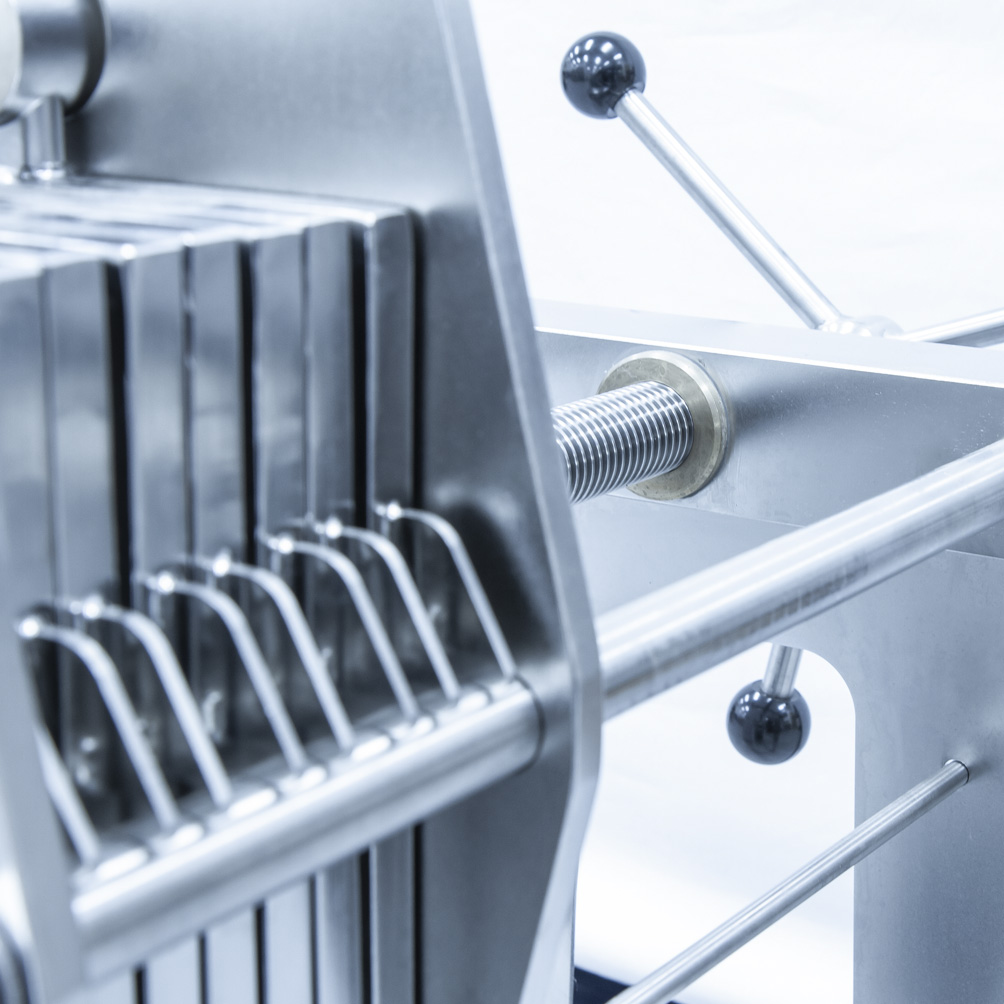

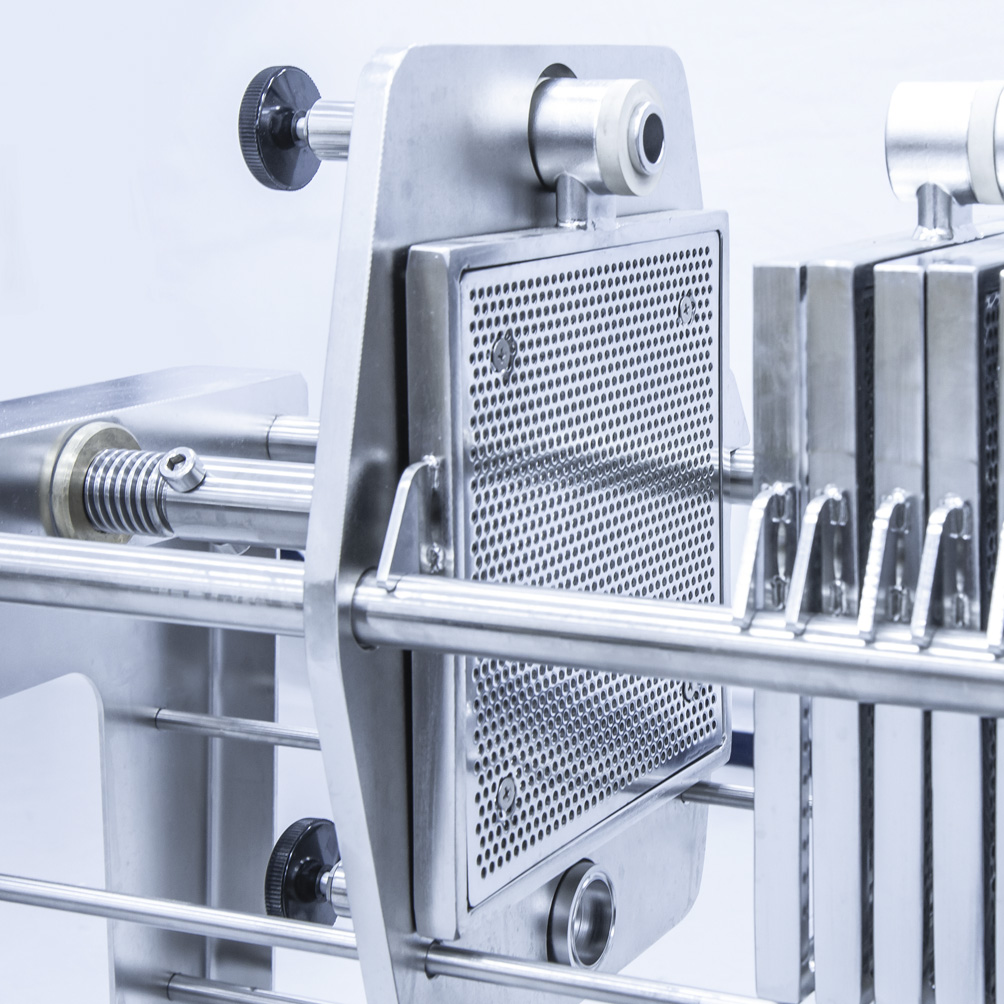

The filter pack between the end castings is made up of one end and three intermediate thick  turbid frames and one end and three intermediate filter plates. The filter will take a dressing of 7 x 200mm x 200mm filter sheets giving a nominal filtering surface area of 0.22m² and a nominal solids holding capacity of 1.5 litres.

Operation

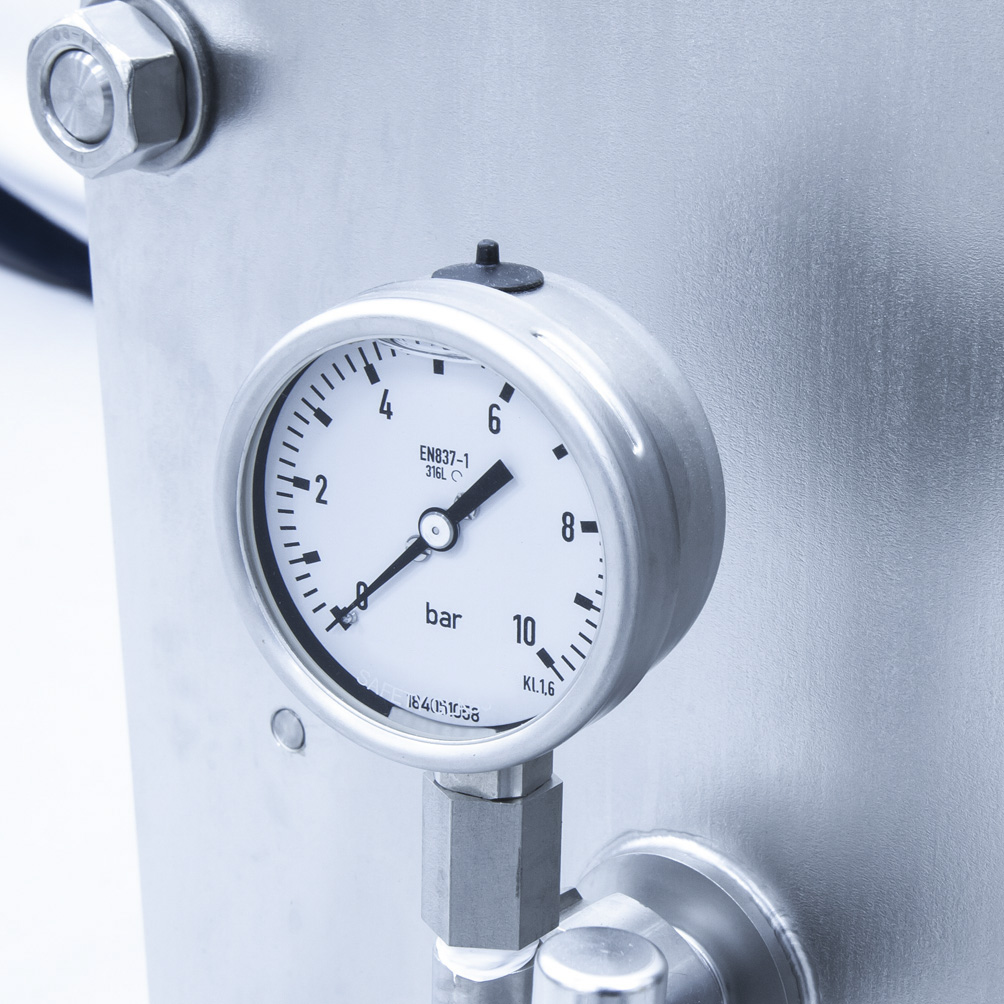

The slurry to be filtered is connected by hose to the pump suction, and the pump is connected to a suitable electricity supply. A hose fitted to the filter outlet takes the clear filtrate to a suitable receiving vessel. The plate pack has been designed to allow washing of the filter cake when filtering is complete. A pressure gauge situated at the filter inlet is used to monitor the filtering process.

Feed/Circulating Pump
Centrifugal pump of all stainless steel construction with polished internals.

Maximum flow rate: 18.0 l/min

Maximum head: 2.0 bar

Motor: 0.25kW @ 2,800rpm

FEATURES & BENEFITS

  • Accurate for Education and research
  • Versatile unit for uses in:  Food / Pharmaceutical / Brewing / Distilling Industries
  • Simple design enabling easy cleaning
  • Four grades of filter media supplied:  Pre-coat filter aid / Coarse clarifying / Polish / Sterilisation
  • High degree of experimentation for scale-up to industrial processes

ADDITIONAL INFORMATION

Weight 120 kg
Dimensions .73 × .3 × .57 m



TECHNICAL SPECIFICATIONS

Feed/Circulating Pump:           Centrifugal pump of stainless steel construction with polished internals

Maximum flow rate:                  18.0 litres/min

Maximum head:                         2.0 bar

Motor:                                         0.25kW 2800 rpm

Max operating temperature:     950C

Max sterilisation temperature: 130C

Gasket material:                        Silicone
