CIP Unit (Clean in Place)
หมวดหมู่สินค้า: INDUSTRIAL FOOD TECHNOLOGY
รหัส : FT52
The Armfield FT52 has been designed to provide additional cleaning performance for Armfield FT units and other equipment.

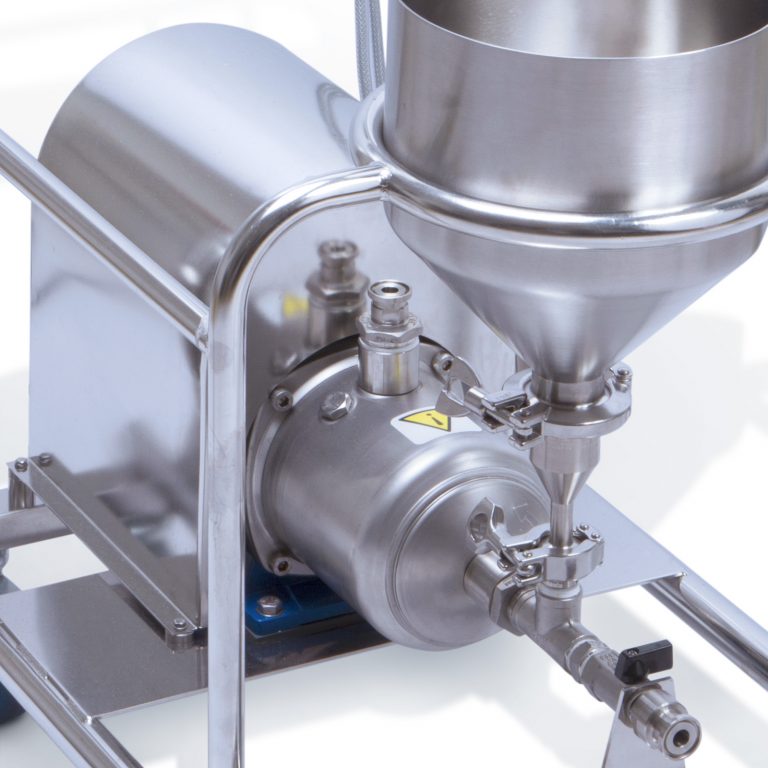

It consists of a high flow rate stainless steel centrifugal pump mounted on a mobile frame.
Capacities up to 2.0 m³/h are achievable with low backpressure systems.
28 มีนาคม 2566
ผู้ชม 195 ผู้ชม
SUMMARY
The FT52 uses a stainless steel centrifugal pump to provide high throughputs for efficient cleaning. Achievable flowrates are dependent on the backpressure generated by the system being cleaned.
Capacities up to 2.0 m³/h are achievable with low backpressure systems.
FT52 has a small footprint and is mounted on a mobile platform meaning that it can easily be positioned in a lab or pilot environment to meet local CIP needs. A stainless steel splash cover protects the pump from spray during laboratory/pilot plant cleaning.
Operation is simple on/off control which gives the maximum flow rate for efficient cleaning.
Flow rates may be adjusted using a backpressure valve (not supplied).
FEATURES & BENEFITS
- Mobile unit with small footprint providing local CIP capability for pilot scale equipment
- Produces cleaning velocities in excess of the industry standard 1.5 m/s in Armfield systems
- Capable of flow rates up to 2.4 m³/h
- Simple on/off pump control
- Stainless steel pump motor splash cover
- High-pressure hygienic flexible hoses and fittings for quick connection to Armfield equipment
- 5L stainless steel hopper for cleaning solutions
TECHNICAL SPECIFICATIONS
- The FT52 has been designed in accordance with CE requirements.
- Centrifugal pump (0-7 bar, 2400L/h at 0 bar)
- 5L feed vessel
More.
