SUMMARY

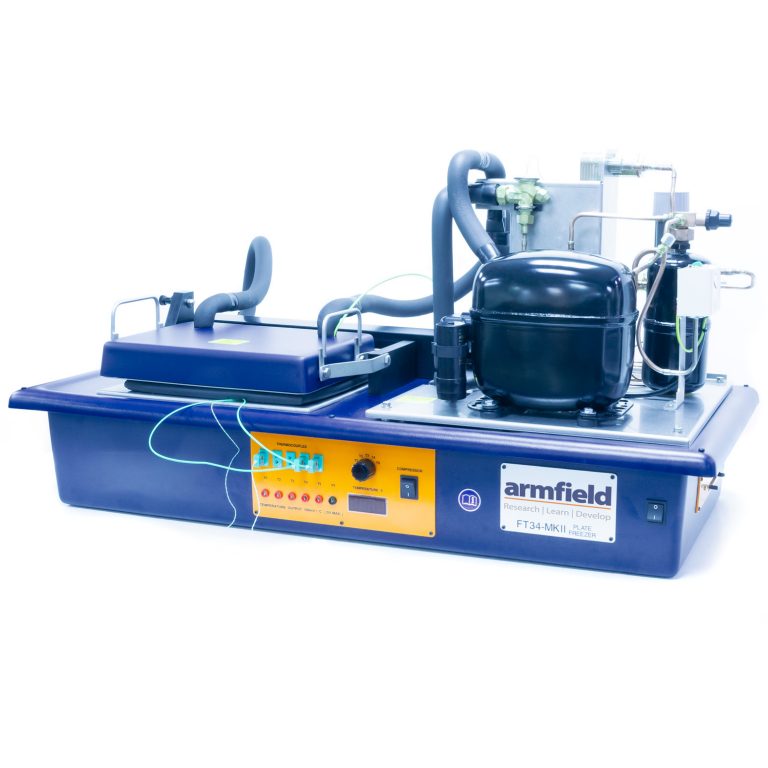

The FT34Mkll Contact Plate Freezer uses the familiar Armfield vacuum-formed ABS base onto which is mounted a refrigeration unit employing an environmentally friendly refrigerant R404A. One 180 x 250mm, fixed and one height-adjustable freezing plate are positioned adjacent to the refrigeration unit.

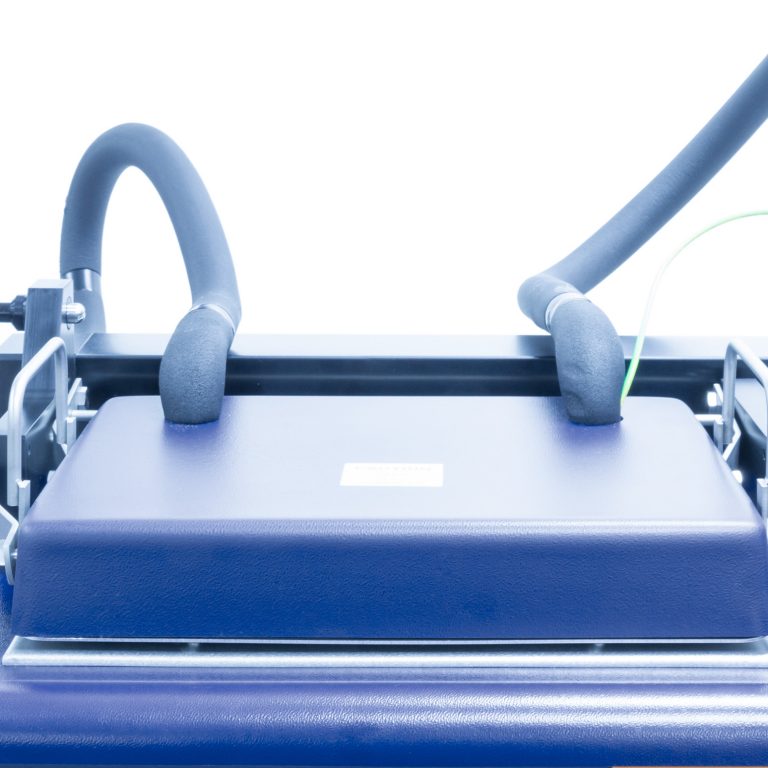

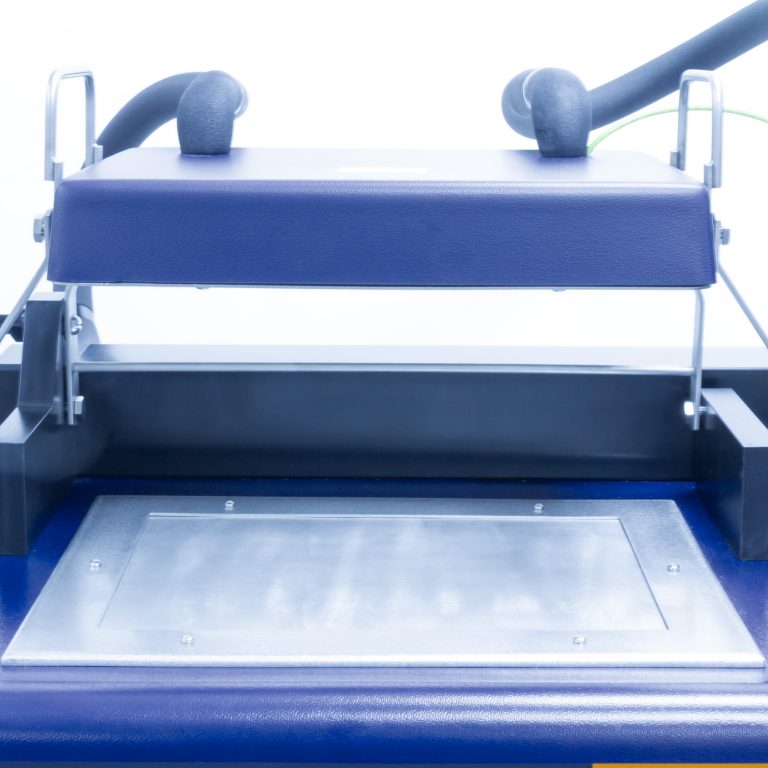

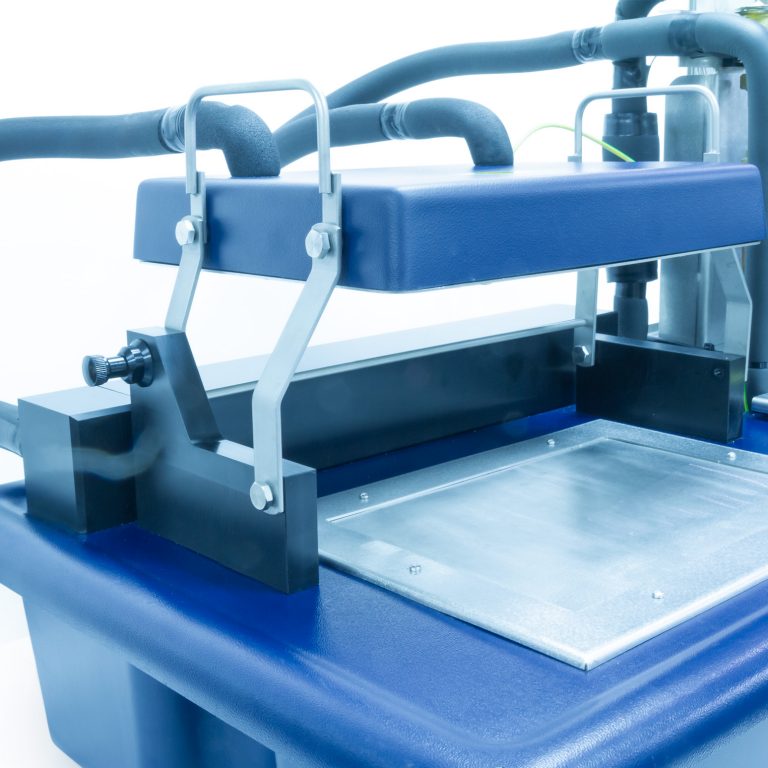

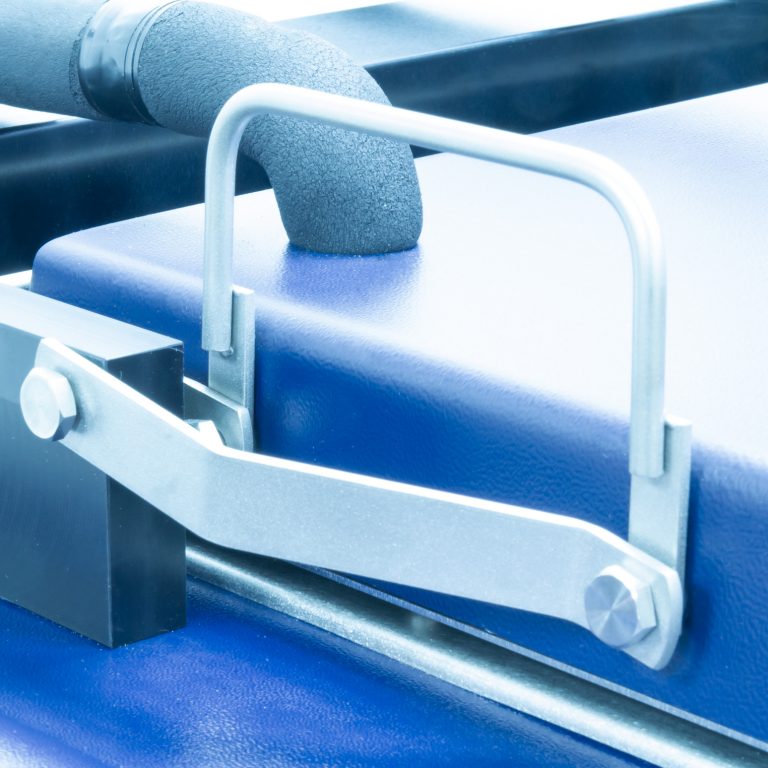

A hand-operated lever raises and lowers the adjustable freezing plate into close contact with the product to be frozen which is placed on the fixed plate, bagged, wrapped and boxed products may be quick frozen.

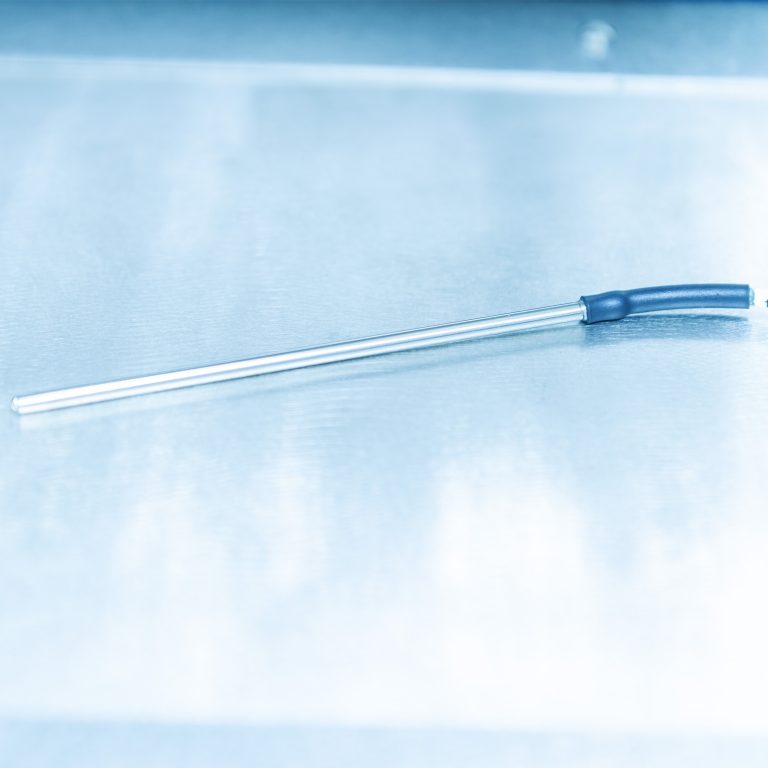

Five temperature probes are provided to monitor the product throughout the freezing process. All controls and instrumentation are housed in the base unit.

Outputs to connect the plate freezer to a PC via the Armfield Data Logging Accessory FT34-DTA-ALITE are also provided.

FEATURES & BENEFITS

• The Contact Plate Freezer has two freezing plates of 180 x 250mm. One is fixed and the other is height-adjustable, and both are serviced by a refrigeration unit
• Bagged, wrapped and boxed food products up to a maximum size of 160 x 230 x 38mm may be quick-frozen
• Five temperature probes are provided to monitor the product throughout the freezing process
• A comprehensive operations manual and wall chart are included in the supply

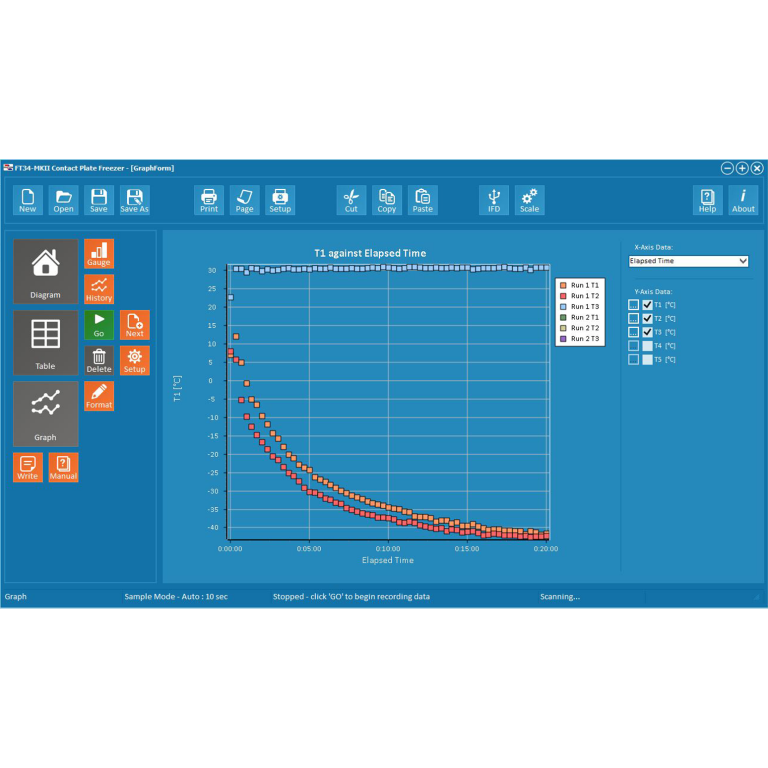

• An optional data logging accessory and Windows-based software is also available

TECHNICAL SPECIFICATIONS

Plate temperature (both plates): <-35°C

Temperature sensors: 5 thermocouples

Refrigerant (environmentally friendly): R404A

Display: Digital display for temperature sensors

Outputs: ±5 volts Represents ±50°C

Freezing area: 180mm x 250mm

Maximum thickness of sample: 38mm
