Vacuum Freeze Dryer
28 มีนาคม 2566
ผู้ชม 226 ผู้ชม
SUMMARY

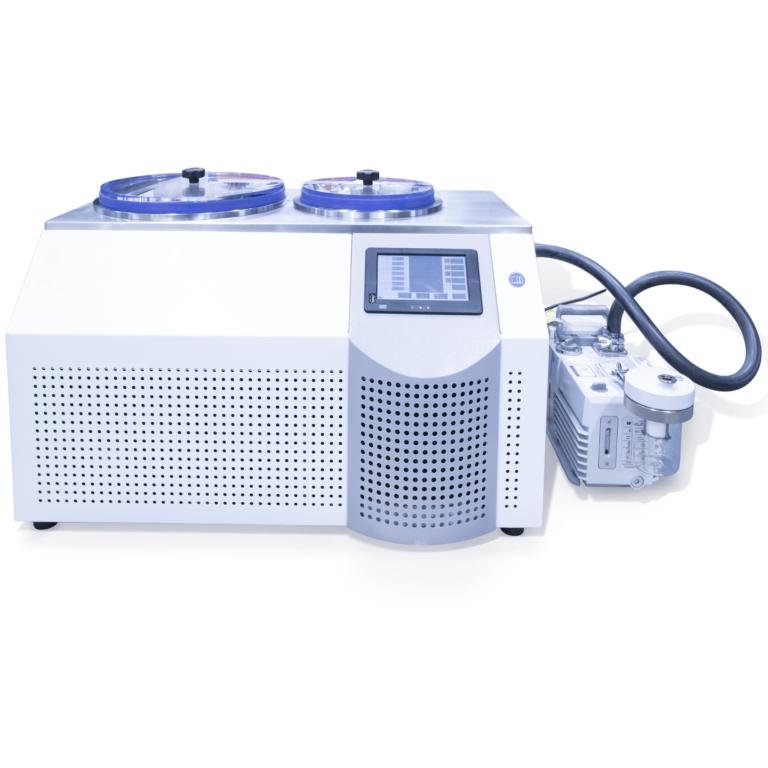

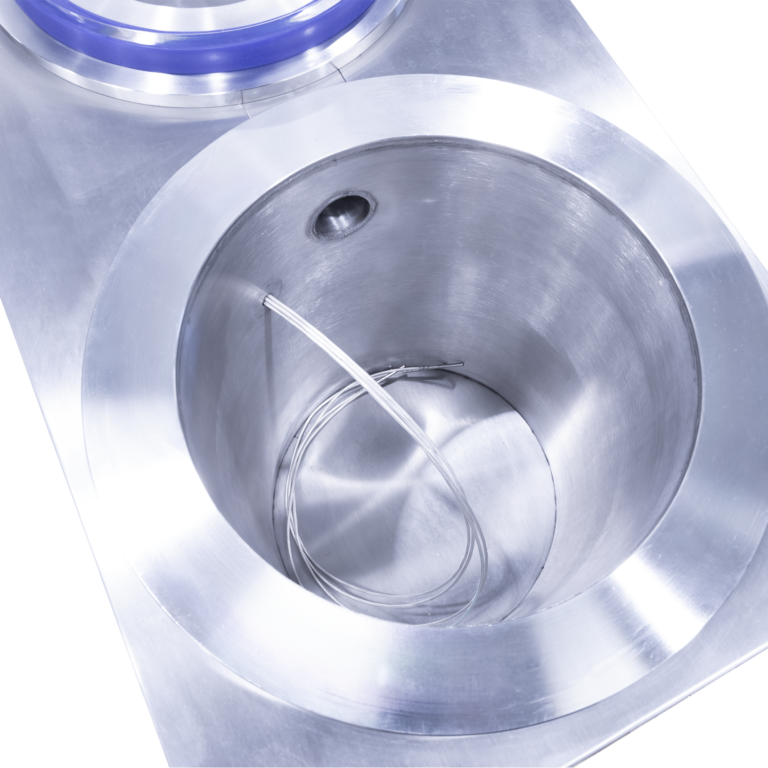

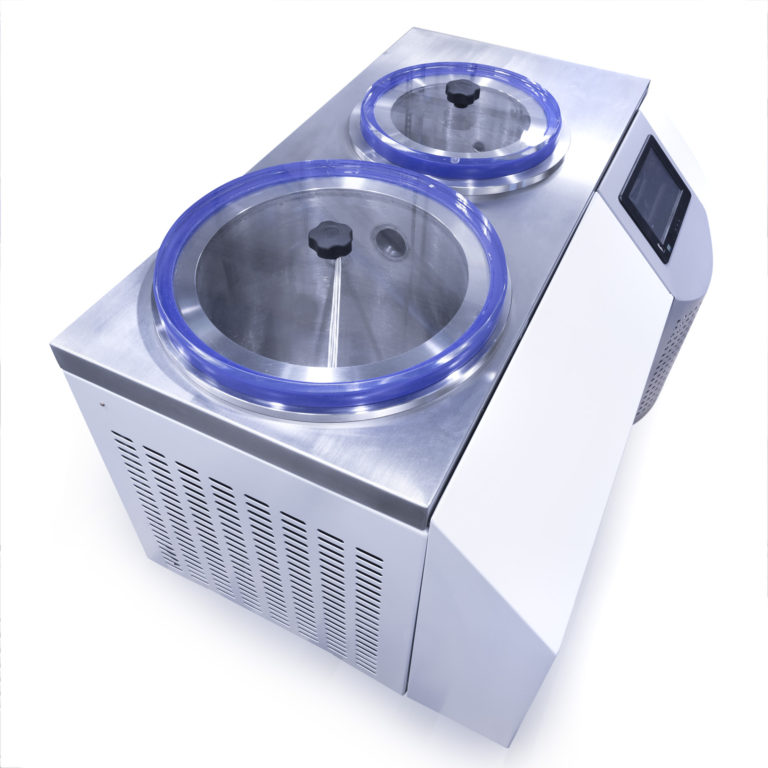

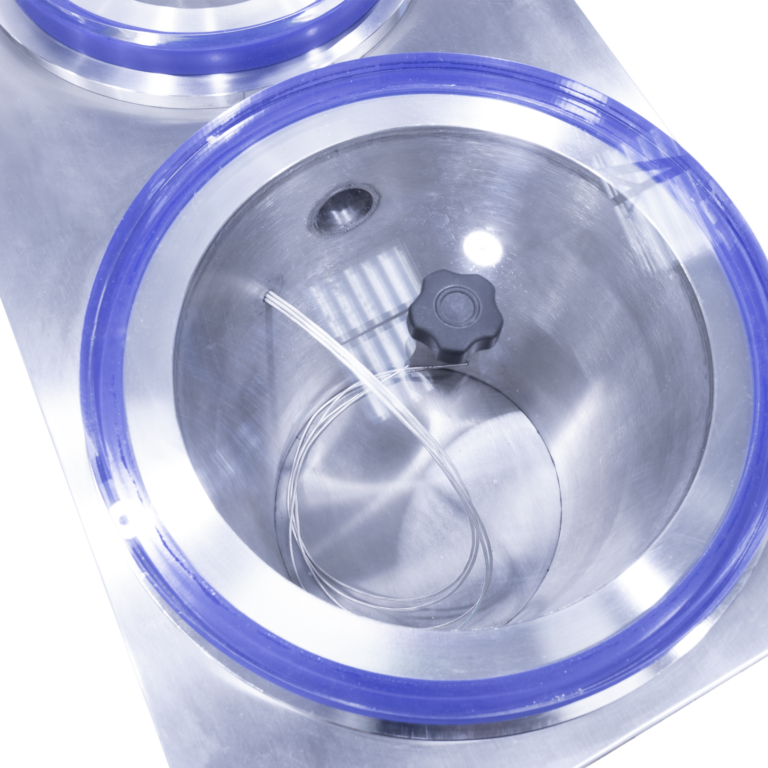

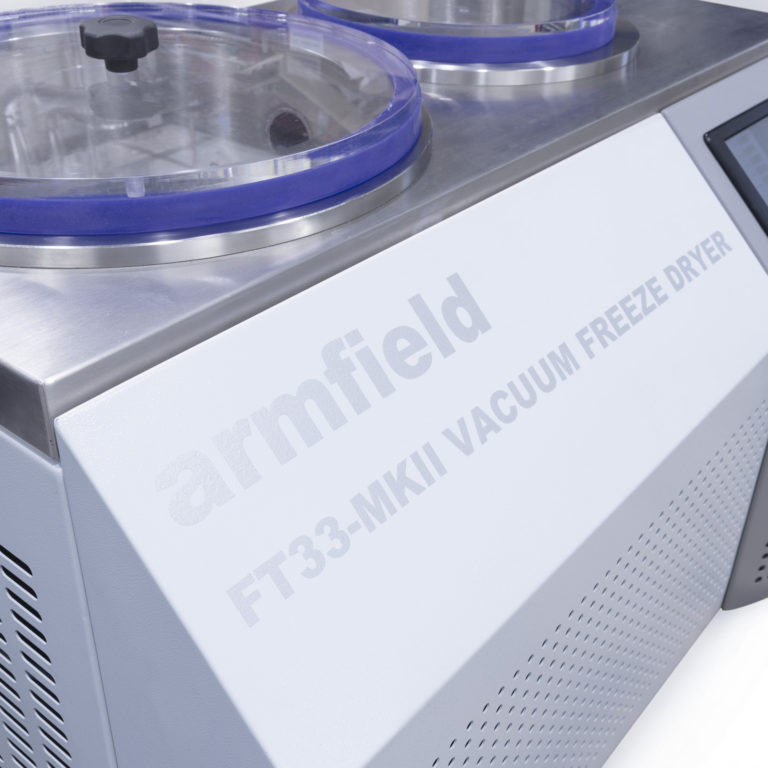

The FT33MkII Freeze Dryer comprises a cylindrical working chamber 300mm in diameter and 370mm deep mounted adjacent to a 210mm-diameter condenser chamber in a painted stainless steel cabinet. Both chambers incorporate a clear acrylic lid on an ‘O’ ring seal.

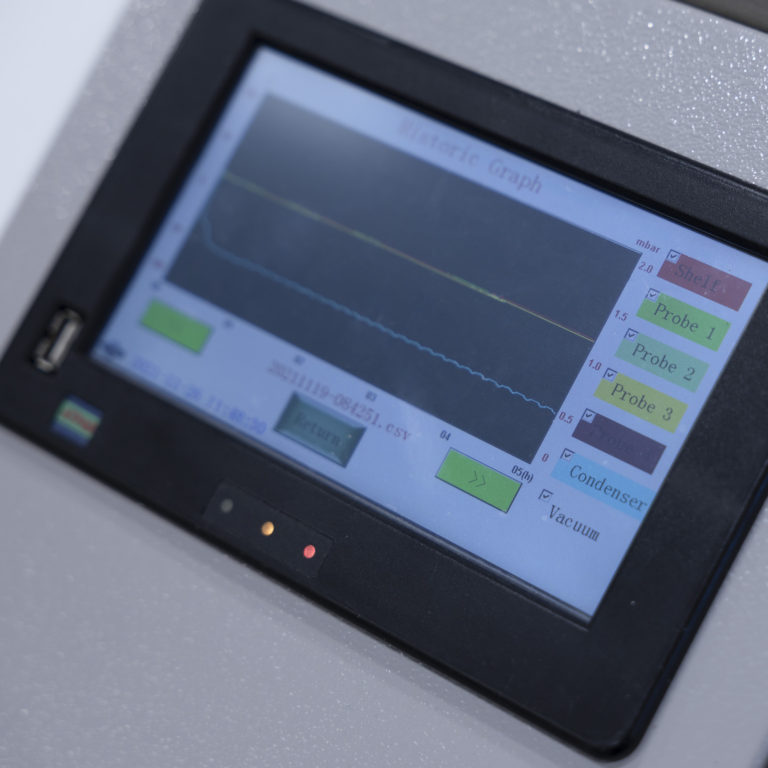

Products to be freeze dried may be frozen in the working chamber prior to drying. Drying rate may be controlled by the application of heat to the working chamber via a heating element with temperature controller. The unit is controlled via a touchscreen display, with real-time plotting of temperatures and vacuum level.

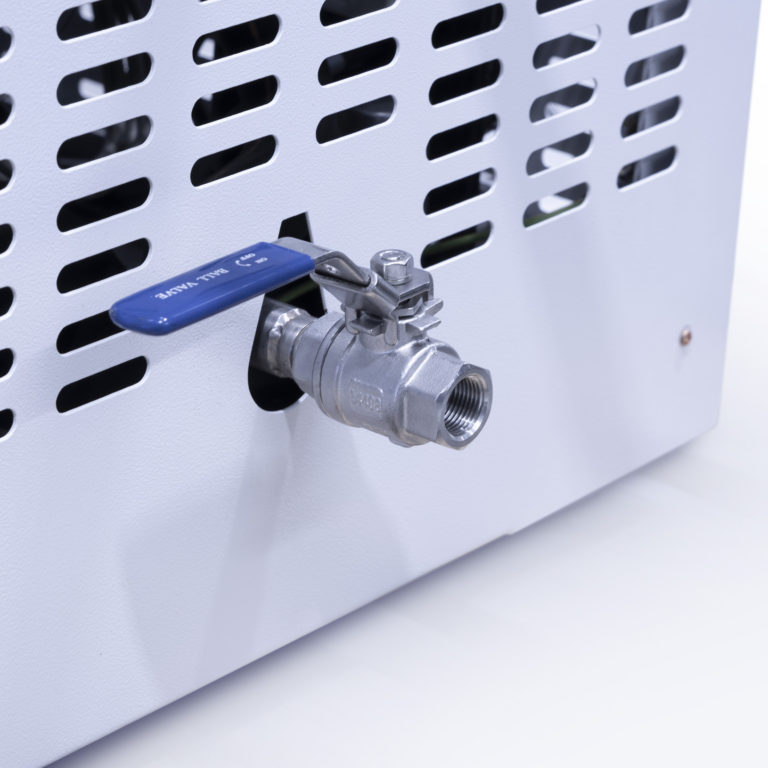

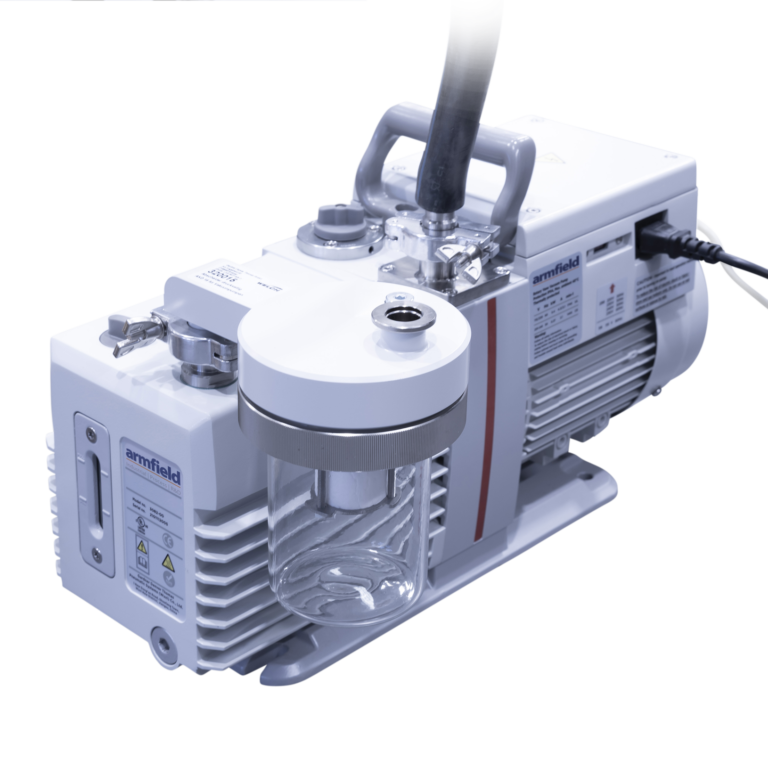

Ice build-up in the condenser chamber can be observed through the acrylic lid. The chamber is defrosted by an electrical heater and the ice plug may be removed whole via the lid or allowed to melt totally and drained through the drain plug. A vacuum pump of 150 l/min capacity is supplied and stands beside the freeze dryer. An oil mist filter is fitted as standard.
The refrigeration system will give a no load condenser chamber temperature of -55˚C.
A thermostatic expansion valve automatically adjusts the extraction rate to handle large quantities of vapour. The unit is provided with magnetic shut-off valves, electrical overload and overheat protection devices.
A membrane panel with touch-sensitive switching and LCD controls refrigeration, vacuum pump, heating and defrost.
FEATURES & BENEFITS

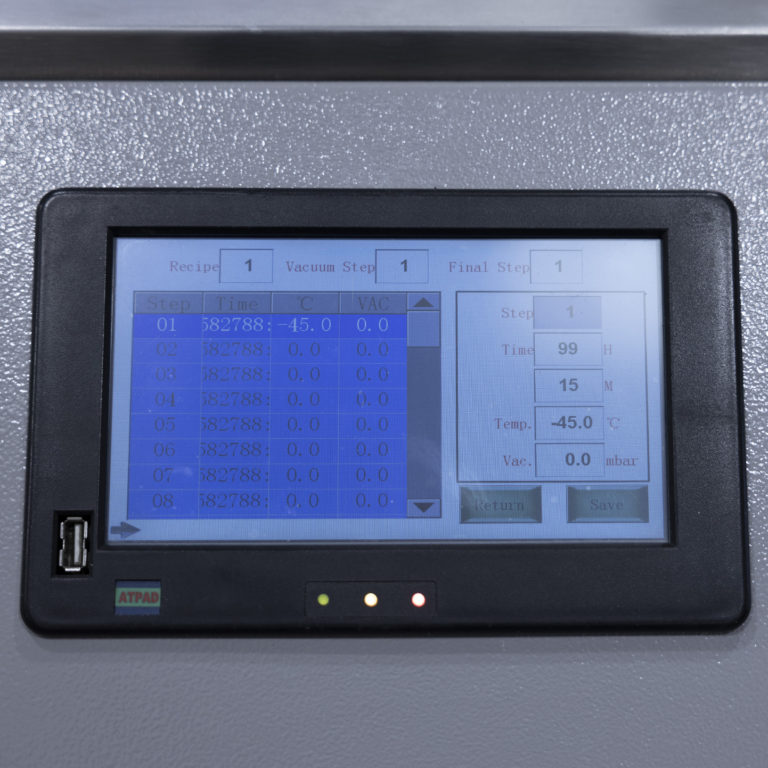

- The unit is operated via a colour touchscreen with a graphing facility to show temperatures and vacuum level in real-time
- The products can be frozen in the chamber before drying
- The unit is designed for freeze drying biologically heat-sensitive materials contained in beakers or other vessels
- It can be considered to be a small-scale replica of commercial-scale pharmaceutical and food production machines
TECHNICAL SPECIFICATIONS
CONDENSER CHAMBER
Temperature Range: 20-200°C (±1°C)
Ice capacity: 4kg
No load temp: -55˚C
WORKING CHAMBER
Heater rating: 300W
Refrigerant: R507 (non CFC)
