Laboratory-Scale Rapid Extractor

หมวดหมู่สินค้า: INDUSTRIAL FOOD TECHNOLOGY
รหัส : FT111X

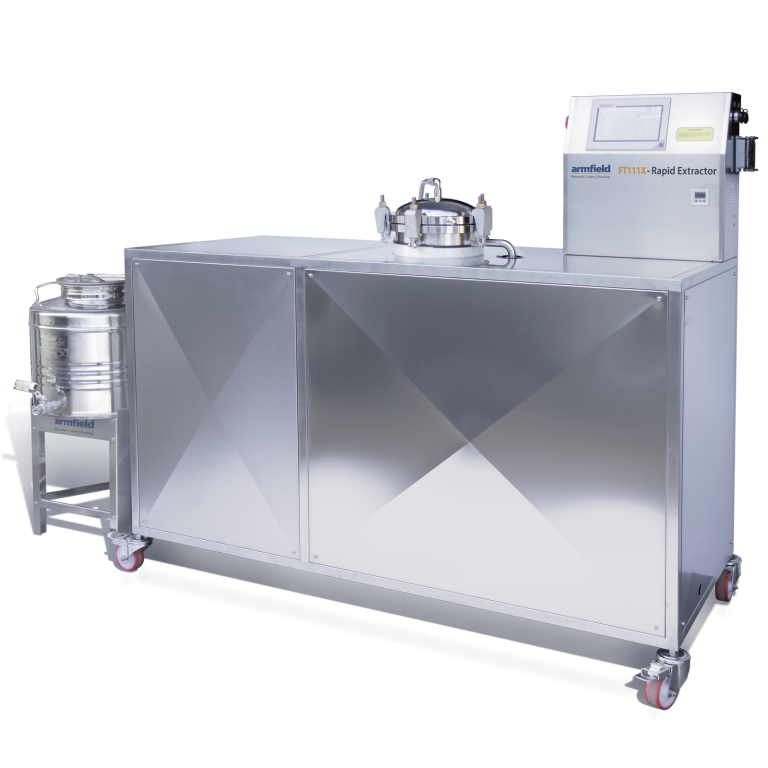

The Armfield FT111X Laboratory-Scale Rapid Extractor is ideally suited to product development purposes, used to extract the active constituents from materials in pilot scale batch sizes. The Armfield FT111X uses high pressure and a combination of both static and dynamic extraction phases to achieve a rapid extraction of the active materials with minimum degradation to the product. In the dynamic phases, the solvent is passed through the material providing a forced percolation and agitation.

28 มีนาคม 2566

ผู้ชม 247 ผู้ชม

SUMMARY

The Armfield FT111X uses high pressure and a combination of both static and dynamic extraction phases to achieve a rapid extraction of the active materials with minimum degradation to the product. In the dynamic phases, the solvent is passed through the material providing a forced percolation and agitation.

The process pressure, number of cycles and length of each phase are programmable by the user. In this way the effect of the extraction parameters on the end product can be explored and an optimum set of parameters determined for each product.

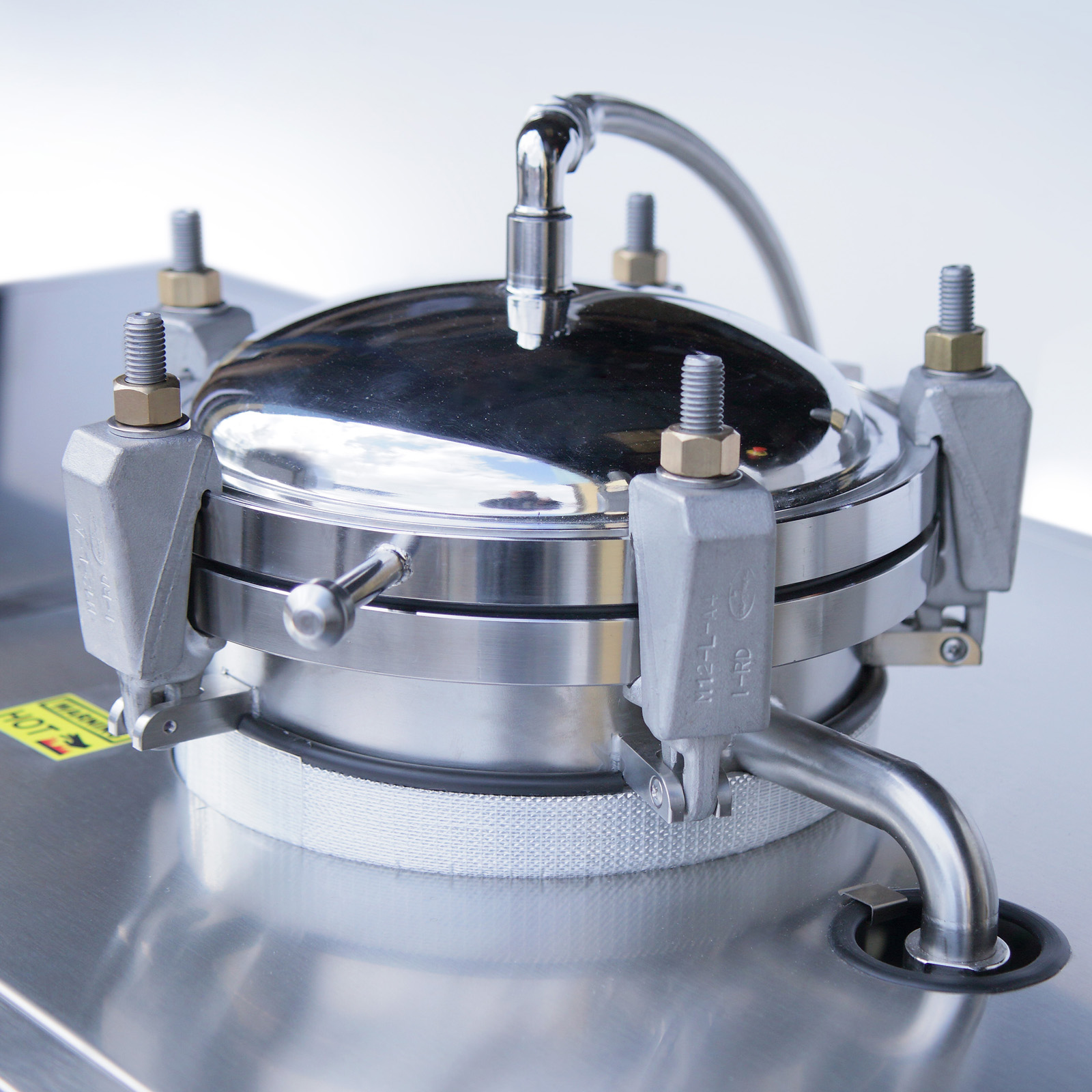

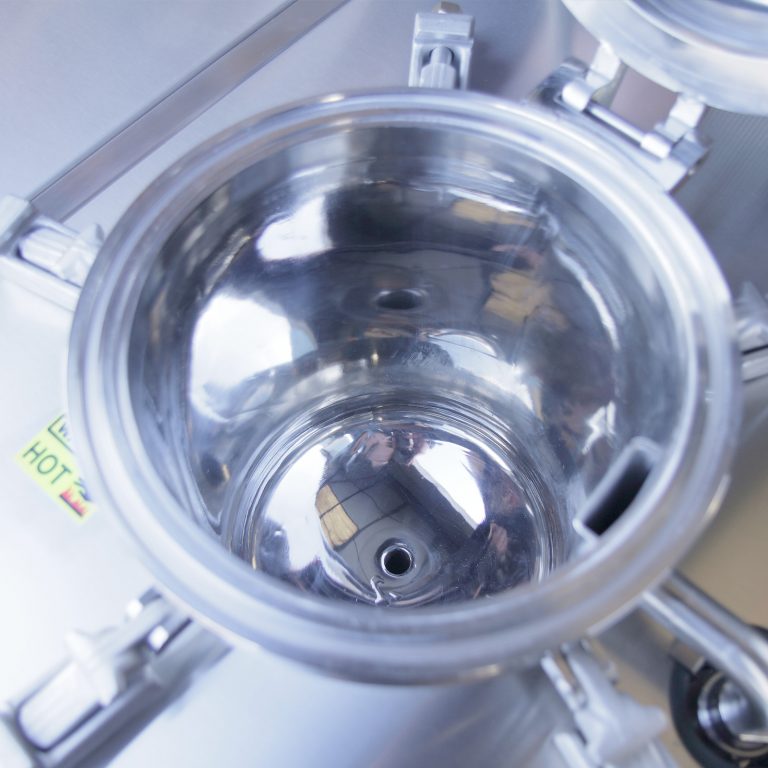

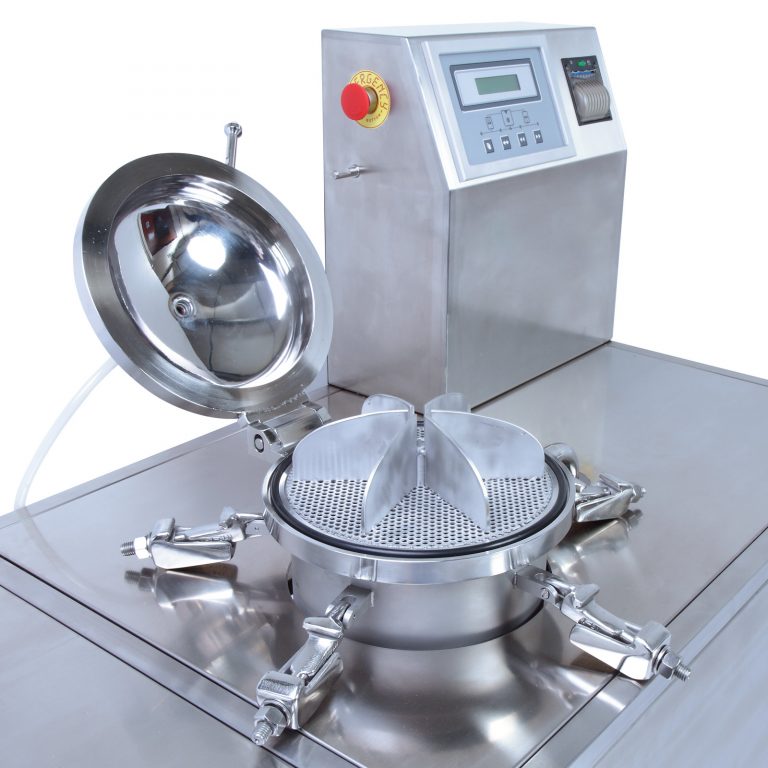

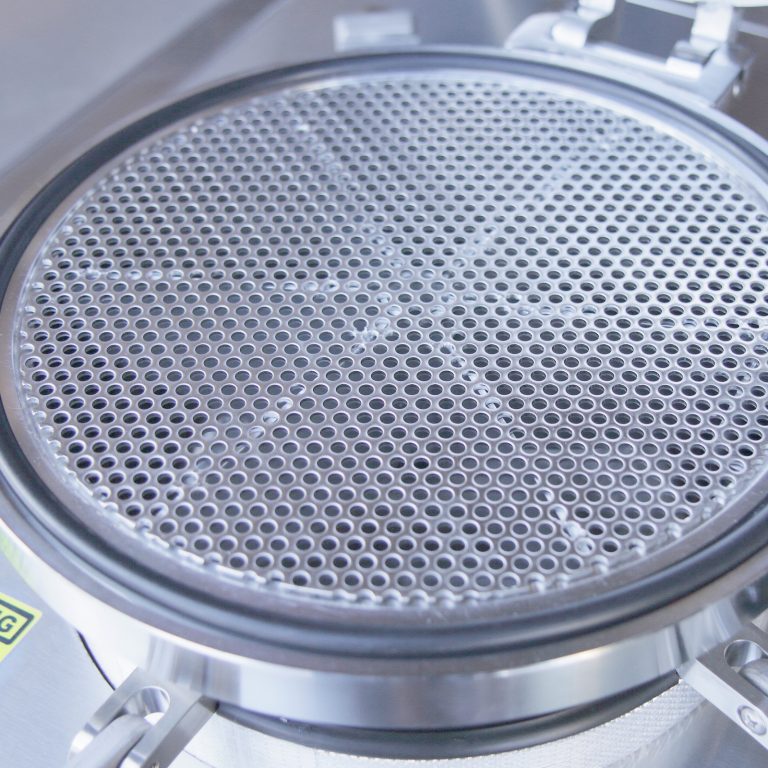

The FT111X vessel is loaded with solvent automatically under microprocessor control using a pneumatic solvent pump. Priming of the vessel and pipework is also automatic. Twin pistons (one primary and one slave) are used to generate the pressure in the vessel and to provide the solvent percolation.

FEATURES & BENEFITS

  • Fast response, results in hours rather than days
  • Small-scale 5, 10 and 20 litre options
  • Simple cleaning and maintenance procedures
  • Uses ethanol, glycerol, water or similar safe solvents
  • Reproducible results
  • Touch screen control

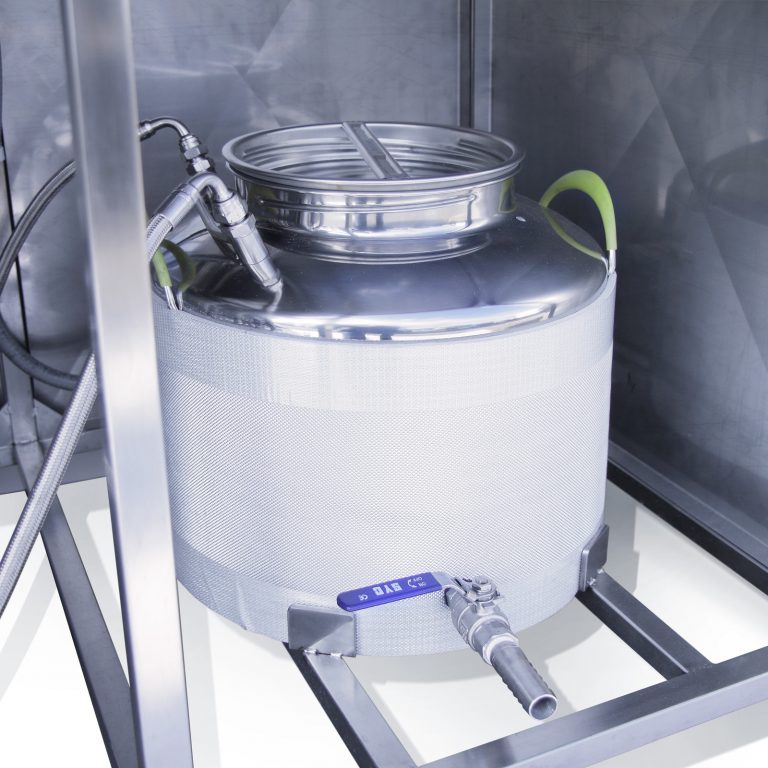

  • Built in solvent tank
  • Data logging recovery

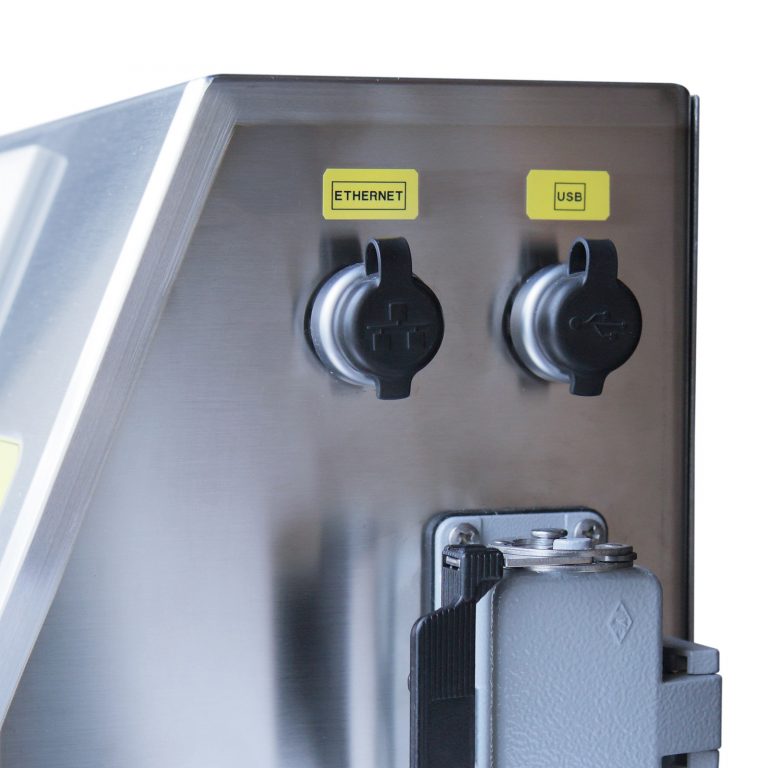

  • Remote control via VPN
  • Fast, efficient solid/liquid extraction of active constituents from plants, herbs, fruits and other similar materials
  • High pressure, room temperature extraction, excellent for sensitive materials
  • Unaltered natural properties and characteristics of the active constituents, no discolouration or oxidisation
  • Easy to use: microprocessor control and real time display of sequencing and process parameters

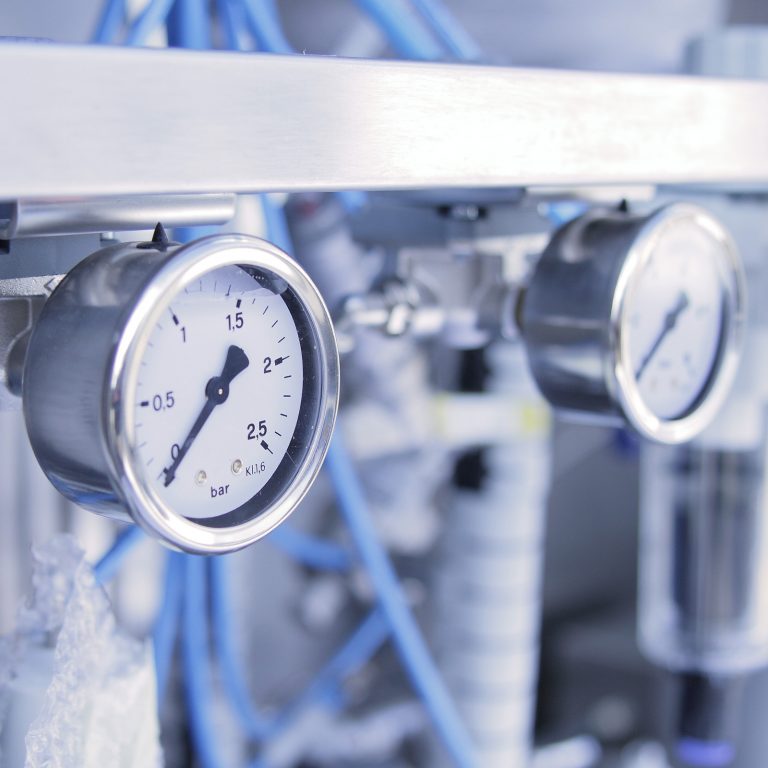

  • Automatic pressure control
  • Automatic alarm indication of process anomalies
  • Highly flexible extraction parameters
  • Heated tank option



APPLICATIONS

  • Natural food flavours
  • Fruit flavours
  • Herbs and plant extracts
  • Spirit liquors
  • Tinctures and infusions
  • Herbal extracts and homeopathy
  • Cosmetics
  • Pharmaceuticals

TECHNICAL SPECIFICATIONS

VESSEL VOLUME

FT111X-5L:    5l
FT111X-10L:  10l
FT111X-20L:  20l
(larger sizes available on special request)

Total solvent capacity: 6l/12l / 24l respectively
Maximum pressure:      8 bar
Twin pistons
