Oil Extraction Screw Press
28 มีนาคม 2566
ผู้ชม 176 ผู้ชม
SUMMARY

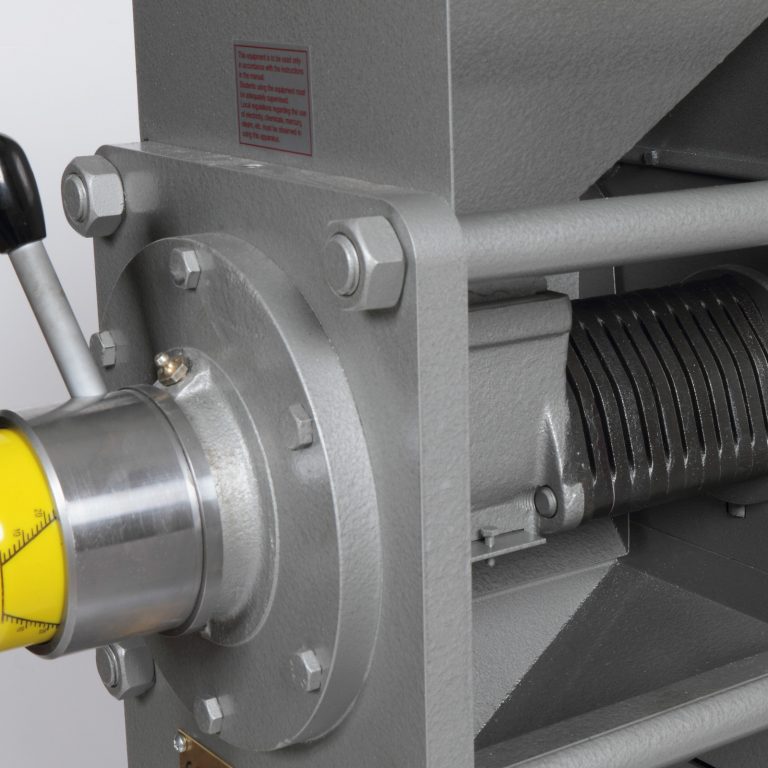

Seed or ground meal is gravity-fed to the press from an integral feed hopper fitted with a manually operated shut-off slide. The thickness of the press cake may be varied. The press is driven at the discharge end through a single-reduction helical gearbox.

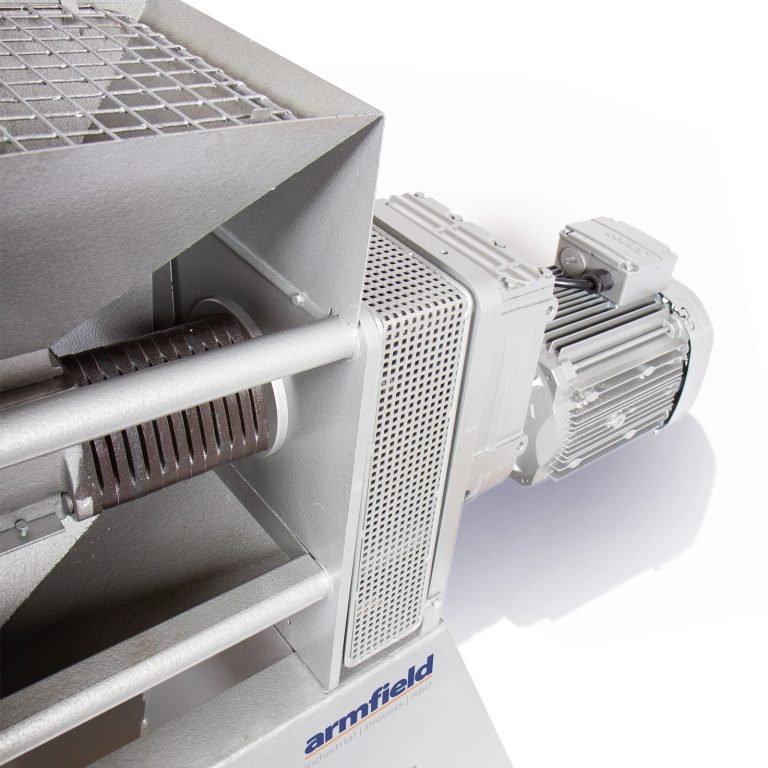

The power source is a 4kW, four-pole, three-phase electric motor.Typical throughput data for various seeds is shown in the table below.
FEATURES & BENEFITS
- Very simple controls
- Robust design
- Self-lubricating shaft in product contact areas
- Removable panels for viewing process and safety
- Quiet processing
TECHNICAL SPECIFICATIONS
FT28-E version:

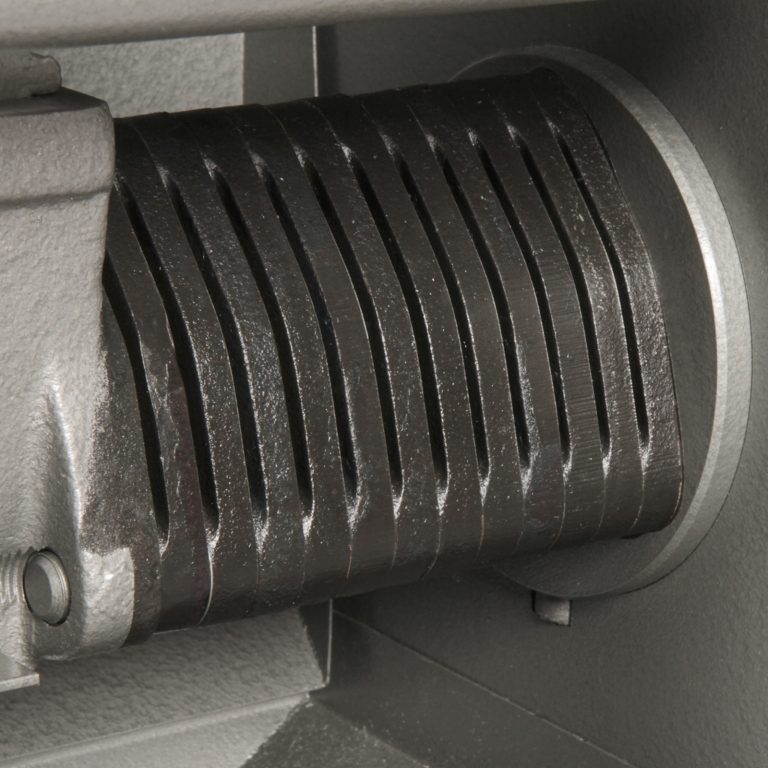

Screw press, having barrel constructed from separate cast rings spaced apart by shims. 60mm diameter bore, 155mm drainage length with single-piece wormshaft driven at the discharge end through a single-reductionhelical gearbox.
Complete with feed hopper, manual feed chute, oil discharge chute and suitable base plate. Includes: one 4kW, four-pole motor, 1,450rpm with starter.
- Oil extraction screw press suitable for use in the laboratory
- Complete with feed hopper, manual feed chute and oil discharge
- 4kW electric motor
- Suitable for use with a wide range of seeds or ground meals
PRESS CAPABILITIES
Armfield-FT28-PressTable
