SUMMARY

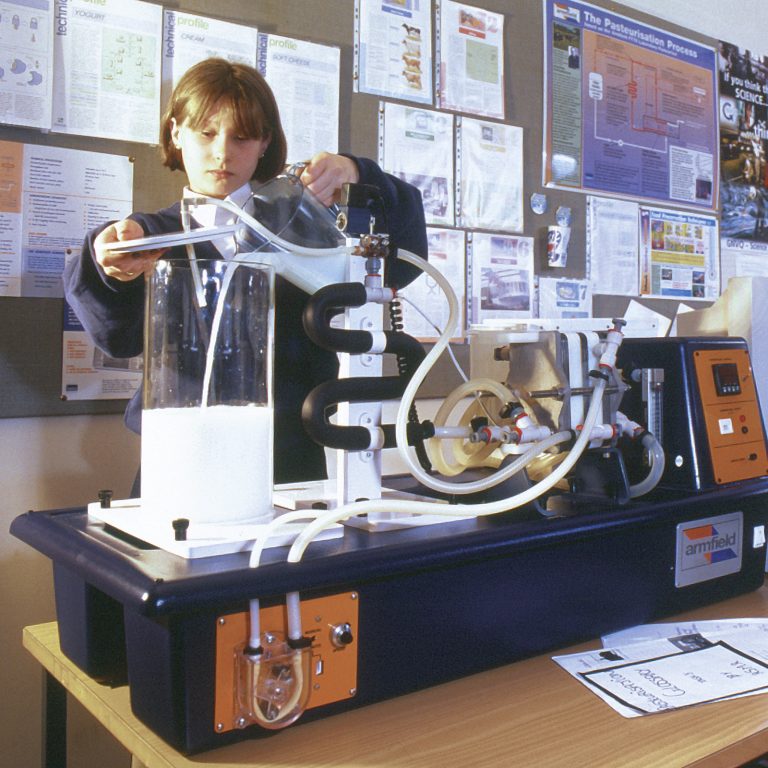

The FT75 Laboratory Pasteuriser accurately reproduces in miniature the industrial High Temperature Short Time process (HTST). Nominal throughput is only 10 litres/ hour. Although primarily designed for use with milk, other food liquids can be pasteurised providing that their solids content is not too high.

Pasteurising temperatures and holding times are easily adjusted, allowing the effectiveness of the product treatment to be investigated. When correctly operated, cleaned and sterilised the FT75 can produce a correctly treated and pasteurised product. However it is not intended that this apparatus be used to manufacture products for human consumption.

The HTST process involves heating the process liquid (milk) to a minimum temperature of 72˚C, holding this temperature for 15 seconds and cooling to a storage temperature as quickly as possible.

The three stage plate heat exchanger of the FT75 (fig1) achieves these parameters by (1) heating the process liquid with hot water prior to its entry into the holding tube and then by (3) cooling with cold water to storage temperature. An intermediate heat exchanger (2) transfers heat from the treated product to the feed liquid. This provides dual benefits in reducing the energy required to reach the pasteurising temperature and in reducing the cooling required. An optional Armfield CW17 Chilled Water Circulator is available. Full instrumentation and controls are provided to regulate heating water temperature and also feed pump speed which in turn regulates holding time.

Optional computer linkage is available to control the process and to log production data.

A user instruction manual provides installation, commissioning and maintenance data together with project exercises. For secondary/high school use a full set of worksheets and simple explanations is available on request.

FEATURES & BENEFITS

The equipment illustrates a number of major messages associated with food such as ‘Food is a material’, manufactured in a factory and not in a kitchen; ‘Heat kills germs, cold doesn’t’ (including the importance of hygiene); ‘Energy efficient processes keep prices down and protect the environment’.

In addition to pasteurisation, the FT75 can be used to demonstrate a wide range of important issues in the field of food technology.

These topics can be covered at a simple introductory level and at much more sophisticated levels to suit higher educational needs.

TECHNICAL SPECIFICATIONS

• A bench top miniature High Temperature Short Time (HTST) system for the demonstration of the industrial pasteurisation process
• Includes a transparent feed tank, a feed pump, a three stage heat exchanger, a holding tube, a divert system and a hot water circulator

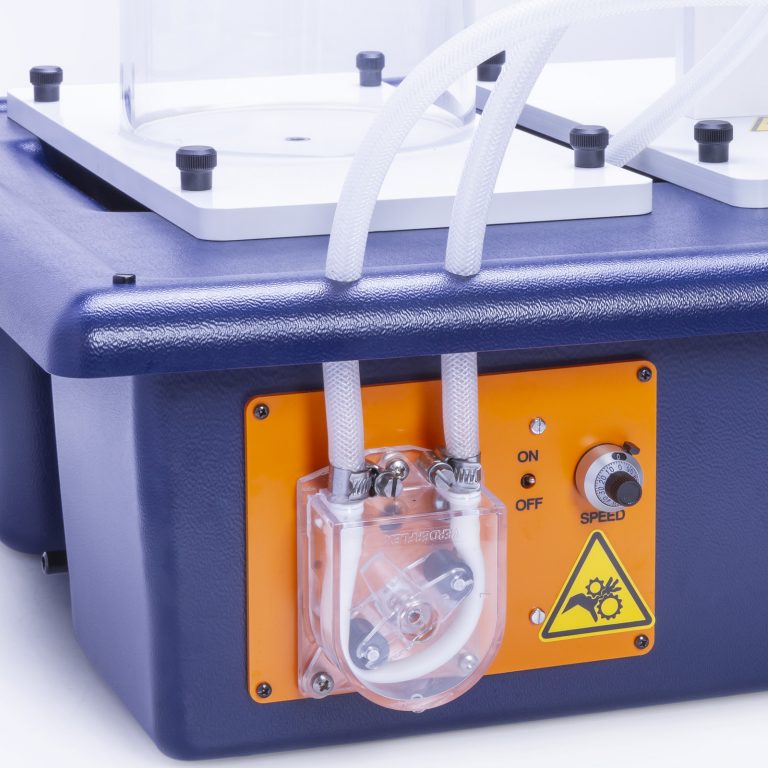

• The feed pump is a peristaltic pump, with a variable speed control

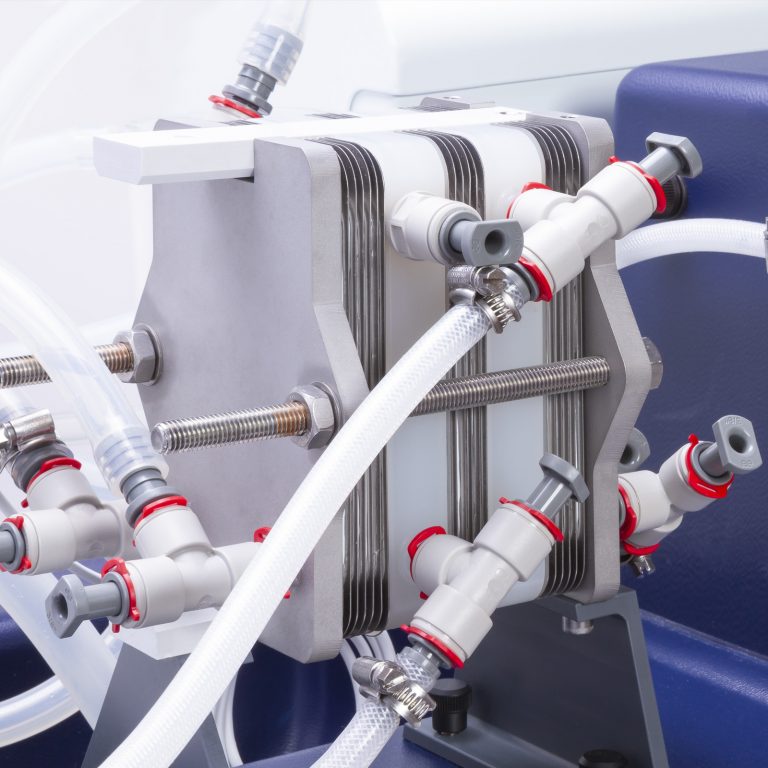

• The heat exchanger is fully representative of large scale industrial units
  •  It uses stainless steel heat transfer plates
  •  It can be dismantled for examination and cleaning
  •  It comprises three stages, a final heating stage, a regeneration stage and a cooling stage

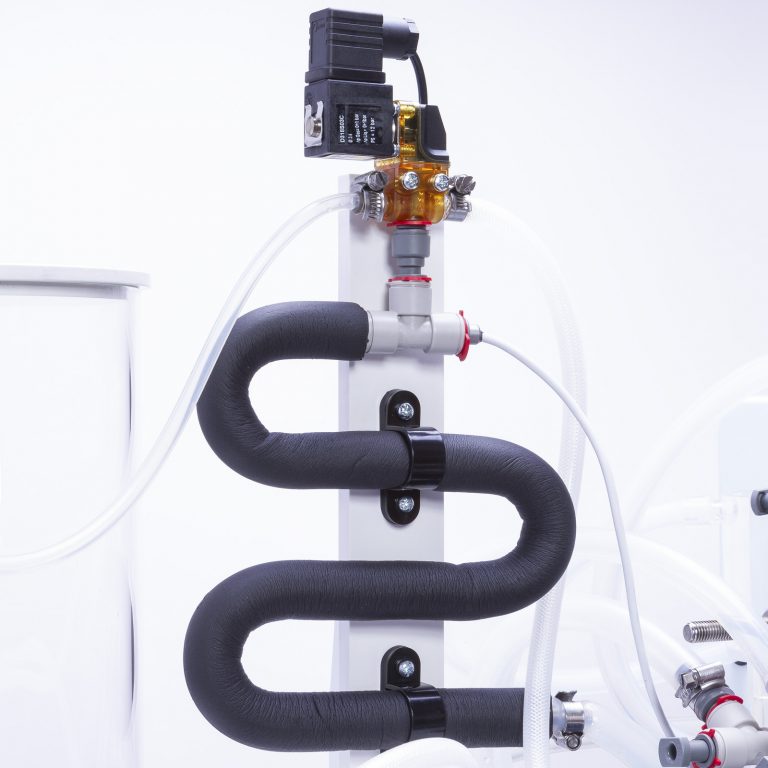

• Holding time is 15 seconds at 10 l/hr, in a stainless steel holding tube
• Process temperature is measured and controlled
• Hot water is circulated around the heating stage of the heat exchanger in a closed loop system
• A PID controller is used to adjust the electric water heater, keeping the product process temperature at the requested value

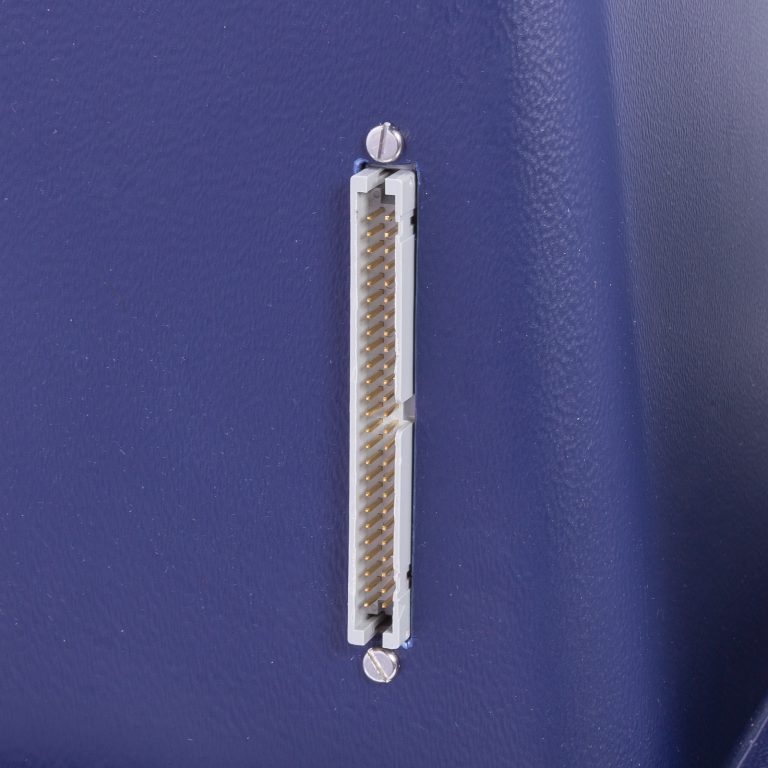

• Optional data logger with USB interface is available
