SUMMARY

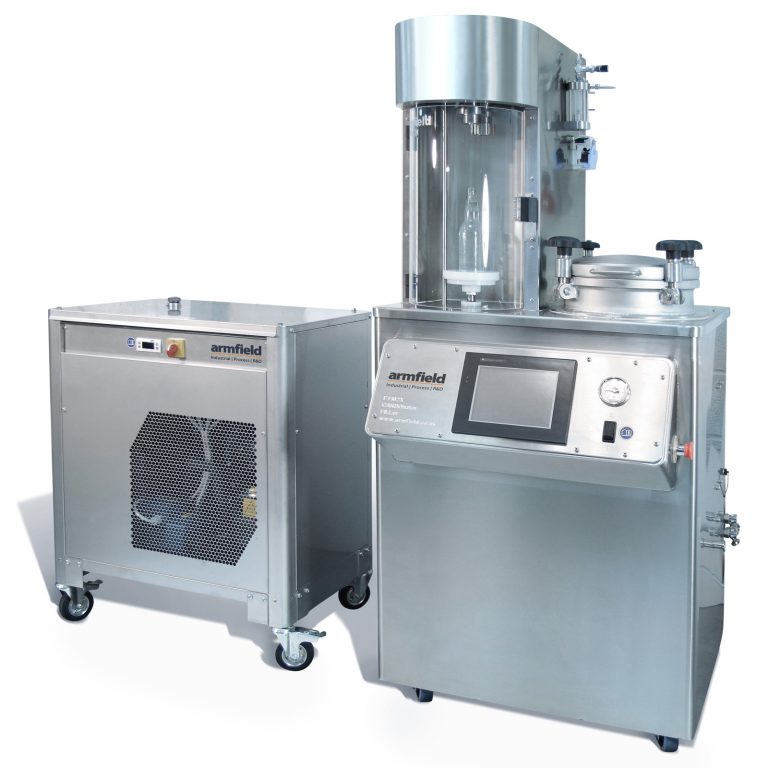

The FT63 contains a reservoir of cooled fluid, which is pumped through the external process to be cooled (eg heat exchanger system).
The cooling fluid can be water or a mixture of glycol and water depending on the output temperature required. This fluid is cooled by the integral refrigeration system. A high-pressure pump is used to pump the fluid through the process. A bypass valve facility enables the fluid to be recirculated independently of the process conditions.
Compressor Reciprocating hermetically sealed compressor with a refrigerant cooled motor. Evaporator Packaged coil type, made of copper tubes and aluminium fins. Condenser Single air-cooled condenser manufactured from aluminium fins mechanically bonded to refrigeration-grade copper tubes. The condenser fan is of a low-noise axial type. Fan blades are fully enclosed by a safety grill.
FEATURES & BENEFITS
- Low refrigerant charge
- Low running costs
- Easily cleaned and maintained
- Continuously recirculating glycol solutions for cold chilled liquid temperatures

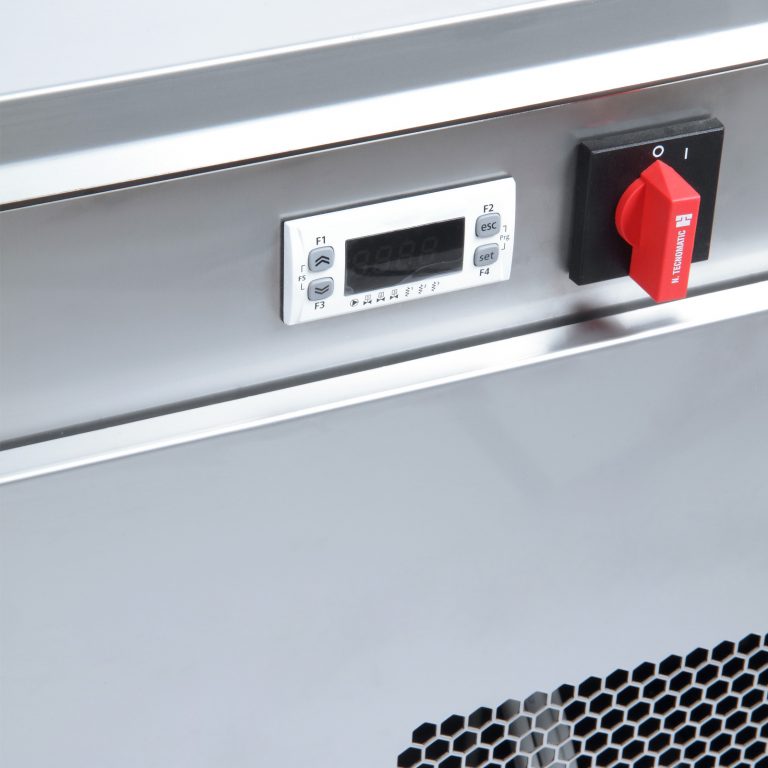

- Temperature controller on chilled liquid outlet enables stable processing
- High cooling capacity
- Integral high capacity liquid pump
- Mobile unit
- Washable control panel
- Stainless steel casing
TECHNICAL SPECIFICATIONS
COOLING CAPACITY
The cooling capacity of a chiller is dependent on its operating conditions, particularly the liquid temperature and concentration.
The FT63 has a typical cooling capacity of 2kW with an outlet temperature of 0°C, using a 20% glycol solution (typical FT174X application). For other applications please consult Armfield.
Refrigerant: R407C Freon
Max ambient temp: 32°C

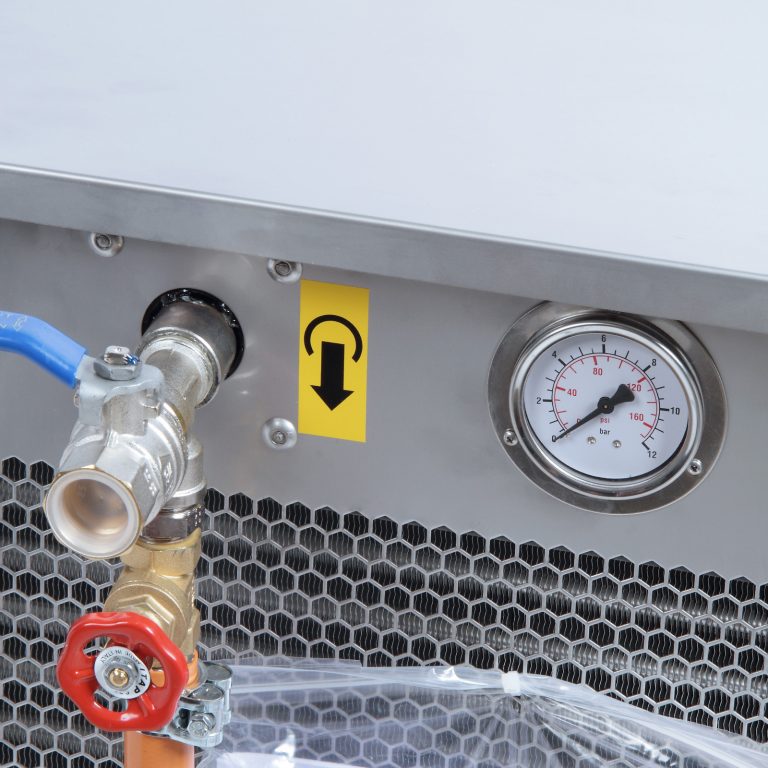

PROCESS PUMP
Head: 6 bar max
Flow rate: 4.8 m³/hr at 3.7 bar
Reservoir capacity: 25 litres
