Laboratory Process Chiller
หมวดหมู่สินค้า: INDUSTRIAL FOOD TECHNOLOGY
รหัส : FT64
A recirculating process chiller suitable for both pilot plants and laboratories.
This unit has a small footprint giving high capacity to cater for all the ice/chilled water requirements in your laboratory.
Food grade primary and secondary refrigerants compatible with modern and future food and beverage research centres are used.
28 มีนาคม 2566
ผู้ชม 115 ผู้ชม
SUMMARY
The FT64 is a recirculating process chiller that primarily supplies diluted glycol to rapidly chill products flowing through heat exchangers. Frequently used as a second/final stage cooling medium, this chiller can also be used to fulfil the whole cooling duty when multiple stages are utilised.
The FT64 can be used for multiple processing systems at once and controlling the flowrate of each circuit.The cooling media can be deionised water or diluted monopropylene glycol (or similar) to achieve the best cooling performance you desire.
FEATURES & BENEFITS
- Rapid cooling of products even at higher flow rates

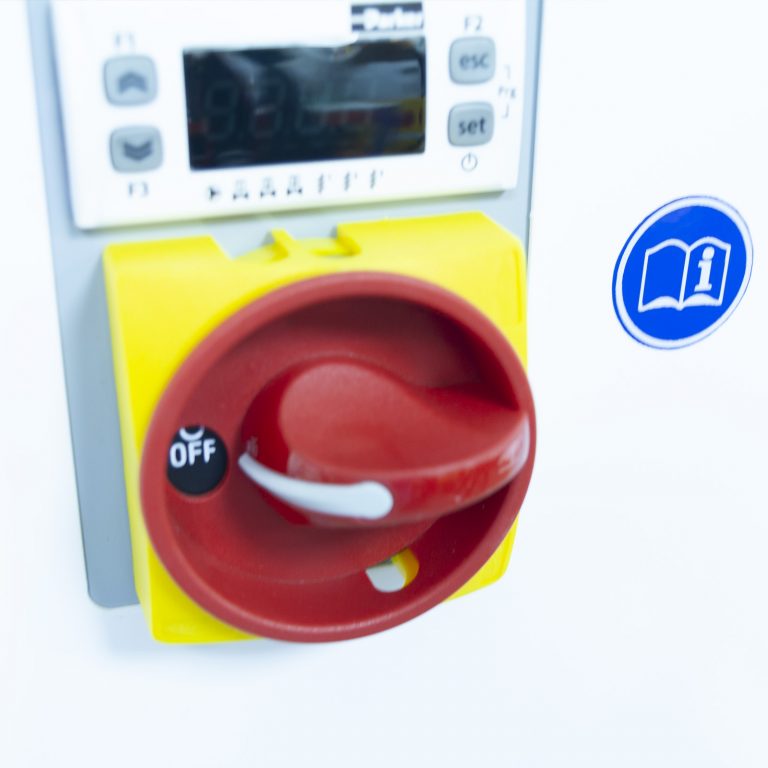

- Very simple control panel with ergonomic operator interface
- High accuracy temperature control
- Continuous recirculation ensures reduced response times when changing the set point

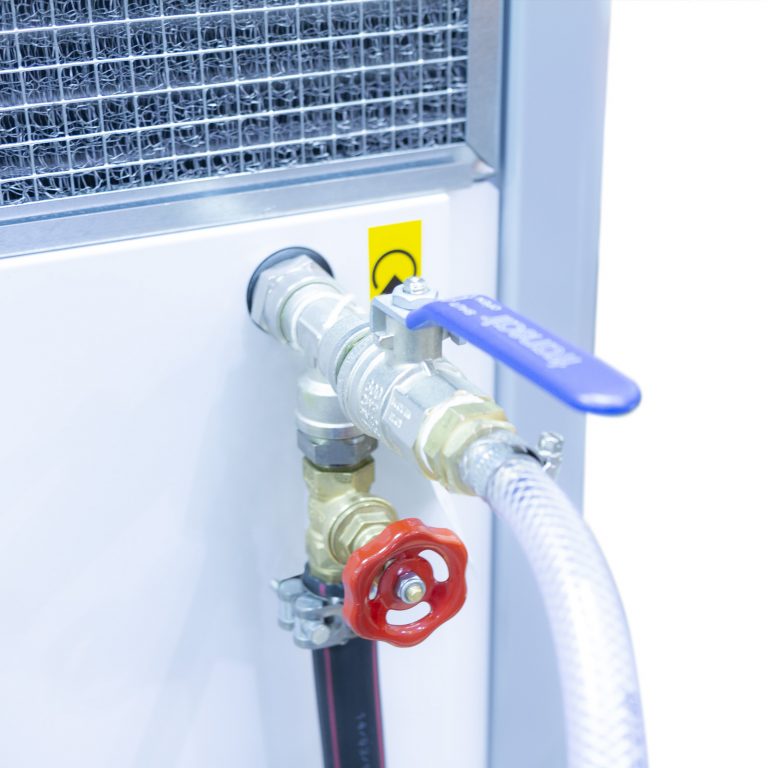

- Three distribution circuits mean one can be isolated leaving the other two running at the desired capacity without interruption
- High accuracy in control of temperature due to reservoir of
- precooled media
- Small footprint
- Three distribution circuits
- Wide process range and ambient operability range

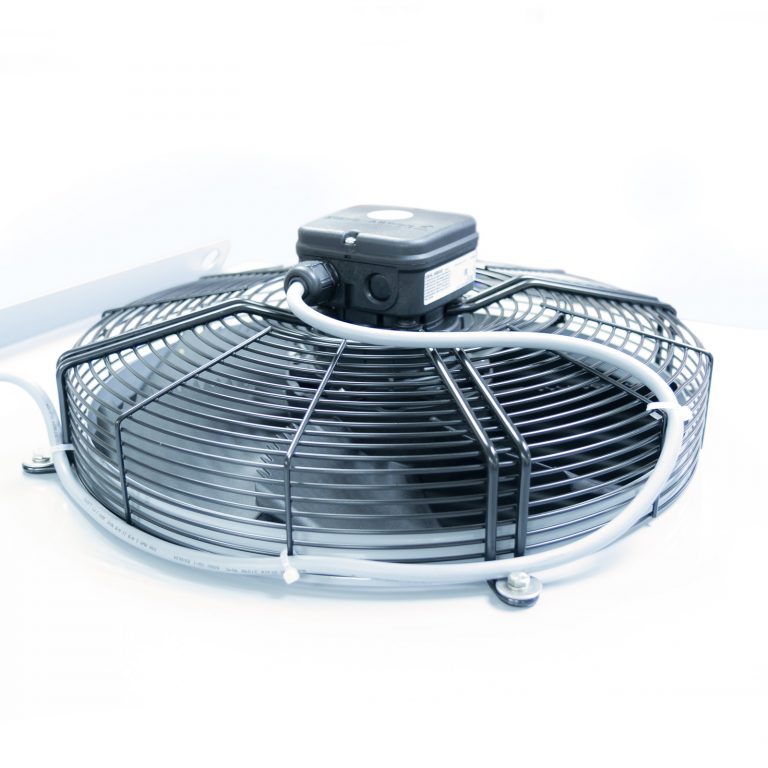

- High efficiency cooling circuit
TECHNICAL SPECIFICATIONS
- The cooling capacity of a chiller is dependent on its operating conditions, particularly the liquid temperature and concentration.
- The FT64 has a typical cooling capacity of 10.8kW with an outlet temperature of 0°C, using a 20% glycol solution (typical FT94X application). For other applications please consult Armfield.
Refrigerant: R407C Freon
Max ambient temp: 32°C
PROCESS PUMP
Head: 6 bar max
Flow rate: 4.8 m³/hr at 3.7 bar
Ingress protection rating: 54
