Crush Tester Sample compressometer SC-500 TS

หมวดหมู่สินค้า: IDM Test
รหัส : 040101

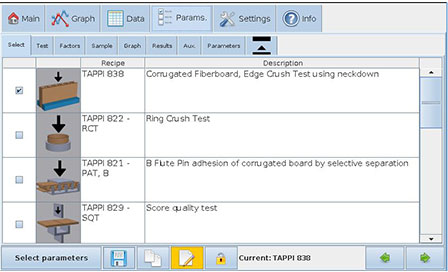

Sample compressometer to make all the essays on packaging paper and sheets of corrugated/waved cardboard such as: RCT, CMT, CCT, CFC, ECT. Equipment with tactile screen, all the essays are pre-programmed making the operation and realization of the tests very simple for the operators. It also allows to create our own test routines. We have complete statistical values. RS-232 and USB output for connection to PC and printer. Software control and optional Novilog or Registra data storage.

24 มิถุนายน 2567

ผู้ชม 213 ผู้ชม

Summary

Sample compressometer to make all the essays on packaging paper and sheets of corrugated/waved cardboard such as: RCT, CMT, CCT, CFC, ECT. Equipment with tactile screen, all the essays are pre-programmed making the operation and realization of the tests very simple for the operators. It also allows to create our own test routines. We have complete statistical values. RS-232 and USB output for connection to PC and printer. Software control and optional Novilog or Registra data storage.

Characterisitics

  • Possibility to carry out different type of tests on paper and corrugated board. By means of exchanging the sample holder accessory, it is possible to
    make RCT, CMT, ECT, CCT, FCT and PAT tests. Sample holders not included.
  • High rigidity steel and aluminum frame.
  • Driven by servo motor and high accuracy ball screw.
  • Adjustable feet for the equipment leveling.
  • Emergency push button.
  • CE mark.
  • Measuring range from 0 to 5.000 N.
  • Maximum travel : 140 mm. Consult your provider about other extensions.

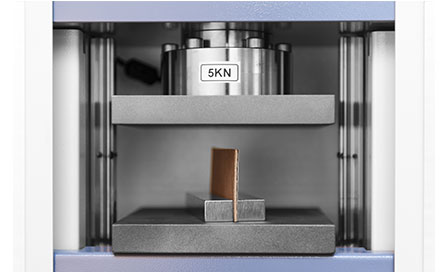

  • Compression Plates dimensions : 150x150 mm.
  • Testing and approaching speeds between 1 and 150 mm/min.
  • Security. Electronic (programming) and physical (limit switches) overload protection.
  • RS-232 interface for connection to management and control programs.
  • USB connection for maintenance works and for connection with USB printer.
  • Force readings with a resolution of 0.004 % of the FS, and extension readings with a resolution of 0.01 mm.
  • Accuracy. <1% of the applied force in a range between 2% and 100% of the FS.

Application

cardboard
