Automated Particle Analyzer （Upgraded）

Introduction

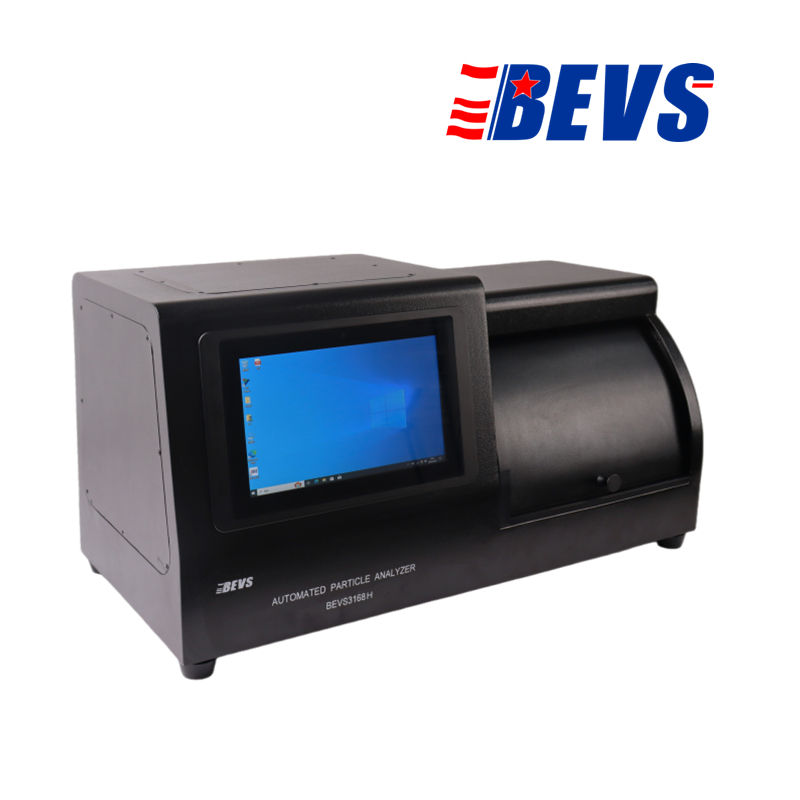

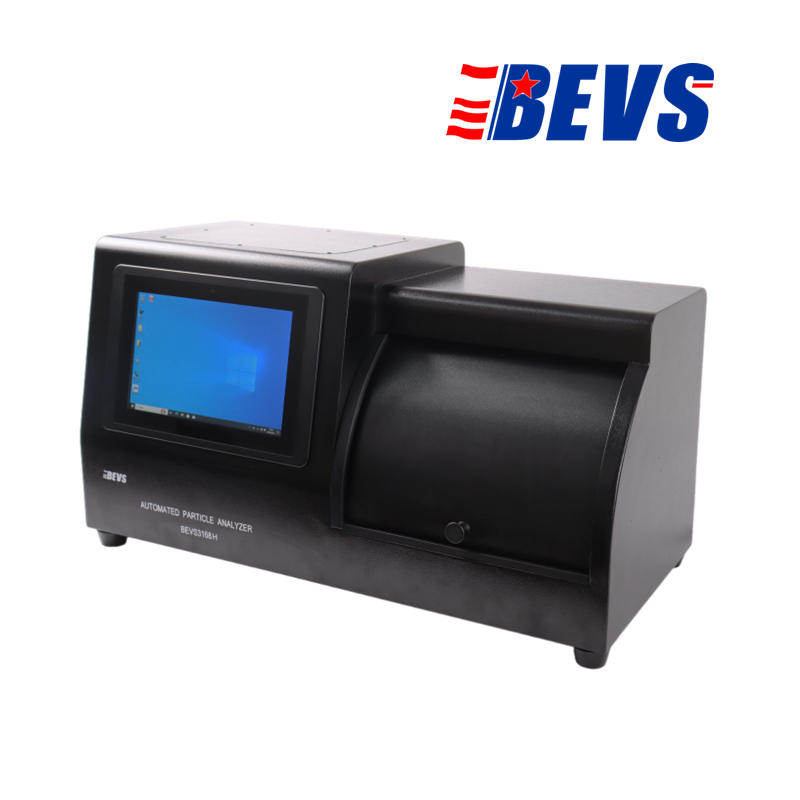

BEVS 3168H Automated Particle Analyzer is suitable for measuring the particle fineness of various materials such as coatings, pigments, and even coatings with special effects, such as transparent liquid materials and metallic paints. One-key measurement technology can automatically scrape the fineness plate and automatically analyze the fineness measurement results. The powerful measurement and analysis software can greatly improve the accuracy and efficiency of the measurement. It is widely used in coatings, resins, pigments, polymers, titanium dioxide, cosmetics, pharmaceuticals, food, electronic materials, chip materials and other fields.

Features:

   1. 10 inch HD touch screen, advanced intelligent analysis software;

   2. HD image processing system for high-precision measurement;

   3. Test chamber with sliding cover, simple and easy to operate;

   4. Cycle measurement time: 30s

Functions:

  1. Multi-language operation menu optional

  2. Automatic scraping, automatic analysis of fineness value

  3. Intuitive display of particle distribution and test results

  4. Can measure transparent liquid materials and metallic paint

  5. 200GB large storage capacity

  6. Support three different interfaces

Technical Parameters:

  1. Measurement range: 0~200μm

  2. Resolution: 1μm

  3. Accuracy: ±(readings×2%+3)μm

  4. Cycle measurement time: 30s

  5. Camera resolution: 4K

  6. Display screen: 10”, Resolution 1920*1080

  7. Interface：USB / VGA / HDMI

  8. Storage：200G（Expandable）

Standards:

ISO1524
