KES-SESRURoughness/Friction Tester
The KES-SESRU Roughness/Friction Tester analyzes hand movements-particularly, strokes-performed by artisans and professionals when judging a fabric’s texture. The device performs this movement mechanically, making it possible to obtain objective numerical data while offering more enhanced versatility over the KES-FB4-A Surface Tester.
In addition to average frictional coefficient and fluctuation of average frictional coefficient, surface roughness data is obtained. The device is also suitable for light texture conditions and hair measurement.
Features

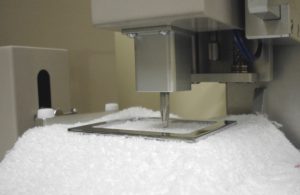

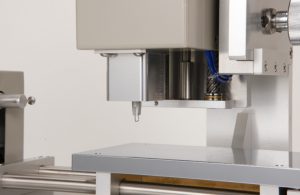

Sensor that imitates fingertips
The sensor unit’s design features a load and surface treatment that mimics a fingertip, allowing for quantification similar to that of the human fingertip.
Example of Measurement Samples
- Textile
- Resin
- Non-woven fabric (Disposable diapers)
- Paper (Tissue)
- Yarn
- Coating
- Wood
- Liquid (Cream, Liquid foundation)
- Powder
- Hair
- Leather/Synthetic leather (Car seats)
- Film
System Configuration Diagram
| Model, Product Name |
KES-SESRU Roughness/Friction Tester |
| Dimensions (W × D × H) *approx. | Measuring unit: 320 × 200 × 390 mm Amplifier: 180 × 400 × 400 mm |
| Weight *approx. | Measuring unit: 10 kg Amplifier: 12 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | KES-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | 30 × 270 mm (standard) |
| *1 PC is not included. We are able to prepare for PC with an appropriate specification. |
