KES-SEFriction Tester
The KES-SE Friction Tester analyzes hand movements-particularly, strokes-performed by artisans and professionals when judging a fabric’s texture. The device performs this movement mechanically, making it possible to obtain objective numerical data while offering more enhanced versatility over the KES-FB4-A Surface Tester.
Obtainable data includes average frictional coefficient, and fluctuation of average frictional coefficient. From these characteristic values, the KES-SE evaluates and quantifies smoothness, slipperiness, and roughness felt when actually touching the target in order to provide objective data.
Features

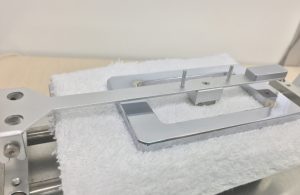

Sensor that imitates fingertips
The sensor unit’s design features a load and surface treatment that mimics a fingertip, allowing for quantification similar to that of the human fingertip.
Example of Measurement Samples
- Textile
- Resin
- Non-woven fabric (Disposable diapers)
- Paper (Tissue)
- Yarn
- Coating
- Wood
- Liquid (Cream, Liquid foundation)
- Powder
- Hair
- Leather/Synthetic leather (Car seats)
- Film
System Configuration Diagram
| Model, Product Name |
KES-SE Friction Tester |
| Dimensions (W × D × H) *approx. | Measuring unit: 320 × 180 × 220 mm Amplifier: 180 × 400 × 400 mm |
| Weight *approx. | Measuring unit: 7 kg Amplifier: 12 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | KES-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | 30 × 270 mm (standard) |
| *1 PC is not included. We are able to prepare for PC with an appropriate specification. |
