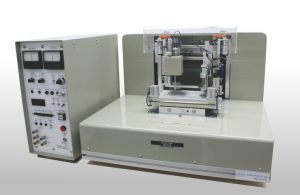

KES-FB4-ASurface Tester
The KES-FB4-A Surface Tester analyzes finger movements-particularly, strokes-performed by artisans and professionals when judging a fabric’s texture. This device performs this movement mechanically, making it possible to obtain objective numerical data.
Obtainable data includes frictional coefficients, fluctuations of frictional coefficients, and surface roughness for such targets as general fabric, cloth, paper, non-woven fabric, and film. Surface friction and roughness characteristic data is useful for determining fullness and softness, smoothness, crispness.
Features

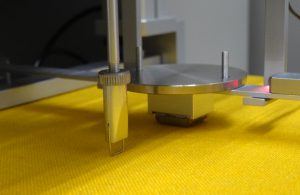

Sensor that imitates fingertips
The sensor unit’s design features a load and surface treatment that mimics a fingertip, allowing for quantification similar to that of the human fingertip.

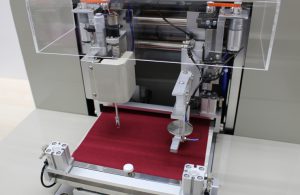

Example of Measurement Samples
- Textile
- Resin
- Non-woven fabric
- Paper
- Coating
- Leather/Synthetic leather (Car seats)
- Film
System Configuration Diagram
| Model, Product Name |
KES-FB4-A Surface Tester |
| Dimensions (W × D × H) *approx. | Measuring unit: 550 × 520 × 420 mm Amplifier: 180 × 400 × 400 mm |
| Weight *approx. | Measuring unit: 50 kg Amplifier: 10 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | KES-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | 200 × 200 mm (standard) Thickness: 2 mm (max.) |
| *1 PC is not included. We are able to prepare for PC with an appropriate specification. |
