KES-FB3-A Compression Tester
หมวดหมู่สินค้า: KatoTech
รหัส :

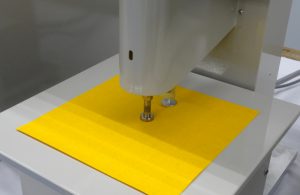

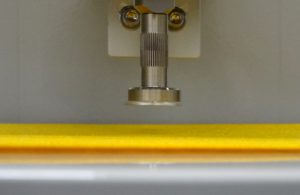

The KES-FB3-A Compression Tester analyzes hand movements-particularly, pushing with a finger-performed by artisans and professionals when judging a fabric’s texture. This device performs this movement mechanically, making it possible to obtain objective numerical data.
18 กุมภาพันธ์ 2568
ผู้ชม 15 ผู้ชม
KES-FB3-ACompression Tester
The KES-FB3-A Compression Tester analyzes hand movements-particularly, pushing with a finger-performed by artisans and professionals when judging a fabric’s texture. This device performs this movement mechanically, making it possible to obtain objective numerical data.
Obtainable data includes compression rigidity, compression energy, and recoverability for such targets as general fabric, cloth, paper, and non-woven fabric.
Compression characteristic data is useful for determining fullness and softness, smoothness, anti-drape stiffness.
Features
Measurement can be performed with a minimum load detection of 10 gf/cm² for extremely small objects.
Example of Measurement Samples
- Textile
- Non-woven fabric
- Paper
- Leather/Synthetic leather (Car seats)
System Configuration Diagram
Specification
| Model, Product Name |
KES-FB3-A Compression Tester |
| Dimensions (W × D × H) *approx. | Measuring unit: 285 × 405 × 500 mm Amplifier: 230 × 450 × 500 mm |
| Weight *approx. | Measuring unit: 40 kg Amplifier: 20 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | KES-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | Square with a side of 100 to 200 mm (standard) |
| *1 PC is not included. We are able to prepare for PC with an appropriate specification. |
