KES-FB2-A Pure Bending Tester
18 กุมภาพันธ์ 2568
ผู้ชม 15 ผู้ชม
KES-FB2-APure Bending Tester
The KES-FB2-A Pure Bending Tester analyzes hand movements-referred to as “bending”-performed by artisans and professionals when judging a fabric’s texture. This device performs these movements mechanically, making it possible to obtain objective numerical data.
Obtainable data includes bending rigidity and recoverability for such targets as general fabric, cloth, paper, non-woven fabric, and film.
Bending characteristic data is useful for determining stiffness and fullness, softness, anti-drape stiffness.
Features
-
Improved data accuracy

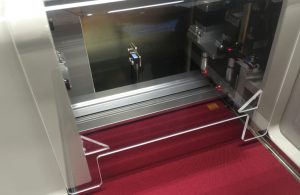

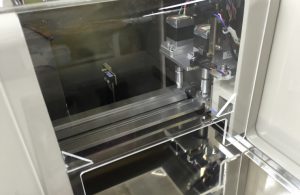

Motor chucking makes it easier to mount thin samples that would otherwise be difficult to mount. This eliminates errors caused by the user and improves the accuracy of data.
-
Display resolution (of software): 0.0001
The ability to measure from extremely small values up to a maximum of 50 gf·cm means measurement can be performed for a wide variety of samples.
Example of Measurement Samples
- Textile
- Paper
- Leather/Synthetic leather (Car seats)
- Film
System Configuration Diagram
| Model, Product Name |
KES-FB2-A Pure Bending Tester |
| Dimensions (W × D × H) *approx. | Measuring unit: 830 × 530 × 370 mm |
| Weight *approx. | Measuring unit: 60 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | KES-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | 200 × 200 ｍm (standard) width: 200 mm (max.) thickness: 1 mm (max.) |
| *1 PC is not included. We are able to prepare for PC with an appropriate specification. |
