KES-FB1-A/AW Tensile and Shear Tester
The KES-FB1-A Tensile and Shear Tester analyzes hand movements-referred to as “tensile” and “shear”-performed by artisans and professionals when judging a fabric’s texture. This device performs these movements mechanically, making it possible to obtain objective numerical data.
Obtainable data includes tensile/shear rigidity, tensile energy, elongation rates, and recoverability for such targets as cloth, paper, non-woven fabric, and film.
Tensile and shear characteristic data is useful for determining stiffness and anti-drape stiffness. These properties often influence form stability and the tendency for wrinkles.
• KES-FB1-A Tensile and Shear Tester
• KES-FB1-AW Tensile and Shear Tester (for thick sample)
Features
-
Improved data accuracy

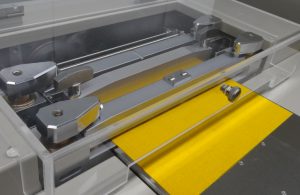

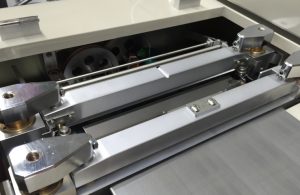

Sample slack is removed through motor chucking and clamping, eliminating errors caused by the user and thus improving the accuracy of data.
-
Display resolution: 0.01
The KES-FB1-A makes it possible to quantify minute differences in tensile and shear properties.
Example of Measurement Samples
- Textile
- Non-woven fabric
- Paper
- Leather/Synthetic leather (Car seats)
- Film
System Configuration Diagram
Specification
| Model, Product Name |
KES-FB1-A Tensile and Shear Tester KES-FB1-AW Tensile and Shear Tester (for thick sample) |
| Dimensions (W × D × H) *approx. | Measuring unit: 610 × 535 × 320 mm Amplifier: 230 × 450 × 500 mm |
| Weight *approx. | Measuring unit: 45 kg Amplifier: 20 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | KES-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | [KES-FB1-A] 200 × 200 mm (standard) Thickness: 2 mm (max.) [KES-FB1-AW] 200 × 200 mm (standard) Thickness: 7 mm (max.) |
| *1 PC is not included. We are able to prepare for PC with an appropriate specification. |
