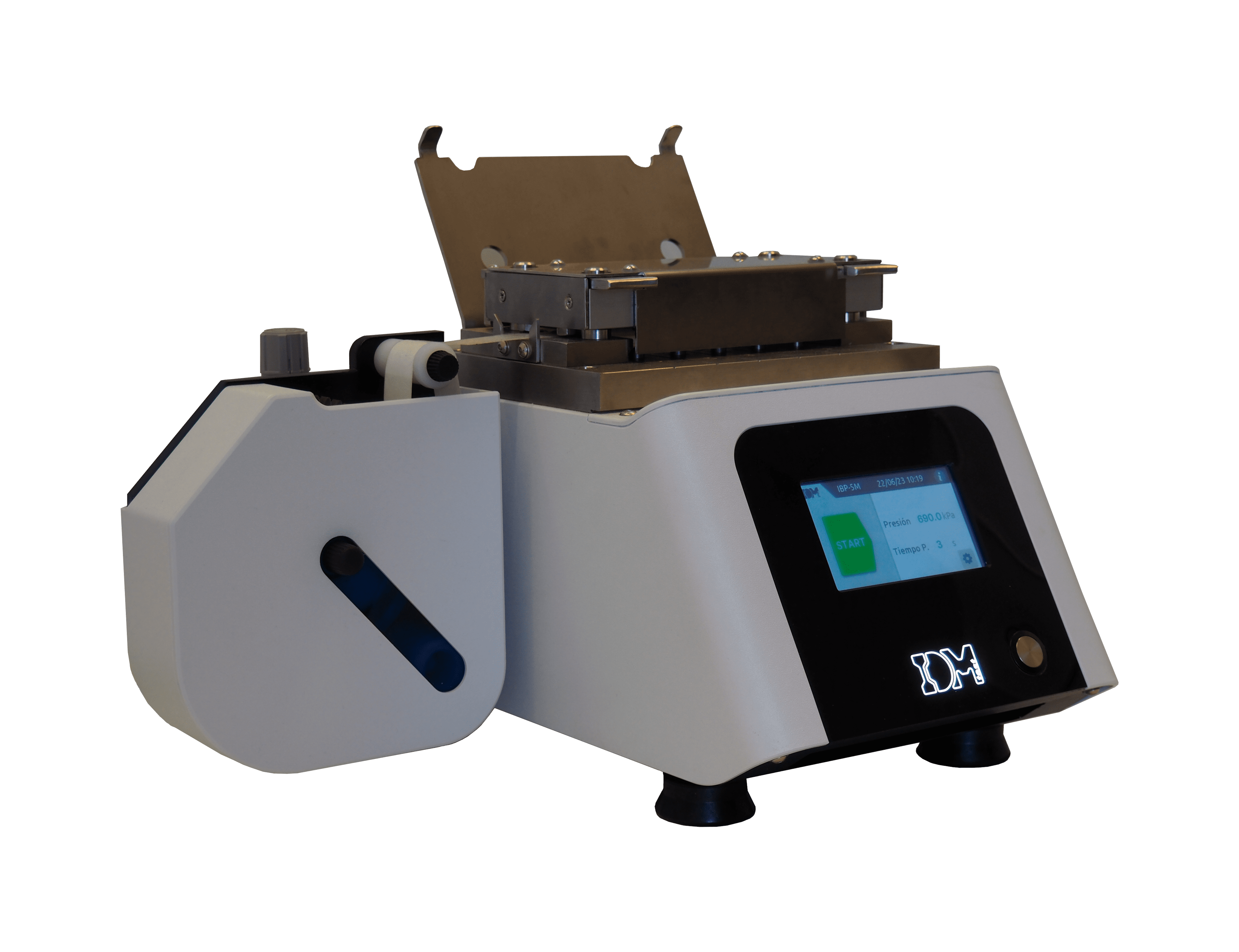

INTERNAL BOND TESTER SEMI-AUTOMATIC SAMPLE PREPARATION (IBP-5M)
หมวดหมู่สินค้า: IDM Test
รหัส :
Preparation of manual samples for the Internal Bond test. Created from automatic equipment. Manual process of sample and cutting preparation. Once the test strip is cut, the device is wrapped and the sample and the tape are placed again. Then it is closed and the pressure and time are regulated automatically. The cut must be done with a cutter or manual blade. This equipment also allows to prepare the samples for any old equipment, whatever the brand it may be.
31 มกราคม 2568
ผู้ชม 38 ผู้ชม
INTERNAL BOND TESTER SEMI-AUTOMATIC SAMPLE PREPARATION (IBP-5M) - IDM
Cod: 080108
Standard: TAPPI T569, T833, ISO 16260.
Preparation of manual samples for the Internal Bond test. Created from automatic equipment. Manual process of sample and cutting preparation. Once the test strip is cut, the device is wrapped and the sample and the tape are placed again. Then it is closed and the pressure and time are regulated automatically. The cut must be done with a cutter or manual blade. This equipment also allows to prepare the samples for any old equipment, whatever the brand it may be.
FEATURES:
- Independent semi-automatic sample preparation equipment.
- Possibility to use it for sample preparation for testing in other equipment (Check compatible models).

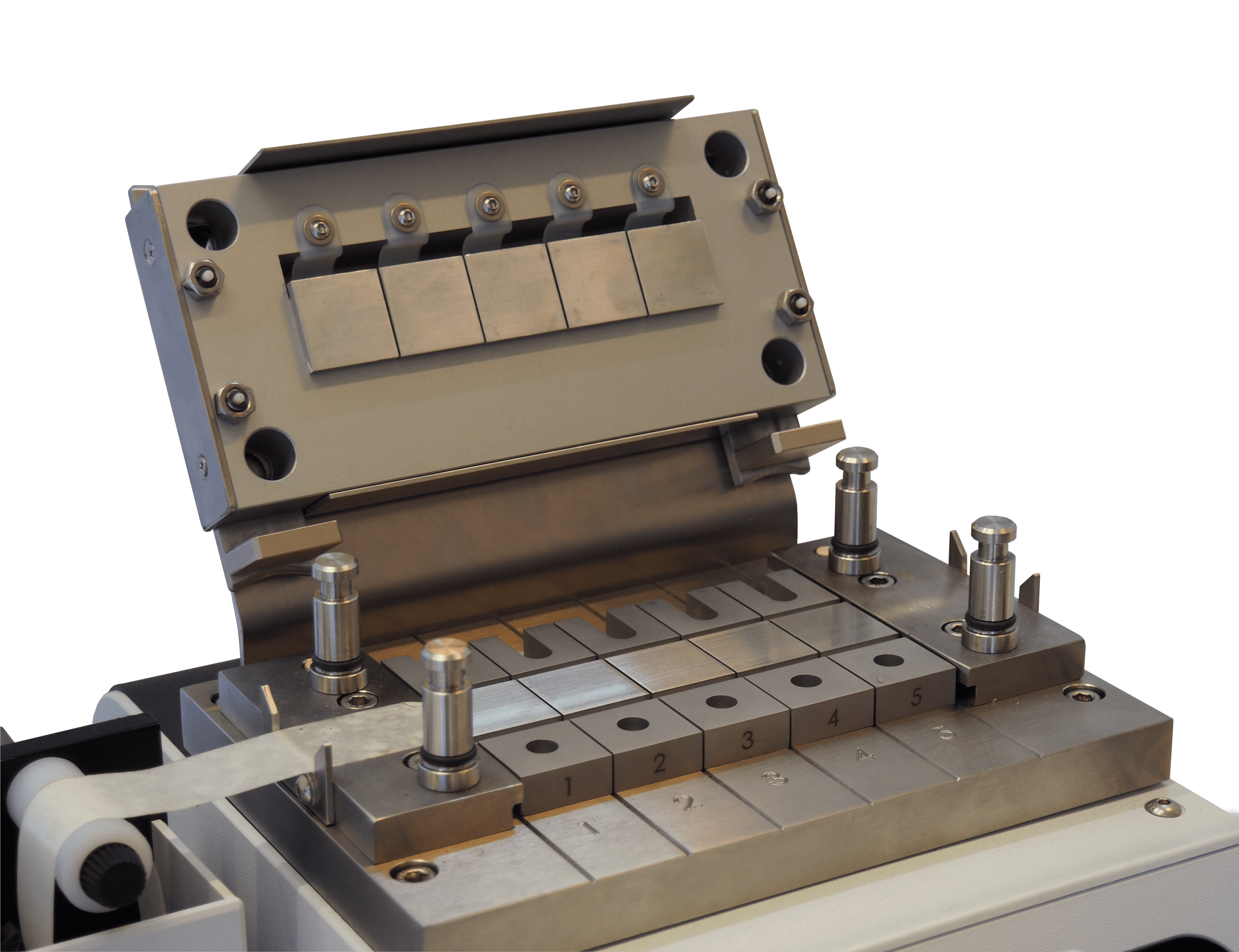

- Simultaneous semi-automatic preparation of 5 samples (sample area: 25.4 mm x 25.4 mm (1.0” x 1.0”)).

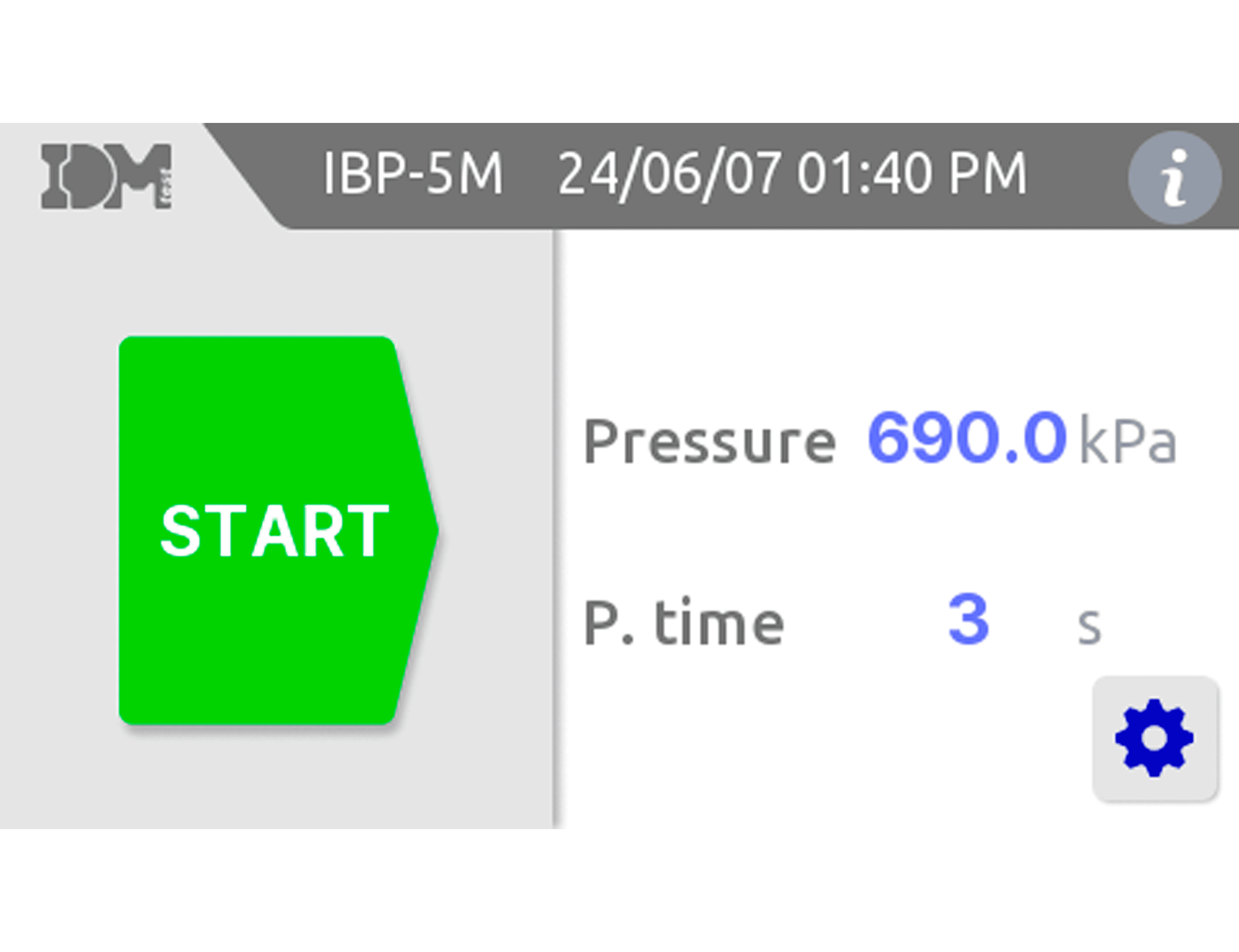

- Control panel with 7’’ color touchscreen and auxiliary button.
- Manual cutting with a blade or cutter.

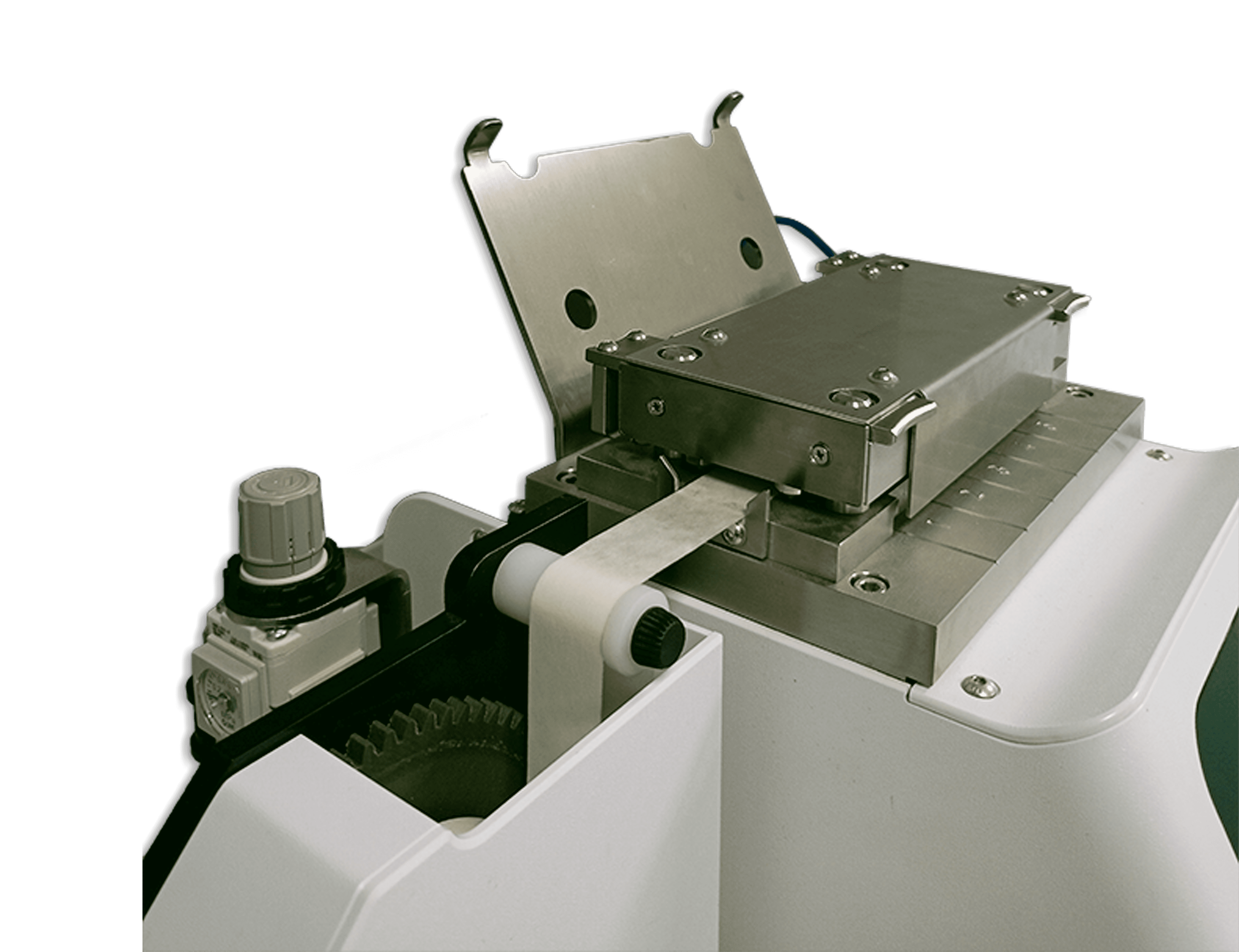

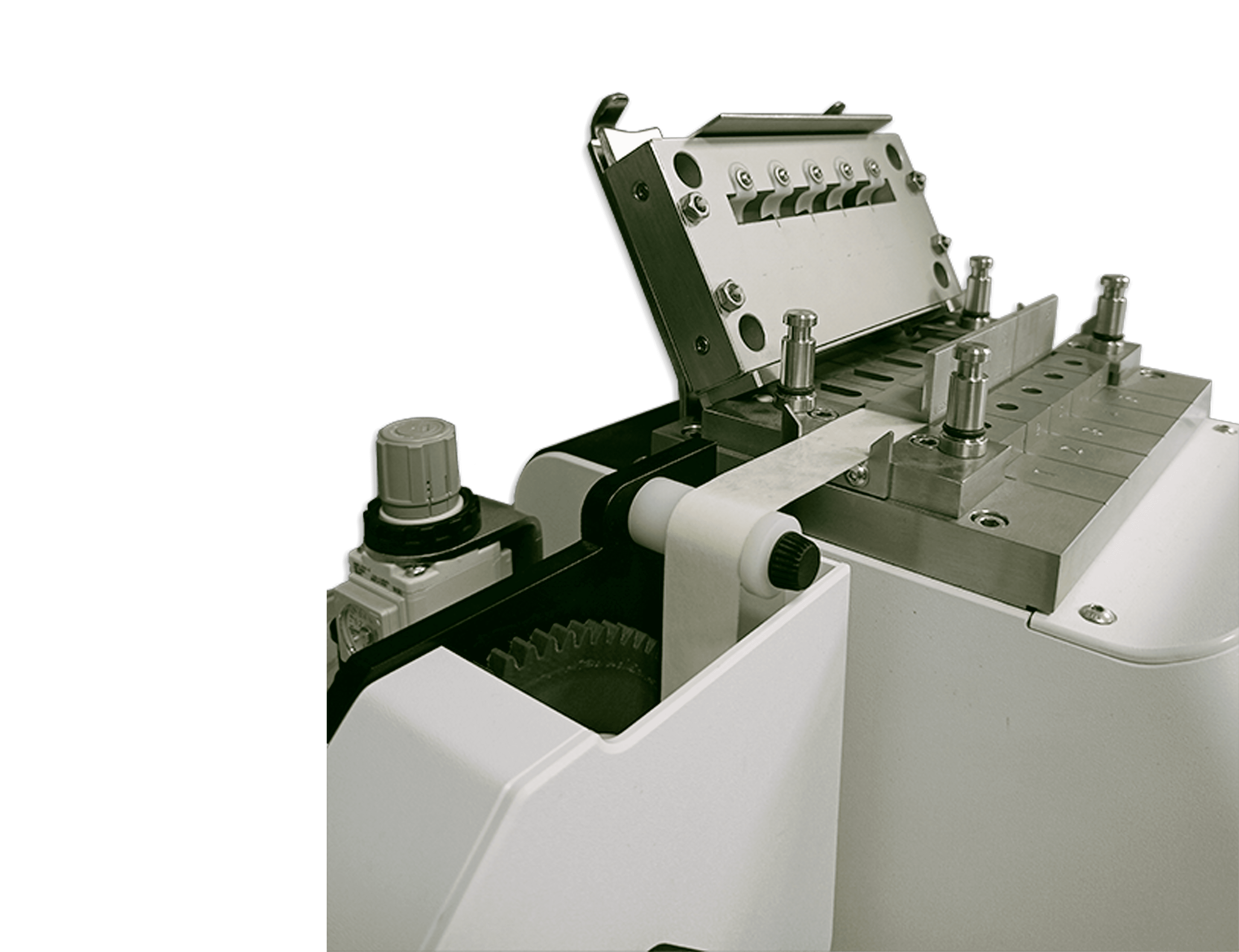

- Application of bonding pressure through independent pneumatic actuators.

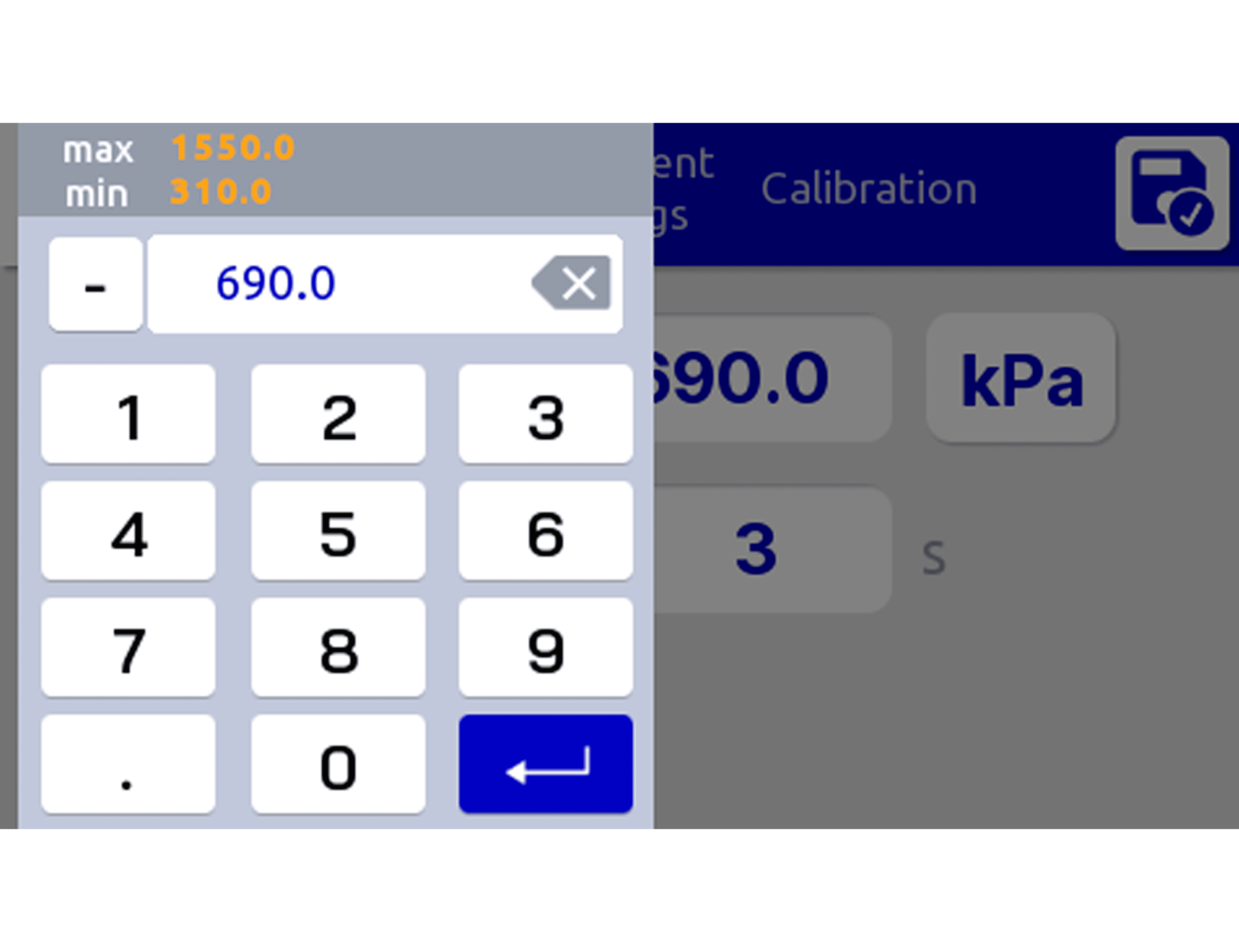

Digitally adjustable pressure and time:
- Pressure: from 45 PSI to 220 PSI (310 kPa to 1500 kPa) in increments of 0.1 PSI
(1 kPa). Bonding pressure error: < +/-2 PSI (+/- 13 kPa).
- Bonding pressure time: programmable from 1s to 60s in 1s increments. - Simple dispenser with a roll holder and protective paper take-up roller. This system allows for quick application of tape on both sides of the sample.
- Angle support frame with instant anchoring.
- Quick and easy to use and clean.
- CE Marked.
