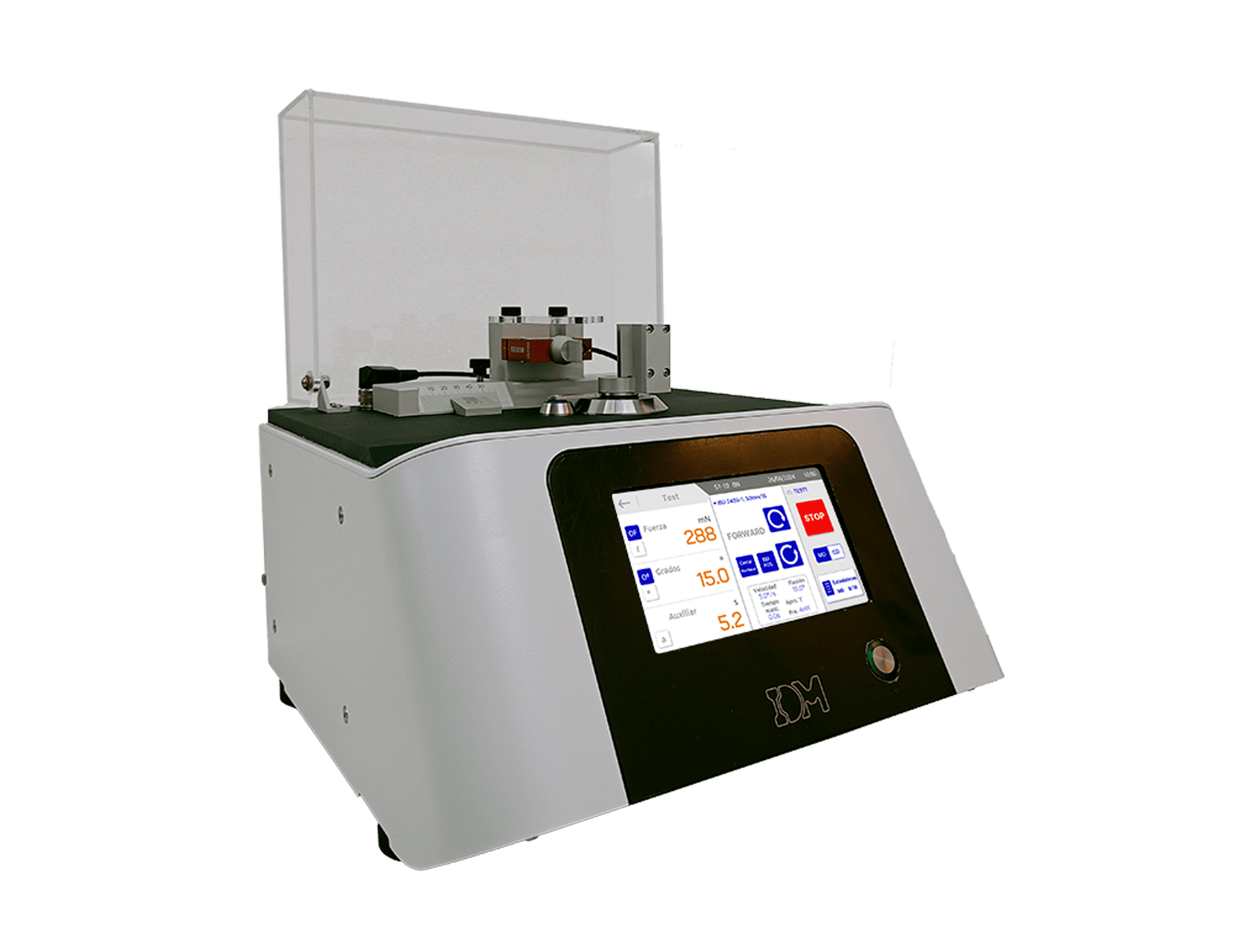

UNIVERSAL RIGIDIMETER PNEUMATIC AND MANUAL PRESS (ST-10 / ST-10M) - IDM

Cod: 220108, 220109
Standard: ISO 2493-1, ISO 5628, SCAN P29, DIN 53121, BS 3748, TAPPI T556, T489, NFQ 03-048.

Universal rigidity equipment, for different materials such as paper, cardboard, paperboard and box. Equipment with manual or pneumatic press, depending on the model. Complete, with paper rigidity measurement, conversion to Taber rigidity, resistance to bending, fatigue, recovery of the creases, rigidity index. For box tests we can measure, the strength of the creases, its fatigue and recovery. Simple user-friendly equipment with color touch screen, complete statistics and RS-232 outputs for connection to PC and USB. Compatible with our testing program CAPTURE Software.

FEATURES:

• UNIVERSAL equipment for paper applications and other materials.
• Measurement of paper, cardboard, cardboard packaging, plastic sheets, textiles, etc.
• 10 N Load Cell – Range 10 to 10000 mN.
• Accuracy ±2% up to 100 mN and ±5% for the rest of the range.

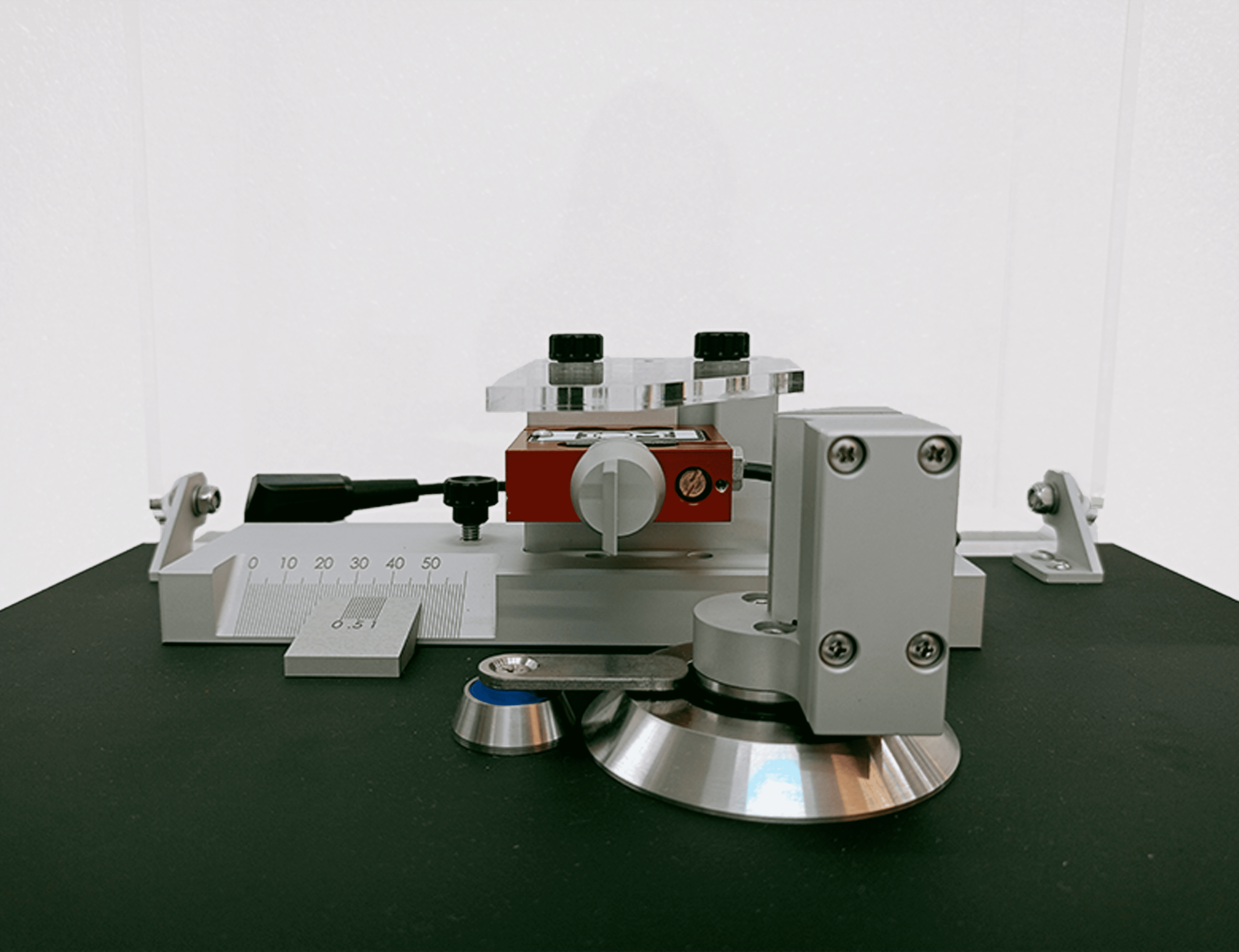

• Manual (Code 220109) and pneumatic (Code 220108) sample clamping system. (Specify when ordering).
• Protective cover for the testing area.
• Load cell verification kit included (weight + support).
• Adjustable test distance between 10 and 50 mm.
• Presettable bending angle (0.1 to 90º).
• 2 testing times and 2 measurement angles.

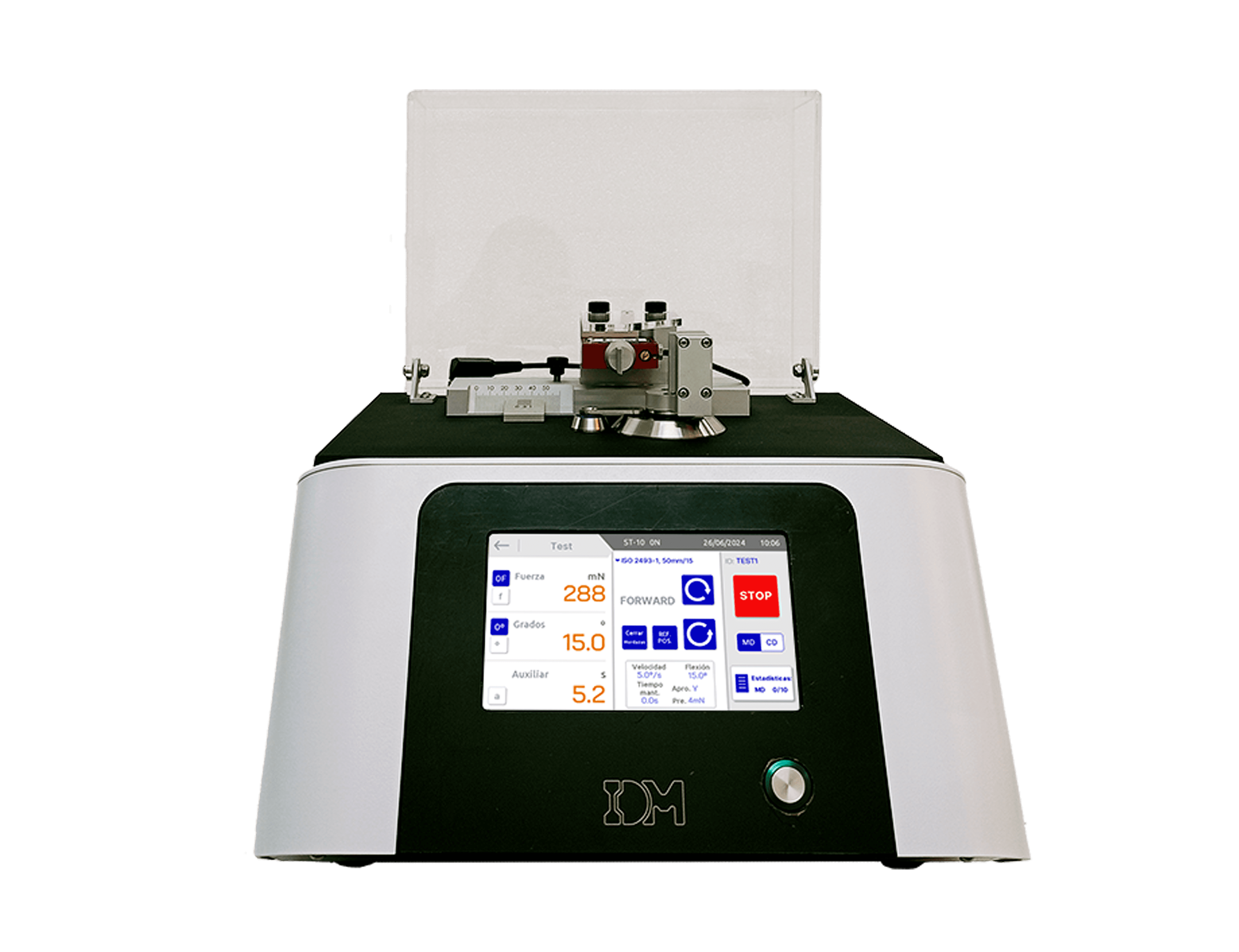

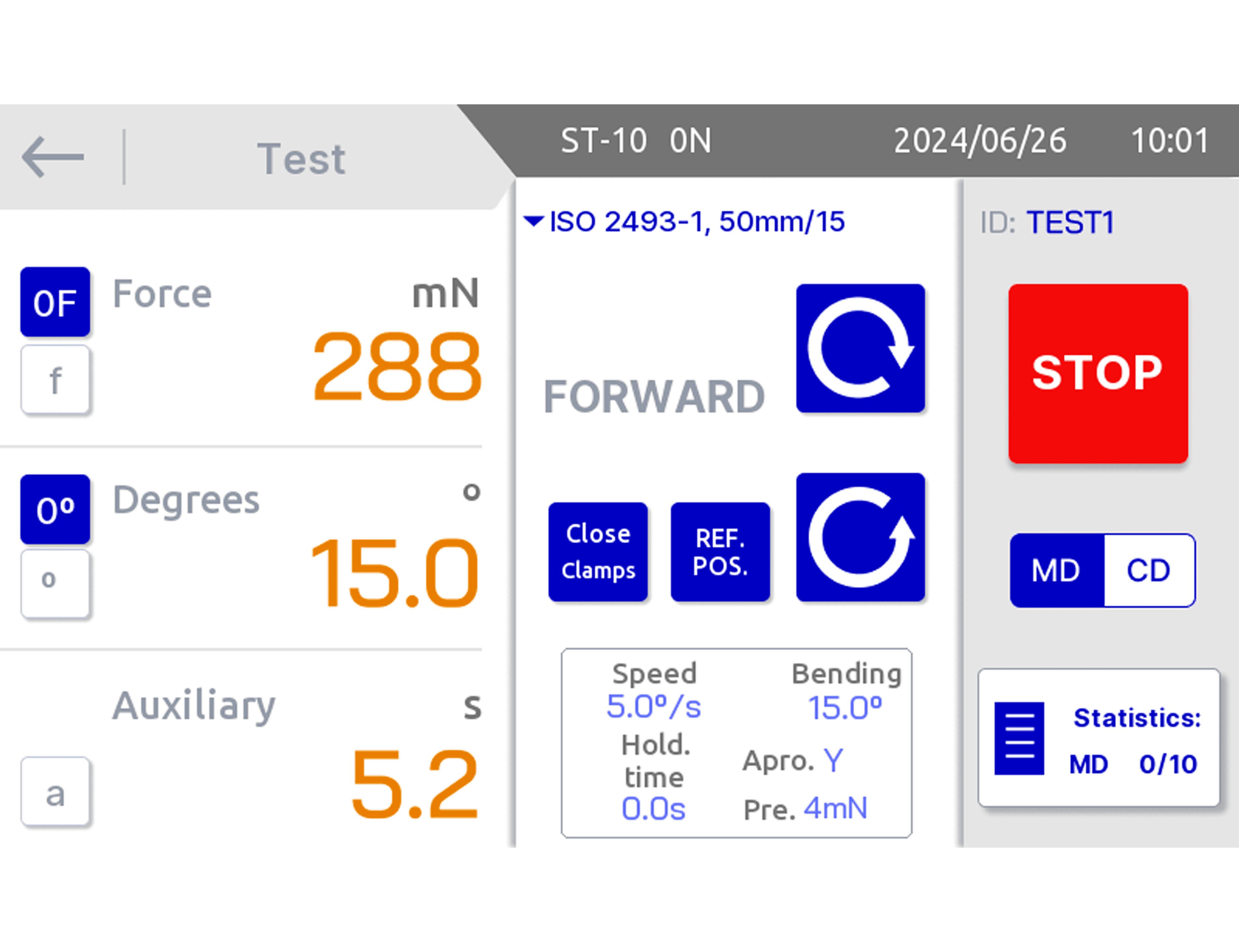

• 7’’ color touchscreen.
• Adjustable test speed from 0.1 to 50º/second.
• Calculation of: Paper and cardboard stiffness, fatigue, creasing resistance, creasing recovery.
• Bending and Bending Index resistance values.
• Conversion to Taber Units.
• Sample width to be tested: up to 50 mm for creases (the standard width is 38 mm for stiffness).
• Maximum sample thickness 4 mm.

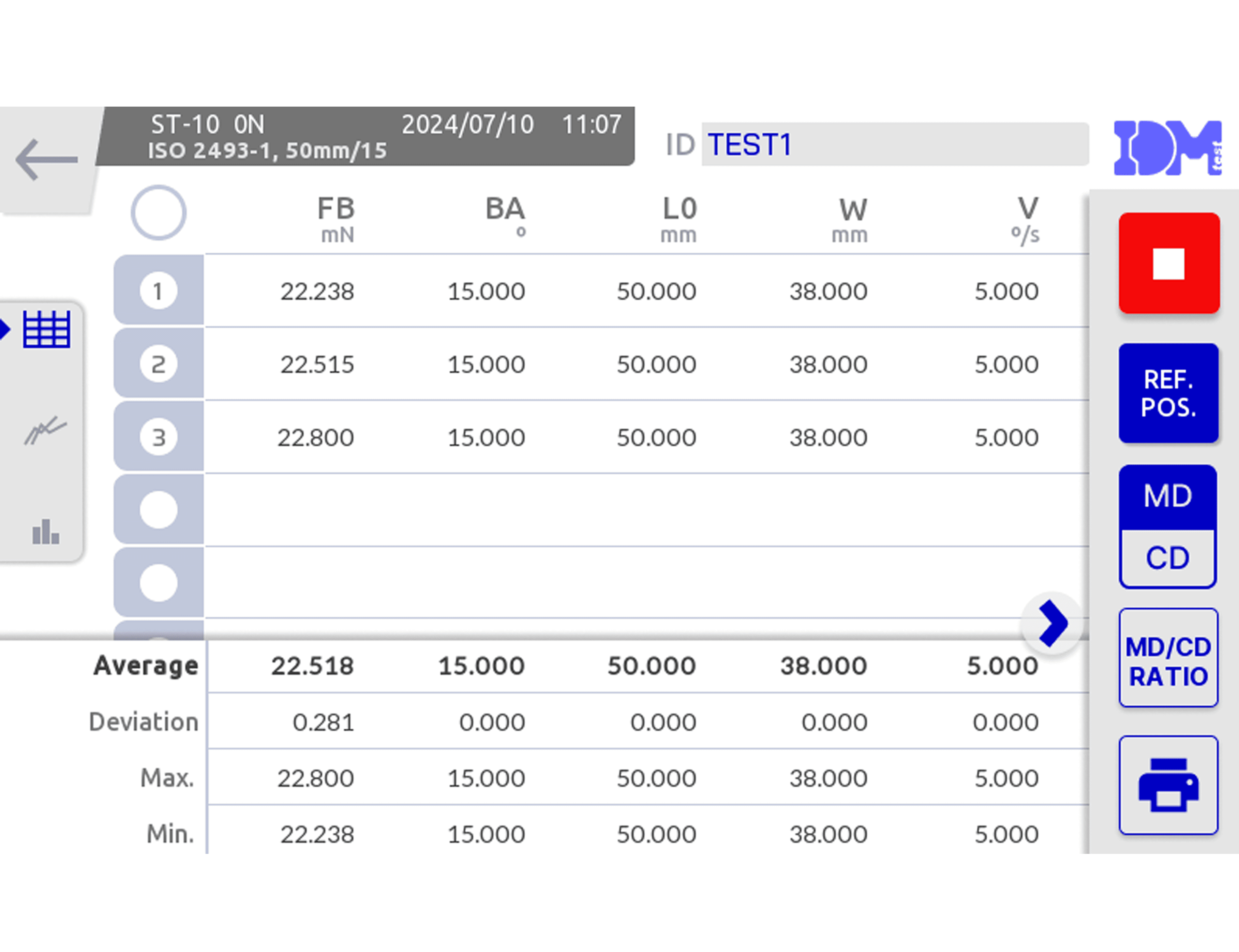

• Statistical functions.
• RS-232 port for connection to CAPTURE Test Control and Management programs (Optional program).
• USB connection for maintenance work or USB printer connection.
• Supports with regulation for leveling the equipment.
• 38x80 mm cutting template included.
• CE marked.
