KODAK TYPE RIGIDIMETER (N4100)
หมวดหมู่สินค้า: IDM Test
รหัส :
Equipment for the determination of rigidity, through resonance. Easy to use equipment, with results comparable to other methods. The measuring principle of the dynamic flexural rigidity, under normalized conditions, is calculated using the vibrating resonance length of a sample attached to an extremity. Calculation of the resistance to dynamic bending from this value and the grammage of the tested material. The equipment vibrates the sample at a stable frequency and determine the rigidity through a formula with the free length of the sample when it reaches its greatest amplitude of vibration and with the grammage of the paper tested.
31 มกราคม 2568
ผู้ชม 3 ผู้ชม

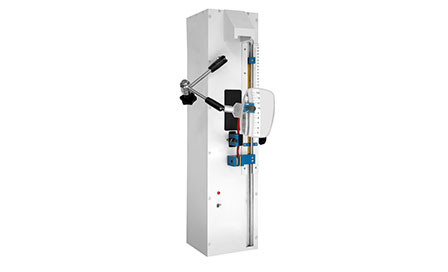

KODAK TYPE RIGIDIMETER (N4100) - IDM
Cod: 220103
Standard: ISO DP 5629, NF Q 3025, DIN 53 123/1.
Equipment for the determination of rigidity, through resonance. Easy to use equipment, with results comparable to other methods. The measuring principle of the dynamic flexural rigidity, under normalized conditions, is calculated using the vibrating resonance length of a sample attached to an extremity. Calculation of the resistance to dynamic bending from this value and the grammage of the tested material. The equipment vibrates the sample at a stable frequency and determine the rigidity through a formula with the free length of the sample when it reaches its greatest amplitude of vibration and with the grammage of the paper tested.
FEATURES:
- Very easy to use
- Rapid and reproducible measures.
- Non-destructive essays.
- Reusable samples in other tests.
- Results comparable to other methods.
- Vibration frequency: 25.0 ± 0.25 Hz.
- Sway amplitude: [0.2 mm.
- Length of the resonance measurement scale: 0 - 300 mm.
- Reading resolution of the scale: every 1 mm / 0.1 mm.
- Width of the clamping grips: 28 mm.
- Clamps opening: 6 mm maximum.
- Clamping pressure: 0.6N/cm2.
