GURLEY/BENDTSEN POROSITY EQUIPMENT (1 HEAD) (PBD-01)
หมวดหมู่สินค้า: IDM Test
รหัส :
Equipment used to determine Gurley and Bendtsen porosity. The equipment is based on the measurement of porosity with the Bendtsen system. The result correlates it to Gurley seconds. System without oil and easy to use. Pneumatic clamping system, automatic sample detection and gives us complete statistics with paper reel profiles. Color touch screen and equipment controlled by PLC
31 มกราคม 2568
ผู้ชม 10 ผู้ชม

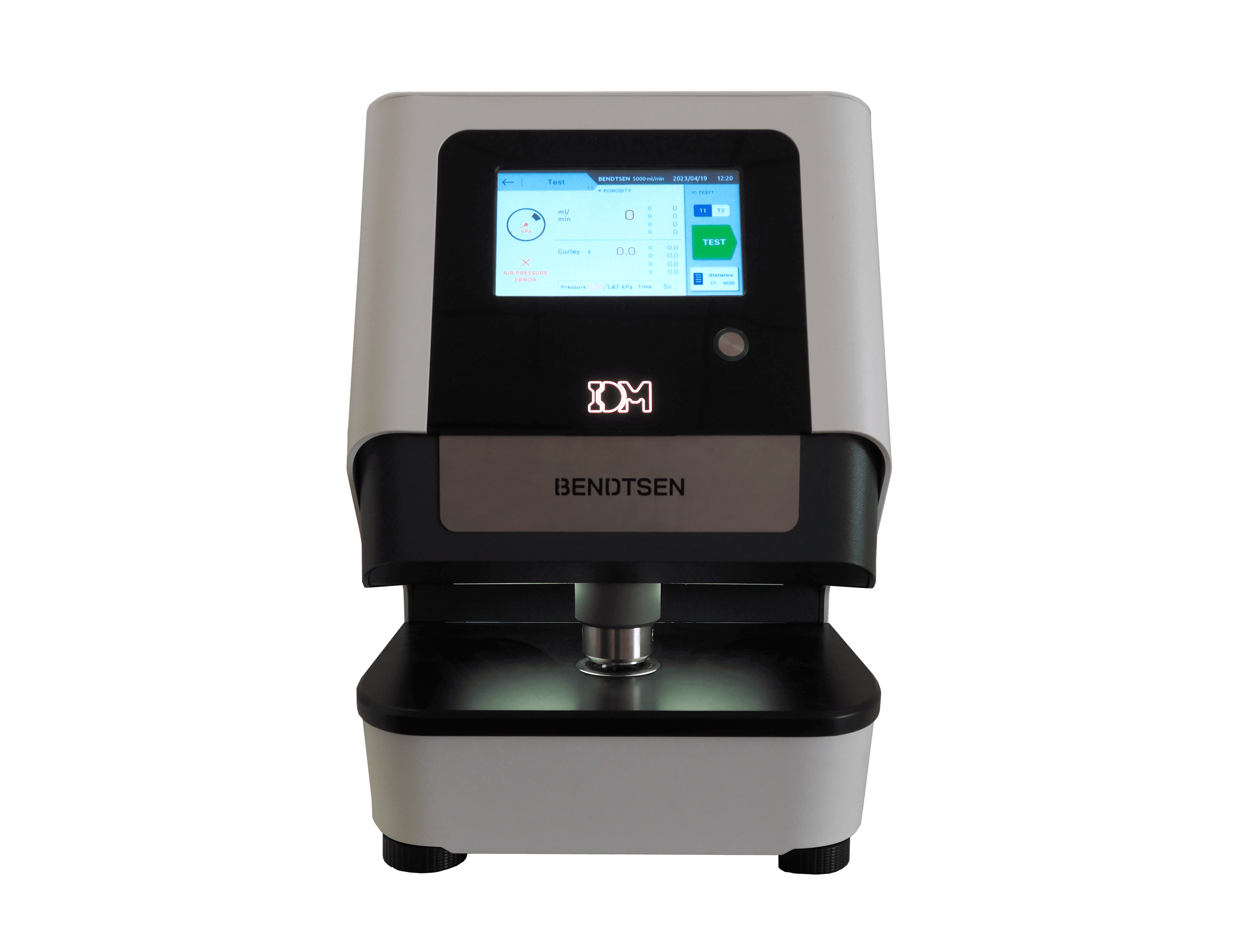

GURLEY/BENDTSEN POROSITY EQUIPMENT (1 HEAD) (PBD-01) - IDM
Cod: 170219
Standard: ISO 5636/5, SCAN P19, TAPPI T460, BS 6538/3
Equipment used to determine Gurley and Bendtsen porosity. The equipment is based on the measurement of porosity with the Bendtsen system. The result correlates it to Gurley seconds. System without oil and easy to use. Pneumatic clamping system, automatic sample detection and gives us complete statistics with paper reel profiles. Color touch screen and equipment controlled by PLC.
FEATURES:
- Porosidad Bendtsen en mm/min.
- Gurley units porosity conversion.
- Large colour touch screen.
- RS-232 output for PC and USB printer output.
- Full statistic functions: min./max., average, standard deviation, variance, porosity value in µm/Pa.s.
- Coil profile graphics.
- Sistema sin aceite
- Measuring range from 0 to 5000 ml/min (other ranges under request).
- Pressure selection: 0.74, 1.4, 2.20 kPa.
- Automatic sample detection trough included sensor.
- CE mark.
