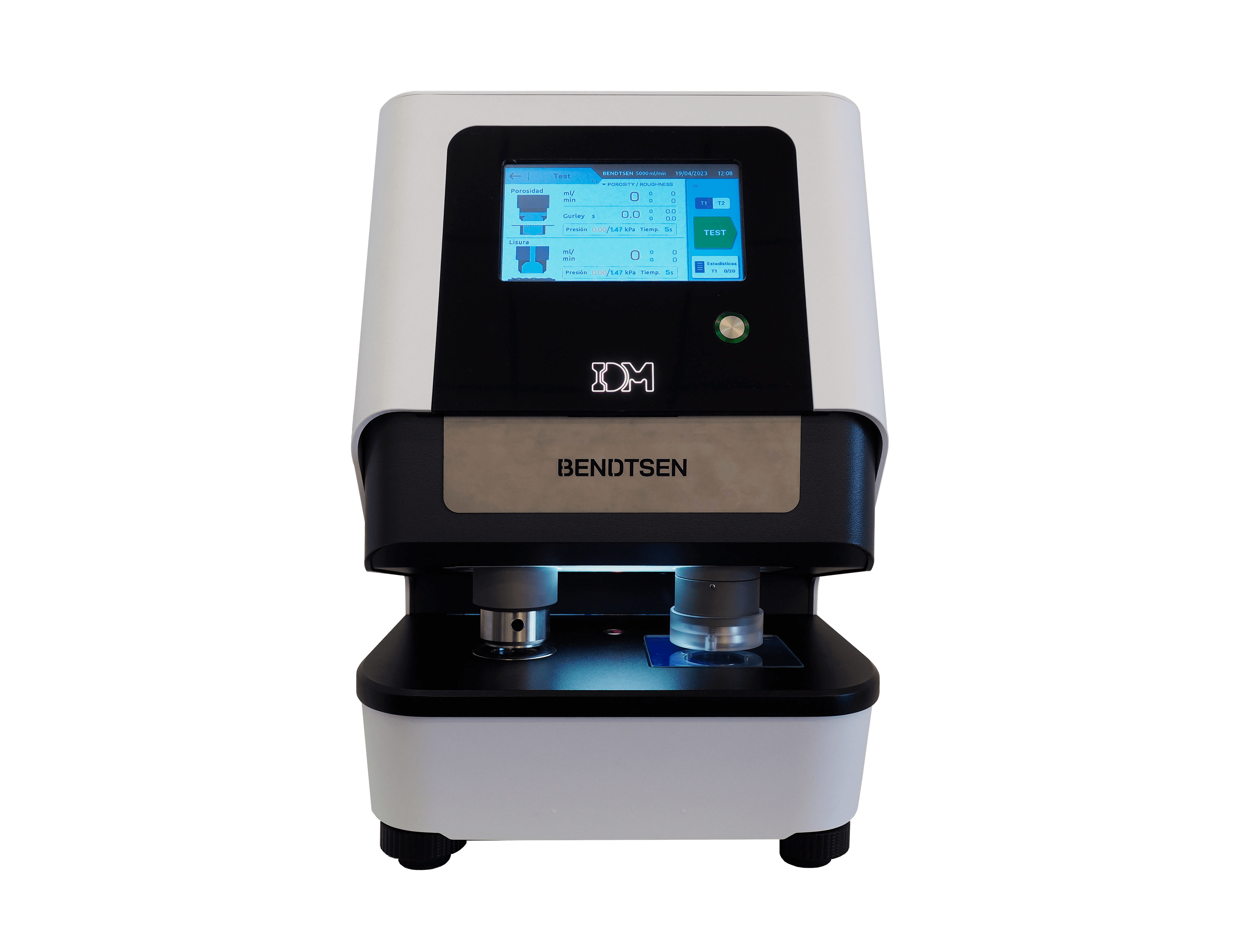

ROUGHNESS AND POROSITY METER - BENDTSEN METHOD (1-2 HEADS) - IDM

Cod: 170218 / 170219 / 170221
Standard: ISO 5636-3, ISO 8791-2, DIN 53108, SCAN P21, SCAN P60, TAPPI UM535, PAPTAC D15U.

Automatic digital equipment for measuring the roughness and porosity in the paper. Fully automatic equipment with one or two heads to determine only the roughness, only the porosity or roughness and porosity in the same equipment and in the same sample. The roughness should be measured on both sides, since the fabric face and the top face do not have the same surface finish, but above all it should be measured on the face that is going to be printed. Equipment to determine the future properties of the paper at the time of printing. The equipment has automatic sample recognition and gives us complete statistics with paper reel profiles.

Features;

• Digital equipment for Bendtsen Roughness and Porosity in mm/min.
• New design with improved ergonomics and new materials.
• 7” color touchscreen with pre-programmed tests.
• Illuminated test area.
• Automatic sample detection using an integrated sensor.
• Conversion to Gurley Porosity units (Seconds) and Sheffield units (SU).
• Coil profile charts.
• Possibility of performing roughness and porosity tests individually or both simultaneously.
• Measurement ranges: 0-5000 ml/min in smoothness and porosity (standard).
• Measurement pressures: 0.74, 1.47, and 2.20 kPa.
• Other available measurement ranges: 0-1000 ml/min, 0-3000 ml/min. Others ask.
• Complete statistical functions: min/max, mean, standard deviation, variance, porosity value in (μm/Pa.s).
• USB connection for data export.
• RS-232 interface for connection to Test Control and Management programs.
• Ethernet connection for maintenance and updates.
• USB Printer Connection.
• CE marked.
• There are three different variants of the equipment:

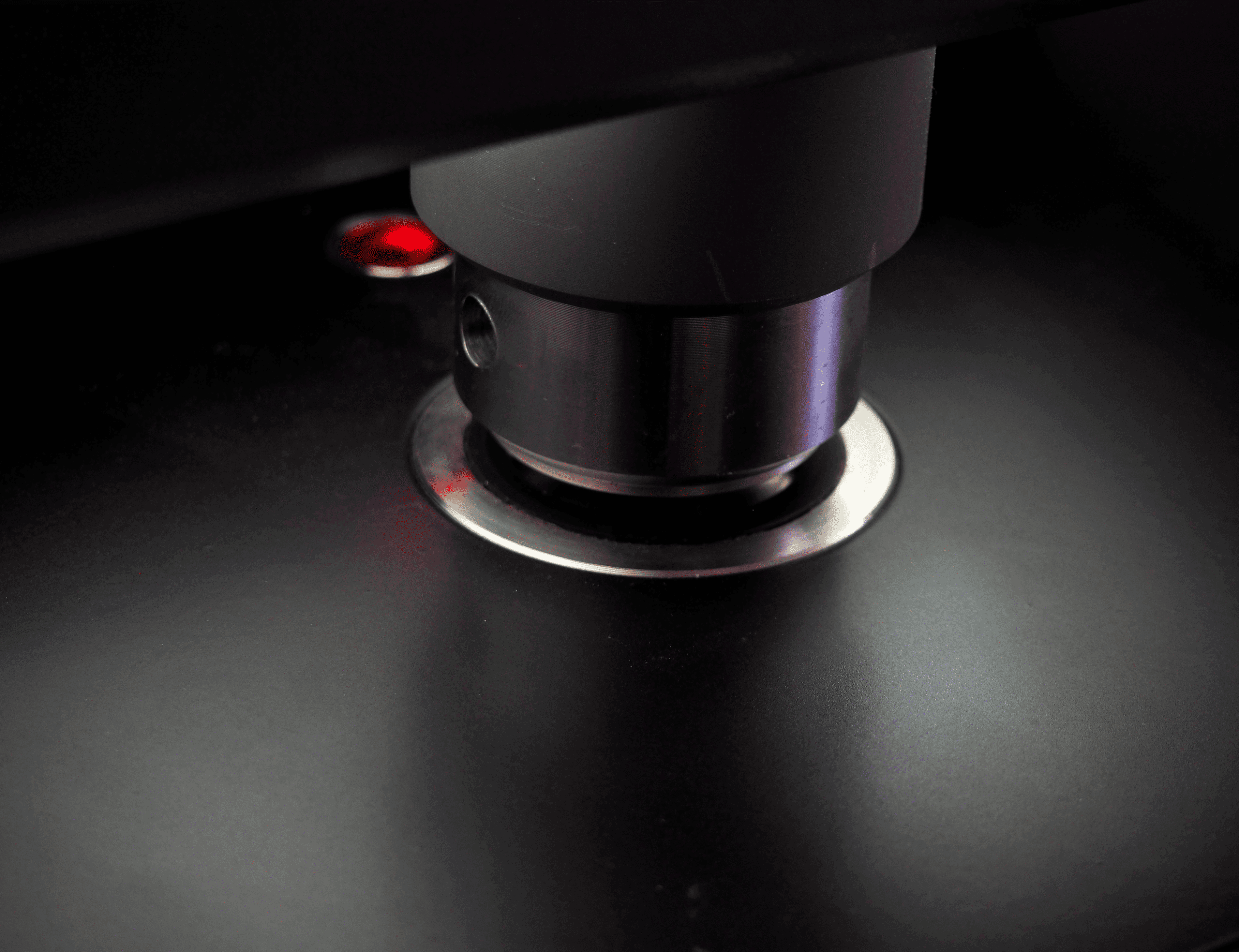

  - Test: Bendtsen Roughness / Measuring head: 1 x Roughness measuring head / Model: LBD-01 / Code: 170218.
  - Test: Bendtsen/Gurley Porosity / Measuring head: 1 x Porosity measuring head / Model: PBD-01 / Code: 170219.

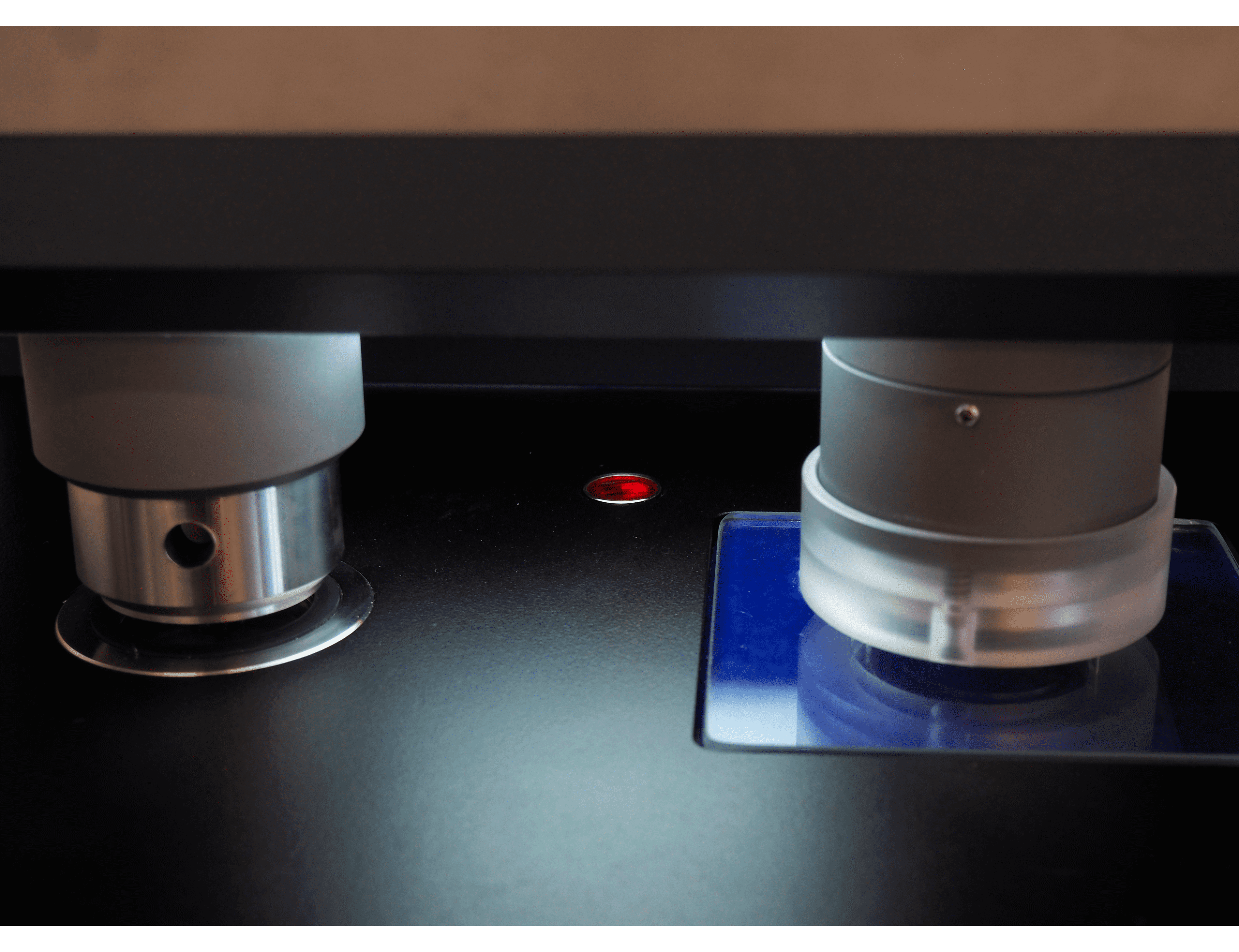

  - Test: Bendtsen Roughness-Porosity / Measuring head: 1 x Roughness measuring head and 1 x Porosity measuring head / Model: LPBD-02 / Code: 170221.
