The KES-G5 Compression Tester analyzes hand movements-particularly, movements by finger-performed by artisans and professionals when judging a fabric’s texture. The device performs this movement mechanically, making it possible to obtain objective numerical data while offering more enhanced versatility over the KES-FB3-A Compression Tester.
Obtainable data includes compression rigidity, compression energy, and recoverability.
The machine can be applied to a wide variety of fields and purposes, including determining the softness of disposable diapers and the hardness of mousse.
Features
-
Various attachment shapes
Choose from variously shaped compression sensors tailored to the sample being measured, for silicon material, how easy buttons can be pushed, car seats. etc.
We will make it according to the customer's requests.
Example of Measurement Samples

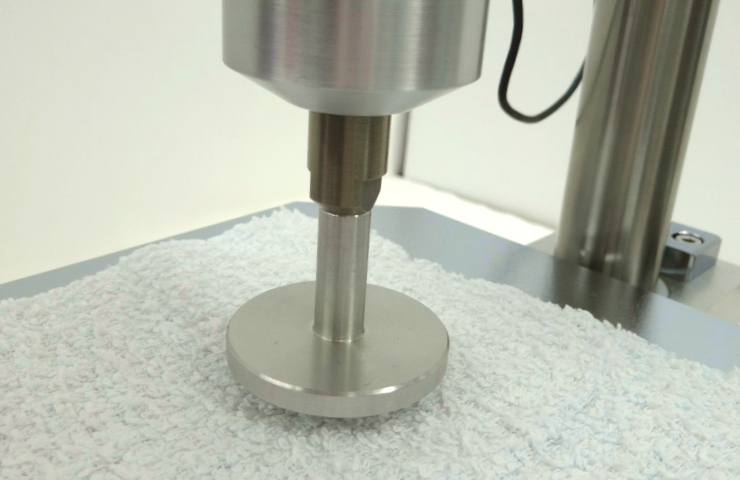

- Textile (Cosmetic cotton, Towel)

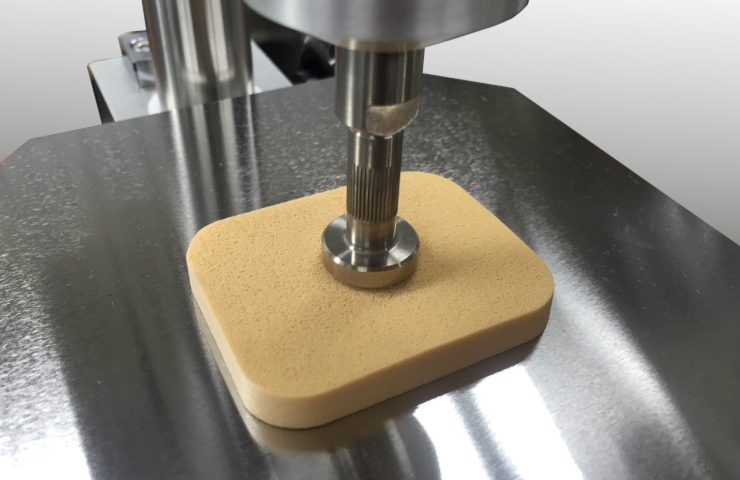

- Resin (Sponge)
- Non-woven fabric (Hygiene product)
- Paper
- Yarn
- Coating
- Wood
- Powder
- Hair
- Leather/Synthetic leather
System Configuration Diagram
Specification
| Model, Product Name |
KES-G5 Compression Tester |
| Dimensions (W × D × H) *approx. | Measuring unit: 190 × 230 × 460 mm Amplifier: 180 × 400 × 400 mm |
| Weight *approx. | Measuring unit: 11 kg Amplifier: 13 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | KES-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |
| Sample size | Square sample with a side of 20 to 100 mm (standard) |
| *1 PC is not included. We are able to prepare for PC with an appropriate specification. |
