KES-FB2-SH Single Fiber Bending Tester
หมวดหมู่สินค้า: KatoTech
รหัส :
21 มกราคม 2568
ผู้ชม 37 ผู้ชม
The KES-FB2-SH Single Fiber Bending Tester makes it possible to easily measure and quantify softness, elasticity, and diffusion differences in a single strand of yarn or hair. Elasticity and diffusion differences can be quantified by measuring the hardness and recoverability when bending the target. With the KES-FB2-SH, measurements can be performed easily for a single strand, eliminating effort spent creating multiple samples.
Features
-
Capture minute area moments as felt by a fingertip thanks to the device’s wire torsion torque detection method. Quantify data correlating to sensory evaluations with high reproducibility.
-
Successfully eliminate user-caused measurement errors thanks to a simple measurement operation.

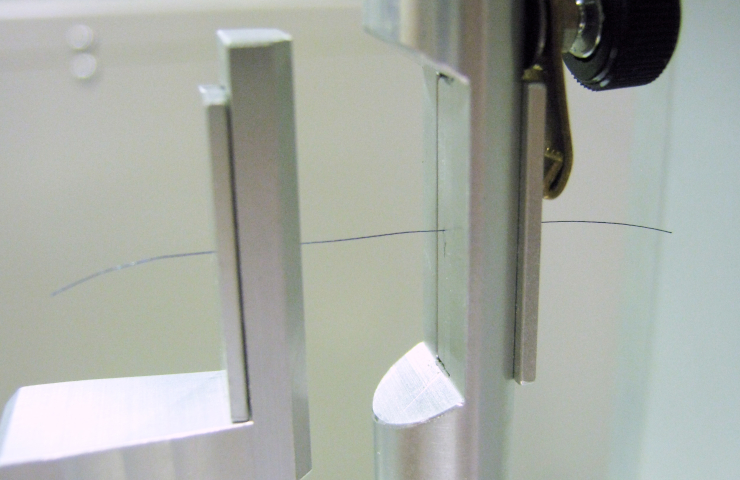

Example of Measurement Samples
- Yarn
- Hair
System Configuration Diagram
Specification
| Model, Product Name |
KES-FB2-SH Single Fiber Bending Tester |
| Dimensions (W × D × H) *approx. | Measuring unit: 210 × 240 × 580 mm Amplifier: 180 × 400 × 400 mm |
| Weight *approx. | Measuring unit: 30 kg Amplifier: 10 kg |
| Power supply, Frequency | 100VAC, 50/60Hz |
| Interface | KES-USB (optional) PC (optional) *1 Data logger output terminal |
| OS | Windows 7/8/8.1/10 |

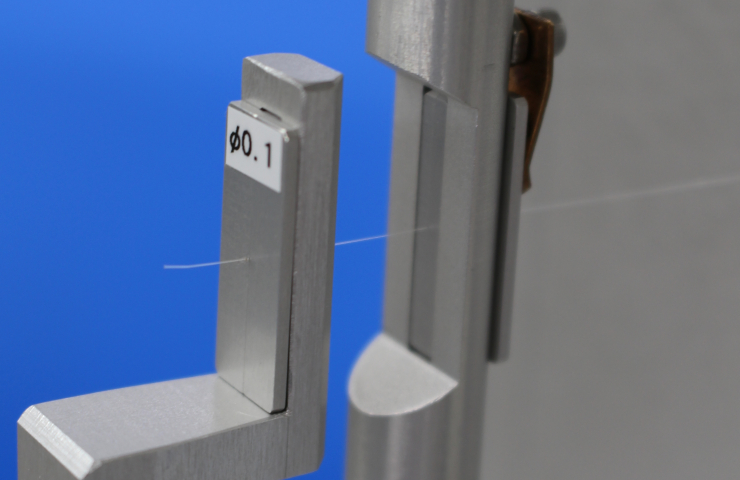

| Sample size | Diameter: ⌀0.07 mm/⌀0.1 mm/⌀0.12 mm (max.) *Three types of chucks are available as the standard accessories. Length: 20 mm (min.) |
| *1 PC is not included. We are able to prepare for PC with an appropriate specification. |
