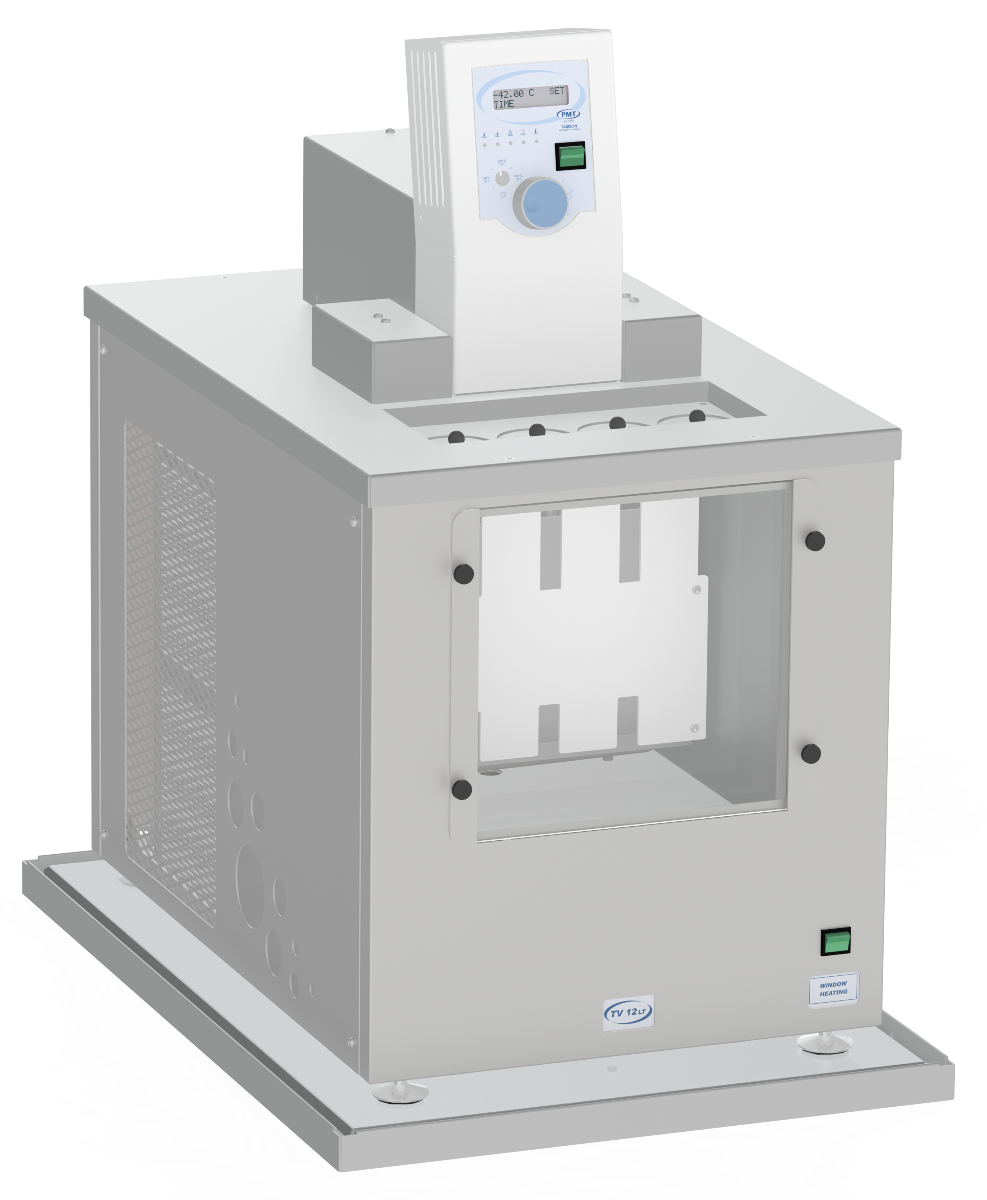

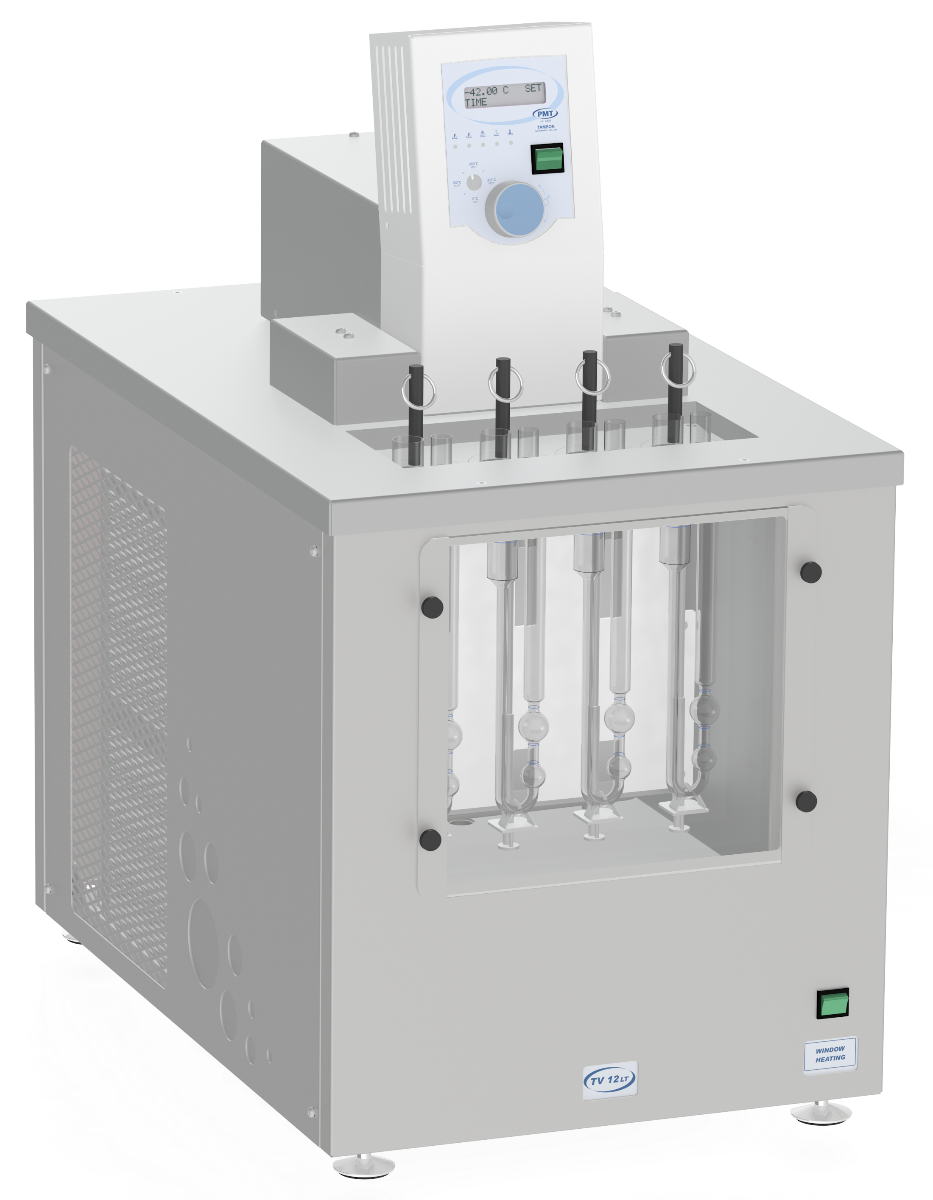

TV12LT -42C to +20C low temperature visibility bath

The Tamson TV12LT is a low temperature visibility bath with integrated cooling. The TV12LT has an ultra-high stability and is an ideal solution to test the viscosity at sub-ambient temperatures. Due to the integrated LED light, the visibility in the bath is excellent, which is very important when performing viscosity determinations. The bath offers four positions to test kinematic viscosity. The bath is an excellent solution for testing the kinematic viscosity of aviation fuel at -20°C and -40°C.

The Tamson TV12LT visibility bath offers ultra-precise temperature control of 0.01°C down to -42°C. The TV12LT has integrated cooling and this makes it an excellent solution to test the viscosity according to ASTM D445, IP71 and ISO 3104 at sub-ambient temperatures. The TV12LT is an excellent solution to test the kinematic viscosity of aviation fuels at -20°C and -40°C. The TV12LT is ideal for aviation fuels conform ASTM D7566, as they need to be tested at -40°C. The TV12LT is equipped with an internal LED light for improved visibility. Also, the TV12LT has an ingenious construction that ensures a very high temperature uniformity inside the bath. The TV12LT also has window heating, to prevent the build up of condensation at the window. The TV12LT is equipped with both a drain and an overflow outlet. The bath conforms to CE regulations and has a mechanical over temperature device. Furthermore, the bath is equipped with a fluid that switches off the bath when the level of the bath fluid is too low.

Main features:
  • Integrated cooling
  • Ultra-high temperature stability
  • All wetted parts made from stainless steel
  • Integrated LED light
  • Bath drain and overflow outlet
  • Small footprint
  • Four positions with a small bath volume
  • Easy to read display
  • Very quiet
  • Window heating to prevent condensation
  • Able to reach -40°C, which makes it very suitable for viscosity of aviation fuels

The TV12LT with range -42°C...+20°C is available in the following voltages/frequencies:

  • TV12LT 230V/50Hz (P/N: 00T0410)
  • TV12LT 230V/60Hz (P/N: 00T0420)
  • TV12LT 115V/60Hz (P/N: 00T0415)

More Information

SKU 00T0410
Bath Accuracy 0.01°C
Bath Volume 15 L
Height 720 mm
Width 425 mm
Length 670 mm
Bath Opening 250 * 98 mm
Bath Depth 300 mm
Minimum Temperature -42°C
Maximum Temperature +20°C
Manual click here
Specification click here
Video click here
