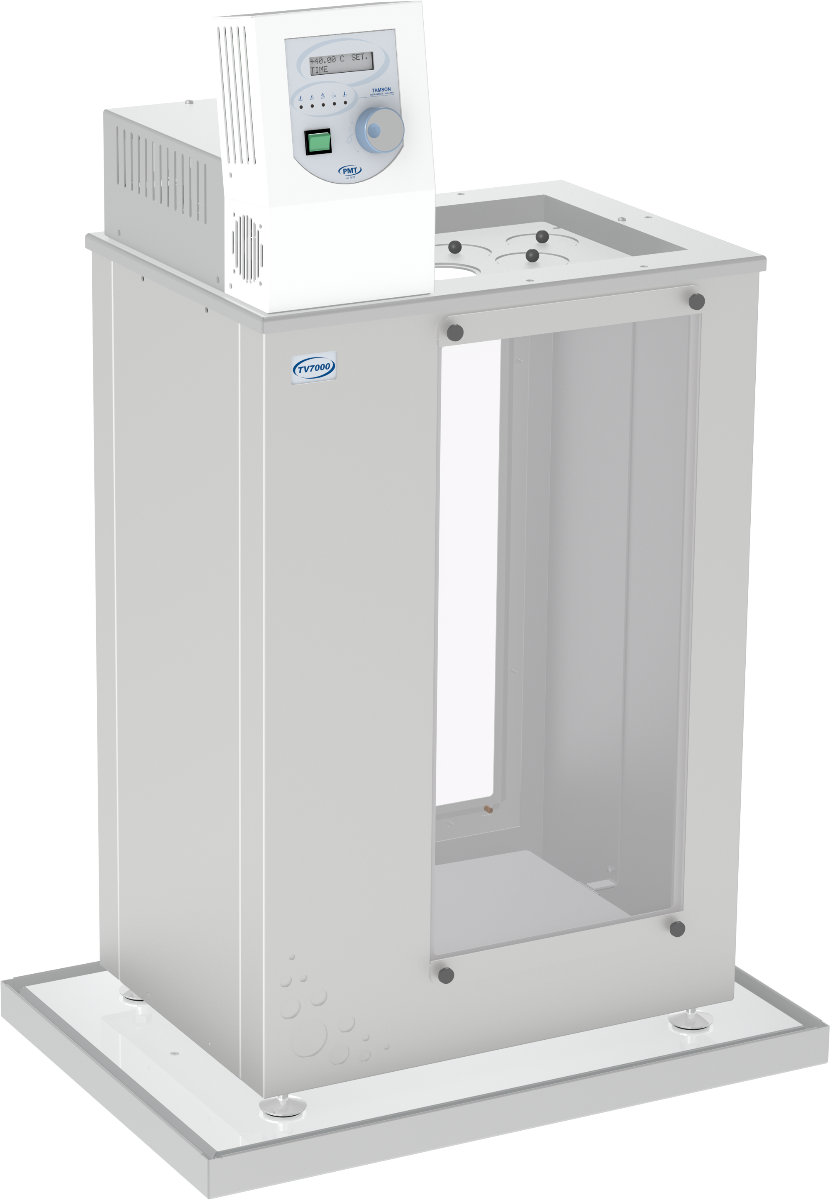

TV7000DC visibility bath

The Tamson TV7000DC visibility bath is specially designed for tests that require ultra-precise temperature control and need to be followed visually. The TV7000DC offers a large bath volume of 70 Liters and has a bath depth of 63 cm. This makes the bath very suitable for tests that require a very precise temperature control in a large bath volume. An example is the basic calibration of master viscometers and viscosity oil standards according to ASTM D2162. The TV7000DC is capable to offer enough space for the Master Ubbelohde and Master Cannon Fenske viscometers.  The TV7000DC is a very robust bath that is constructed completely from stainless steel. The bath is equipped with large double windows that provide excellent visibility. The bath offers seven positions for kinematic viscosity tests.

The Tamson TV7000DC is designed for ultra-precise temperature control in a large bath volume. The TV7000DC is able to achieve a temperature stability of 0.01°C. All wetted parts are made of stainless steel and brass, providing resistance against all usual bath fluids. The bath is fitted with adjustable feet for leveling. The bath is equipped with two windows. The TV7000DC is maintenance free and designed to run with minimal operational costs. The TV7000DC can be operated from ambient +5 up to +180°C (..356°F). With the use of the built-in cooling coil, sub ambient temperatures down to +5°C can be achieved. The bath is equipped with both a drain and an overflow outlet. Also the viscosity bath is equipped with a float that will switch off the bath when the level of the bath fluid is too low. The bath conforms to CE-regulation. Further the bath is equipped with a mechanical over temperature protection. Optionally, the bath can be equipped with a Z41 backpanel illuminator to improve visibility.

Main Features:

• Very precise temperature stability
• Large bath volume for tests that require a lot of bath space
• All wetted parts made from stainless steel
• Very robust bath
• Bath drain and overflow outlet
• Level protection device
• RS232 communication
• Very suitable for Master viscometers according to ASTM D2162
• Easy to read display
• Very quiet
• Integrated cooling coil for counter-cooling

The TV7000DC is available in the following voltages/frequencies:

• TV7000DC 230V/50-60Hz (P/N: 00T0796)
• TV7000DC 115V/60Hz (P/N: 00T0798)
