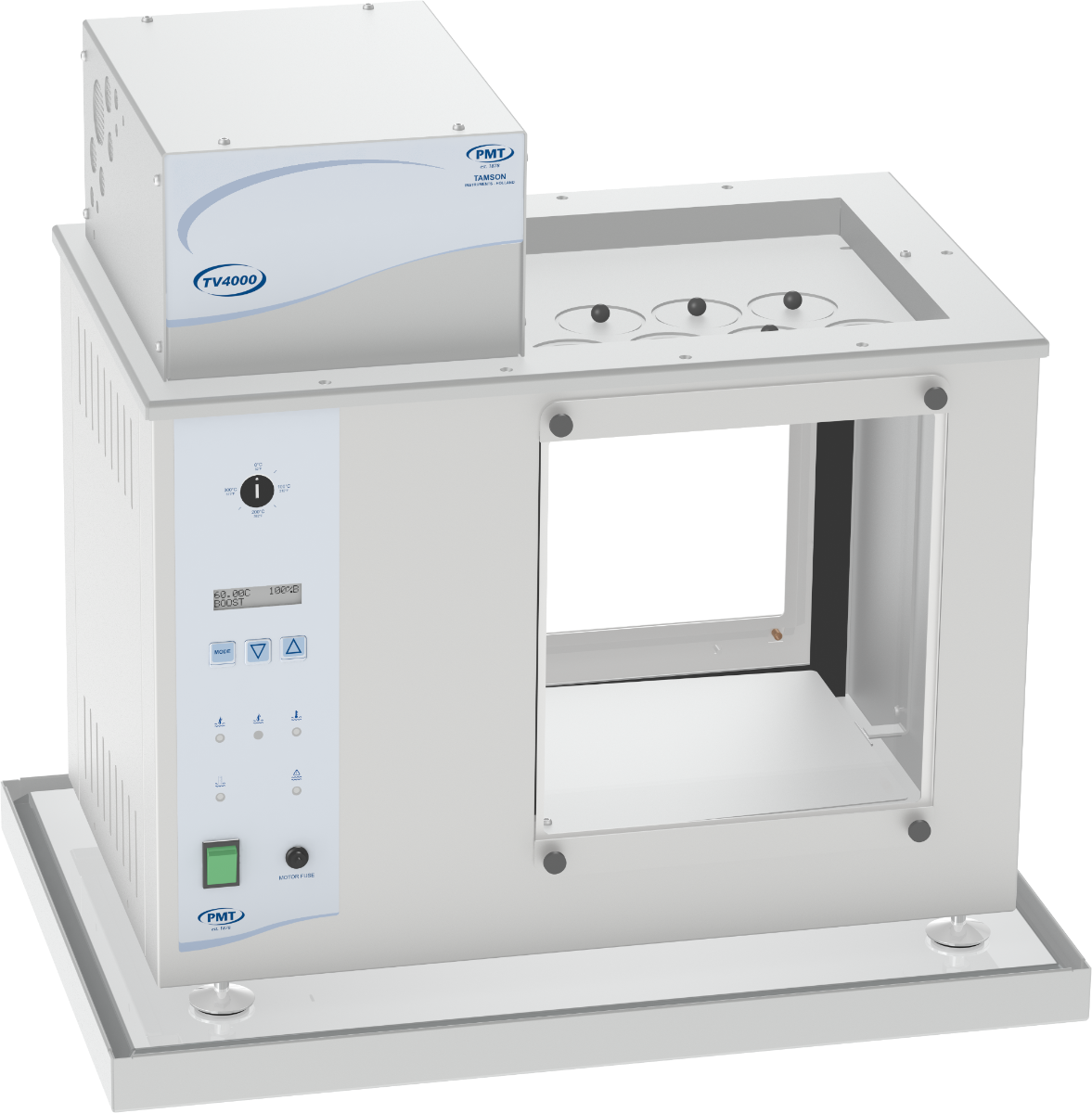

TV4000 visibility bath
The Tamson TV4000 visibility bath is specially designed for tests that require ultra-precise temperature control and need to be followed visually, e.g. determination of kinematic viscosity (conforms to ASTM D445, IP 71), thermometer and sensor calibration, density and reaction rate measurement, etc. The TV4000 is a very robust bath. All wetted parts are from stainless steel. The bath is equipped with large double windows that provide excellent visibility. The bath offers seven positions for kinematic viscosity determinations.
The Tamson TV4000 is designed for ultra-precise temperature control. The TV4000 is able to achieve a temperature stability of 0.01°C. All wetted parts are made of stainless steel and brass, providing resistance against all usual bath fluids. The bath is fitted with adjustable feet for leveling. The bath is equipped with two windows. The TV4000 is maintenance free and designed to run with minimal operational costs. The TV4000 can be operated from ambient +5 up to +230°C (..446°F). With the use of the built-in cooling coil, sub ambient temperatures down to +5°C can be achieved. The bath is equipped with both a drain and an overflow outlet. Also the viscosity bath is equipped with a float that will switch off the bath when the level of the bath fluid is too low. The bath conforms to CE-regulation. Furthermore the bath is equipped with a mechanical over temperature protection. Optionally, the bath can be equipped with a Z41 backpanel illuminator to improve visibility.
Main Features:
- Very precise temperature stability
- All wetted parts made from stainless steel
- Very robust bath
- Bath drain and overflow outlet
- Level protection device
- RS232 communication
- Seven positions for kinematic viscosity conform ASTM D445
- Easy to read display
- Very quiet
- Integrated cooling coil for counter-cooling
The TV4000 is available in the following voltages/frequencies:
- TV4000 230V/50-60Hz (P/N: 00T0772)
- TV4000 115V/60Hz (P/N: 00T0774)
More Information
| SKU | 00T0772 |
| Bath Accuracy | 0.01°C |
| Bath Volume | 40 L |
| Height | 590 mm |
| Width | 590 mm |
| Length | 400 mm |
| Bath Opening | 260 * 240 mm |
| Bath Depth | 300 mm |
| Minimum Temperature | Ambient |
| Maximum Temperature | +230°C |
| Manual | click here |
| Specification | click here |
