TV2000 ASTM D1480 Density by Bingham pycnometer

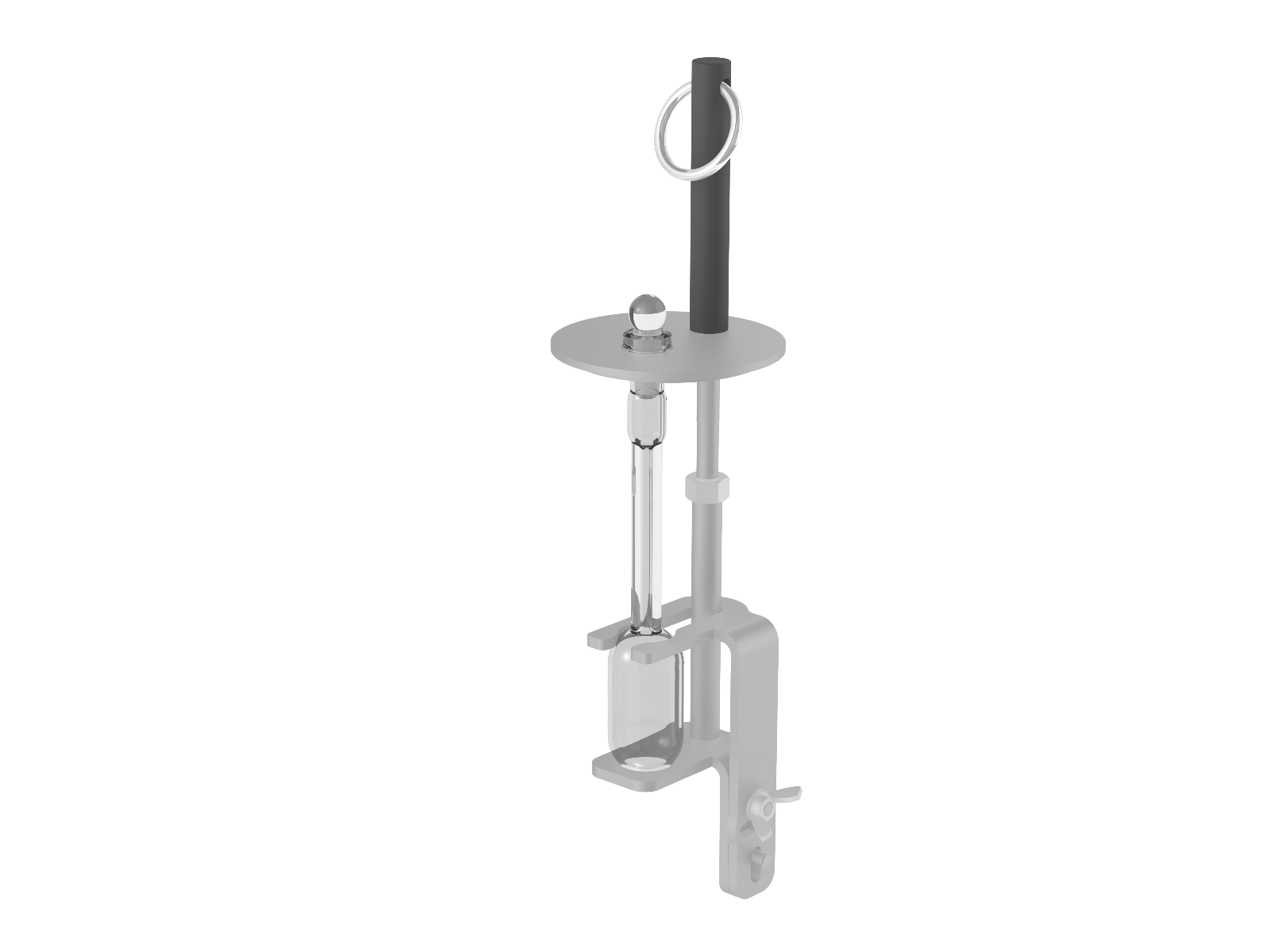

The TV2000 can be used for ASTM D1480 and ASTM D1217 tests. The ASTM D1480 method covers two procedures for the measurement of the density of materials which are fluid at the desires test temperatures. ASTM D1217 is to cover the measurement of the density of pure hydrocarbons or petroleum distillates boiling between 90°C and 110°C that can be handled in a normal fashion as a liquid at the specified test temperatures of 20°C and 25°C. The TV2000 offers an excellent visibility on the Bingham pycnometer in the bath.
The Tamson TV2000 is designed for ultra-precise temperature control. The TV2000 is able to achieve a temperature stability of 0.01°C. All wetted parts are made of stainless steel and brass, providing resistance against all usual bath fluids. The bath is fitted with adjustable feet for leveling. The bath is equipped with two windows. The TV2000 is maintenance free and designed to run with minimal operational costs. The TV2000 can be operated from ambient +5 up to +230°C (..446°F). With the use of the built-in cooling coil, sub ambient temperatures down to +5°C can be achieved. The bath is equipped with both a drain and an overflow outlet. Also the viscosity bath is equipped with a float that will switch off the bath when the level of the bath fluid is too low.The bath conforms to CE-regulation. Further the bath is equipped with a mechanical over temperature protection. Optionally, the bath can be equipped with a Z41 backpanel illuminator to improve visibility.
Main Features:
- Very precise temperature stability
- All wetted parts made from stainless steel
- Very robust bath
- Bath drain and overflow outlet
- Level protection device
- RS232 communication
- Three positions for kinematic viscosity conform ASTM D445
- Easy to read display
- Very quiet
- Integrated cooling coil for counter-cooling
The TV2000 is available in the following voltages/frequencies:
- TV2000 230V/50-60Hz (P/N: 00T0782)
- TV2000 115V/60Hz (P/N: 00T0784)
More Information
SKU | 00T0782-D1480 |
Bath Accuracy | 0.01°C |
Bath Volume | 20 L |
Height | 590 mm |
Width | 470 mm |
Length | 350 mm |
Bath Opening | 130 * 165 mm |
Bath Depth | 300 mm |
Minimum Temperature | Ambient |
Maximum Temperature | 230°C |
