Oven Logger Master (12 channels)

Introduction:

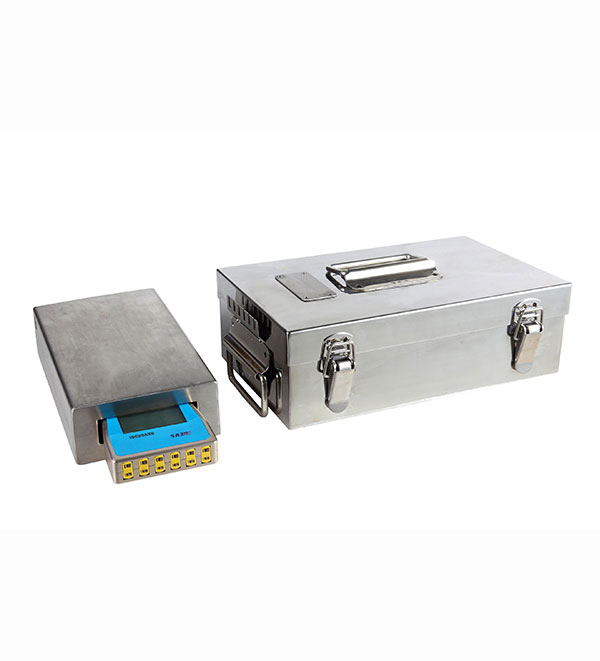

BEVS 2311 Oven Loggermaster is the perfect diagnostician and analyzer for the entire baking  process, which can better and faster optimize the oven structure, hot air distribution, tuyere layout and coating curing process.Under the protection of its special heat insulation box, the recorder automatically records the relevant curing process temperature and the surface temperature of the measured product in the oven.

Features：

1. More advanced and high-precision Over Loggermaster

- It is specially designed for the coating industry. Its accuracy is ± 0.3 ℃, the acquisition interval is arbitrarily set from 0.5 seconds to 999 seconds, and the recording temperature range is from 0 ℃ to 1300 ℃.

- All parameters can be set directly on the handheld tablet or on the computer.

- It can be used to browse the recorded data, temperature curve and other information through the handheld tablet

- Start and stop recording time and date can be preset

- Arbitrary acquisition interval

- The highest measurement temperature range required can be selected to ensure the highest accuracy of the measurement result

- One-key operation, easy and quick to use

2. The operation is simple and quick;

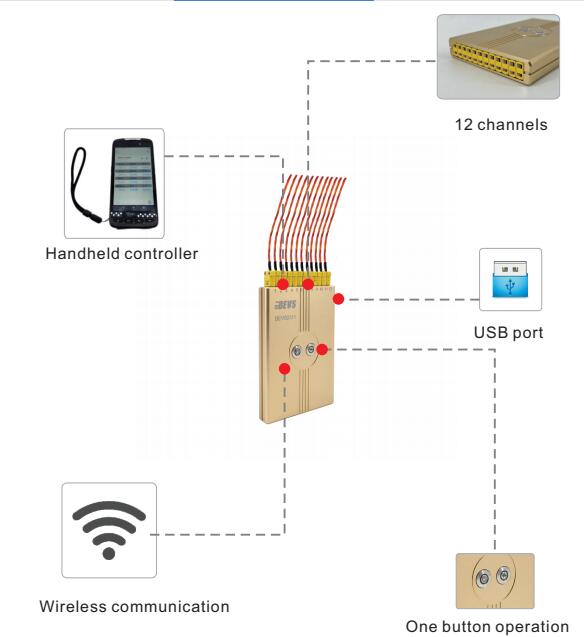

- The recorder and controller are designed separately, which is more convenient to use.

- All parameters can be set directly on the handheld tablet or on the computer.

- Parameters set before measurement can be browsed through the handheld tablet

- The measured data, temperature curve and other information can be browsed through the handheld tablet.

3. Flexible and easy-to-operate analysis software

- Multi-function analysis such as measurement data and 2D curve graphics can be carried out to judge the quality of the whole oven, so as to optimize the baking cost and improve the product quality.

- Important information such as temperature distribution, chain speed, and user data are gathered in one complete report.

4. Intuitive analysis of measurement results:

- The measurement results can be obtained directly on the handheld flat panel display via Bluetooth, wireless or wired connection.

- With USB interface, it can be downloaded to the PC to run the loggermaster analysis software for comprehensive analysis and evaluation of the process.

Technical Specifications:

Order Information:

BEVS 2311/1 Oven Loggermaster Kit (300°C)

BEVS 2311 Oven Loggermaster (Main Device)

BEVS 2312 Heating Insulation box

Standard kit:

1 x Oven Logger Master BEVS 2311

1 x Handheld Controller BEVS 2319

1 x Analysis Software PL 1001

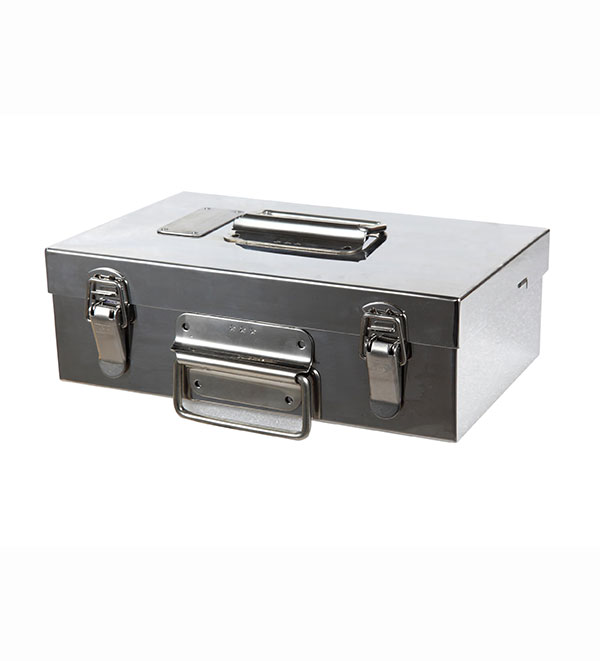

1 x Heating Insulation Box (including heat absorber) BEVS 2312

1 x USB cable PL 2001

2 x Battery

1 x Operating Manual

1 x Suitcase

1 x USB stick

Probe：
