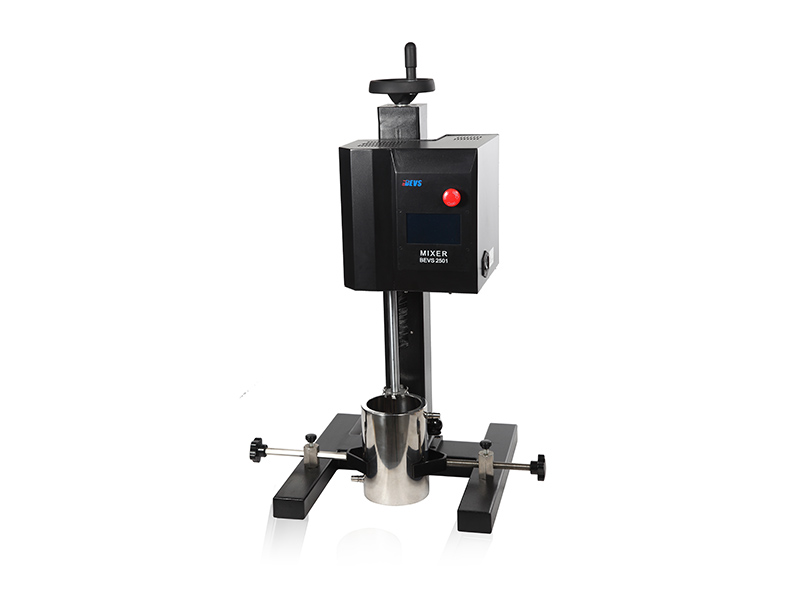

Lab Mixer
Introduction:
BEVS 2501 series Laboratory Mixer adopts frequency-adapter to adjust speed with the advanced touch-screen control design. Enable to disperse, mix and grind by changing different impellers. Through the touch-screen to set the speed (RPM) and the time of disperse, mix and grind. It's the best choice for R&D, laboratory and spot testing.
Technical Specification:
◆ Touch-screen control technology and emergency switch
◆ Time Adjustable
◆ Maximum Speed: 9000 rpm
◆ Electromotor: Frequency modulation motor adoption

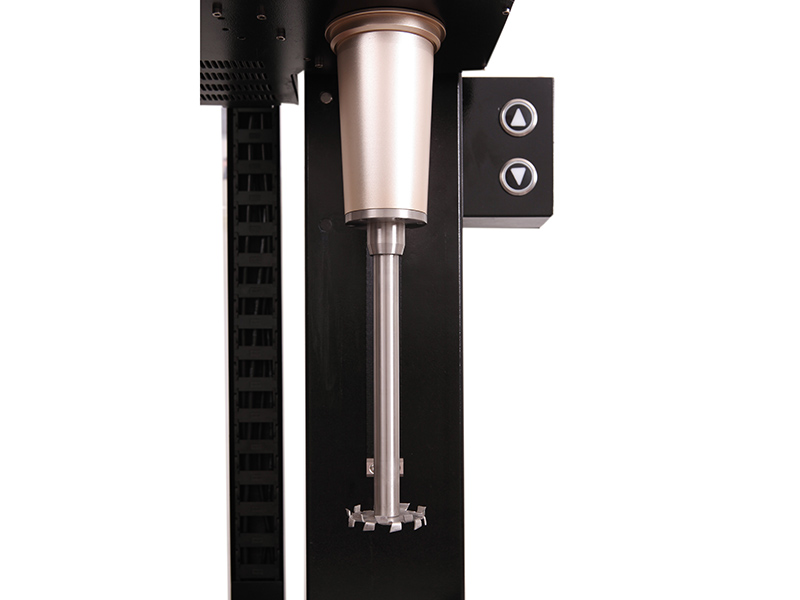

◆ Lifting System: Manual or automatic lift
◆ Milling disc is available
Order Information:
Order No. |
Motor Power(w) |
Speed(rpm) |
Lifting Distance(mm) |
Lifting Type |
Vessel Supported(L) |
BEVS 2501/1 |
550 |
30-9000 |
250 |
Manual |
0.5, 1.5 |
BEVS 2501/1L |
550 |
30-9000 |
250 |
Manual |
0.5, 1.5 |
BEVS 2501/2L |
750 |
60-6000 |
280 |
Manual |
0.5, 1.5 |
BEVS 2501/2A |
750 |
60-6000 |
280 |
Automatic |
1.5, 3, 5 |
BEVS 2501/3A |
1100 |
60-6000 |
330 |
Automatic |
3, 5, 10 |
BEVS 2501/5A |
1500 |
300-6000 |
400 |
Automatic |
5, 10, 20 |

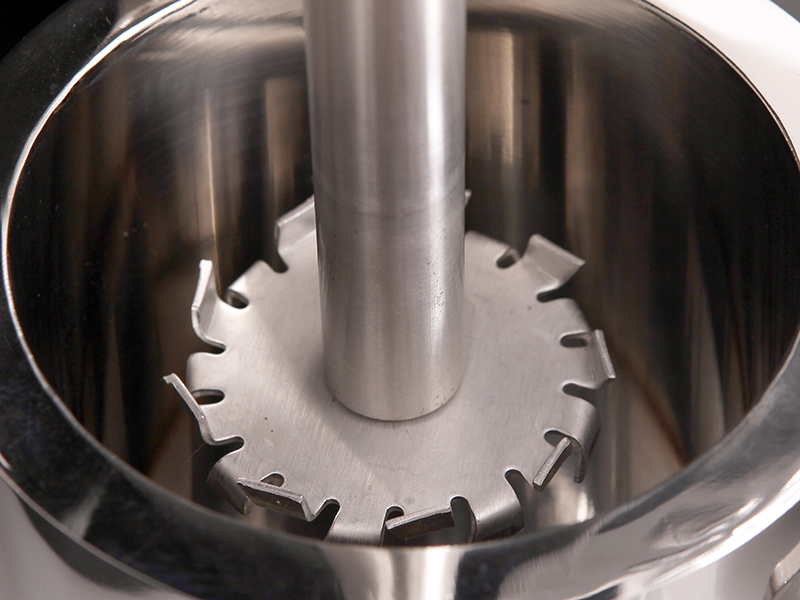

◆Standard equipped with 3 x dispersing discs and 1 x vessel. "L" - lengthened shaft, "A" - automatic lift
Order No. of Accessories | Dispersing Disc Dia.(mm) |
BEVS 2501/P/001 | 30 |
BEVS 2501/P/003 | 40 |
BEVS 2501/P/004 | 50 |
BEVS 2501/P/005 | 60 |
BEVS 2501/P/006 | 80 |
BEVS 2501/P/007 | 100 |
BEVS 2501/P/008 | 120 |
BEVS 2501/P/009 | 150 |
BEVS 2501/P/022 | 200 |
/ | Milling disc dia.(mm) |
BEVS 2501/P/025 | 45(Nylon) |
BEVS 2501/P/026 | 60(Nylon) |
BEVS 2501/P/027 | 45(Tefelon) |
BEVS 2501/P/028 | 60(Tefelon) |
Order No. of Accessories |
Jacketed Stainless Steel Vessel(L) |
BEVS 2511/1 |
0.5 |
BEVS 2511/2 |
1.5 |
BEVS 2511/3 |
3 |
BEVS 2511/4 |
5 |
BEVS 2511/5 |
10 |
BEVS 2511/6 |
20 |
