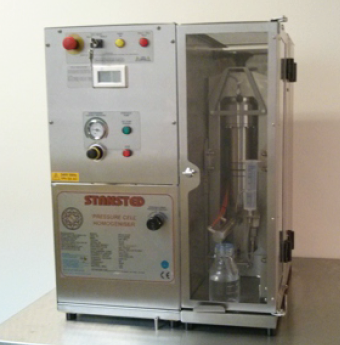

Introduction
Pressure Cell instruments for cell rupture and homogenisation have been a long established and much-loved instrument technology for researchers; now comes a system which takes the simplicity and ease of use of these systems and incorporates this into a new higher performance, safety interlocked system; keeping the best features of the old and combining this with the groups 45+ years of experience in high pressure cell rupture and homogenization to provide an improved system for multi-disciplinary applications.
- Pressures to 4,200 bar 60,000 psi
- Simple to use
- Small sample size
- Sterilizable Cell & Valve
- Temperature control
- Reproducible results
- Microprocessor controlled

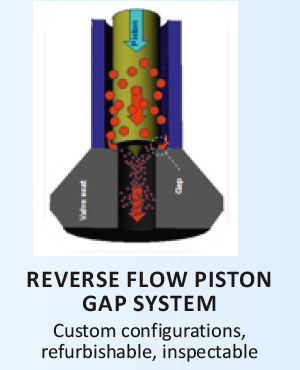

- Reverse flow PG and IC homogenization options
Full pressure range flexibility 0-58000 psi European CE and other international safety standards compliant construction.

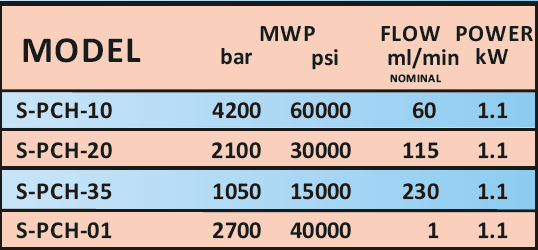

10ml 60,000 psi cell (4200 bar)
18ml 30,000 psi cell (2100 bar)
35ml 15,000psicell (1050 bar)
Scale up and large capacity through HS's extensive range of high pressure cell disputers and homogenizers
Application
- Cell rupture
- (E.coli., Yeast, Staph.a.,Mammalian..etc.)
- Nano particles
- Nano emulsions
- Solid lipid nano particles
- Liposomes
- Micro emulsions
- Dispersions
- Suspensions
