เครื่องทดสอบแรงดึง (Tensile Universal Testing Machines with two columns (UTM))
หมวดหมู่สินค้า: IDM Test
รหัส : DTC (2 columns)

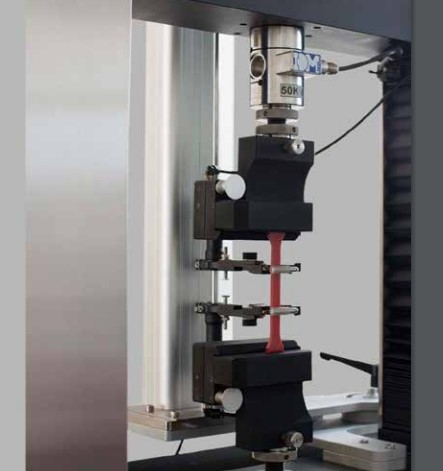

Two-column universal machine for performing tensile tests and many other laboratory tests.
24 มิถุนายน 2567
ผู้ชม 60 ผู้ชม
Summary
Cod: DTC-10 (030123) | DTC-25 (030115) | DTC-50 (030116) | DTC-100 (0301)
Standard: Multiple
Two-column universal machine for performing tensile tests and many other laboratory tests.
With capacities of 10 kN, 25 kN, 50 kN and 100 kN, the double column DTC machines increase the force range and allow us to carry out higher load tests on different types of material (specimens) and parts (finished product), etc.
All of the machines in the DTC series are desktop, which makes them very versatile for use in a laboratory or on the production lines themselves. Made of steel and aluminium, they are characterised by their robustness and rigidity, with a perfectly balanced weight.
| DTC-10 | DTC-25 | DTC-50 | DTC-100 | ||
| IDM Test Code | 30123 | 30115 | 30116 | 301 | |
| Nominal capacity | kN | 10 | 25 | 50 | 100 |
| Kg | 1000 | 2500 | 5000 | 10000 | |
| lbf | 2200 | 5500 | 11000 | 22000 | |
| Overloading test | 150% of frame capacity | ||||
| Maximum diameter of sample | mm | 400 | |||
| in | 15.75 | ||||
| Distance between columns | mm | 422 | |||
| in | 16.6 | ||||
| Load cells | N/kN | 10 kN, 5 kN, 3 kN, 1 kN, 500 N, 250 N, 100 N, 50 N, 20 N, 10 N, 5 N |
25 kN, 10 kN, 5 kN, 3 kN, 1 kN, 500 N, 250 N, 100 N, 50 N, 20 N, 10 N, 5 N |
50 kN, 25 kN, 10 kN, 5kN, 3 kN, 1 kN, 500 N, 250 N, 100 N, 50 N, 20 N, 10 N, 5 N |
100 kN, 50 kN, 25 kN, 10 kN, 5 kN, 3 kN, 1 KN, 500 N, 250 N, 100 N, 50 N, 20 N, 10 N, 5 N |
| Maximum travel without jaws | mm | 1100 | |||
| in | 43.3 | ||||
| Range of test velocity | mm/m | 0.05 to 800 | |||
| in/min | 0.002 to 31.50 | ||||
| Approach speed | mm/m | 0.05 to 800 | |||
| in/min | 0.002 to 31.50 | ||||
| Return speed | mm/m | 0.05 to 800 | |||
| in/min | 0.002 to 31.50 | ||||
| Precision of load measurement | < ± 0.5% of the force applied for a range between 2 and 100% of (F.S.) | ||||
| Precision of position measurement | < ± 0.01% of the reading or 0.001 mm | ||||
| Precision of the velocity | < ± 0.005% of the preset velocity | ||||
| Weight | Kg | 115 | 115 | 140 | 165 |
| lb | 255 | 255 | 309 | 365 | |
| Dimensions | mm | 731x500x1774 | |||
| in | 28.78x19.68x69.85 | ||||
| Operating temperature range | °C | Between 0 and 38 | |||
| ºF | Between 32 and 100 | ||||
| Operating humidity range | HR % | Between 10 and 90 | |||
| Air connection | Ø6 tube – 6 bar clean and dry | ||||
| Electrical connection | 110/240 VAC – 50/60 HZ 2000 W | ||||
