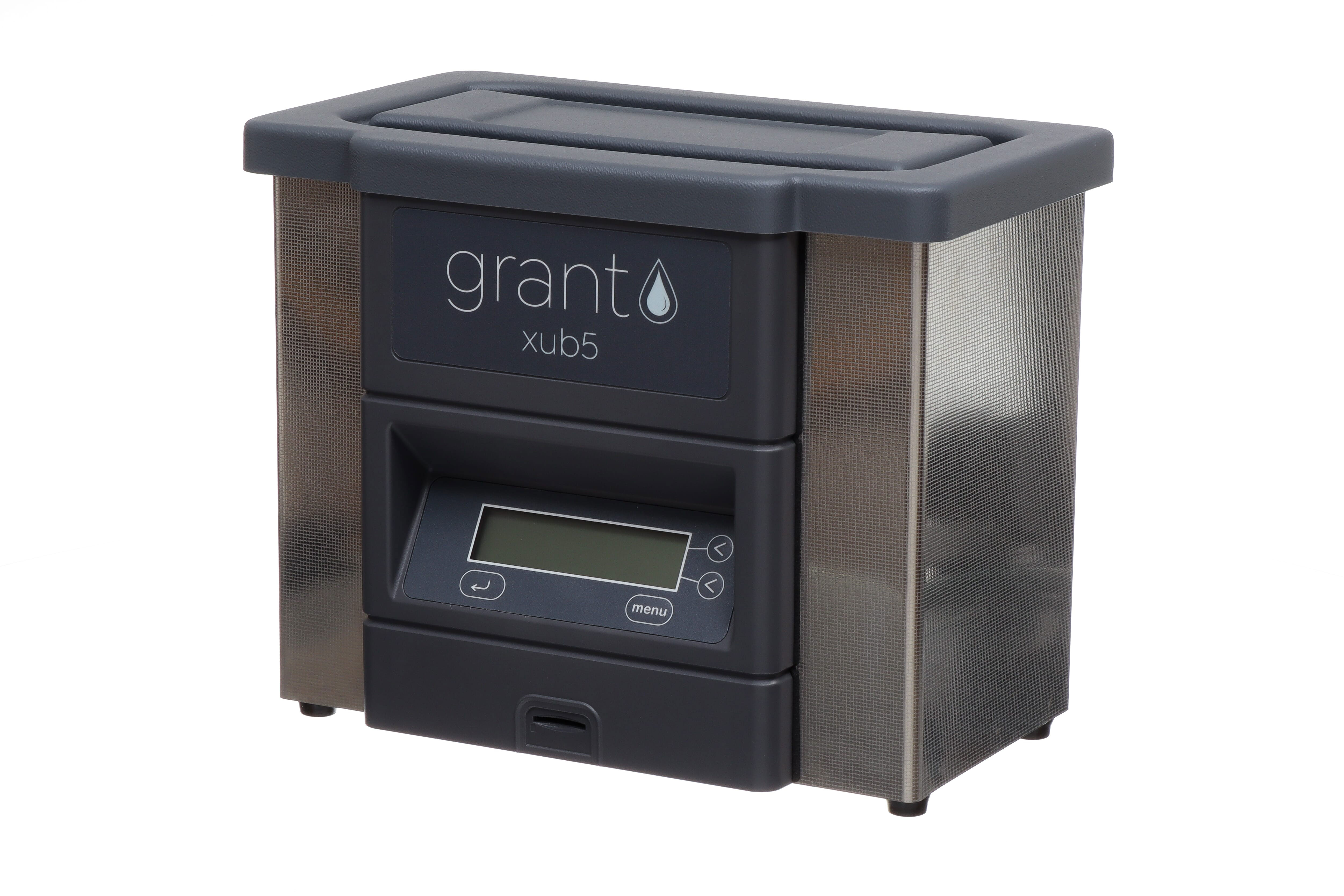

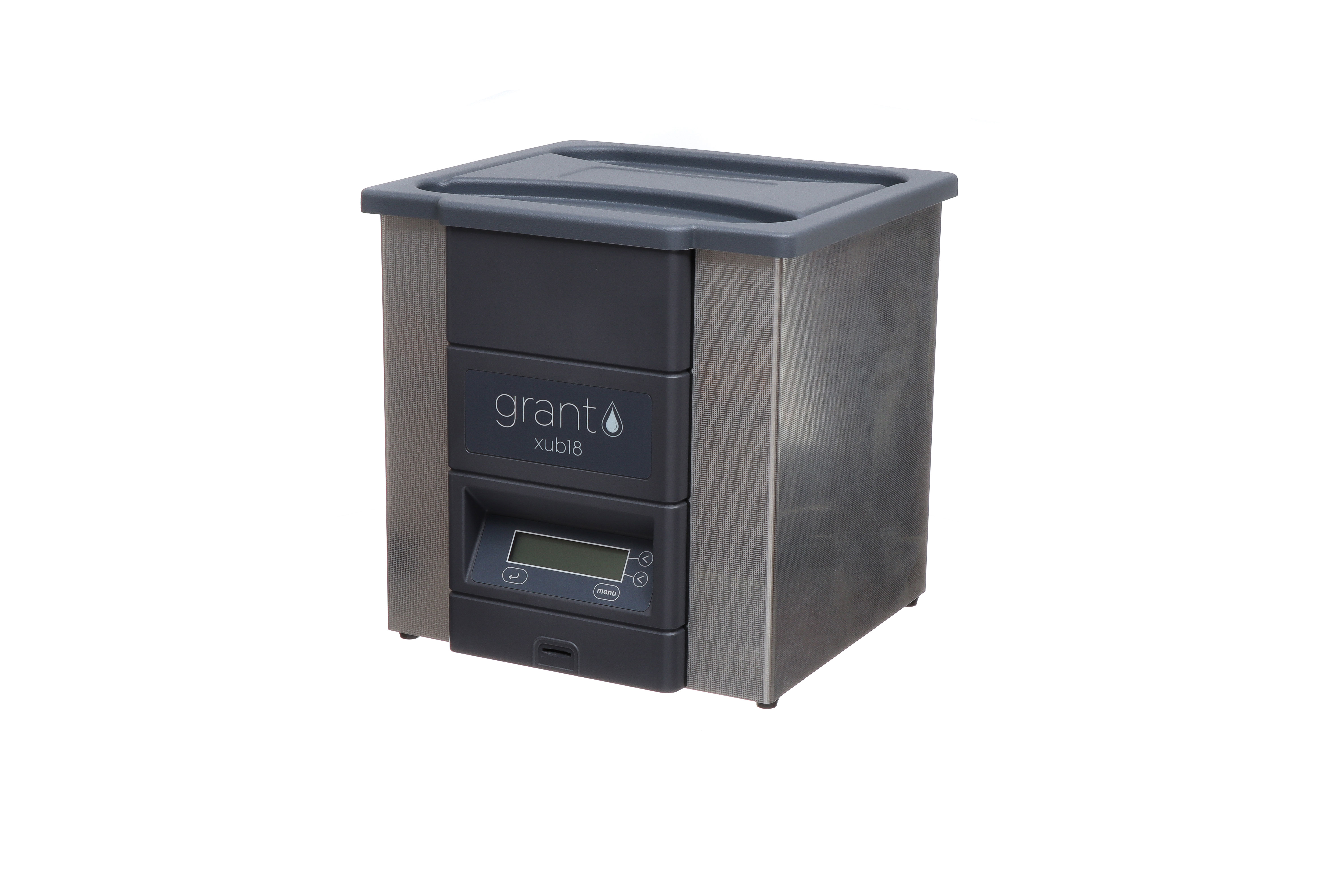

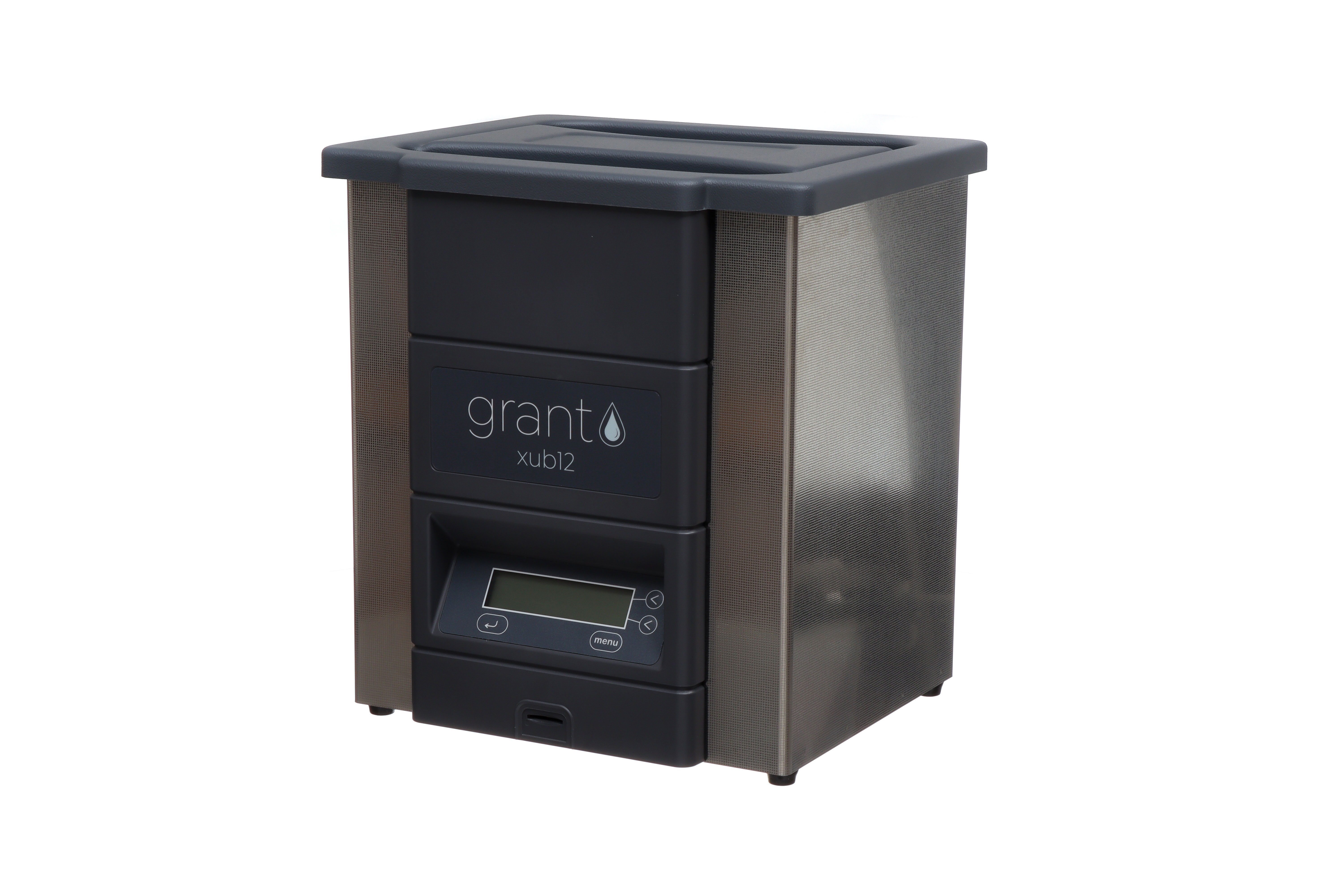

XUB Digital Ultrasonic Bath Range
หมวดหมู่สินค้า: Grant Instruments
รหัส :
The XUB range of digitally controlled benchtop ultrasonic baths offer consistent and reliable performance in a variety of environments.
21 กุมภาพันธ์ 2567
ผู้ชม 55 ผู้ชม
XUB Digital Ultrasonic Bath Range
The XUB range of digitally controlled benchtop ultrasonic baths offer consistent and reliable performance in a variety of environments.
Applications
- Healthcare/clinical - the first stage of the decontamination process for reusable surgical instruments in dental, podiatry and general practice settings
- General use - glass, equipment, component cleaning, sonication of cytometer nozzles, dispersion and solubulisation
- Laboratories - cleaning of components, degassing fluids, mixing fluids and compounds, cell disruption, fluid dissolution
- Industrial - light manufacturing
- HPLC - degassing of solvents pre analyses
- Biopharm - dissolution of samples
Incorporating Frequency LEAP technology to ensure uniform levels of ultrasonic activity throughout the fluid, these baths offer high performance giving an accurate and precise ultrasonic process.
- Temperature range ambient +5ºC to 70ºC
- Frequency LEAP technology provides more homogeneous ultrasonic activity throughout the tank, reducing dead spots and standing waves
- Accurate process control of time, temperature, ultrasonic activity, degas and power
- Modern, sleek design with stainless steel basket, ABS plastic lid, M2 ultrasonic cleaning solution, SD card and drain tap included as standard
- Degassing function to remove small bubbles from liquid, reducing the overall time needed for ultrasonic operation
- A choice of 4 sizes
- Adjustable power that can be reduced from 100 to 50% in 5% increments
Specifications
| XUB5 | XUB12 | XUB18 | XUB25 | |
| Dimensions (h x d x w) | 266 x 235 x 345mm | 365 x 330 x 342mm | 365 x 385 x 375mm | 365 x 385 x 546mm |
| Working capacity | 4.5L | 12.5L | 17.5L | 25L |
| Max capacity | 5L | 14L | 18.5L | 28L |
| Temperature range | Ambient +5 to 70°C | Ambient +5 to 70°C | Ambient +5 to 70°C | Ambient +5 to 70°C |
| Ultrasonic power | 100W | 200W | 300W | 400W |
| Ultrasonic power (per litre) | 22.2W | 16W | 17W | 16W |
| Operating frequency | 32-38KHz | 32-38KHz | 32-38KHz | 32-38KHz |
| Frequency LEAP | • | • | • | • |
| Heated | • | • | • | • |
| Digital LCD controls | • | • | • | • |
| SD port with SD card | • | • | • | • |
| Timer | 0-99 minutes | 0-99 minutes | 0-99 minutes | 0-99 minutes |
| Drain outlet BSP valve | 3/8'' | 3/8'' | 3/8'' | 3/8'' |
| Heater power - 230V | 150W | 300W | 450W | 650W |
| Heater power - 120V | 125W | 365W | 480W | 600W |
| Supply voltage | 120 or 230V | 120 or 230V | 120 or 230V | 120 or 230V |
| Weight | 6.4kg | 10.5kg | 12.6kg | 15.1kg |
