ELMENDORF TEAR TESTER
หมวดหมู่สินค้า: PTE Austria
รหัส :
ELMENDORF TEAR TESTER
To measure the tearing resistance of paper and similar materials.
07 สิงหาคม 2566
ผู้ชม 100 ผู้ชม
DEVICE DESCRIPTION

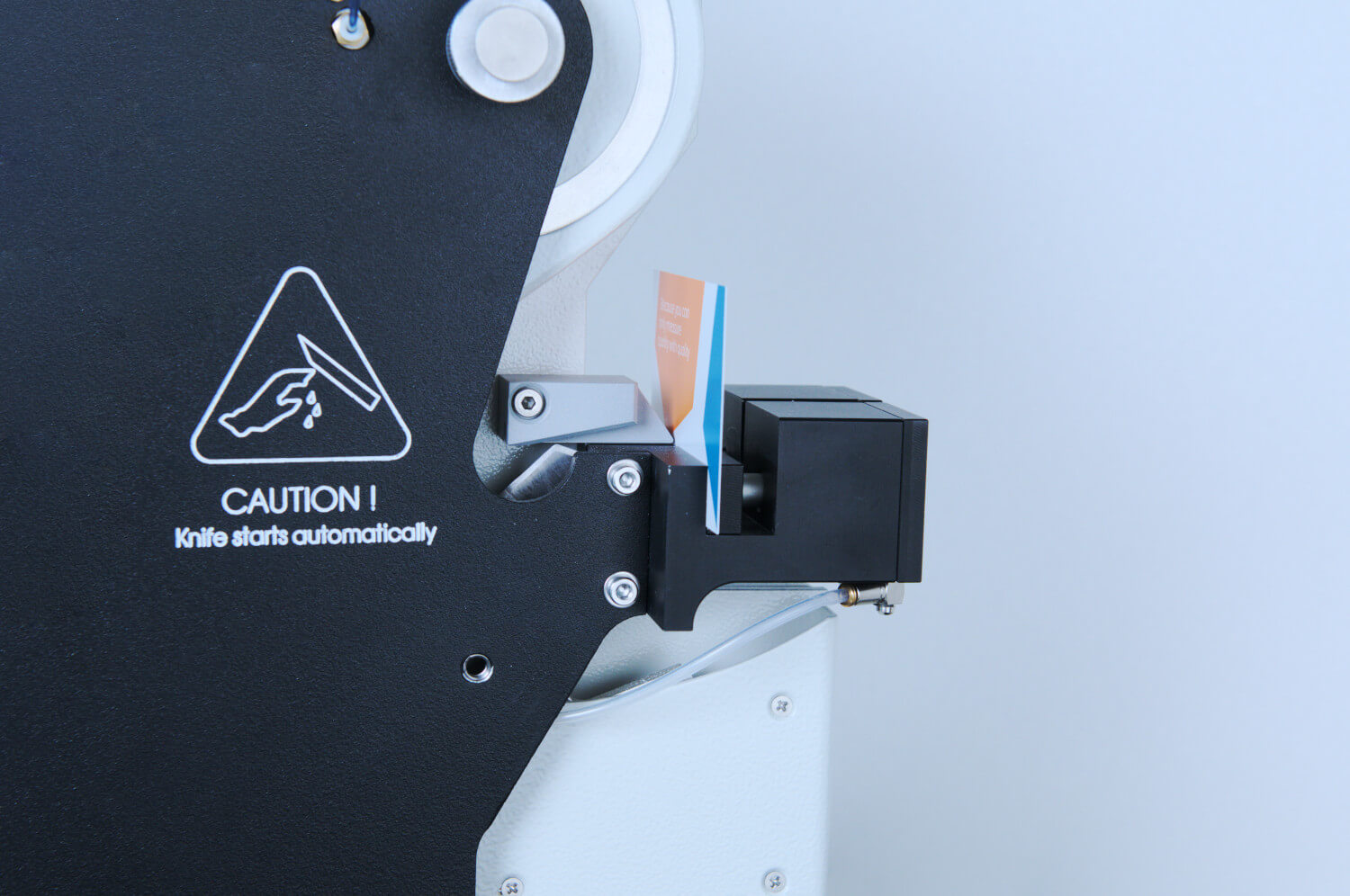

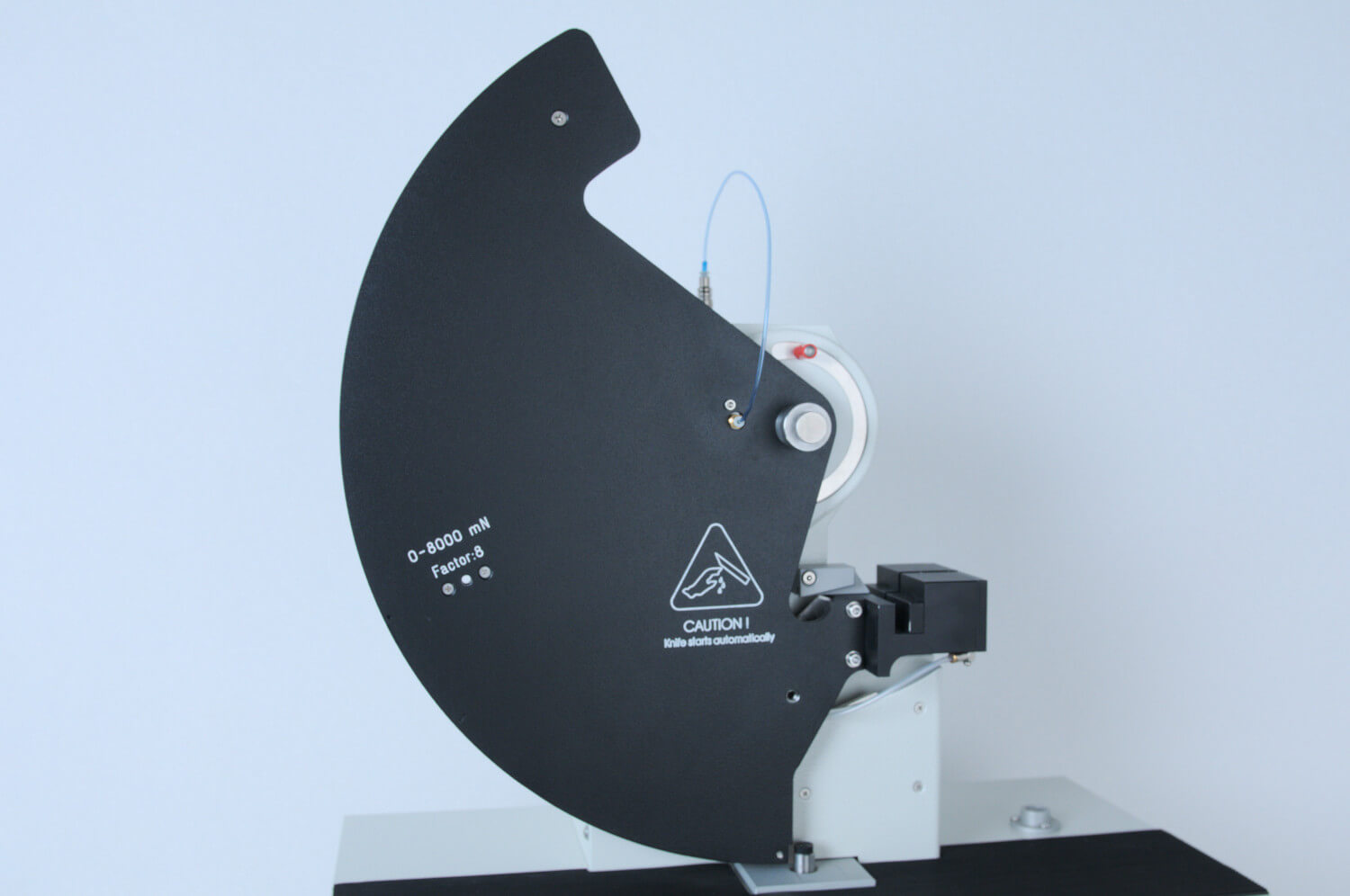

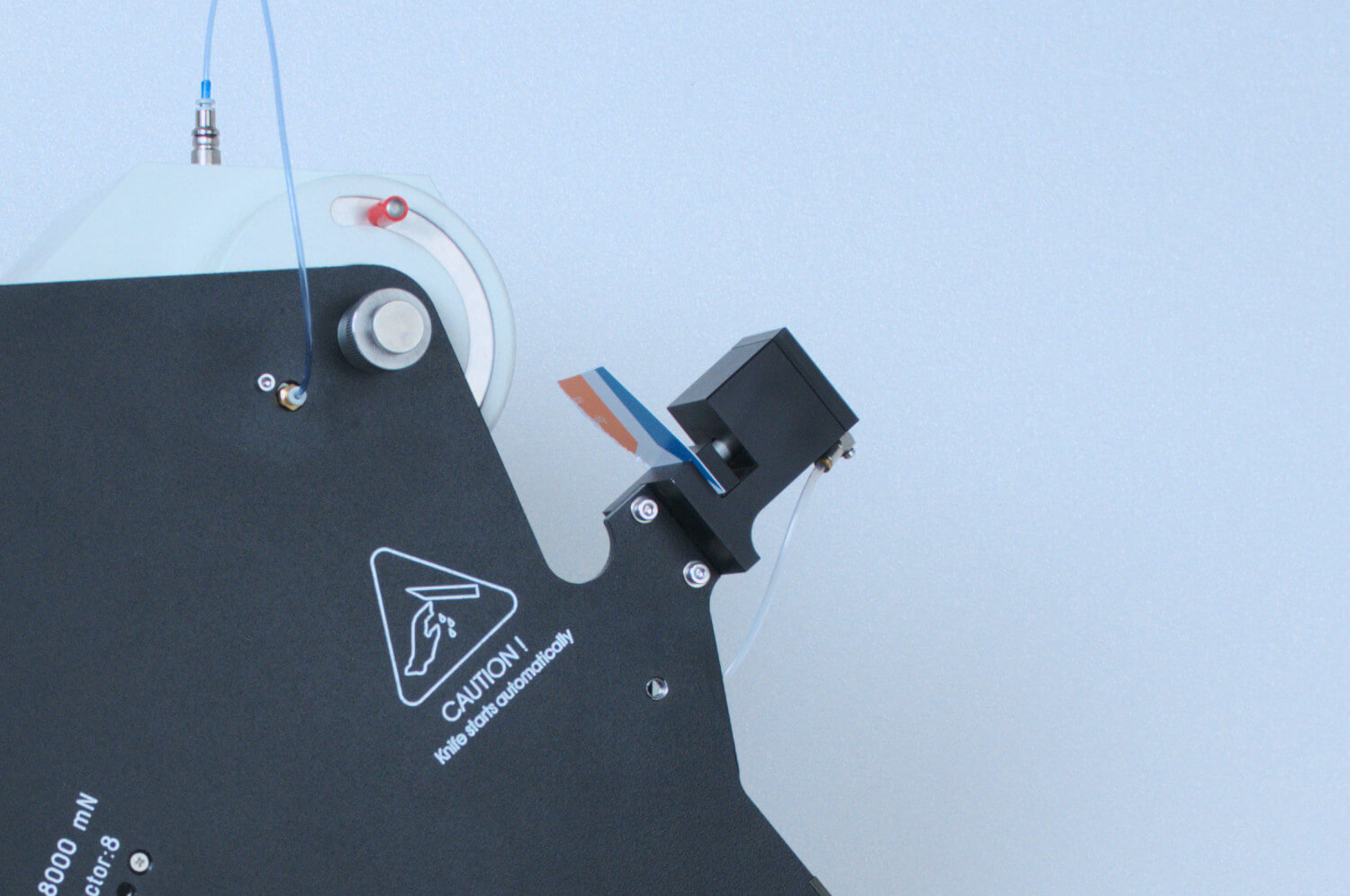

The Elmendorf tear tester is especially developed for the paper industry. It comes with an easy changeable pendulum. The recognition of the pendulum and test cycle is completely automatic and the touchscreen makes it intuitive and easy to operate. After the test, the pendulum returns automatically to its initial position and opens the clamps for changing the samples.
FEATURES
-
changeable pendulum
-

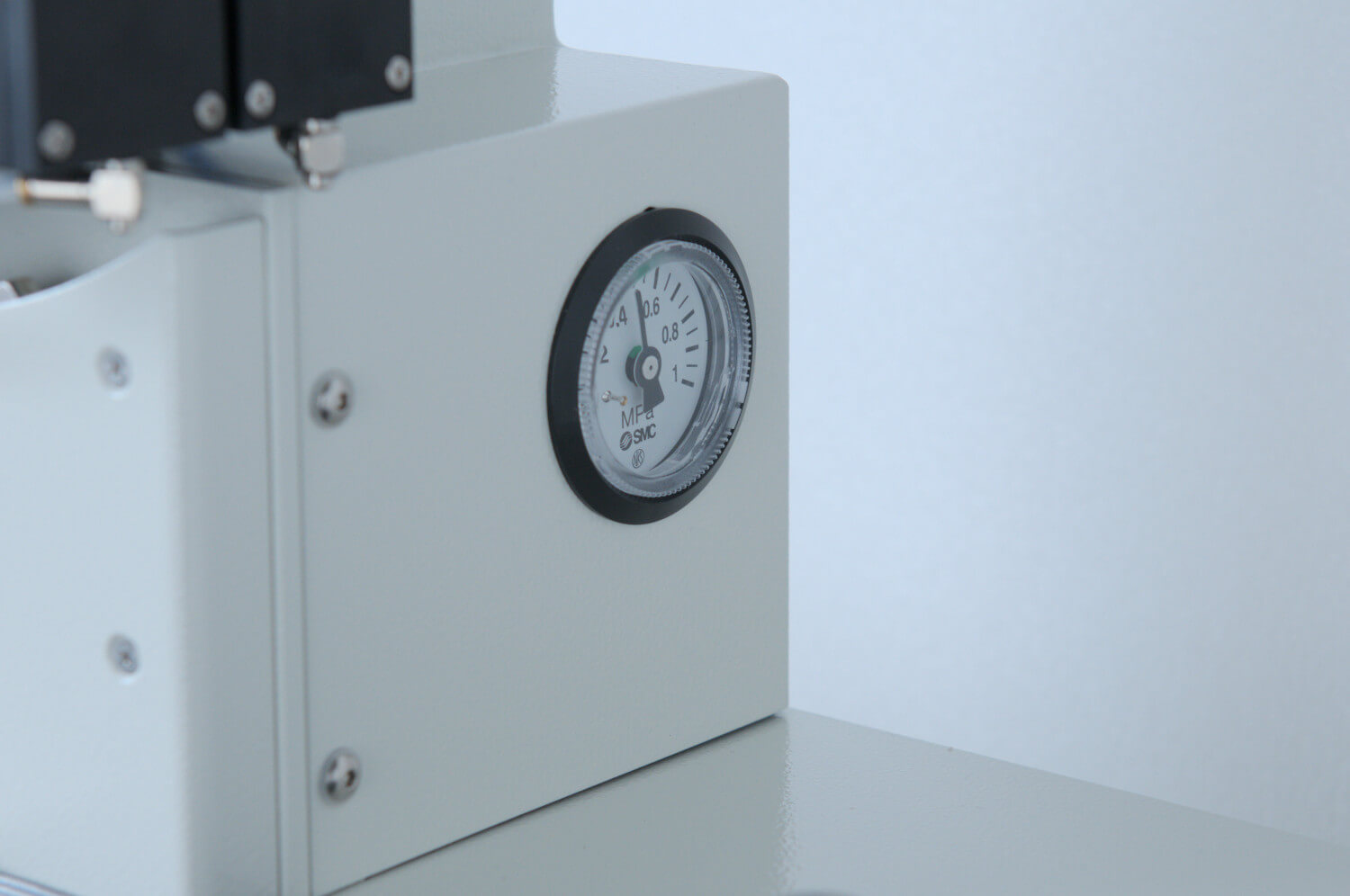

pneumatic sample clamping
-

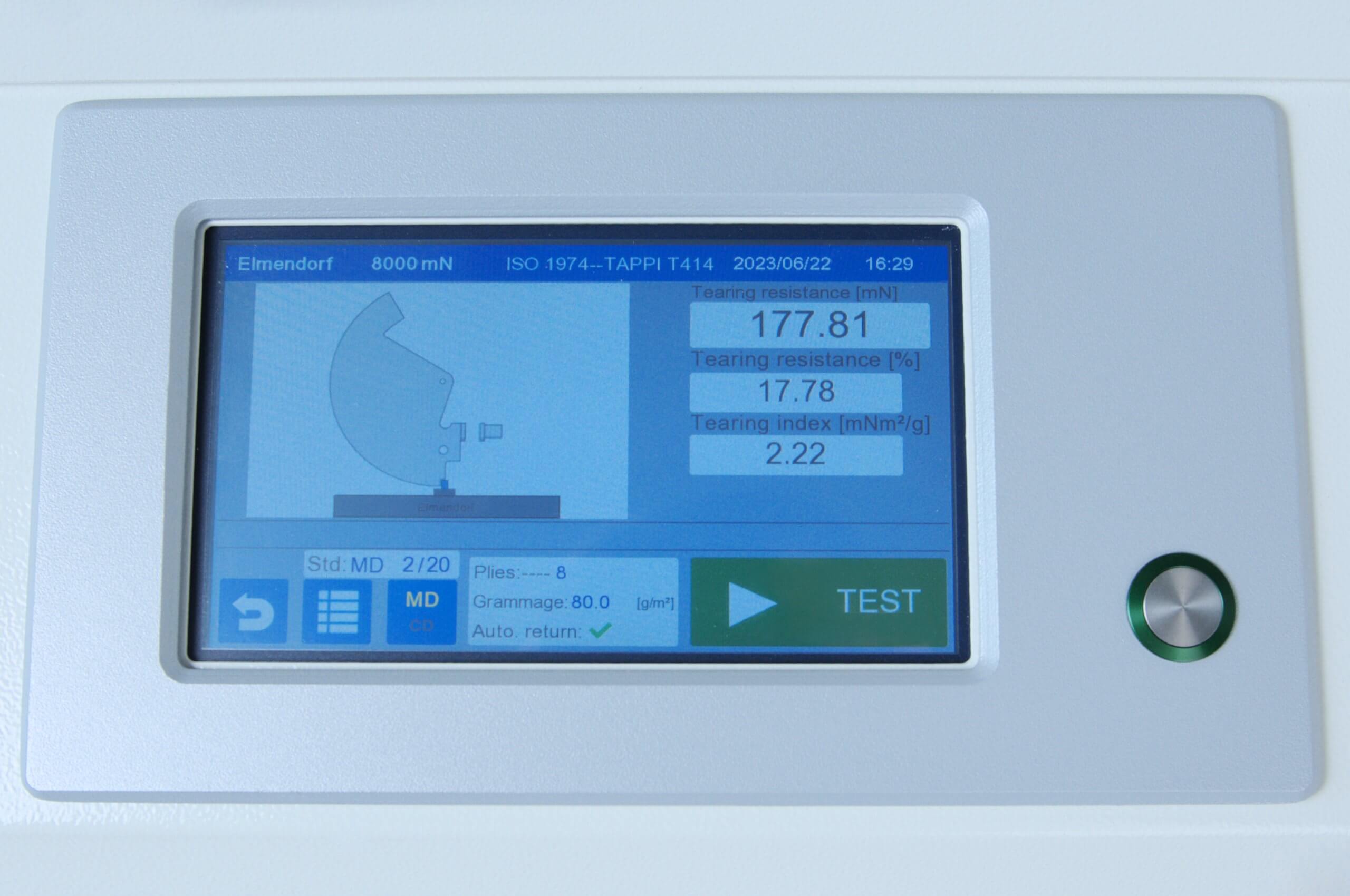

intuitive and easy operation via touchscreen
-
fully automated test sequence and pendulum return
-

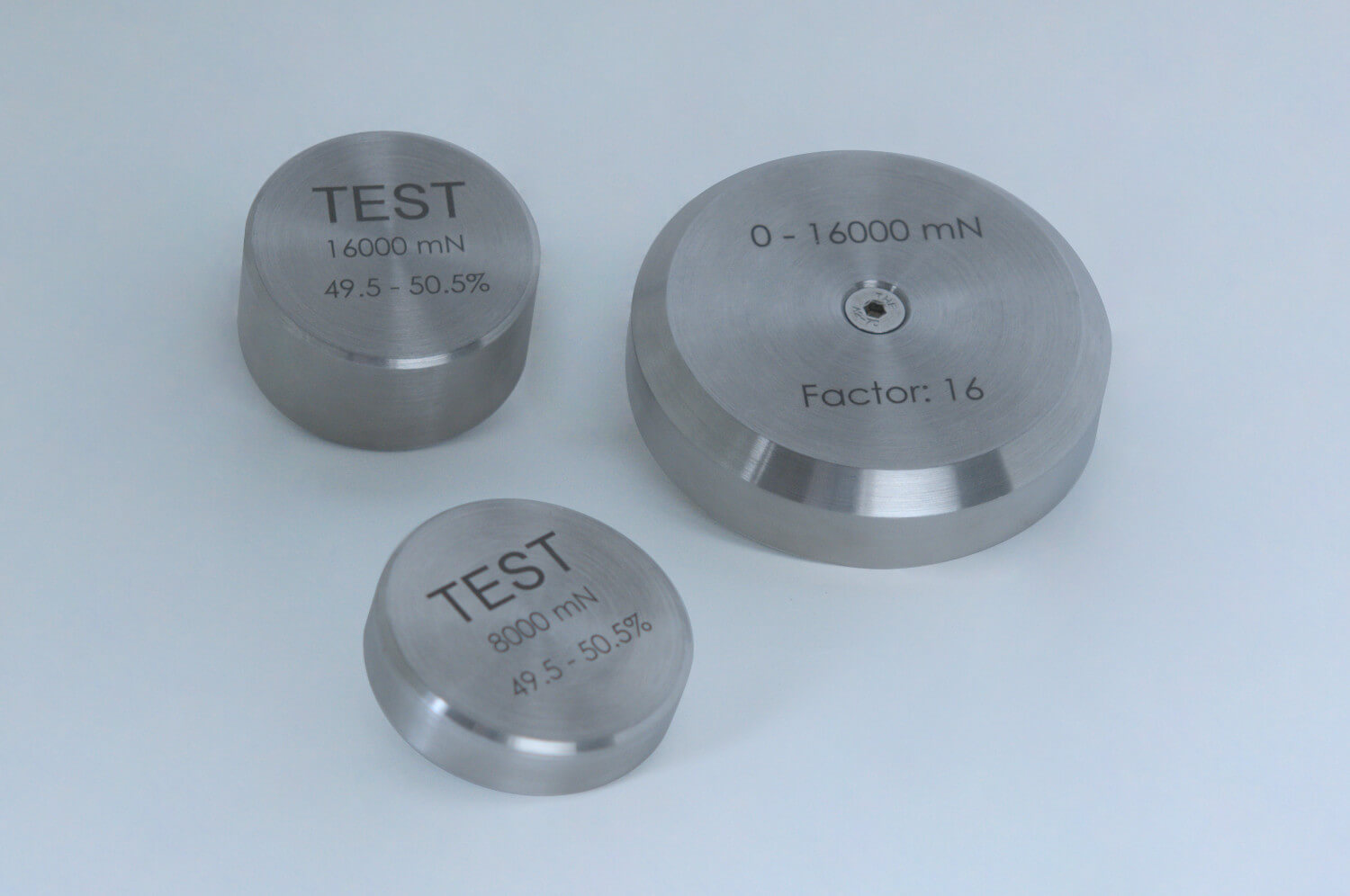

control weight for checking the pendulum
-
complete statistical functions
-
RS-232 output and USB printer output, ethernet output,
-
different languages to choose
-
CE certificate
APPLICABLE STANDARDS
ISO 1974; DIN 53128; EN 21974; SCAN P11; TAPPI T414; BS 4468
CONNECTIONS
| Electricity | 110 – 230 V, 50/60 Hz AC |
| Air | 600 kPa |
MODELS
| Code | Description |
|---|---|
| E.208.008 | device with 8 000 mN pendulum |
| E.208.016 | device with standard pendulum 8 000 mN & compensation weight 16 000 mN |
ADDITIONAL PENDULUM
| Code | Description |
|---|---|
| E.208.Z008 | pendulum 8 000 mN |
| E.208.Z016 | compensation weight & verification weight 16 000 mN |
