BURST TESTER FOR PAPER OR BOARD

หมวดหมู่สินค้า: PTE Austria
รหัส :
BURST TESTER FOR PAPER OR BOARD To determine the burst strength and the burst energy absorption (BEA) of paper or board.

07 สิงหาคม 2566

ผู้ชม 121 ผู้ชม

DEVICE DESCRIPTION

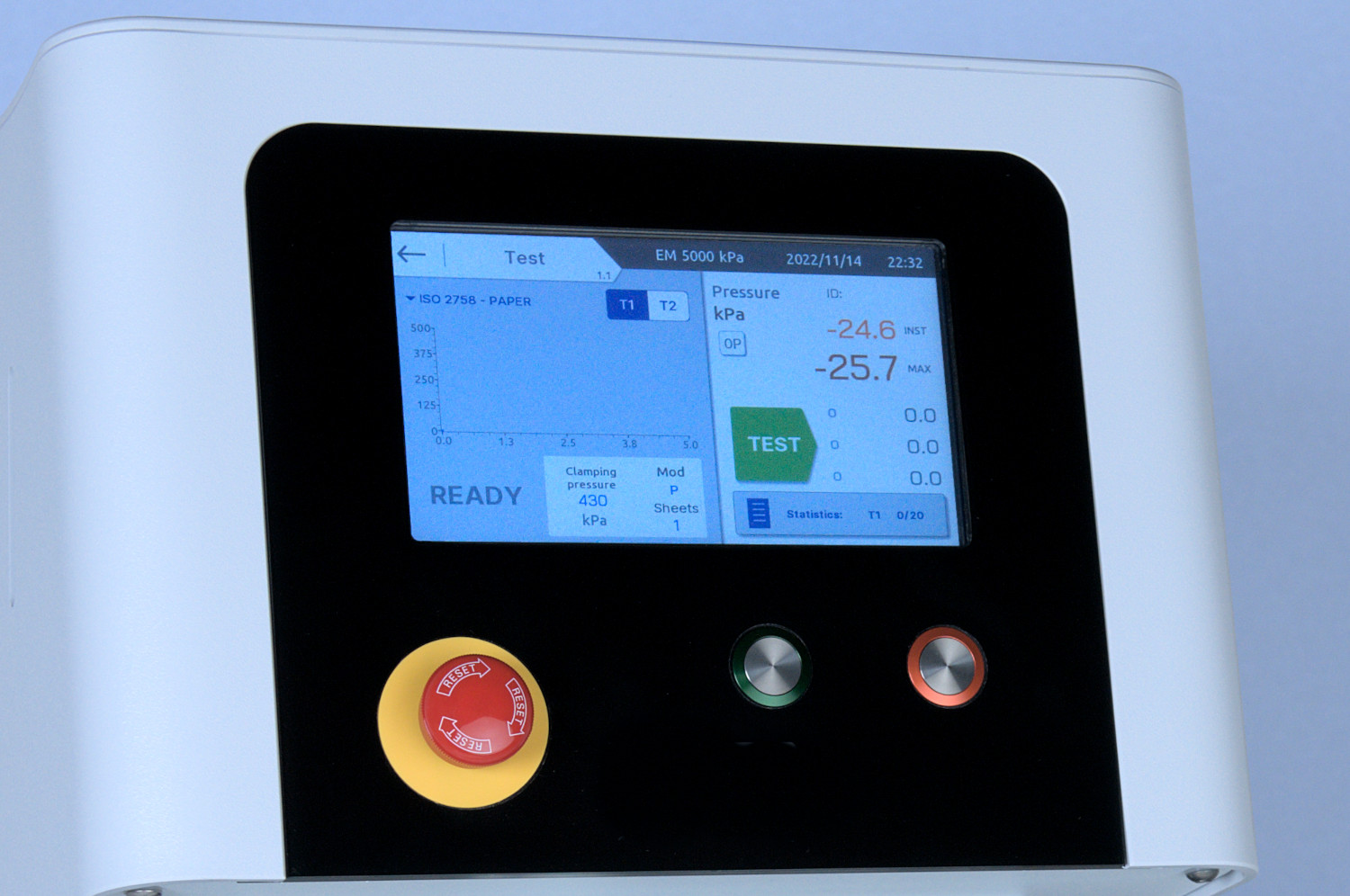

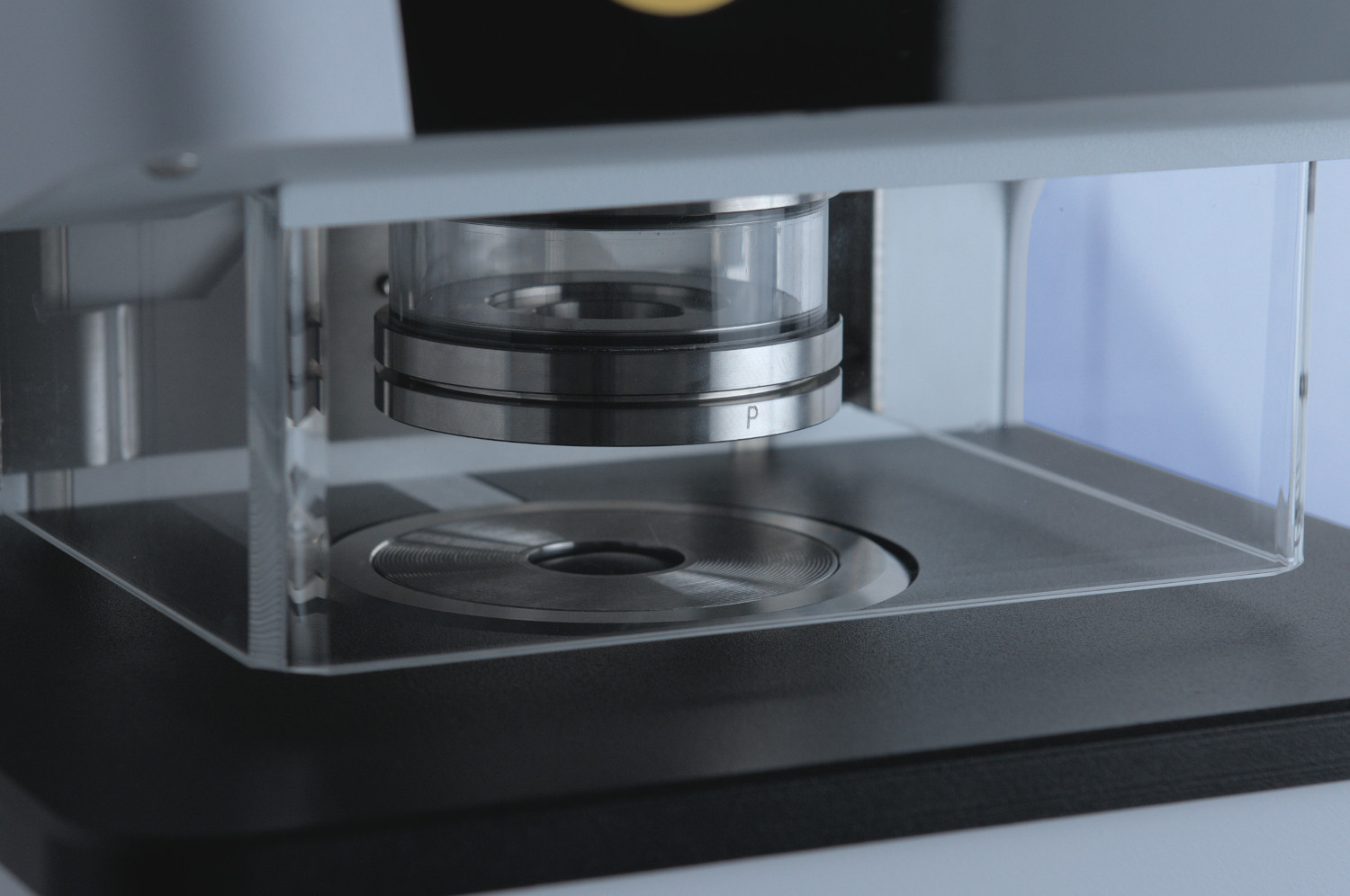

The burst tester comes with an integrated touch screen, which allows an intuitive operation. The device is built in a sturdy aluminium frame and is equipped with 1 measuring head for bottom measurement of the bursting strength. The measuring range is up to 5 000 kPa for paper and up to 8 000 kPa for cardboard with an accuracy of ±1% of the displayed value. Clamping force for the sample holder is adjustable from 1 000 N to 7 500 N. Maximum sample height is 12 mm. The display of burst value as BEA (Burst Energy Absorption) is possible as well. The automatic test cycle has a break detection and after the break it returns back automatically to its starting position.

FEATURES
  • top-quality materials and manufacturing
  • motorized hydraulic (glycerin)
  • safety cover lowers before the clamping bell
  • easy and intuitive touch screen operation
  • display of breaking force, values, graphs, statistic values, BEA
  • top and bottom values can be stored separately in the memory, duration can be calculated
  • Compatible with NOVILOG
  • RS232/USB port for data transfer

APPLICABLE STANDARDS
For paper: ISO 2758; TAPPI T403, T807; PAPTAC D19P; SCAN P24; etc.
For cardboard: ISO 2759; TAPPI T810, T807; PAPTAC D29P; SCAN P25; FEFCO No. 4; etc.



SPECIFICATIONS

pressure adjustable paper: 50 – 5 000 kPa
cardboard: 50 – 8 000 kPa
configurable pumping rate 96 ± 6 ml/min for paper
170 ± 5 ml/min for cardboard
pneumatic clamping force adjustable 1 000 N - 7 500 N

CONNECTIONS

Electricity 110 - 230 V, 50/60 Hz AC
Air 600 kPa

MODELS

Code Device
E.204.PAP Burst Tester for paper
E.204.BOARD Burst Tester for cardboard
