UNIVERSAL MICROMETER FOR PAPER, TISSUE, BOARD OR LEATHER
หมวดหมู่สินค้า: PTE Austria
รหัส :
UNIVERSAL MICROMETER FOR PAPER, TISSUE, BOARD OR LEATHER
To measure the thickness of paper, tissue, board or leather.
07 สิงหาคม 2566
ผู้ชม 100 ผู้ชม
DEVICE DESCRIPTION

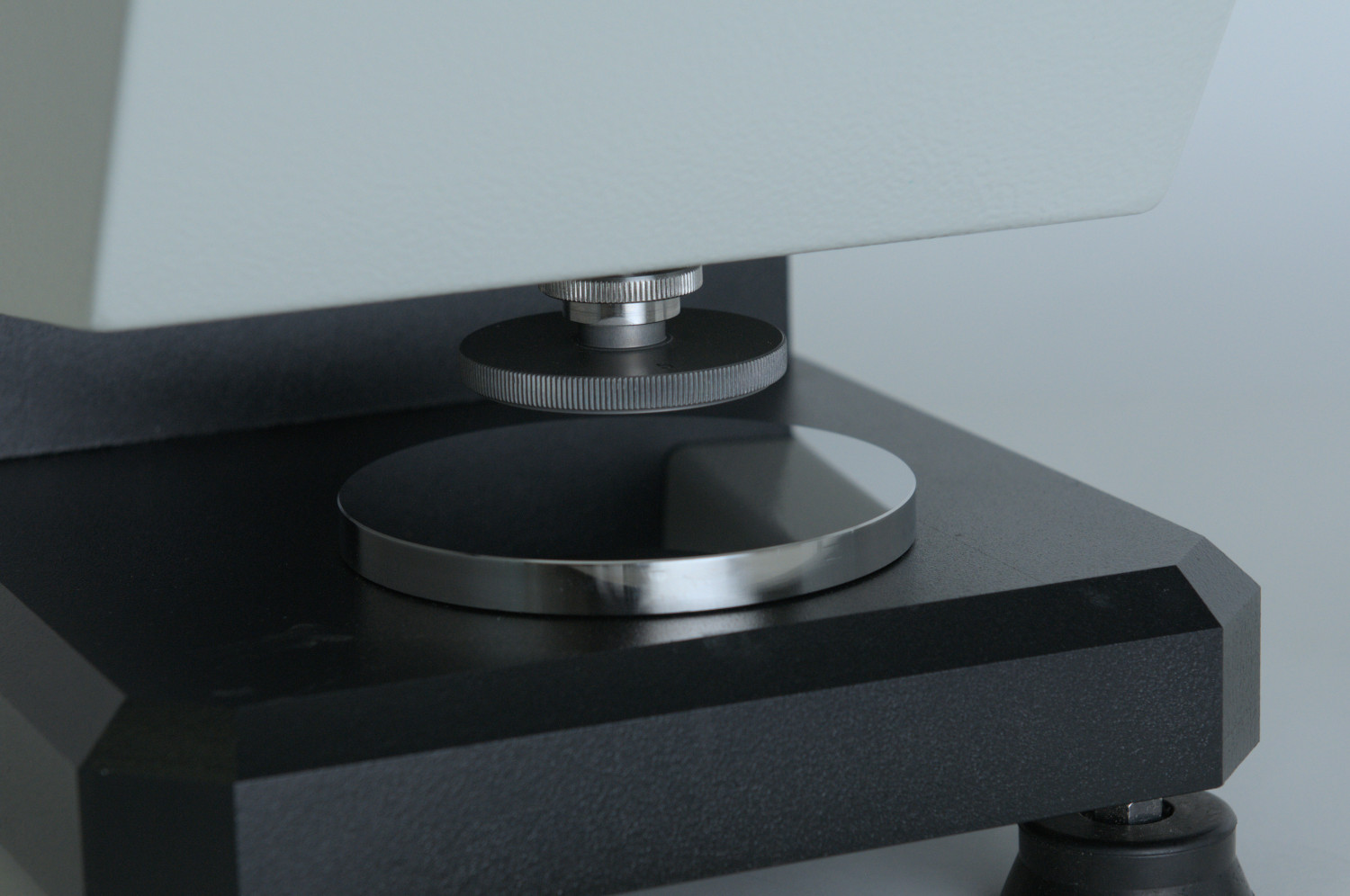

The universal micrometer consists of a sturdy frame that ensures an exact positioning of the measurement pin on the sample. It is easily operated via the integrated touchscreen. The lifting and lowering of the pin are motor driven. There are various pins available to fulfill the different standards for paper, board and tissue as well as leather.
FEATURES
-
top-quality materials and manufacturing
-

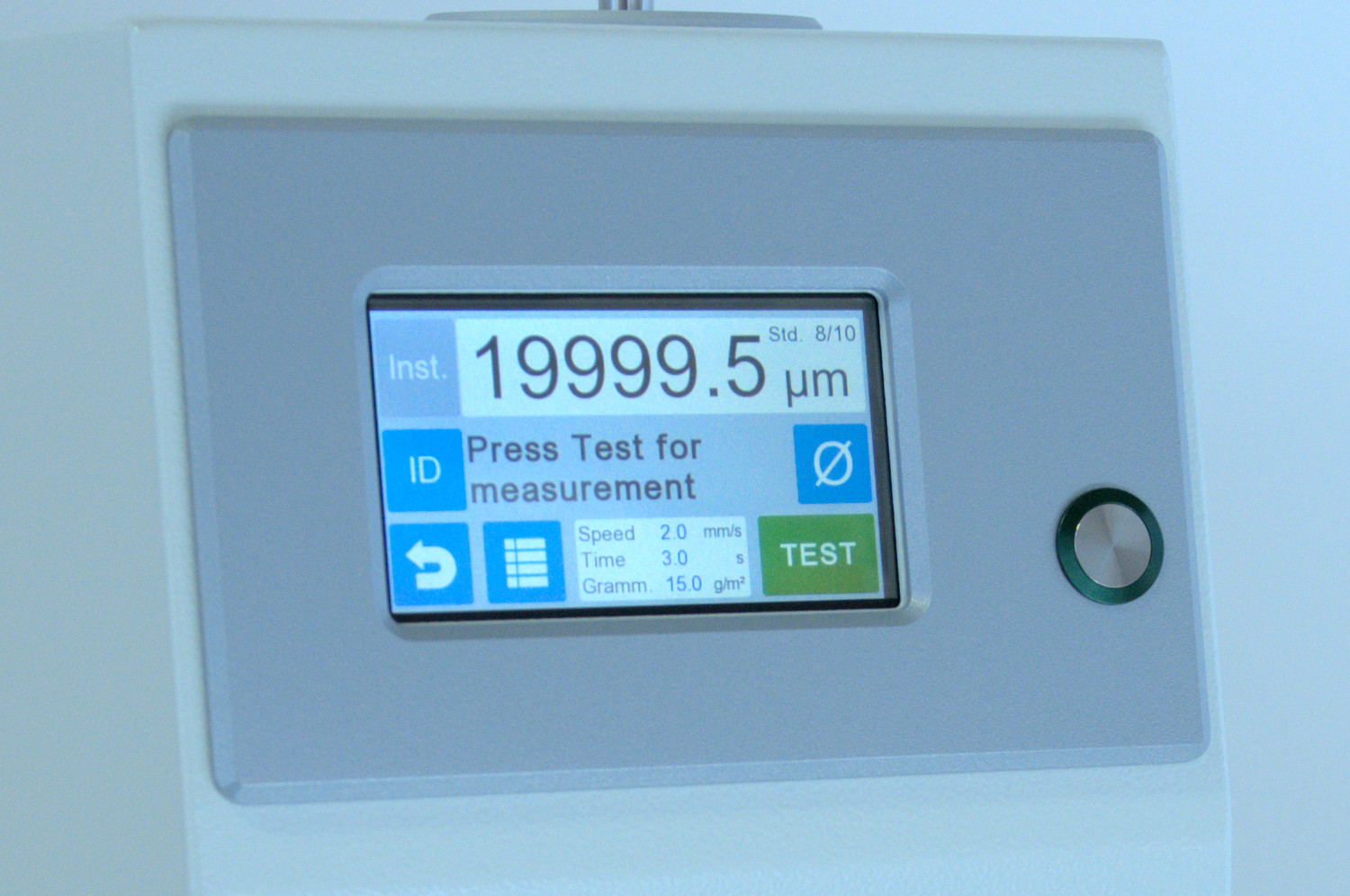

intuitive and easy operation via touchscreen
-
motor driven measuring pin
-

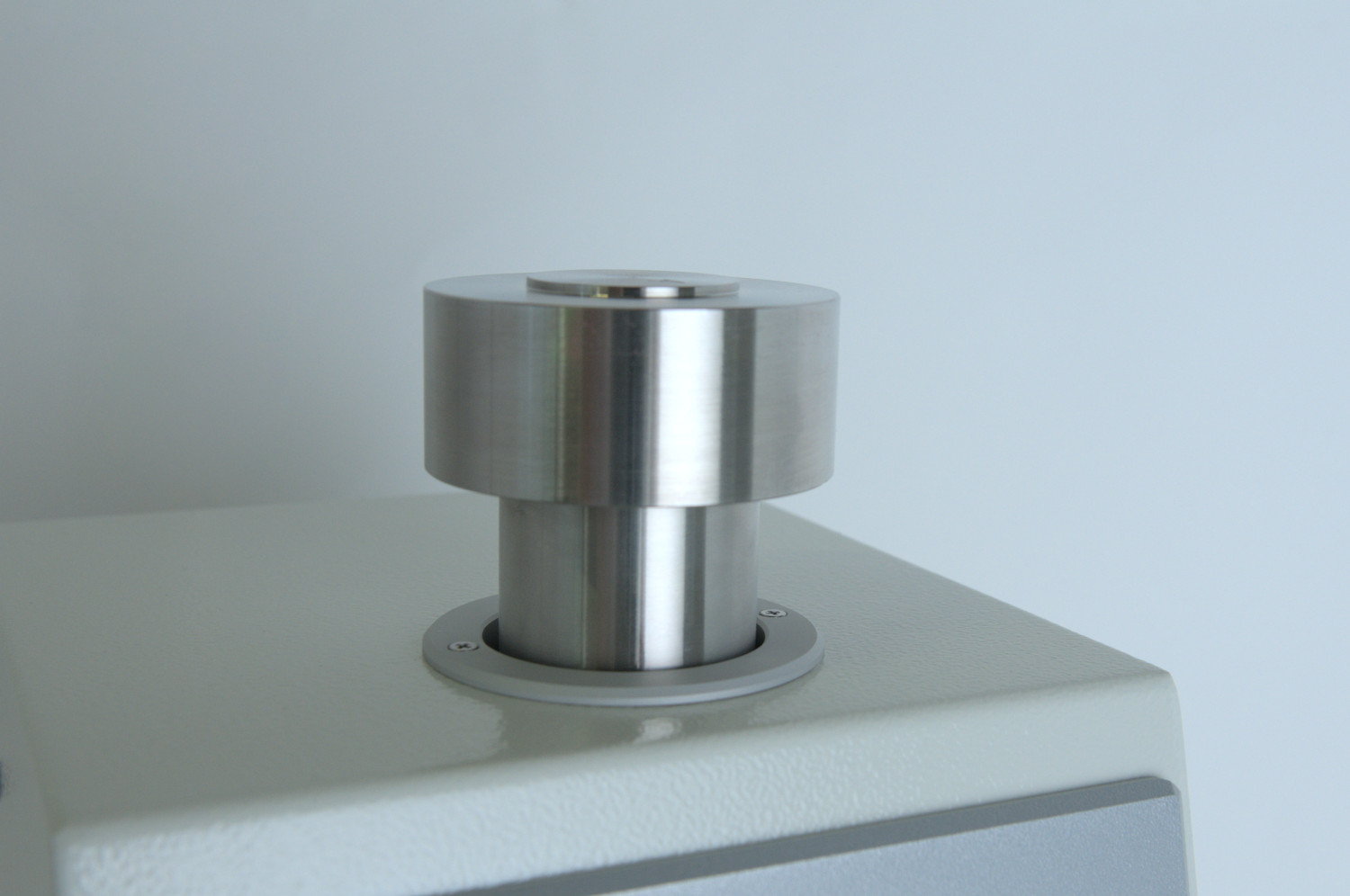

various pins and weights for tissue, board, paper and leather
-
adjustable testing speed
-
statistics for multi measurements
-
two operating modes
-
manual mode for single measurements or automatic mode for continued test cycles
APPLICABLE STANDARDS
ISO 534; ISO 12625-3; TAPPI T411; SCAN P7; EN 20534; DIN 53105
SPECIFICATIONS
| lowering speed adjustable | 1 - 11 min/sec |
| resolution | 1 µm |
| adjustable dwelling time | 0 - 999.9 sec |
| measuring range | 0 - 25 mm |

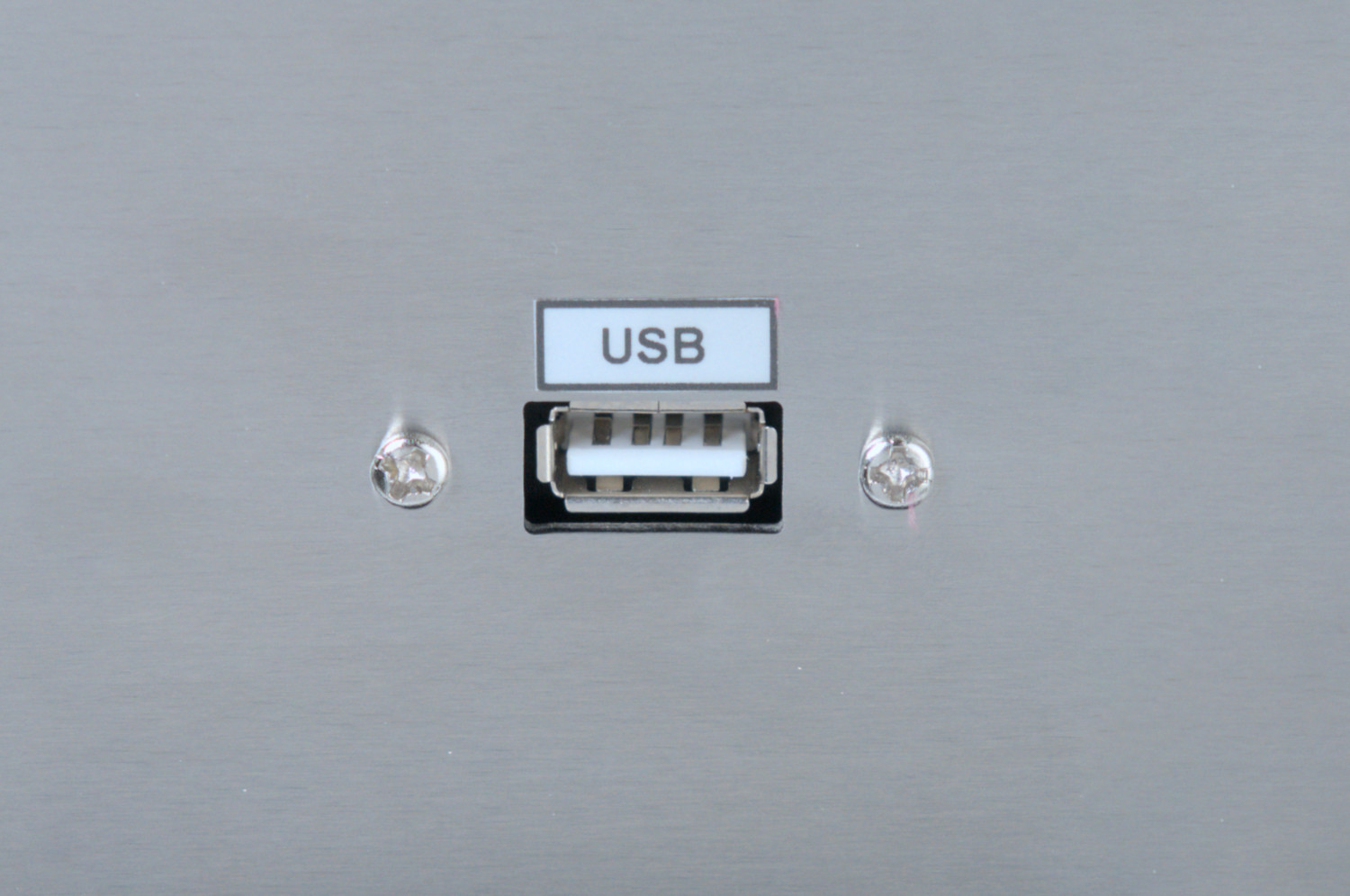

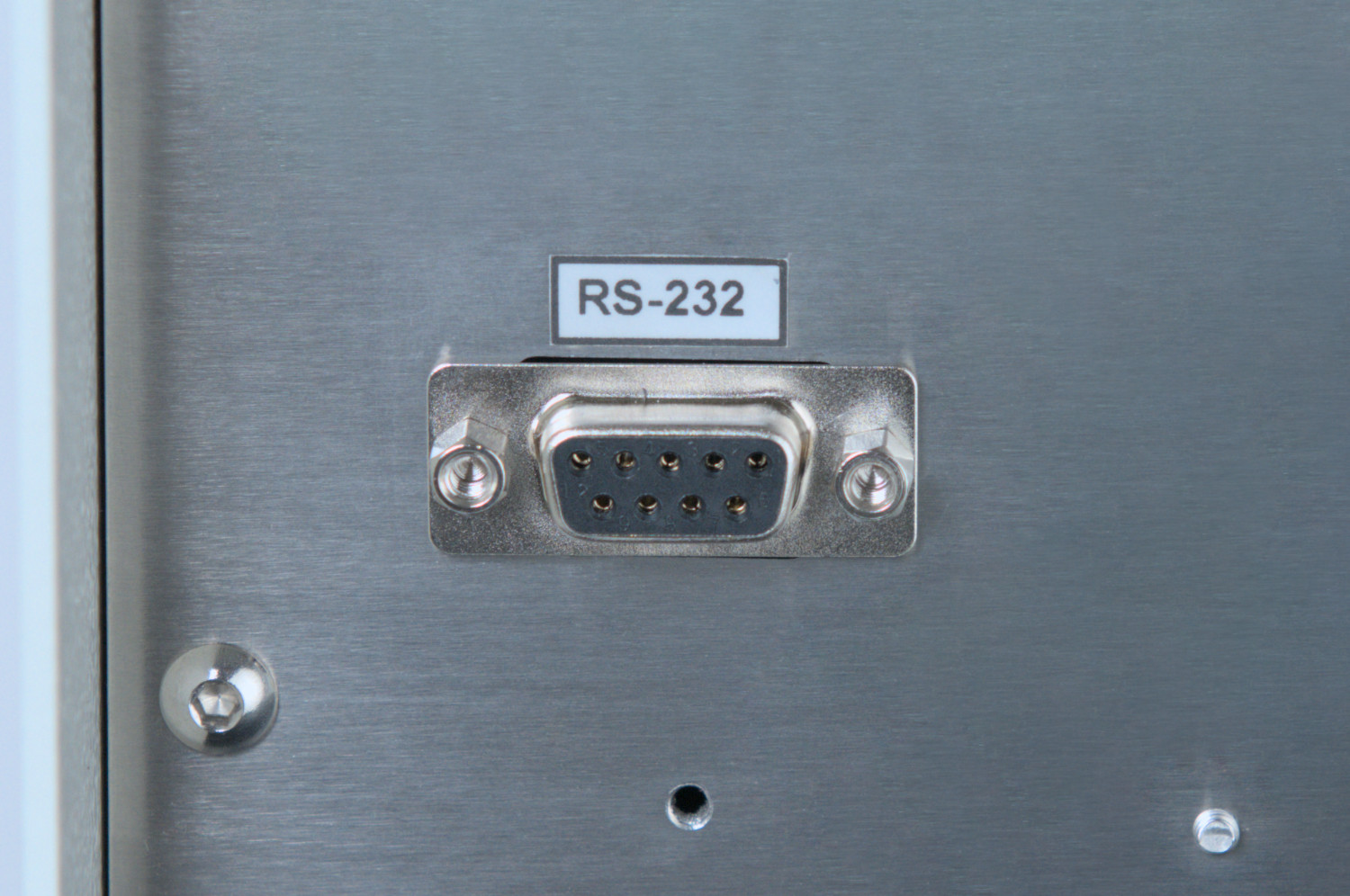

CONNECTIONS
| Electricity | 110 V – 230 V, 50/60 Hz AC |
MODELS
| Code | Testing material |
|---|---|
| E.203.25P | paper |
| E.203.25PT | paper acc. TAPPI T411 |
| E.203.25C | cardboard |
| E.203.25T | tissue |
| E.203.20NV | nonwoven |
| E.203.10PFL | plastic film flat |
| E.203.10PFR | plastic film rounded |
ADDITIONAL KITS
| Code | Kit for |
|---|---|
| E.203.P.KIT | paper |
| E.203.PT.KIT | paper acc. TAPPI T411 |
| E.203.C.KIT | corrugated board |
| E.203.T.KIT | tissue |
| E.203.NV.KIT | nonwoven |
| E.203.PFL.KIT | plastic film flat |
| E.203.PFR.KIT | plastic film radius |
