TENSILE TESTER – VERTICAL
To determine the force, tensile resistance, elongation and tensile energy absorption (TEA) in paper, board, tissue or other materials.
07 สิงหาคม 2566
ผู้ชม 152 ผู้ชม
TENSILE TESTER – VERTICAL
To determine the force, tensile resistance, elongation and tensile energy absorption (TEA) in paper, board, tissue or other materials.
DEVICE DESCRIPTION

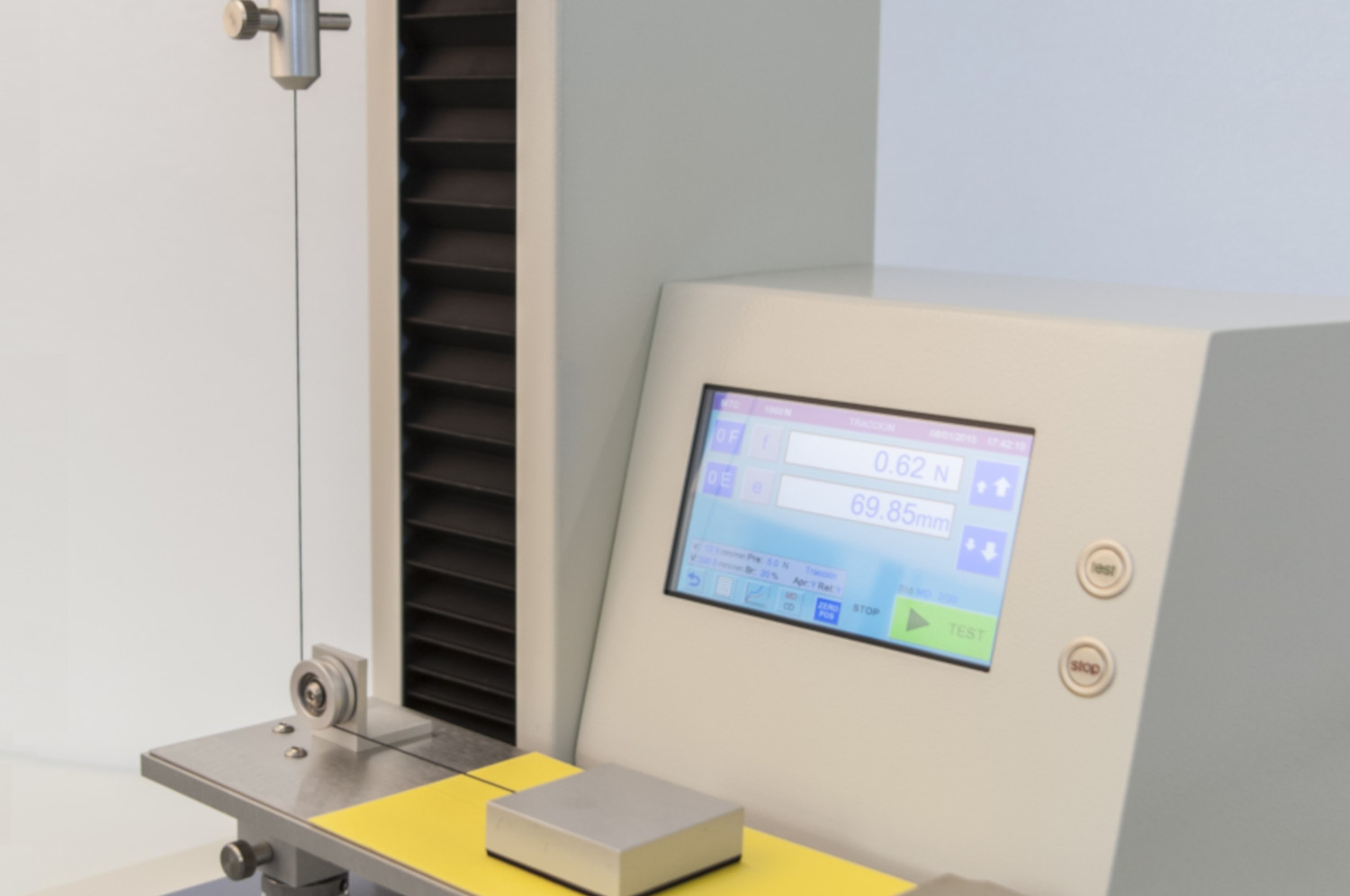

This tensile tester is intuitive and easy to operate via touchscreen and clear control buttons. The software is configured with the standards acc ISO, ASTM and DIN and customized configurations are possible. It comes with one load cell (on customers choice) and the customer can choose manual or pneumatical clamping version. There are separate Start/Stop buttons for easy use and control. The maximum distance between the clamps is 300 mm and the test speed is adjustable from 0.2 to 330 mm/min. The unit has a RS-232 using ASCII and super high-speed binary mode, USB and Ethernet RJ45 10/100 connector for maintenance work and printer connection. All the parameters like testing speed, testing length, breaking and pre-load levels can be adjusted individually.
FEATURES
-
top quality and manufacturing
-
easy and intuitive operation via touchscreen
-
automatic return to initial position
-
display of tensile force, elongation, breaking length, TEA (tensile energy absorption), curves, statistical functions like arithmetic mean, max, min, standard deviation, etc.
-
different load cells available depending on type of tests
-

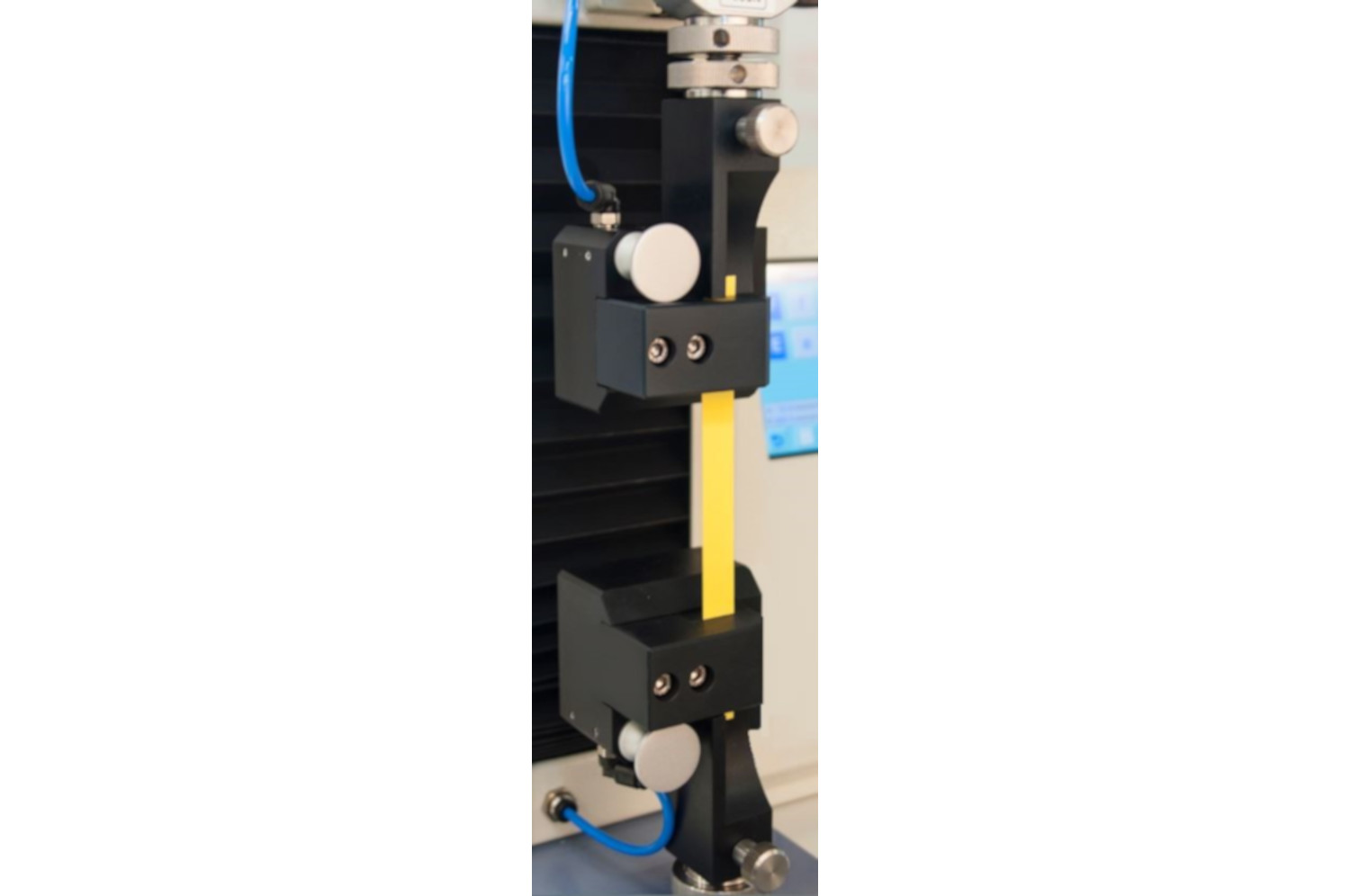

pneumatic clamps available
-
Windows based software
-
RS-232 and USB connection
-
CE certificate
APPLICABLE STANDARDS
ISO 1924-1/-2/-3; TAPPI T456, T494; PAPTAC D34; BS4415/2; etc.
SPECIFICATIONS
| adjustable test speed | 0.2 – 330 mm/min |
| maximum travel between clamps | 300 mm |
| accuracy | <1% of applied force |
| force resolution | 0.004% |
| travel resolution | ±0.01 mm |
| available sample width | 15, 25 or 50 mm |
CONNECTIONS
| Electricity | 110 - 230 V, 50/60 Hz AC |
| Air | 600 kPa, Ø6 mm tube |
MODELS
| Clamping | Clamps [mm] | Load cell [N] | Max. travel without jaws [mm] |
|---|---|---|---|
| manual or pneumatic | 15, 25 or 50 | 10, 20, 50, 100, 250, 500 or 1000 | 500 or 750 |
For specific models, download the PDF file!
ACCESSORIES
| Code | Article |
|---|---|
| E.202.FINCH | finch wet test attachment |
| E.202.PP | pressure plates attachment |
| E.202.FRICT | friction test device |
| E.202.BALL | ball burst attachment |
| E.202.ZDIR | Z-direction test attachment incl. sample preparation station |
