TENSILE TESTER – HORIZONTAL
To determine the tensile resistance in dry or wet state, elongation and tensile energy absorption (TEA) in paper or tissue.
07 สิงหาคม 2566
ผู้ชม 103 ผู้ชม
DEVICE DESCRIPTION

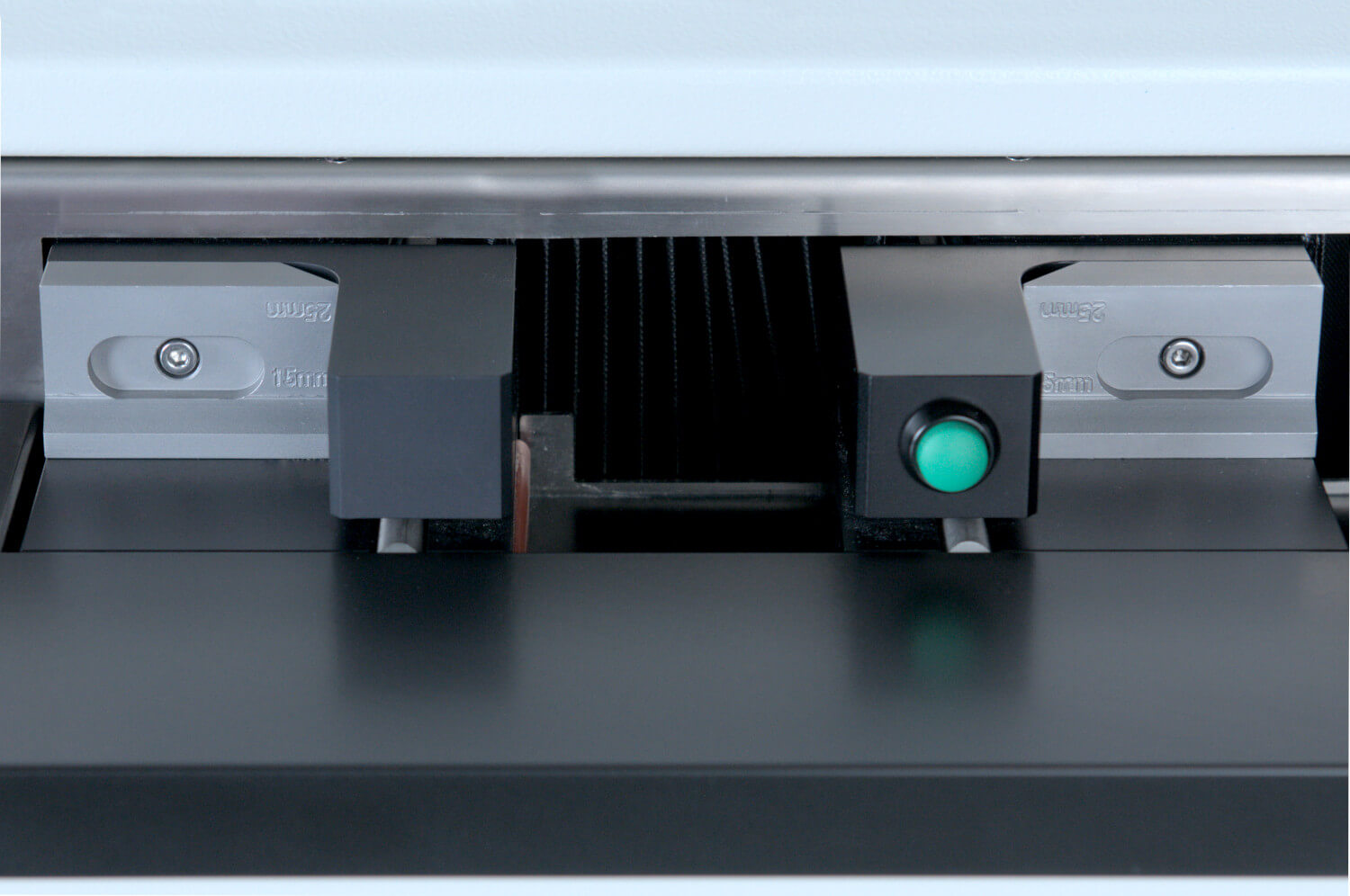

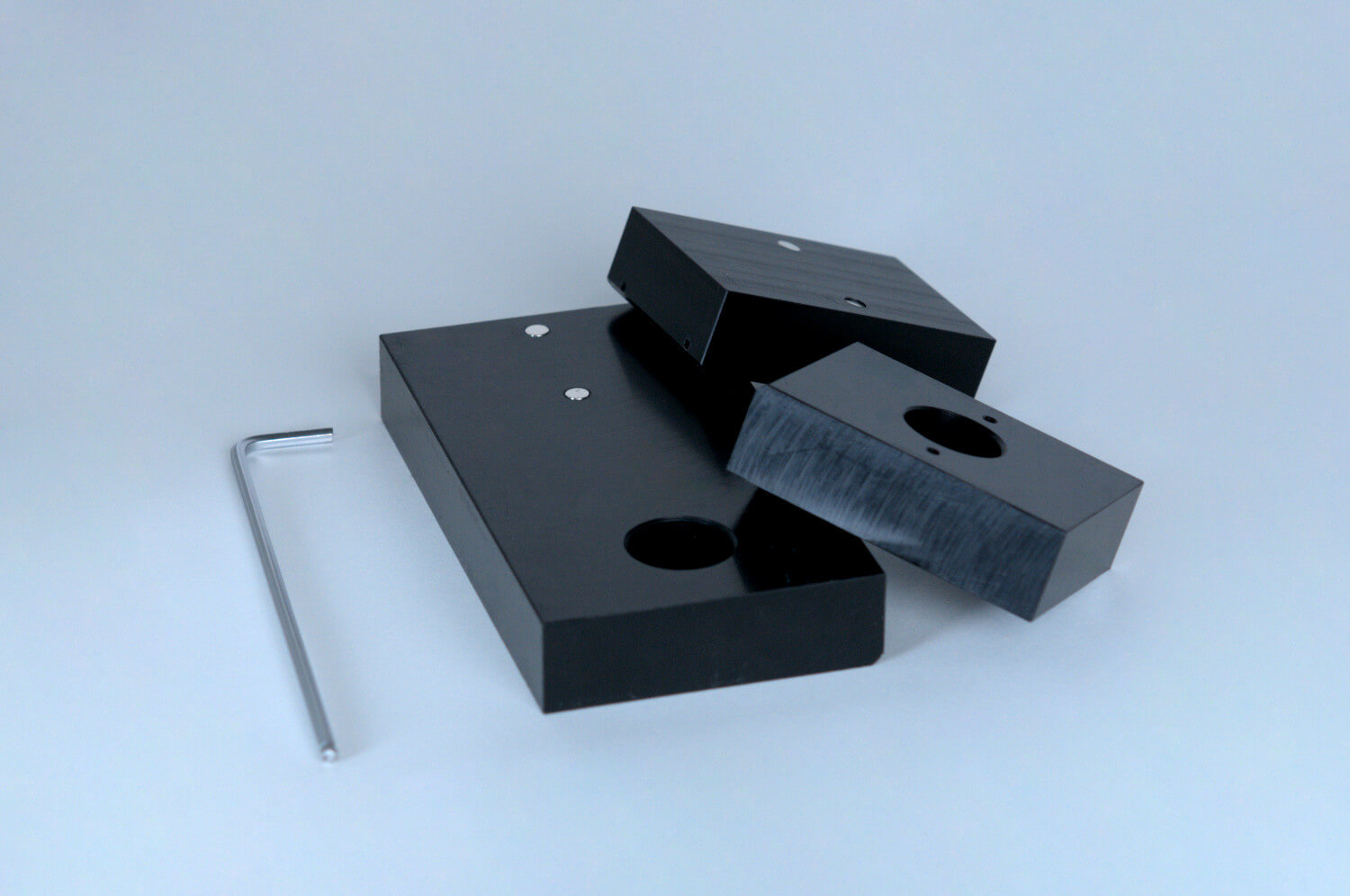

This sturdy machine is easy to operate due to its integrated touchscreen and its clear buttons. The software has many pre-installed tests e.g. standard 100 mm tensile test for 15 mm stripes or the wet tensile test with 50 mm stripes for tissue. It comes with one load cell of 150, 500 or 1 000 N max. load. The pneumatically driven clamps have an automatic sample detection or can be started manually by a start button directly on the clamp holder. This is useful for transparent sample tests. The maximum distance of the clamps is 300 mm. It has an RS 232 interface and a USB connector for maintenance and a printer connection. The device comes with different sample supports e.g. wet paper basket or a support for tensile tests (180 mm/100 mm). The test speed is adjustable from 0.2 to 330 mm/min.
FEATURES
-

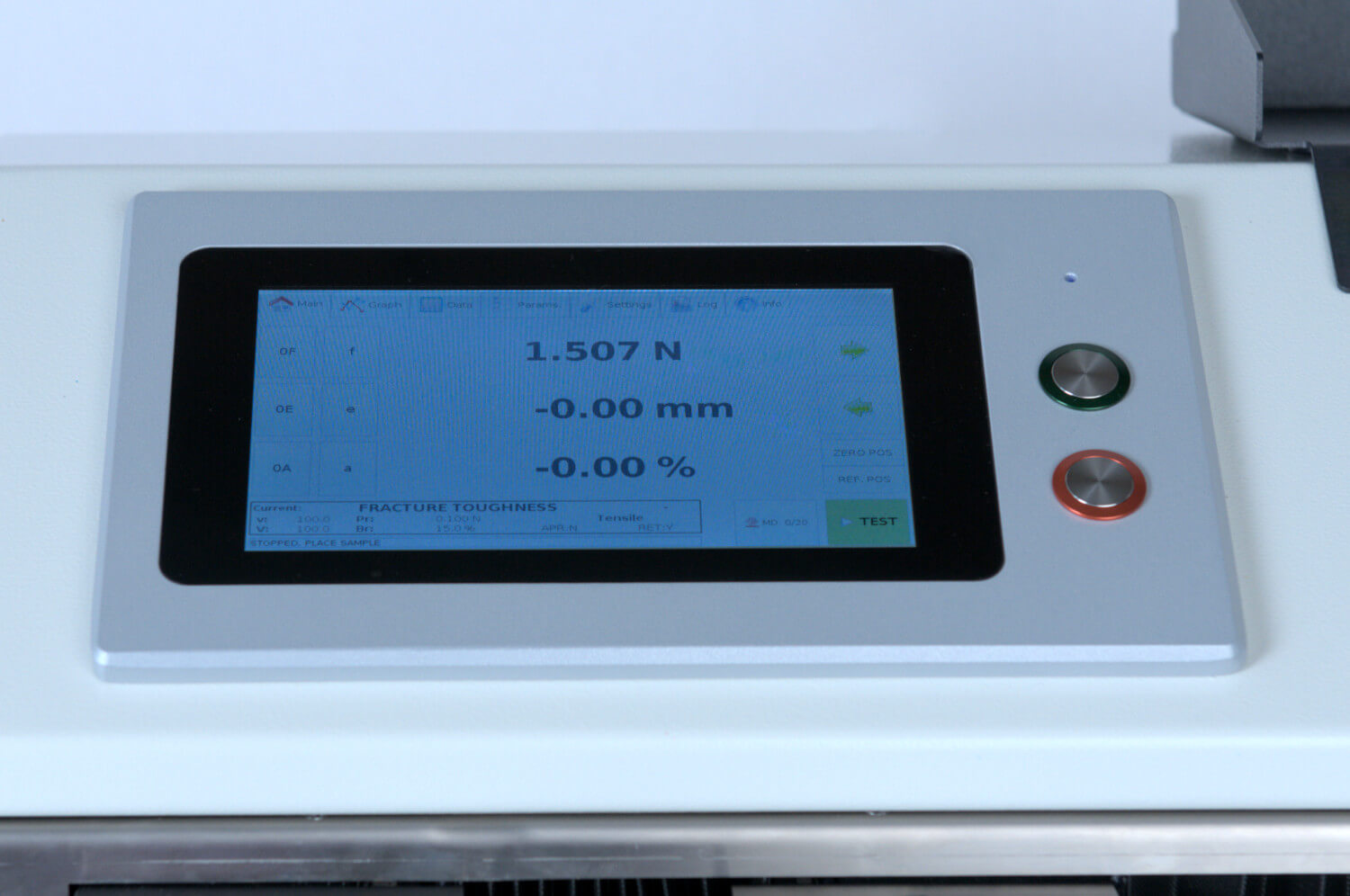

easy operation due to touchscreen controls
-
sample detection and return into initial position automatically
-

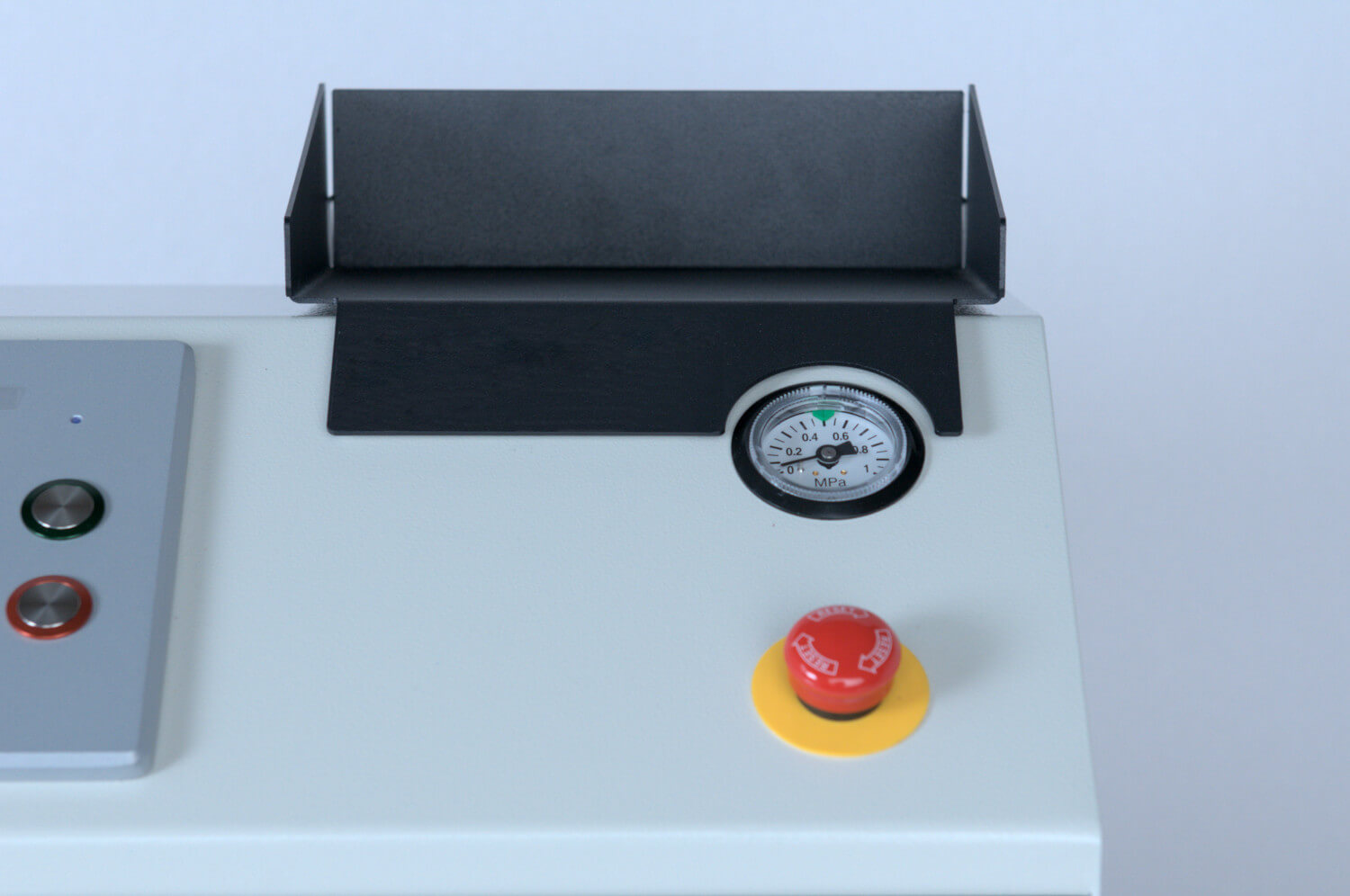

multiple safety installations (limit switch, photocell barrier, emergency switch)
-
water or standard tensile tests
-
software can be set to different languages.
APPLICABLE STANDARDS
ISO 1924-2; UNE-EN ISO 12625-4 / 5; TAPPI T456, T494; PAPTAC D34; BS4415 / 2; etc.
SPECIFICATIONS
| adjustable test speed | 0.2 to 330 mm/min |
| ports | RS 232 and USB |
| water bath for wet tensile tests | 50 mm wide stripes |
| selectable distance between clamps | 50 up to 180 mm |
| possible width of samples | 15 mm, 25 mm or 50 mm |
| accuracy | < 1% of applied force (between 2% and 100% of the FS) |
| travel | ± 0.01 mm |
| resolution | force: 0.004% of the FS |
CONNECTIONS
| Electricity | 220/110 V, 50/60 Hz |
| Air | 600 kPa |
MODELS
| Code | Device |
|---|---|
| E.207.150 | Tensile Tester horizontal with 150 N load cell |
| E.207.500 | Tensile Tester horizontal with 500 N load cell |
