RAPID KÖTHEN - SQUARE & RECTANGULAR
To prepare laboratory sheets of pulp with the Rapid Köthen method for physical testing.
07 สิงหาคม 2566
ผู้ชม 112 ผู้ชม
DEVICE DESCRIPTION

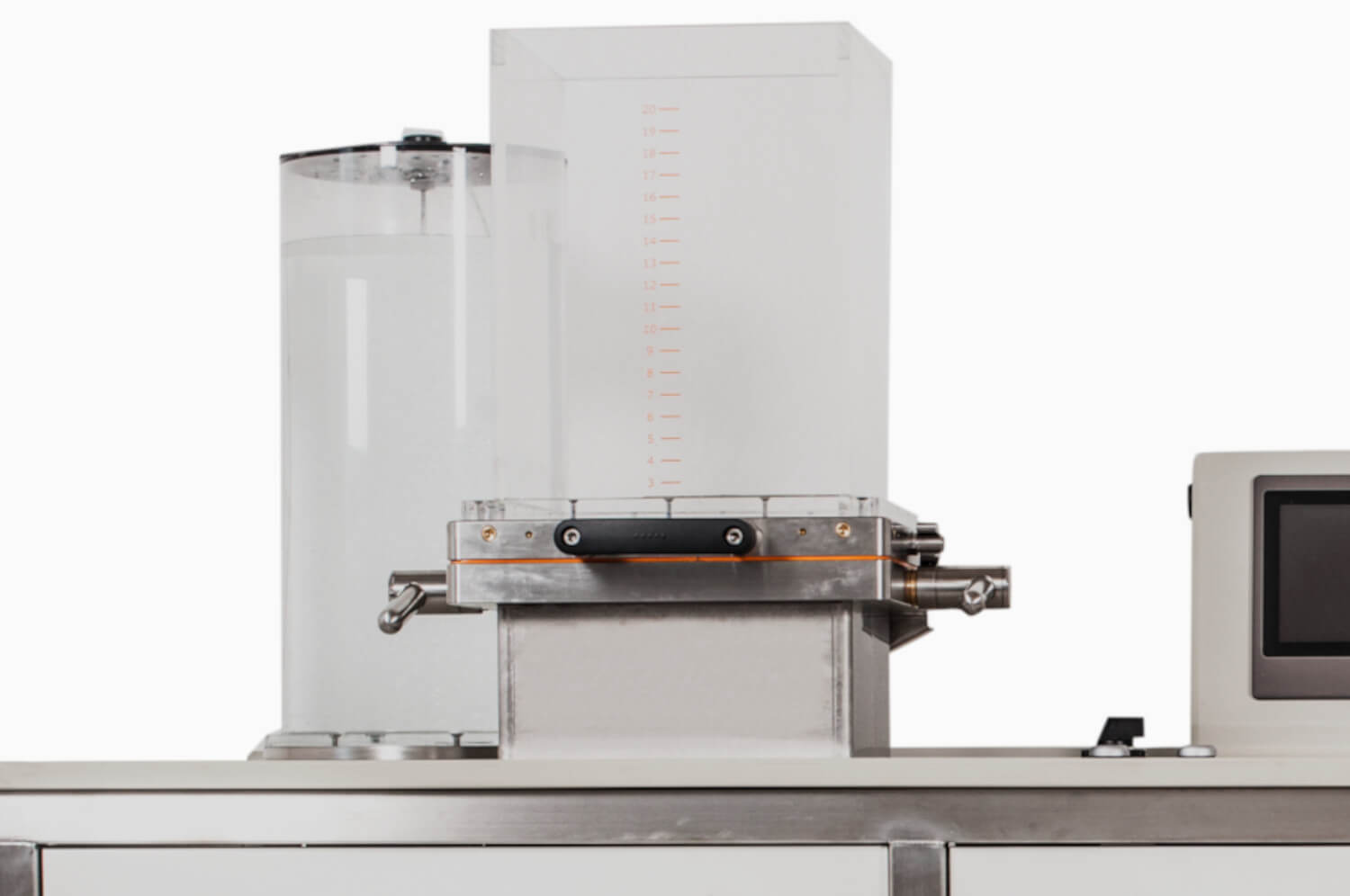

The square or rectangular sheet former is built on a robust base frame with torsion-resistant stainless steel frame. The former column, the white water tank (depending on the model) and a switch panel for manual operation are located on the left side of the waterproof worktop. An easy-to-use touch display and the main switch are elevated (for better operability) on the right side. For more work space, only the most necessary switches are installed on the tabletop. The fully automatic sheet forming process can be controlled intuitively and easily via the PTE Austria software installed on the touch display. Switching to manual operation is possible at any time.
FEATURES
-
top quality and manufacturing
-
built into a sturdy stainless steel frame
-
former column made from stainless steel
-
integrated water-resistant touchscreen control panel
-
easy and intuitive operation via touchscreen
-
fully automatic sheet forming
-
additional 6-position switch to change to manual sheet forming at any time
WHITE WATER CIRCULATION SYSTEM FEATURES
-
white water tank for saving the water used for sheet forming
-
white water tank able to heat up to 60°C
-
switchable water source: tab water or white water
-
tap on the side to take out the white-water for chemical analysis
APPLICABLE STANDARDS
ISO 5269-2; DIN 54358
CONNECTIONS
| Electricity | 230 V, 50 Hz AC without dryer 400 V, 50 Hz AC with dryer |
| Air | 400 – 600 kPa |
| Water | tap water connection required |
| Drainage | Ø50 mm drainage pipe |
Other voltages on request possible
| Code | Type | Dryers | System |
|---|---|---|---|
| P.506.xxx.xx | Square/Rectangular | 0-3 | automatic/automatic & white water circulation |
