SCHOPPER RIEGLER – DIGITAL (FREENESS TESTER)

หมวดหมู่สินค้า: PTE Austria
รหัส :
SCHOPPER RIEGLER – DIGITAL To determine the freeness and the drainage properties of fiber and pulp suspensions.

07 สิงหาคม 2566

ผู้ชม 179 ผู้ชม

DEVICE DESCRIPTION

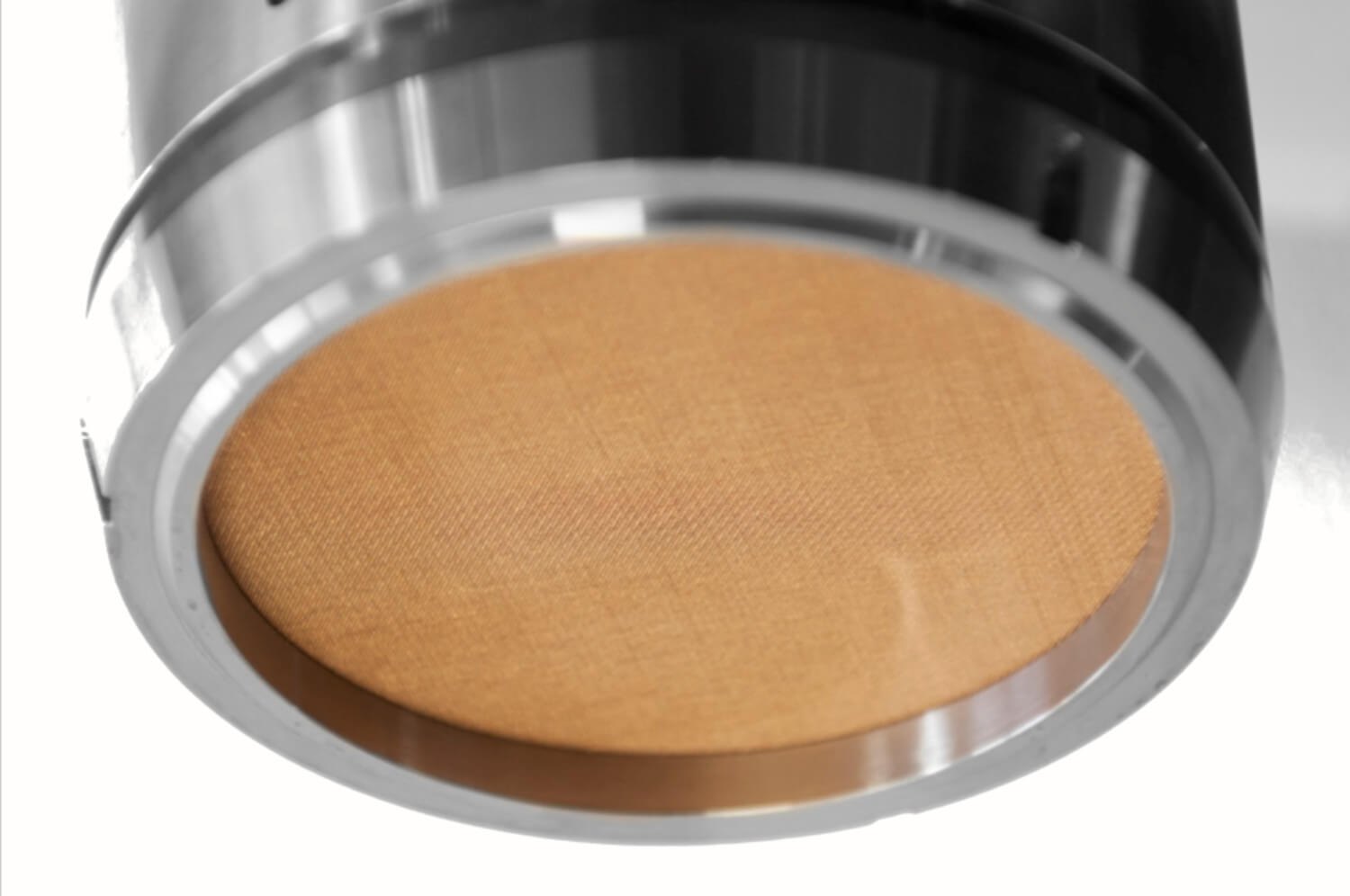

This high-quality product is characterized by the intuitive and easy operation of the device via touchscreen and PTE Austria’s own software. Only premium stainless steel, aluminum and/or POM-parts (Polyoxymethylene – a high resistant type of plastic) are used for manufacturing this testing equipment. The measurement process is done automatically and the data is displayed in a table. The easily removable filling chamber allows quick removal of the sieve with the remaining fibers for dry content analysis, etc. The nozzle is calibrated according to standards and exactly rinses 1 000 ml in 149 seconds. There are two measuring beakers with a SR° and ml-scale included in the delivery. The digital model is additionally equipped with an integrated high-precision measuring scale to repeatedly achieve the most accurate measurement results.

FEATURES
  • high-quality material and manufacturing
  • housing and drainage parts made from sturdy stainless steel
  • standardized ISO – nozzle
  • easy to operate via 10” touchscreen
  • PTE Austria’s especially developed software
  • automatic determination of the drainage curve
  • 2 measuring beakers included
  • built-in measuring scale for high accuracy
  • USB port and ethernet port

APPLICABLE STANDARDS
ISO 5267-1



CONNECTIONS

Electricity 110 – 240 V, 50/60 Hz AC
Air 400 – 600 kPa

MODELS

Code Device
P.403.D-POM Schopper Riegler digital with POM drainage chamber
P.403.D-POM-T Schopper Riegler digital with POM drainage chamber and temperature control
P.403.D-SS Schopper Riegler digital with stainless steel drainage chamber
P.403.D-SS-T Schopper Riegler digital with stainless steel drainage chamber
