Somerville shive content analyzer
To determine shives and other particles in pulp suspensions.
DEVICE DESCRIPTION

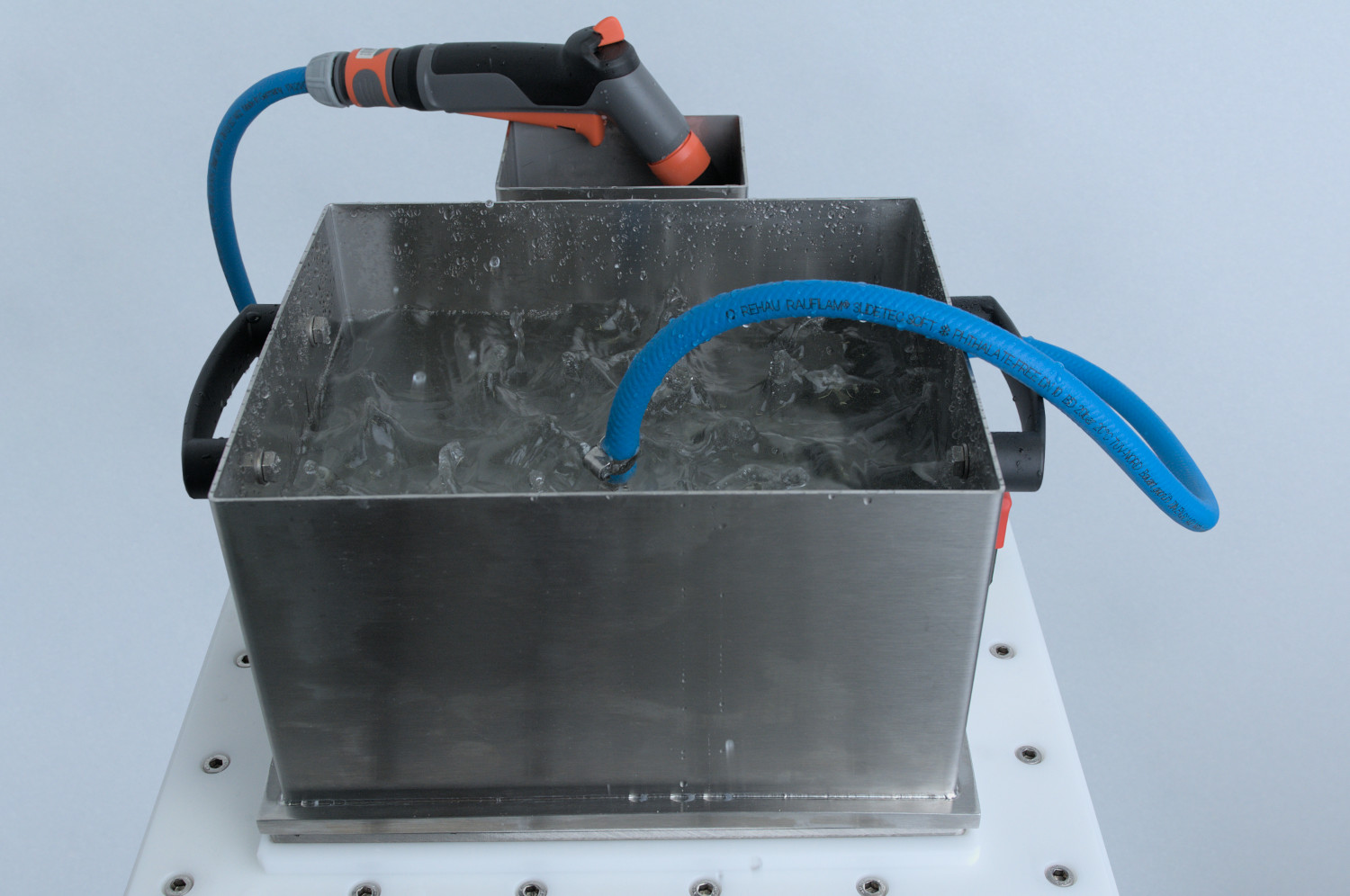

The Somerville shive content analyzer is built upon a robust stainless steel frame, which holds the membrane chamber and the container. The control box can be mounted to a wall. The wash chamber and the container are separated by an exchangeable slot plate, which holds one calibrated ring nozzle with twelve horizontal openings right in the center of the slot plate. The attached overflow container regulates the water level in the container. The slot plate can be easily removed due to quick fasteners.
FEATURES
-
top quality and manufacturing
-
sturdy construction made of corrosion resistant materials
-

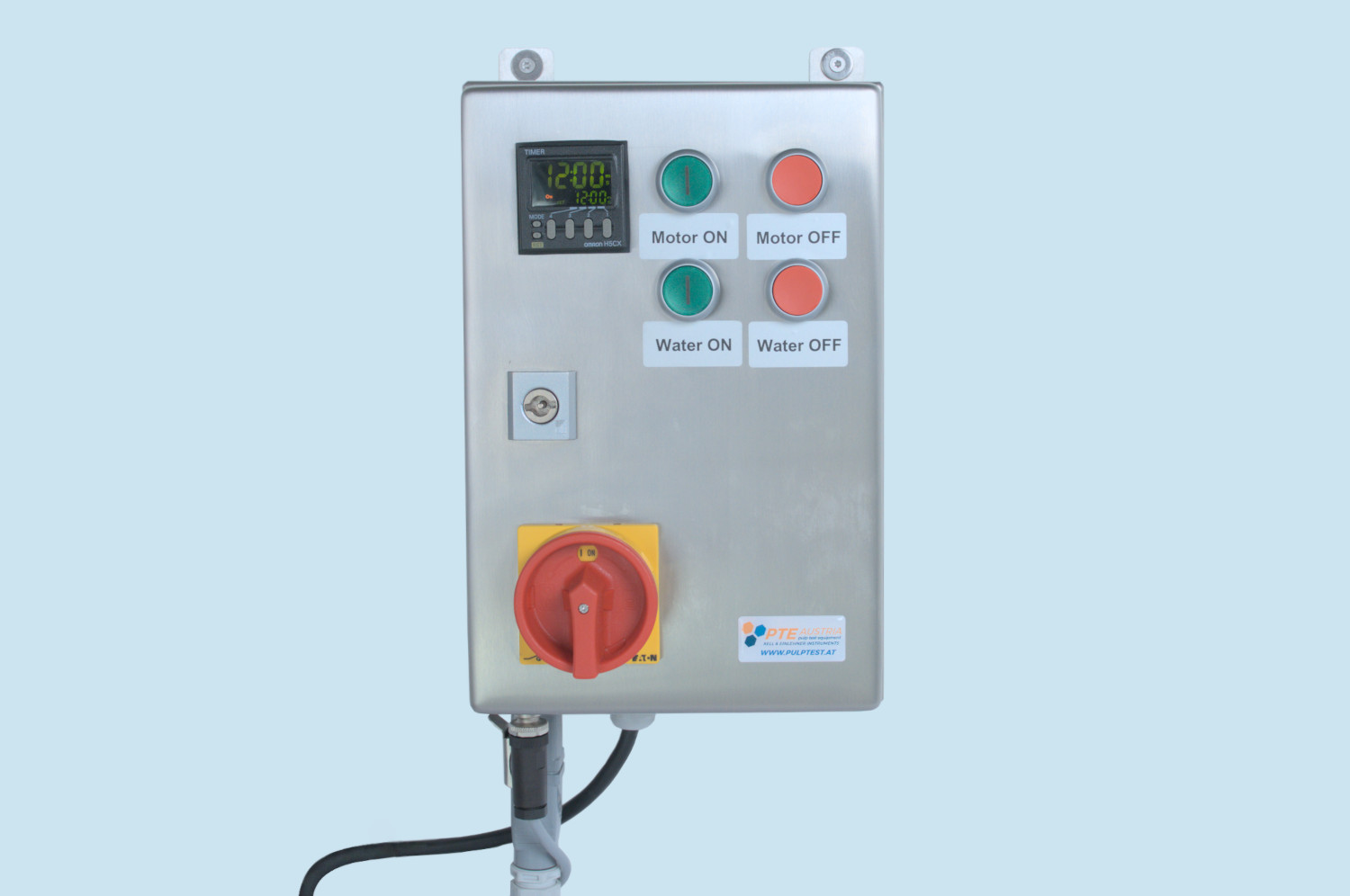

control box prepared for wall mounting
-
calibrated ring nozzle (works with 8.6 l/min at a pressure of 123.6 kPa)
-
drive motor protection class IP55 built into the stand, drives the slot screen via an eccentric mechanism at 690 – 700 rpm
-
device is delivered with one slot plate (see available slot plates)
APPLICABLE STANDARDS : TAPPI T275, UM242; PAPTAC C.11P
BauerMcNett and Somerville combined
PTE Austria recommends to combine the BauerMcNett device and the Somerville for more precision.

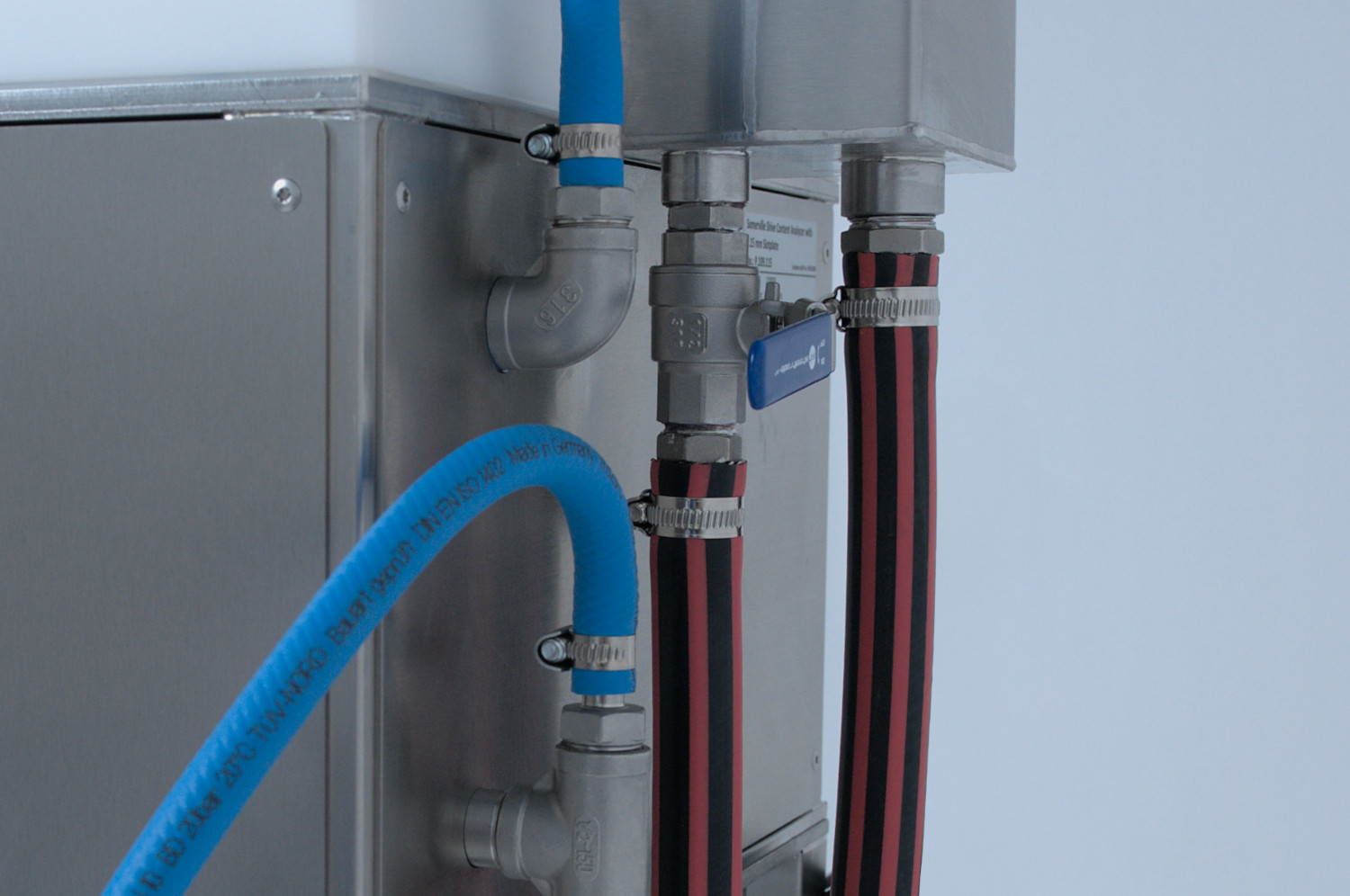

CONNECTIONS
| Electricity | 230 V, 50 Hz AC |
| Water | min. 125 kPa |
Other voltages on request possible
MODELS
| Code | Device |
|---|---|
| P.109 | Somerville without slot plate |
| P.109.108 | Somerville with 0.08 mm slot plate |
| P.109.110 | Somerville with 0.10 mm slot plate |
| P.109.115 | Somerville with 0.15 mm slot plate |
| P.109.120 | Somerville with 0.20 mm slot plate |
| P.109.125 | Somerville with 0.25 mm slot plate |
| P.109.100 | Somerville with 1 mm slot plate |
| P.109.150R | Somerville with 5 mm round hole plate |
| P.109.107R | Somerville with 0.7 mm round hole plate |
ADDITIONAL SLOT PLATES/HOLE PLATES
| Code | Item |
|---|---|
| P.109.008S | 0.08 mm slot plate |
| P.109.010S | 0.10 mm slot plate |
| P.109.015S | 0.15 mm slot plate |
| P.109.020S | 0.20 mm slot plate |
| P.109.025S | 0.25 mm slot plate |
| P.109.100S | 1mm slot plate |
| P.109.050R | 5 mm round hole plate |
| P.109.007R | 0.7 mm round hole plate |
