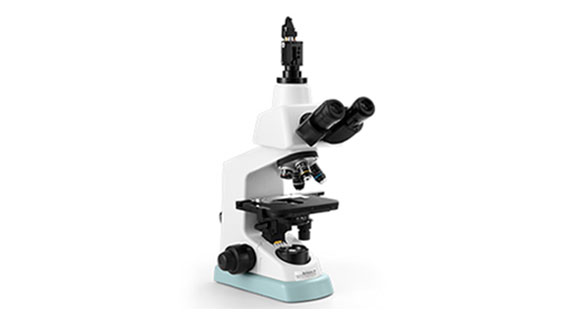

BeVision S1
The BeVision S1 combines light microscopy and image analysis, providing intuitive, accurate size and shape distributions of either powder or suspensions. At an objective magnification of up to 100x, even particles as fine as 1 μm can be efficiently analyzed and recorded by the BeVision S1.
Features and Benefits
● Measurement range: 1 to 3,000 µm
● 24 different particle size and shape parameters
● Optional models for different applications
● Both dry and wet measurements
● Results in compliance with ISO 9276-6
● A budget - friendly solution for your particle analysis
● Powerful software eases your work
● Customizable reports for different evaluation options
BeVision S1 | |
General | |
Measuring principle | Static image analysis method |
Parameters | Particle size, shape, and number |
Measurement performance | |
Measuring range | 1 – 3,000 μm |
Typical measurement time | 3 to 5 min * |
Number of size/shape classes | 100 (user adjustable) |
Special functions | SOP settings, analysis of saved images |
Main device | |

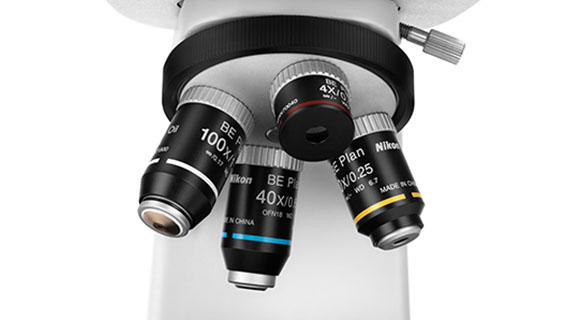

Optical lens | 4×, 10×, 40×, 100× (with 40 × digital magnification) |
Camera | 5M Px CMOS camera |
Light source | White light LED, Halogen lamp (optional) |
System parameters | |
Dimensions (L × W × H) | 20.0 × 42.0 × 55.0 cm |
Weight | 8.0 kg |
Supply voltage | 100 / 240 V, 50 / 60 Hz |
Software | |
Conformity | ISO 13321, ISO 9276 |
Reports | Customizable reporting |
* Sample and sample preparation dependent | |
BT - 910 dry powder dispersion module |
|
Dimensions (L × W × H) | 23.5 × 16.5 × 26.6 cm |
Weight | 4.3 kg |
Supply voltage | 100 / 240 V, 50 / 60 Hz |
Dispersion air pressure | ≤ - 60 kPa |
