BeVision M1

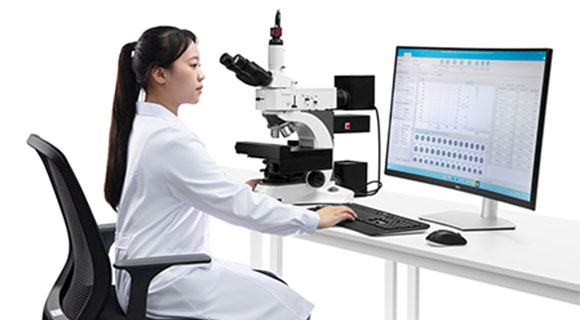

The BeVision M1 is an automated image scanning system, particularly suitable for the cleanliness analysis of particulates on filters. Equipped with a metallurgical microscope, programmable motorized stage, auto-focus function, and high-resolution CMOS, the BeVision M1 can capture and recognize each individual particle, automatically stitching the images to a large overview image.
Features and Benefits
- Measurement range: 1 - 10,000 µm
- Results in compliance with ISO 9276-6
- Highly reproducible measurements
- A high-speed CCD camera
- Powerful software eases your work

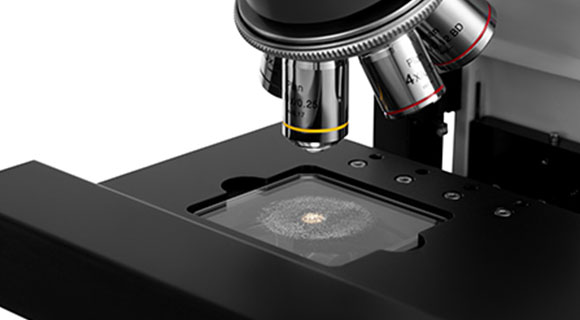

- Automatic sample stage with high position accuracy
- 24 different particle size and shape parameters
- A key part of surface cleanliness measurements
| BeVision M1 | |
| General | |
| Measuring principle | Static image analysis method, automatically scanning |
| Parameters | Particle size, shape, and number |
| Measurement performance | |
| Measuring range | 1 – 10,000 μm |
| Typical measurement time | 3 to 5 min * |
| Number of size/shape classes | 100 (user adjustable) |
| Special functions | SOP settings, analysis of saved images |
| Main device | |

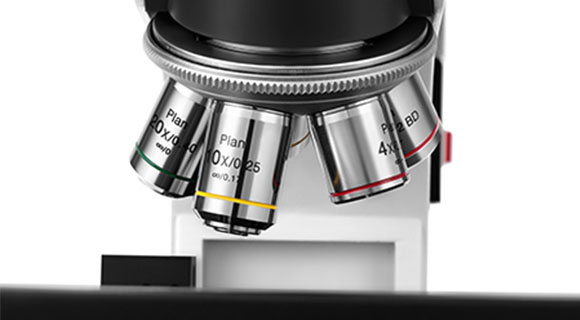

| Optical lens | 4 ×, 5 ×, 10 ×, 20 × (with 40 × digital magnification) |
| Camera | Up to 120FPS |
| Light source | Halogen lamp, Köhler illumination |
| Stage scanning range | 55 × 55 mm |
| System parameters | |
| Dimensions (L × W × H) | 35.0 × 65.0 × 67.0 cm |
| Weight | 18.7 kg |
| Supply voltage | 100 / 240 V, 50 / 60 Hz |
| Software | |
| Conformity | ISO 13321, ISO 9276, ISO 16232, ISO 4406 |
| Reports | Customizable reporting |
| * Sample and sample preparation dependent | |
| BT - 910 dry powder dispersion module |
|
| Dimensions (L × W × H) | 23.5 × 16.5 × 26.6 cm |
| Weight | 4.3 kg |
| Supply voltage | 100 / 240 V, 50 / 60 Hz |
| Dispersion air pressure | ≤ - 60 kPa |
