Temperature Logger OQ610
หมวดหมู่สินค้า: Grant Instruments
รหัส :
Ultimate data logging experience, instant connectivity. The Squirrel sq range of data loggers and software offers you the ultimate experience in data logging through powerful performance, connectivity, and innovative software. These next-generation loggers boast multiple features to meet your business and application needs.
02 มิถุนายน 2566
ผู้ชม 151 ผู้ชม

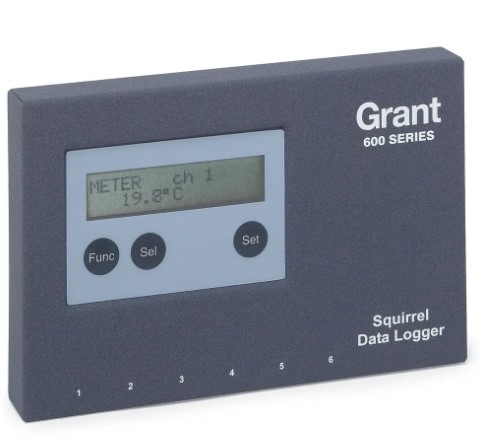

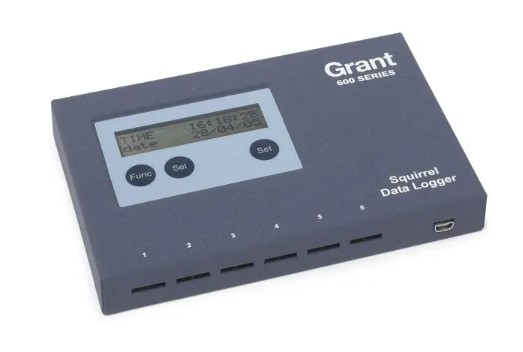

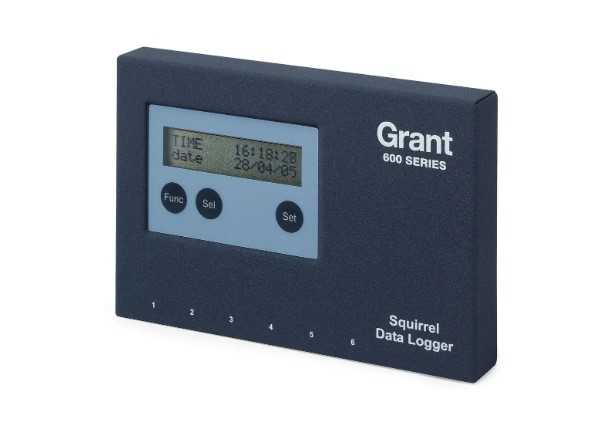

Temperature Logger OQ610
The OQ610 temperature logger is suitable for a wide range of temperature recording applications in industry, research, and development.

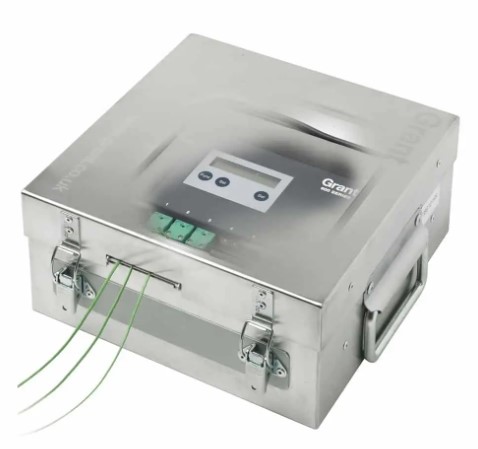

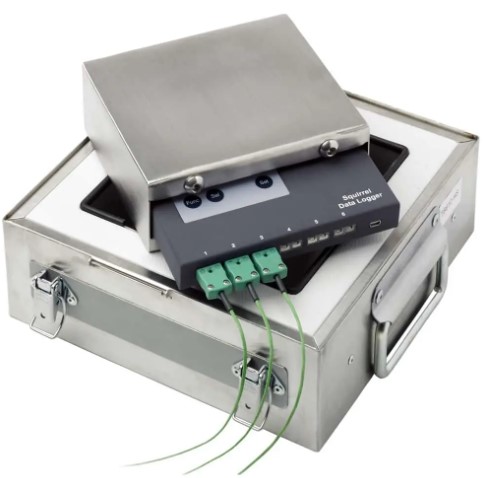

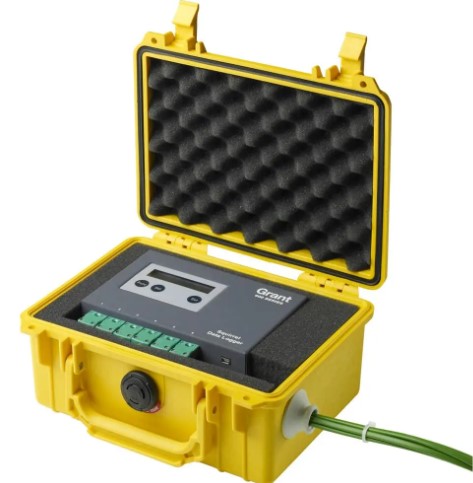

It is available as a standalone temperature logger or as part of a complete system for through process monitoring in the food and paint industries

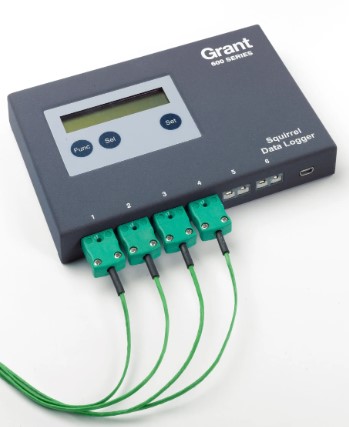

- 6 channels for type K or T thermocouples
- Compact and simple to use
- USB connectivity to PC
- High accuracy
- Extended battery life
Features
- Small, lightweight, battery operated and easily portable.
- Quick and easy to program via three push buttons and display, or via PC
- Automatically detects when sensors are present – easy set-up of up to 6 channels for use with a wide range of K or T type thermocouple probes
- Start and stop logging at specific times or at certain temperature levels
- Fast ample rates for fast process times: up to 8 samples/second
- Can provide automatic cure calculation in through process applications
- Non-volatile memory provides up to 250,000 readings of secure data
- Time and date reported with each reading
Specifications
| Accuracy | -50 to 500ºC, ±0.5ºC (-58ºF to 932ºF, ±0.9ºF) -200 to 1300ºC, ±1.0ºC (-328 to 2372ºF, ± 1.8ºF) |
| Resolution | 0.1ºC (0.18ºF) |
| Sampling rate | Fastest: eight times per second per channel Slowest: once every two hours per channel |
| Channels | 6 K or T type thermocouple |
| Temperature measuring range | -200ºC to 1300ºC (-328 to 2372ºF) (K type) -200ºC to 400ºC (-328 to 752ºF) (T type) |
| Operating environment | Temperature range -30 to 65ºC Humidity 95% |
| Memory | Flash memory of 260,000 readings |
| Maximum no. runs stored | 8 |
| USB communication | 1.1 and 2.0 compatible |
| Display | Alphanumeric display of 2 x 16 characters shows cure pass/fail, battery status, probes connected, real time readings and communication to PC |
| Power supply | Two AA cells to give 200 hours operation at default settings |
| Dimensions and weight (l x w x h) | 153 x 101 x 23mm, 450 g |
Option
 |
OQ610-S Concrete Maturity Meter
|
 |
OMK610 Paint Oven Profiling System
|
