Squirrel Loggers
Choose your parameters, set your goals
The universal channel inputs measure current, voltage, resistance, and a host of parameters that includes; temperature, humidity, pressure, flow, wind speed, and concentration. Digital channels automatically trigger or stop logging. This means you can set the logger to automatically start or stop logging if an event occurs.
Control via your app, get the data you need instantly
Communication through a dedicated mobile app comes as standard via wireless Bluetooth as well as the ability to network data loggers through the all-new communications hub, giving a host of remote operating options together with powerful data capture. Get the right data, alerts and alarms when and where you want them.
Easy to use, simple to set up
Easy to use and easily programmed, using the new SquirrelView software. The all-new Squirrel data loggers give you everything from standalone portable data logging to a fixed on-line monitoring system that measures many parameters, always giving you instant data access.

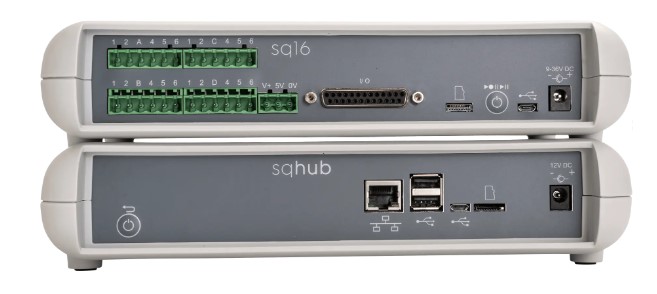

Extend your channels, stack to save space
Each logger has 8 differential channels and is easy to extend using the new SquirrelView software and sqhub. Multiple loggers may be linked, enabling up to 128 channels of data to be measured and monitored at any one time. Designed for stacking, saving you space and giving you the option to use multi channel logging.
Small in size, big in capability
Tough, technology lead loggers, designed to give fast and accurate data, store it safely and retrieve easily for precise reporting when you need it.
Specifications

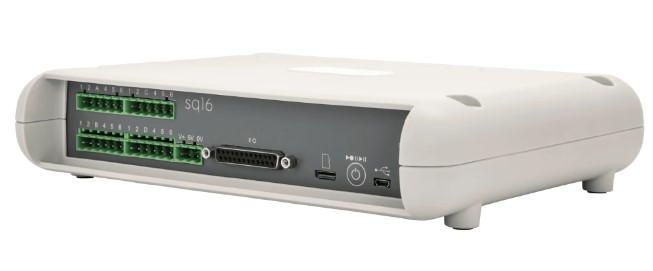

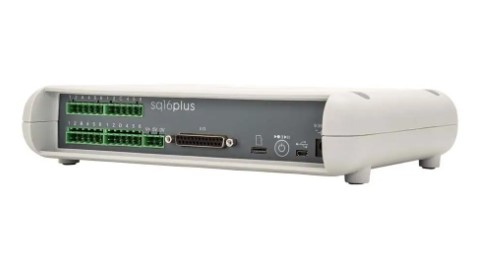

sq16 | sq16plus | sqhub | |
basic | advanced | advanced comms gateway | |
No of channels diff | 8 | 8 | N/A |
No of channels single ended | 16 | 16 | N/A |
Channel expansion | NO | YES, up to 128 channels* | YES, with loggers |
2 wire resistance | YES | YES | N/A |
3/4 wire resistance | NO | YES | N/A |
Differential voltage | -25 to 50V | -40 to 60V | N/A |
1/4, 1/2 & full bridge | YES | YES | N/A |
Single ended DC | YES | YES | N/A |
Differential DC | YES | YES | N/A |
Current Loop (4 20mA) | YES | YES | N/A |
Thermocouple S.E and diff B, C,D, J, K, N, R, S and T |
YES | YES | N/A |
Thermistor Grant & user defined | YES | YES | N/A |
Digital state input channels | YES | YES | N/A |
Digital alarm outputs | YES | YES | N/A |
Ref junction temperature | YES | YES | N/A |
Scan intervals | 0.1 sec to 24 hrs | 0.01 sec to 24 hrs | N/A |
Internal ref temp accuracy | better than 0.1°C over range 5-40°C | better than 0.1°C over range 5-40°C | N/A |
Fast channels | up to 8Hz | up to 100Hz x2 channels | N/A |
Calculated channels | 16 | 16 | N/A |
Meter mode (via smartphone) | YES | YES | YES |
Battery life | up to 6 months all channels logging every 15 mins | up to 6 months all channels logging every 15 mins | N/A |
External power | 8 to 38 V dc at 150mA when connected to an external supply | 8 to 38 V dc at 150mA when connected to an external supply | 8 to 38 V dc at 150mA when connected to an external supply |
Sensor power output | 8 to 38 V dc at 150mA when connected to an external supply | 8 to 38 V dc at 150mA when connected to an external supply | N/A |
Memory | x 4GB | x 16GB | x 16GB |
Operating environment |
-30 to +65°C, 0 to 95% RH (non-condensing) |
-30 to +65°C, 0 to 95% RH (non-condensing) |
+10 to +45°C, 0 to 95% RH (non-condensing) |
USB | YES | YES | YES |
Micro SD | YES | YES | YES |
Bluetooth | YES | YES | YES |
Ethernet | NO | NO | YES |
Wi-Fi | NO | NO | YES |
Open Thread | NO | NO | Option |
4G | NO | NO | Option |
Lora | NO | NO | Option |
Dimensions | 257mm x 206mm 57.3mm | 257mm x 206mm 57.3mm | 257mm x 206mm 57.3mm |
Weight | 1.5 kg | 1.5 kg | 1.5 kg |
