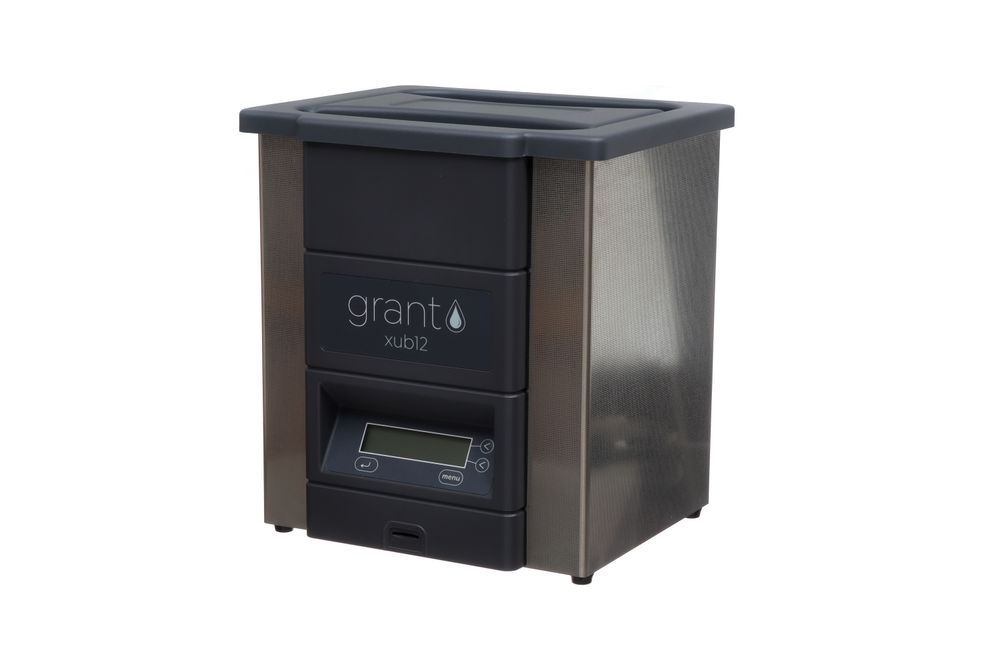

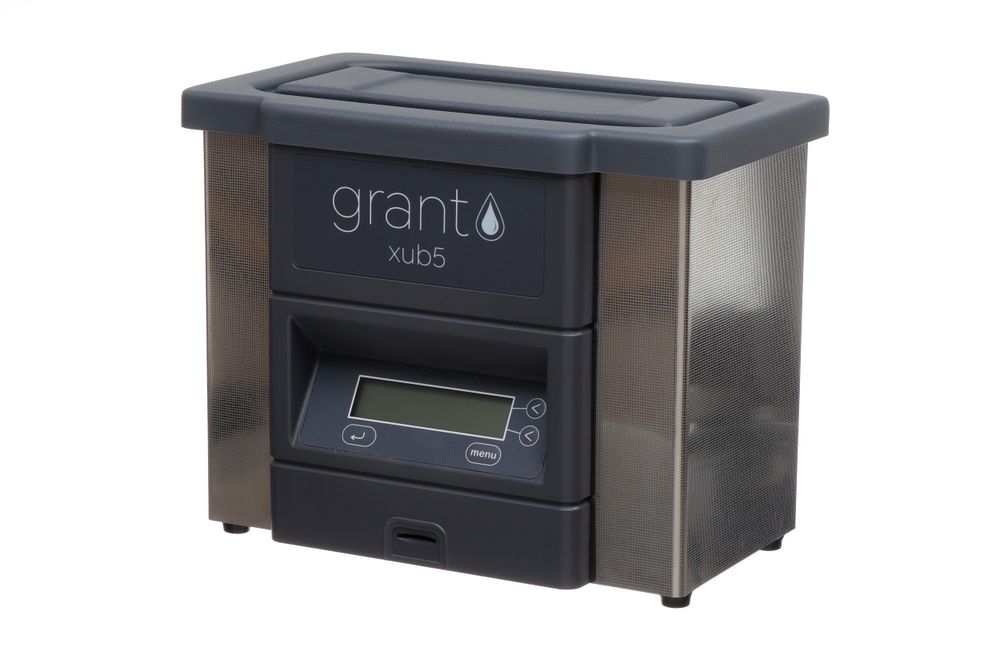

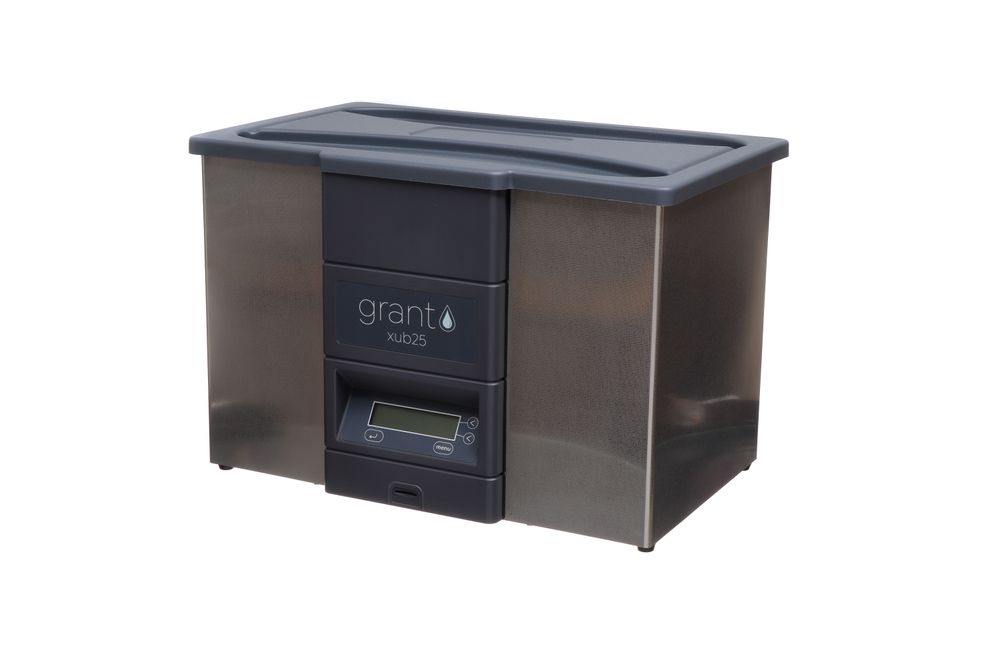

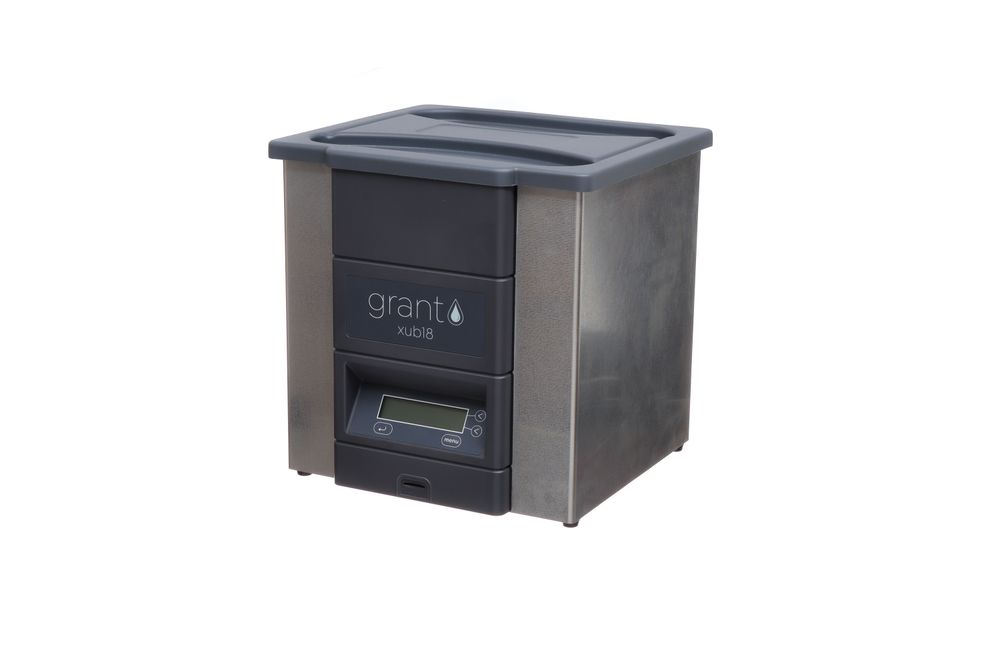

XUB Digital Ultrasonic Bath
หมวดหมู่สินค้า: Grant Instruments
รหัส :
The XUB range of digitally controlled benchtop ultrasonic baths offer consistent and reliable performance in a variety of environments.
Model : XUB5, XUB12, XUB18, XUB25
02 มิถุนายน 2566
ผู้ชม 240 ผู้ชม
XUB Digital Ultrasonic Bath
Incorporating Frequency LEAP technology to ensure uniform levels of ultrasonic activity throughout the fluid, these baths offer high performance giving an accurate and precise ultrasonic process.
- Temperature range ambient +5ºC to 70ºC
- Frequency LEAP technology provides more homogeneous ultrasonic activity throughout the tank, reducing dead spots and standing waves
- Accurate process control of time, temperature, ultrasonic activity, degas and power

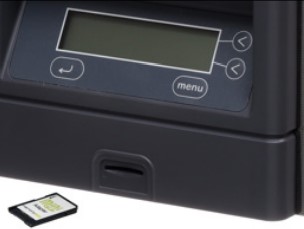

- Modern, sleek design with stainless steel basket, ABS plastic lid, M2 ultrasonic cleaning solution, SD card and drain tap included as standard
- Degassing function to remove small bubbles from liquid, reducing the overall time needed for ultrasonic operation
- A choice of 4 sizes
- Adjustable power that can be reduced from 100 to 50% in 5% increments
Applications
- Healthcare/clinical - the first stage of the decontamination process for reusable surgical instruments in dental, podiatry and general practice settings
- General use - glass, equipment, component cleaning, sonication of cytometer nozzles, dispersion and solubulisation
- Laboratories - cleaning of components, degassing fluids, mixing fluids and compounds, cell disruption, fluid dissolution
- Industrial - light manufacturing
- HPLC - degassing of solvents pre analyses
- Biopharm - dissolution of samples
Specifications
XUB5 |
XUB12 |
XUB18 |
XUB25 |
|
| Dimensions (h x d x w) | 266 x 235 x 345mm | 365 x 330 x 342mm | 365 x 385 x 375mm | 365 x 385 x 546mm |
| Working capacity | 4.5L | 12.5L | 17.5L | 25L |
| Max capacity | 5L | 14L | 18.5L | 28L |
| Temperature range | Ambient +5 to 70°C | Ambient +5 to 70°C | Ambient +5 to 70°C | Ambient +5 to 70°C |
| Ultrasonic power | 100W | 200W | 300W | 400W |
| Ultrasonic power (per litre) | 22.2W | 16W | 17W | 16W |
| Operating frequency | 32-38KHz | 32-38KHz | 32-38KHz | 32-38KHz |
| Frequency LEAP | • | • | • | • |
| Heated | • | • | • | • |
| Digital LCD controls | • | • | • | • |
| SD port with SD card | • | • | • | • |
| Timer | 0-99 minutes | 0-99 minutes | 0-99 minutes | 0-99 minutes |
| Drain outlet BSP valve | 3/8'' | 3/8'' | 3/8'' | 3/8'' |
| Heater power - 230V | 150W | 300W | 450W | 650W |
| Heater power - 120V | 125W | 365W | 480W | 600W |
| Supply voltage | 120 or 230V | 120 or 230V | 120 or 230V | 120 or 230V |
| Weight | 6.4kg | 10.5kg | 12.6kg | 15.1kg |
