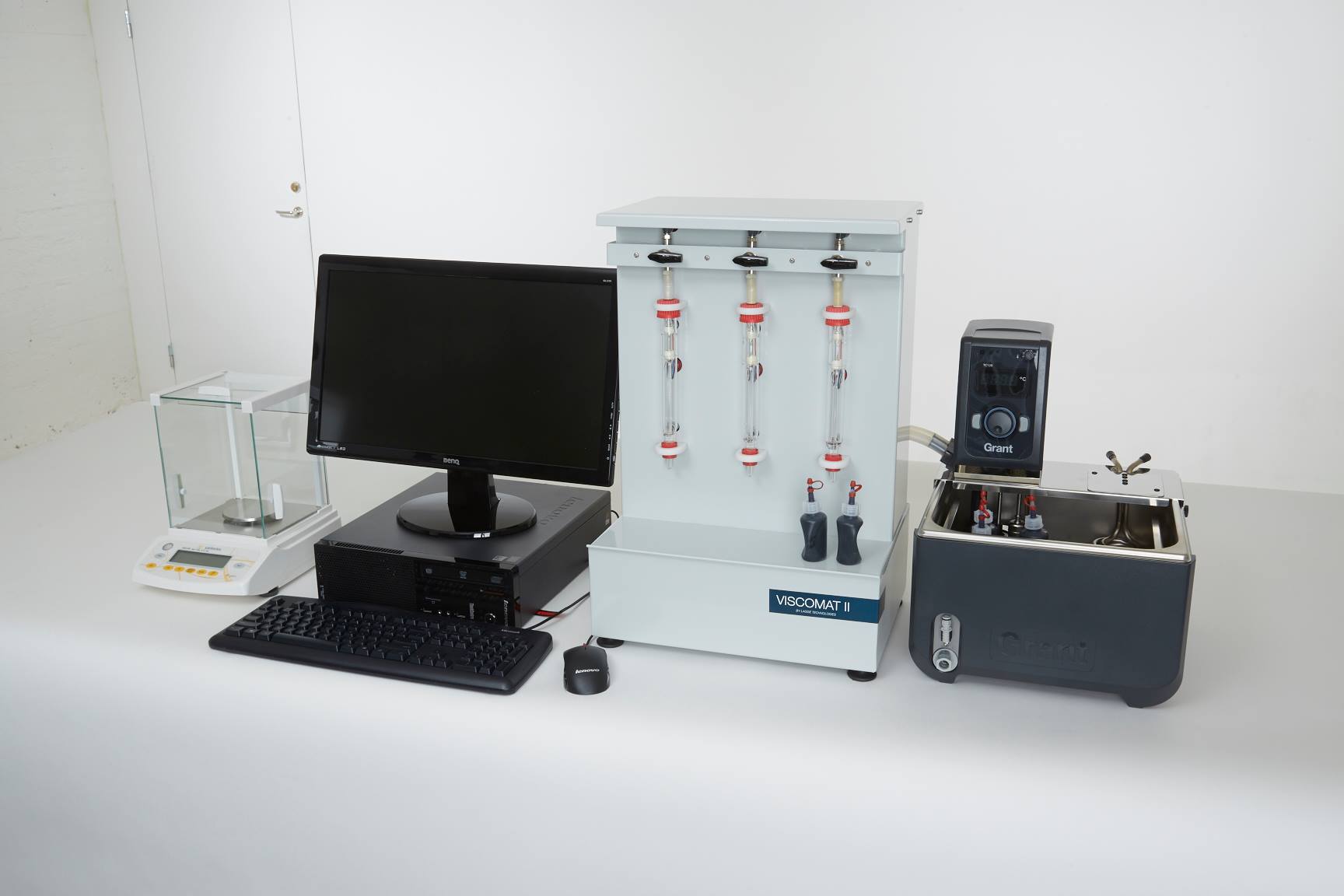

VISCOMAT II Automated Pulp Viscosity Analysis
หมวดหมู่สินค้า: Lagge Technologies
รหัส :
Viscomat II This is the only automated viscosity measurement unit on the market that is fully compliant with the ISO 5351 analysis method.
24 พฤษภาคม 2566
ผู้ชม 274 ผู้ชม
VISCOMAT II Automated Pulp Viscosity Analysis
Viscomat II This is the only automated viscosity measurement unit on the market that is fully compliant with the ISO 5351 analysis method.
- Semi-automatic determination of the viscosity of pulp according to ISO 5351 and SCAN-CM 15
- Automatic measurement, calculation and display of data
- All parts in contact with the sample are glass or platinum, for high chemical resistance. All parts and components are selected for reliability and serviceability
- All parts in contact with cooling water selected for minimal corrosion
- Built-in water circulation pump
- Two 12 mm ID tube connections to water bath (25°C)
- One 8 mm ID tube connection to vacuum source
- Computer with Microsoft Windows

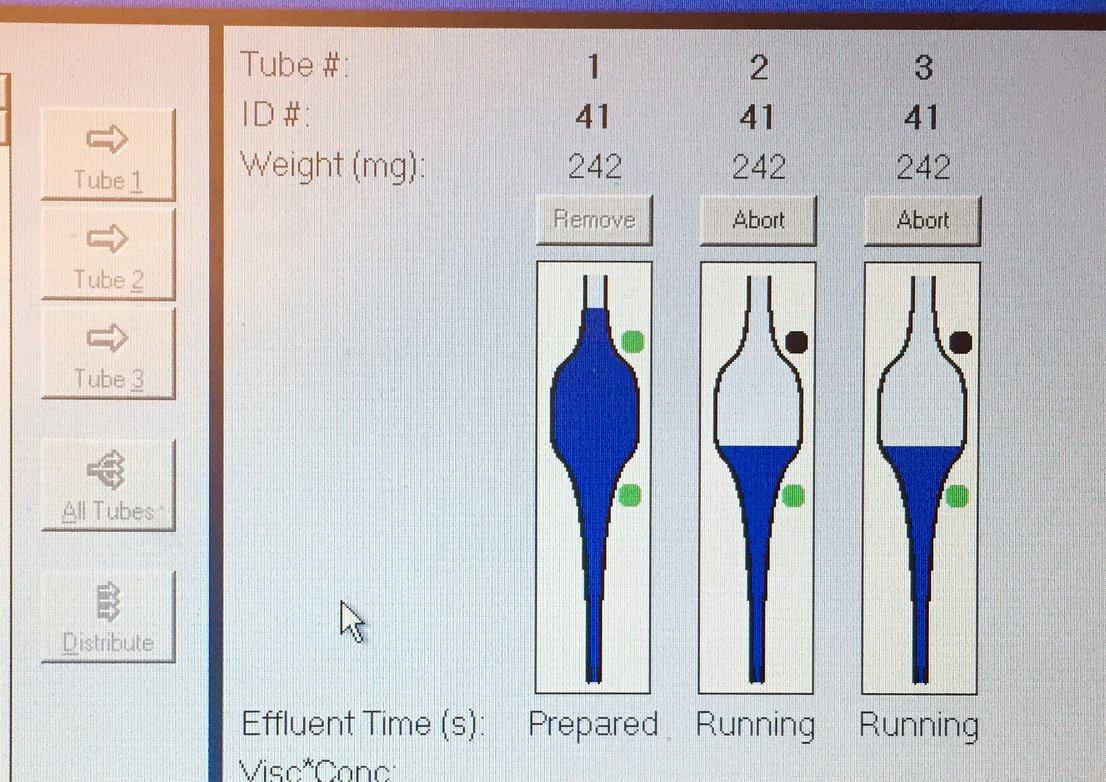

- ViscLab 2 software
- Serial (RS-232) interface to analytical balance
- USB interface to the Viscomat
- Dimensions: 400 × 300 × 567 mm (15¾ × 11⅜ × 22⅜ inches) W × D × H
- Weight: Approximately 16 kg (35 lbs)
Viscomat Accessories
- Balance
- Water bath
- TC120-ST12 This is our standard water bath Temperature range +20°C – 100°C with tap water cooling, complete with external circulation for connection to the Viscomat II and tap water cooling coil. Volume: 12 liters. Material: stainless steel. This bath has a minimal footprint (360 × 335 mm) and still room for at least 8-10 viscosity samples in the 12 L container.
- LT ecocool 100 Temperature range -10°C – +100°C, complete with external circulation for connection to the Viscomat II. Capacity: 5 liters. Material: stainless steel. This is a refrigerated bath which means that it can keep the water temperature at 25°C without requiring tap water cooling or a separate immersion cooler. - Vacuum source
- CED solution
Spare parts
Order #: | ||
---|---|---|
LV0004 | Viscometer tube : Hand made glass Viscometer tube with 3 platinum electrodes, which can be used with both Viscomat II and 32020. When ordering a Viscometer tube for use with the Viscomat II, the electrode wires are fitted with a contact for quick replacement of the tube. | |
LV0002 | Vacuum valve : Svagelok stainless steel 1-piece 40G Series vented ball valve, including standard handle. Used for both Viscomat II and 32020. | |
LV0019 | Viscomat II Water pump: Internal 12 V water pump for Viscomat II. | |
LV0008 | Viscomat II Power supply: 230 V AC → 12 V DC power supply for Viscomat II. |
