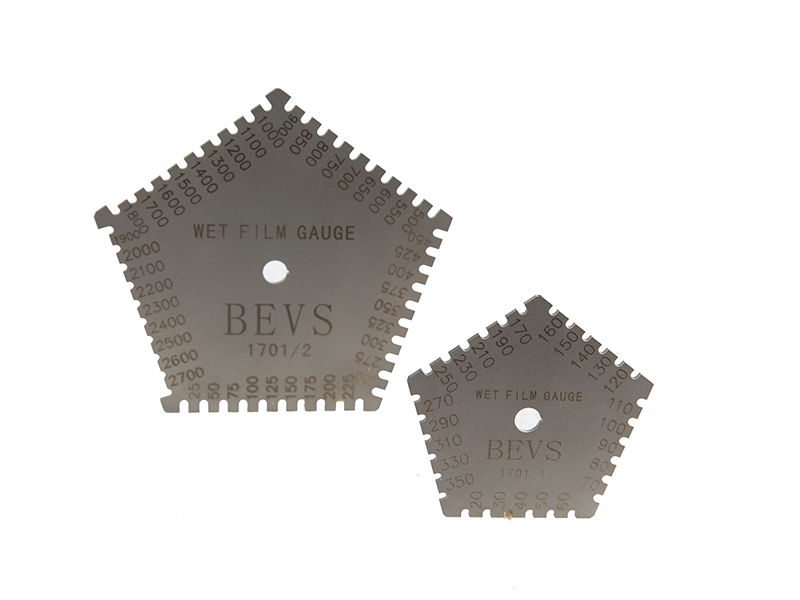

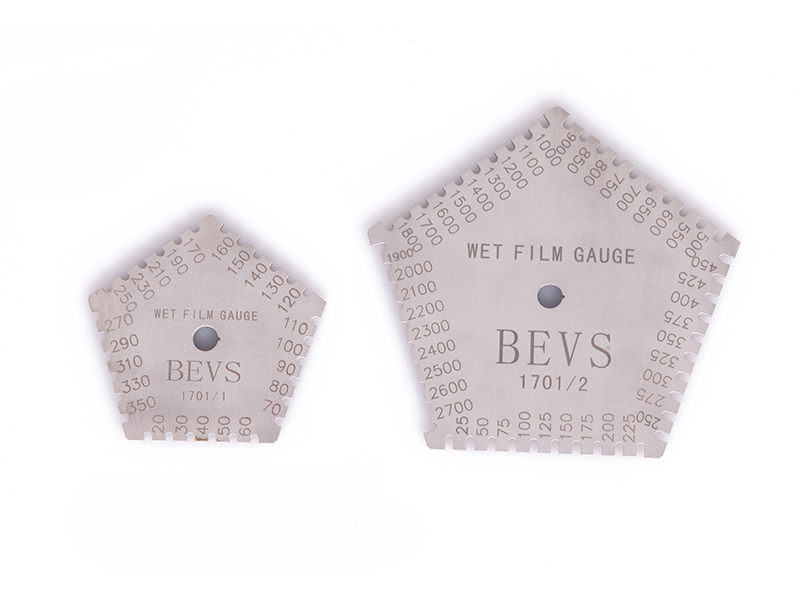

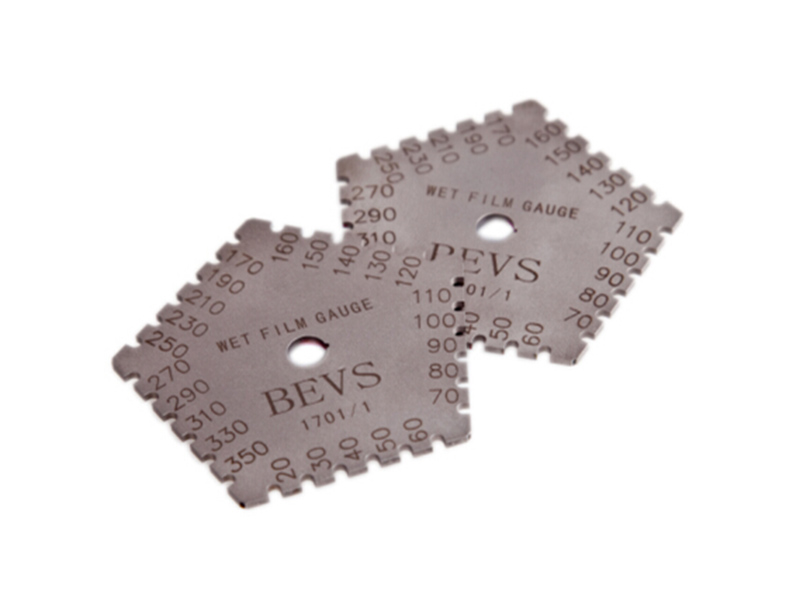

Wet Film Gauge
Introduction:
This Wet Film Gauge is used to measure the wet film thickness on smooth & flat coated surfaces such as lacquer, varnish, adhesive and other materials. It is made of high grade stainless steel, easy to clean with related solvent but hardly to damaged.
Technical Specification:
◆Shape of pentagon
◆Two scales available
◆Measuring Range (μm): 20-350 / 25-2700
◆Material: Stainless steel
Standard:
ASTM-ISO
Order Information:
BEVS 1701/1 | 20-350μm | Wet Film Gauge |
BEVS 1701/2 | 25-2700μm | Wet Film Gauge |
Other scales are available upon request

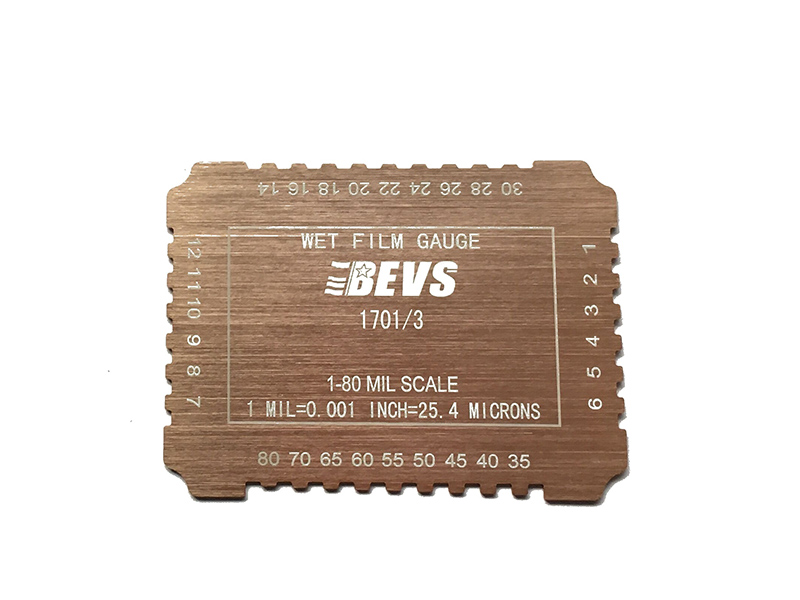

Wet Film Gauge(Aluminum)
Technical Specification:
◆Measuring Range: 25-2000 um
◆Size: 89×66×0.8mm
Order Information:
BEVS 1701/3 Wet Film Gauge
Other logo and company name can be printed upon request
